GENMAC STRONG G30IS-E3 THREE-PHASE 30 KVA DIESEL - MOTOR FPT-IVECO STAGE 3A

Name: GENMAC STRONG G30IS-E3 THREE-PHASE 30 KVA DIESEL - MOTOR FPT-IVECO STAGE 3A
Brand: GENMAC
SKU: STRONG G30IS-E3 AVR

Reference STRONG G30IS-E3 AVR

Phase Type: Single-phase / Three-phase
Maximum power LTP: 33 KVA
Maximum power LTP: 26 KW
Continuous power PRP: 30 KVA
Continuous power PRP: 24 KW
Fuel: Diesel
Frequency: 50 Hz
Voltage: 230 / 400 V
Engine: Fpt-Iveco F32SM1F
Engine rpm: 1500 rpm
Cooling: Water
Length: 2213 mm
Width: 960 mm
Height: 1258 mm
Weight: 1076 Kg
Super silenced
AVR

Download Scheda tecnica G30IS-E3-M Download Technical data G30IS-E3-M Download Ficha técnica G30IS-E3-M Download Fiche technique G30IS-E3-M

Product Details
Description

Phase: Single phase / Three phase
Maximum power three phase (KW): 26
Continuous power three phase (KW): 24
Maximum power three phase (KVA): 33
Continuous power three phase (KVA): 30
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine: FPT (IVECO) F32SM1A
Emissions Regulations: Stage 3A
Engine rpm (rpm): 1500
Speed governor: Mechanical
Engine capacity (cm³): 3200
Number cylinders: 4
Oil capacity (L): 10.5
Cooling: Water
Alternator: Mecc Alte
Length (mm): 2213
Width (mm): 960
Height (mm): 1258
Dry weight (Kg): 1075
AVR: Yes
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: No ATS
Voltage regulator: AVR
Engine manufacturer: FPT Iveco

Brand

GENMAC STRONG G30IS-E3

The GENMAC STRONG G30IS-E3 is a 30 KVA super-silenced single-phase/three-phase diesel generator with Mecc Alte alternator and AVR voltage regulator.
Thanks to its diesel fuel supply, the GENMAC STRONG G30IS-E3 can only consume 0.79 m³/h at full load and has a low environmental impact, making it one of the best in its class.
The long life and reliability of the GENMAC STRONG G30IS-E3 is due to a special control procedure during the various stages of production.
The GENMAC STRONG G30IS-E3 is suitable for applications in different contexts such as: hospitals, industries, shopping malls, hotels, airports, banks, universities, stadiums, offices, etc.

The Stage 3A engine allows the use of the generator set also for mobile use, for example for roadworks and rental services.

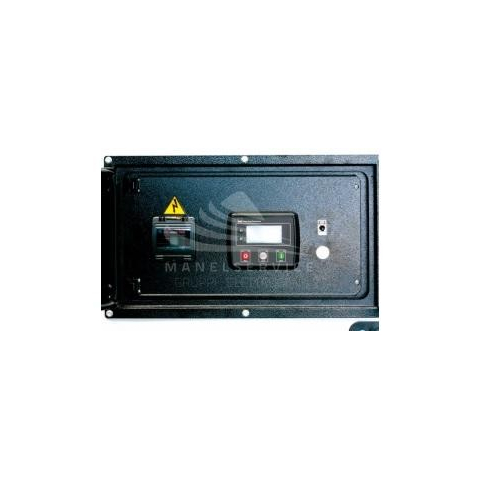

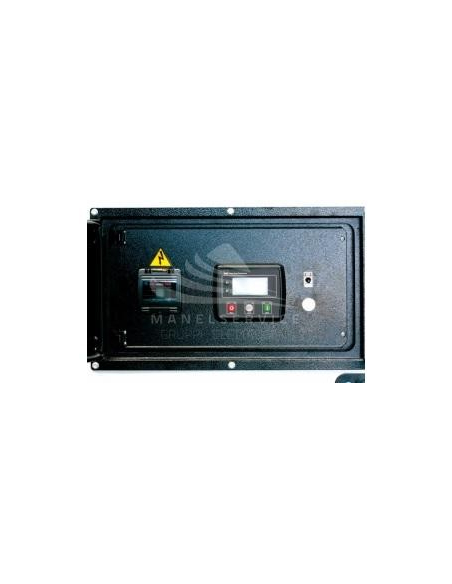

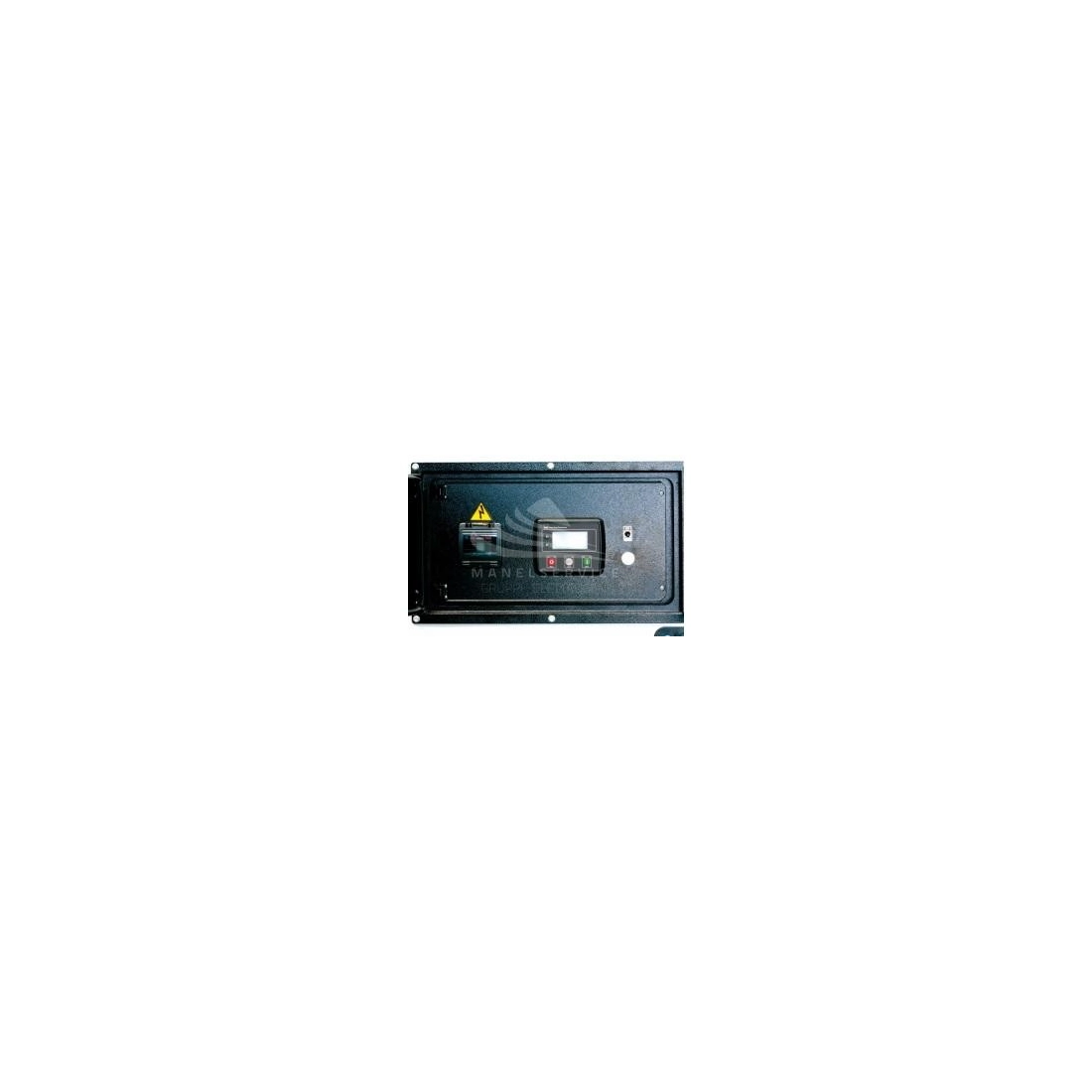

Control panel features

QFIA-4520

Protection cover

Circuit breaker

AMF controller DSE4520

- Voltmeter, Frequencymeter, Ammeter

- Generator power (kW, kV Ar, kV A & pf) monitoring

- Hour meter

- Fuel level meter

- Overload (kW & kV Ar) protection

- Low oil pressure protection

- High coolant temperature protection

- Low fuel level protection

- Battery charger alternator fault

- Rpm protection

Emergency stop button

Terminal board for ATS connection

Battery charger

On/off switch

Images and technical data are not binding.

Available only upon request

Voltage Regulator

Compound
AVR

To find out the price and purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.
