GENERATOR SET GP18S-PW-A - SOUNDPROOF - AUTOMATIC CONTROL PANEL

Reference GP18S-PW-A

Maximum three-phase power: 13.6 KW
Maximum three-phase power: 17 KVA
Fuel: Diesel
Voltage: 230/400 V
Engine: PERKINS 403A-15G2
Start: Electric
Length: 1750 mm
Width: 750 mm
Height: 1125 mm
Weight: 575 Kg

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 13.6
Continuous power three phase (KW): 12
Maximum power three phase (KVA): 17
Continuous power three phase (KVA): 15
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: Presa ausiliaria 32A 5P + Presa ausiliaria 32A 3P
Engine: PERKINS 403A-15G2
Emissions Regulations: Stationary Use
Engine rpm (rpm): 1500
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 1496
Number cylinders: 3
Cylinders' position: In line
Cooling: Water
Alternator: Mecc Alte
Poles: 4
Fuel tank capacity (L): 70
Consumption (L/h): 3.1 at 75% of the load / 4.2 at 100% of the load
Acoustic pressure: 59 dB(A) at 7 m
Length (mm): 1750
Width (mm): 750
Height (mm): 1125
Dry weight (Kg): 590
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: Optional ATS
Voltage regulator: AVR
Precision of voltage regulation: ± 1%

Brand

The 1500 rpm generator sets are designed for versatile use, from construction sites to industry, from agriculture to civil protection.
Sturdy electrowelded steel frames with built-in variable capacity tank, engines and alternators supplied by the world's leading manufacturers in the sector and state-of-the-art control units are the elements to guarantee excellent quality generating sets.
The casings are made of steel, which allows them to be used also in tropical environments. The casings guarantee maximum accessibility for maintenance and cleaning operations.

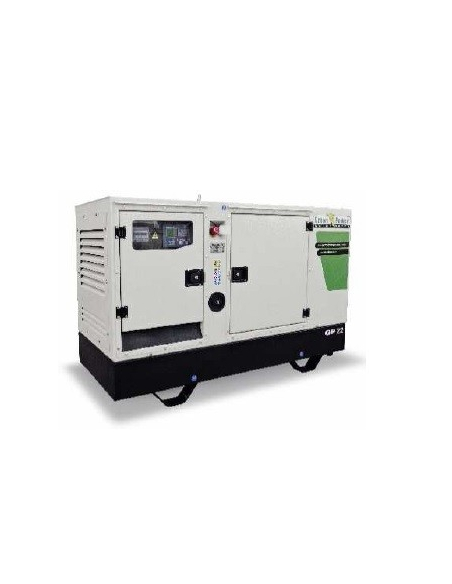

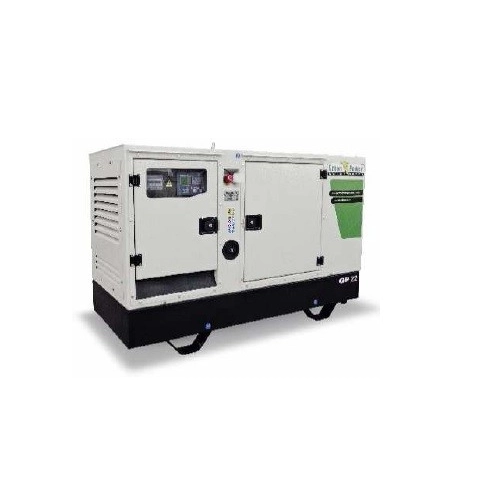

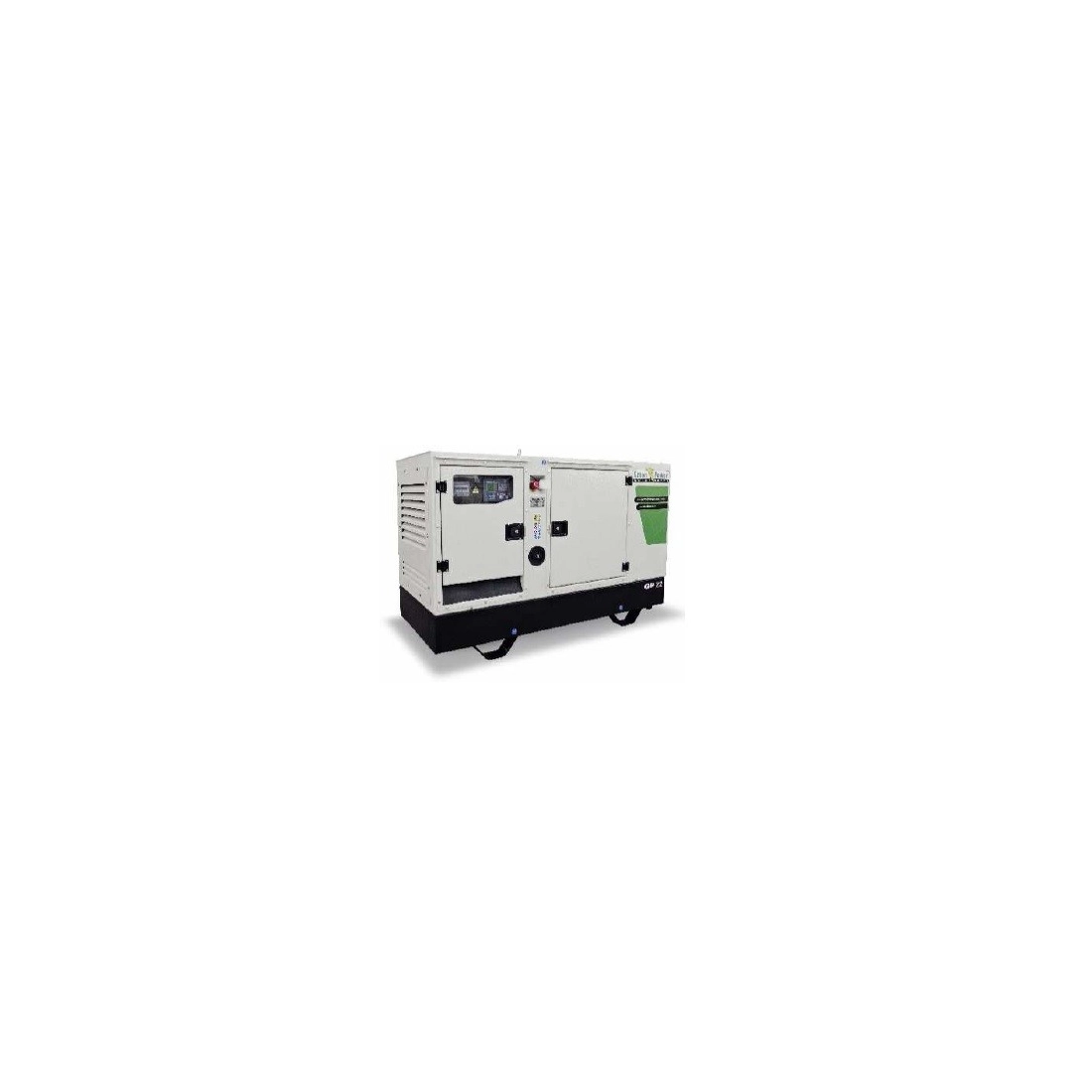

The image is purely indicative.
