GENERATOR SET GP33S-P-N-A SOUNDPROOF

Reference GP33S-P-N-A

Maximum three-phase power: 33 KVA
Maximum three-phase power: 26.4 KW
Fuel: Diesel
Voltage: 230/400 V
Engine: PERKINS 1103A-33G
Start: Electric
Length: 2100 mm
Width: 870 mm
Height: 1165 mm
Weight: 940 Kg

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 26.4
Continuous power three phase (KW): 24
Maximum power three phase (KVA): 33
Continuous power three phase (KVA): 30
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: Terminal box
Engine: PERKINS 1103A-33G, 4 stroke naturally aspirated
Emissions Regulations: Stationary Use
Engine rpm (rpm): 1500
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 3300
Number cylinders: 3
Cylinders' position: In line
Cooling: Water
Alternator: Mecc Alte
Poles: 4
Fuel tank capacity (L): 100
Consumption (L/h): 5.4 at 75% of the load
Running time (h): 18.5 at 75% of the load
Acoustic pressure: 61 dB(A) at 7 m
Length (mm): 2100
Width (mm): 900
Height (mm): 1150
Dry weight (Kg): 940
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: Optional ATS
Voltage regulator: AVR
Engine manufacturer: Perkins
Precision of voltage regulation: ± 1%

Brand

The GP33S-P-N-A 1500 rpm generator sets are designed for versatile use, from construction sites to industry, from agriculture to civil protection.
Sturdy electrowelded steel frames with built-in variable capacity tank, engines and alternators supplied by the world's leading manufacturers in the sector and state-of-the-art control units are the elements to guarantee excellent quality generators.
The casings are made of steel, which allows their use also in tropical environments. The casings of the GP33S-P-N-A guarantee maximum accessibility for maintenance and cleaning operations.

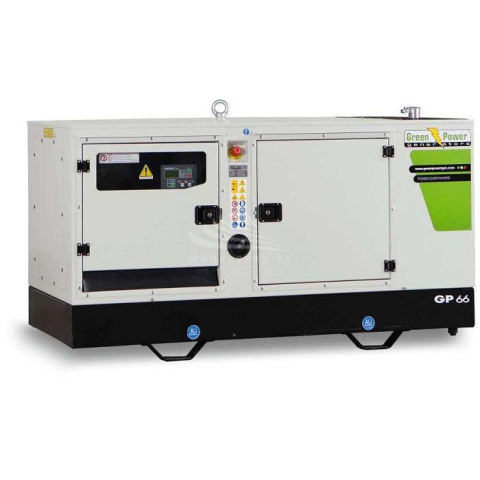

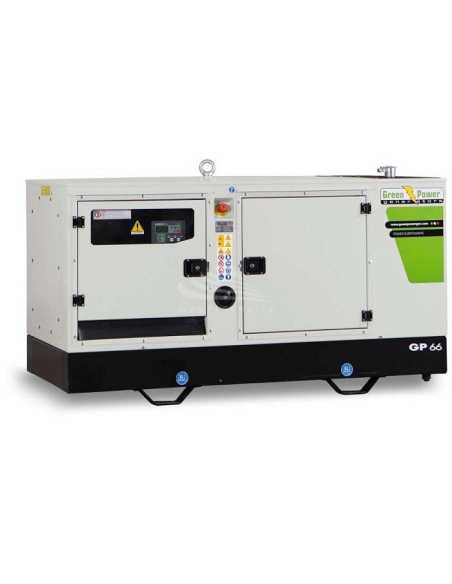

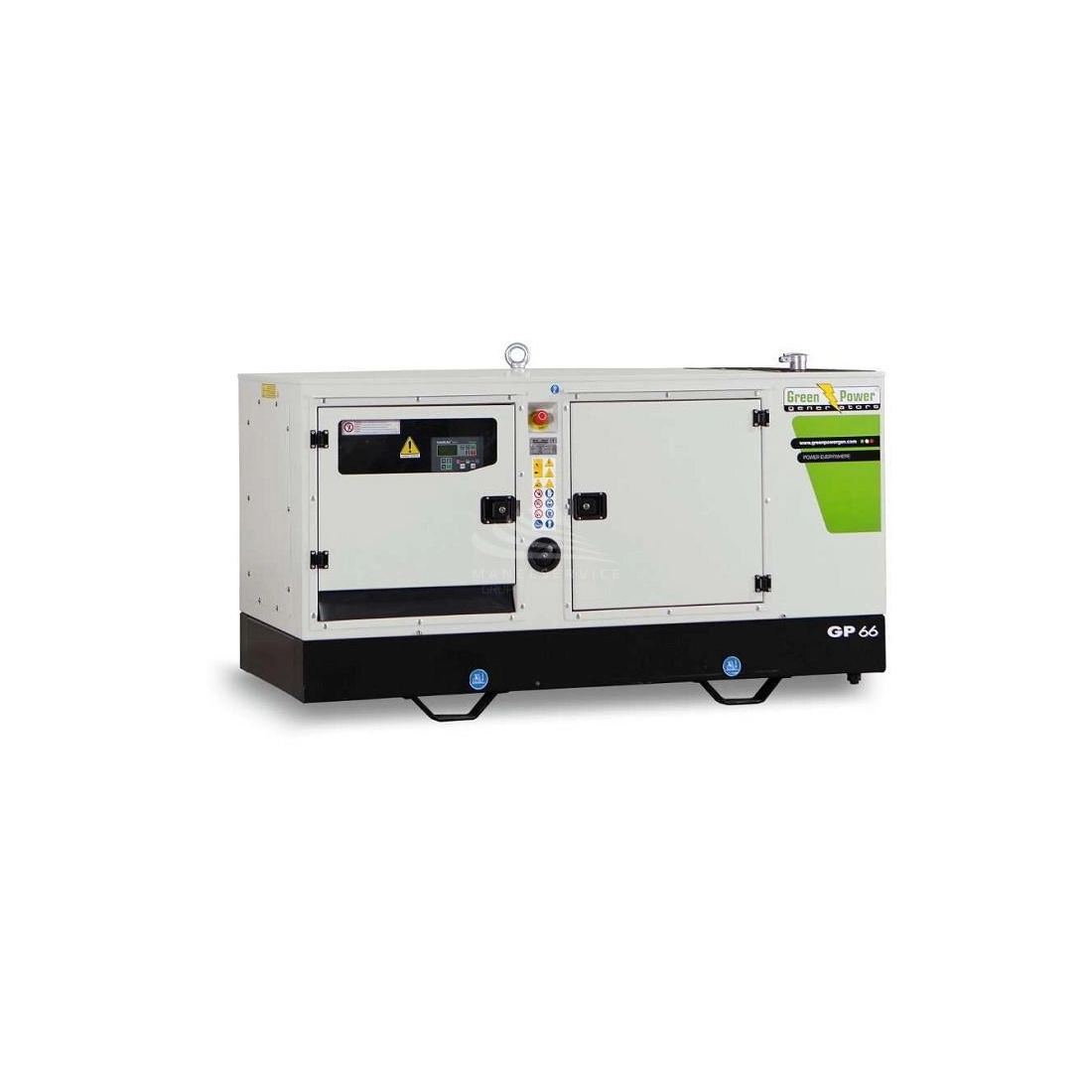

The image is purely indicative.
