CGM D11000 STAGE V

Name: CGM D11000 STAGE V
Brand: CGM
SKU: CGM D11000
Price: 4845 EUR
Availability: InStock

Reference CGM D11000

Phase type: Single phase
Maximum power: 10.9 KW
Continuous power: 9.9 KW
Maximum power: 12.1 KVA
Continuous power: 11 KVA
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz
Motor: KOHLER KD425
Engine speed: 3000 rpm
Starting: Electric
Voltage regulator system: AVR
Consumption: 2.8 Lt/h at 75% of the load
Tank capacity: 4 Lt
Autonomy: 1.4 h at 75% load
Length: 910 mm
Width: 580 mm
Height: 640 mm
Weight: 170 Kg

Download Technical data D11000

Product Details
Description

Phase: Single phase
Maximum power single phase (KW): 10.9
Continuous power single phase (KW): 9.9
Maximum power single phase (KVA): 12.1
Continuous power single phase (KVA): 11
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Sockets configuration
Engine: Kohler KD 425
Emissions Regulations: Stage 5
Engine rpm (rpm): 3000
Starting system: Elettrico
Engine capacity (cm³): 851
Number cylinders: 2
Alternator: Made in Italy
Poles: 2
Fuel tank capacity (L): 4
Consumption (L/h): 2.8
Running time (h): 1.4
Length (mm): 910
Width (mm): 580
Height (mm): 640
Dry weight (Kg): 170
Silenced: No
Super silenced: No
Product type: Generator
ATS Switch device: Optional ATS
Voltage regulator: AVR
Engine manufacturer: Kohler

Brand

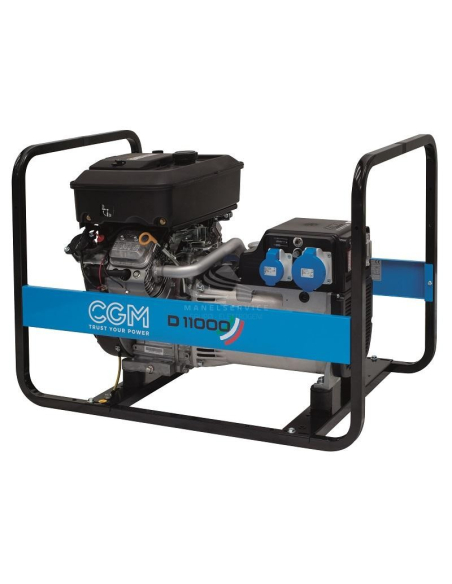

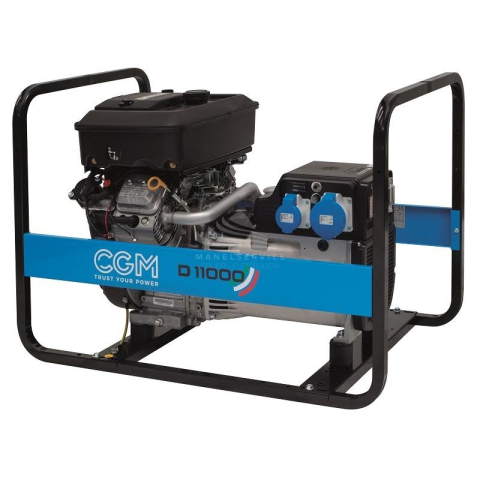

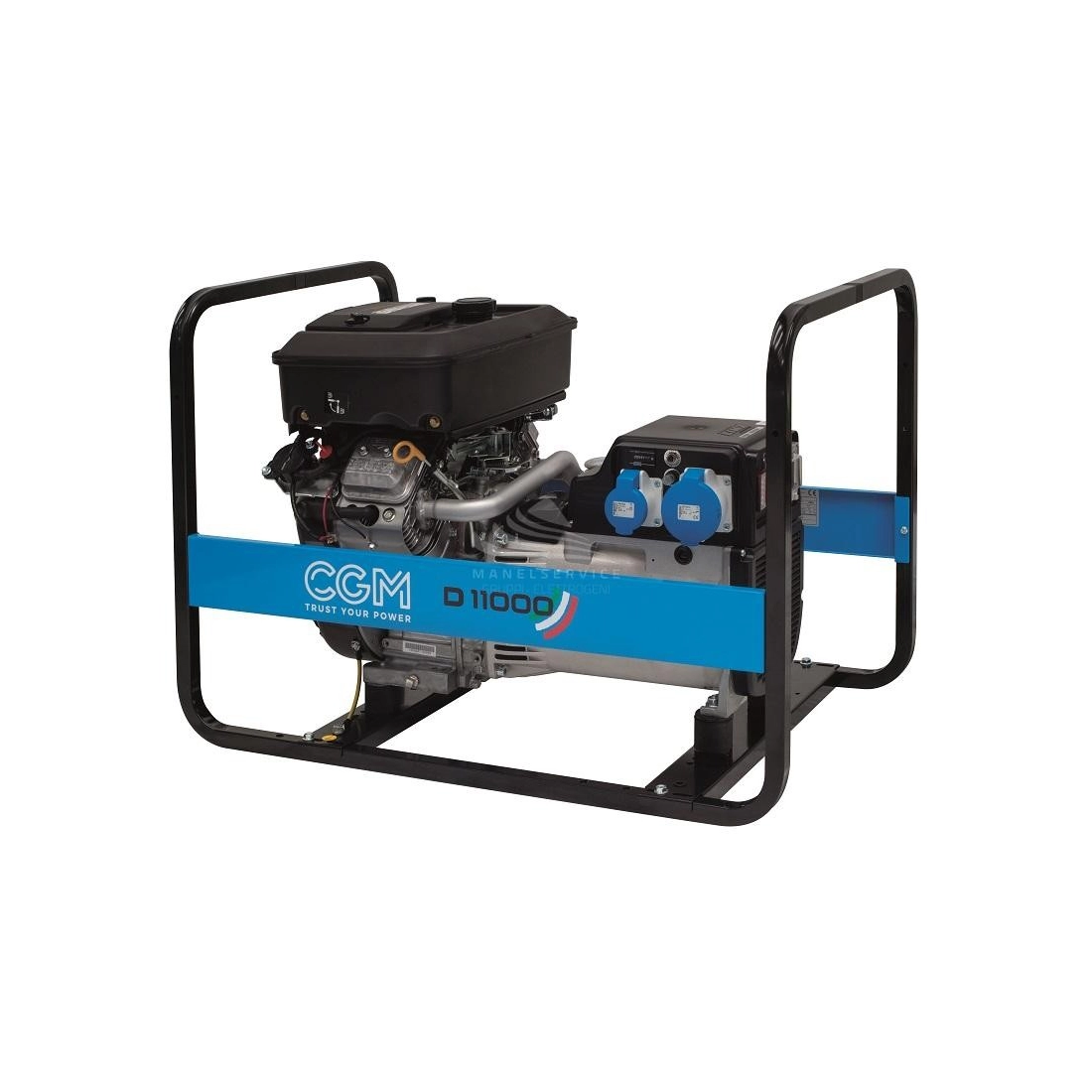

CGM D11000 single-phase 11 KVA generator

CGM D11000 single-phase 11 KVA generator set with Kohler engine powered by STAGE V diesel at 3000 rpm, compact and easy to use, mounted on a fixed base with rubber vibration dampers.

The CGM D11000 generator set consists of a Made in Italy alternator from Linz or NSM, self-excited without brushes and with AVR voltage regulator. The CGM D11000 generator set is equipped with electric start with 12V battery and with a low fuel consumption, in fact it consumes only 2,8 liters/hour at 75% of the load.

This CGM D11000 generator set is perfect for outdoor use such as for hobbyist use. Also available with a panel for automatic start with ATS.
The CGM D11000 is part of the CLASSIC DIESEL series and are characterized by lower consumption and a longer life expectancy than the gasoline powered range.

The CGM D11000 at 3000 rpm is suitable for emergency use only. It is not recommended for use for more than 6 hours continuously and for more than 500 hours per year.

Technical characteristics of CGM D11000:
Phase type: Single phase
Maximum power: 10.9 KW
Continuous power: 9.9 KW
Maximum power: 12.1 KVA
Continuous power: 11 KVA
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz
Motor: KOHLER KD425
Engine speed: 3000 rpm
Starting: Electric
Voltage regulator system: AVR
Consumption: 2.8 Lt/h at 75% of the load
Tank capacity: 4 Lt
Autonomy: 1.4 h at 75% load
Length: 910 mm
Width: 580 mm
Height: 640 mm
Weight: 170 Kg

Discover the full range reserved for generators of CGM or other top brands by browsing our catalog to find the one that best suits your needs.

Images and technical data are not binding.
