CGM C13000T
CGM C13000T
Type of phase: Single-phase / Three-phase
Maximum single-phase power: 4.4 KVA / 3.5KW
Continuous single-phase power: 4 KVA / 3.2 KW
Maximum three-phase power: 13.2 KVA / 10.5 KW
Continuous three-phase power: 12 KVA / 9.6 KW
Fuel: Petrol
Voltage: 230/400 V
Frequency: 50 Hz
Motor: BRIGGS & STRATTON 18HP
Engine revolutions: 3000 rpm
Starting: Manual
Voltage regulator system: AVR
Consumption: 4.3 Lt / h at 75% of the load
Capacity tank: 8.5 Lt
Autonomy: 2 h at 75% of the load
Length: 910 mm
Width: 580 mm
Height: 640 mm
Weight: 111 Kg
- Phase
- Single phase / Three phase
- Maximum power single phase (KW)
- 3.5
- Continuous power single phase (KW)
- 3.2
- Maximum power single phase (KVA)
- Continuous power single phase (KVA)
- 4
- Maximum power three phase (KW)
- Continuous power three phase (KW)
- Maximum power three phase (KVA)
- 13.2
- Continuous power three phase (KVA)
- Fuel
- Gasoline
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Sockets configuration
- Engine
- Briggs&Stratton
- Emissions Regulations
- Stage 5
- Engine rpm (rpm)
- 3000
- Starting system
- Manuale
- Engine capacity (cm³)
- 570
- Number cylinders
- 2
- Alternator
- Made in Italy
- Poles
- 2
- Fuel tank capacity (L)
- Consumption (L/h)
- 4.3
- Running time (h)
- 2
- Length (mm)
- 910
- Width (mm)
- 580
- Height (mm)
- 640
- Dry weight (Kg)
- 111
- Silenced
- No
- Super silenced
- No
- Product type
- Generator
- ATS Switch device
- No ATS
- Voltage regulator
- AVR
- Engine manufacturer
- Briggs&Stratton
- Brand
-

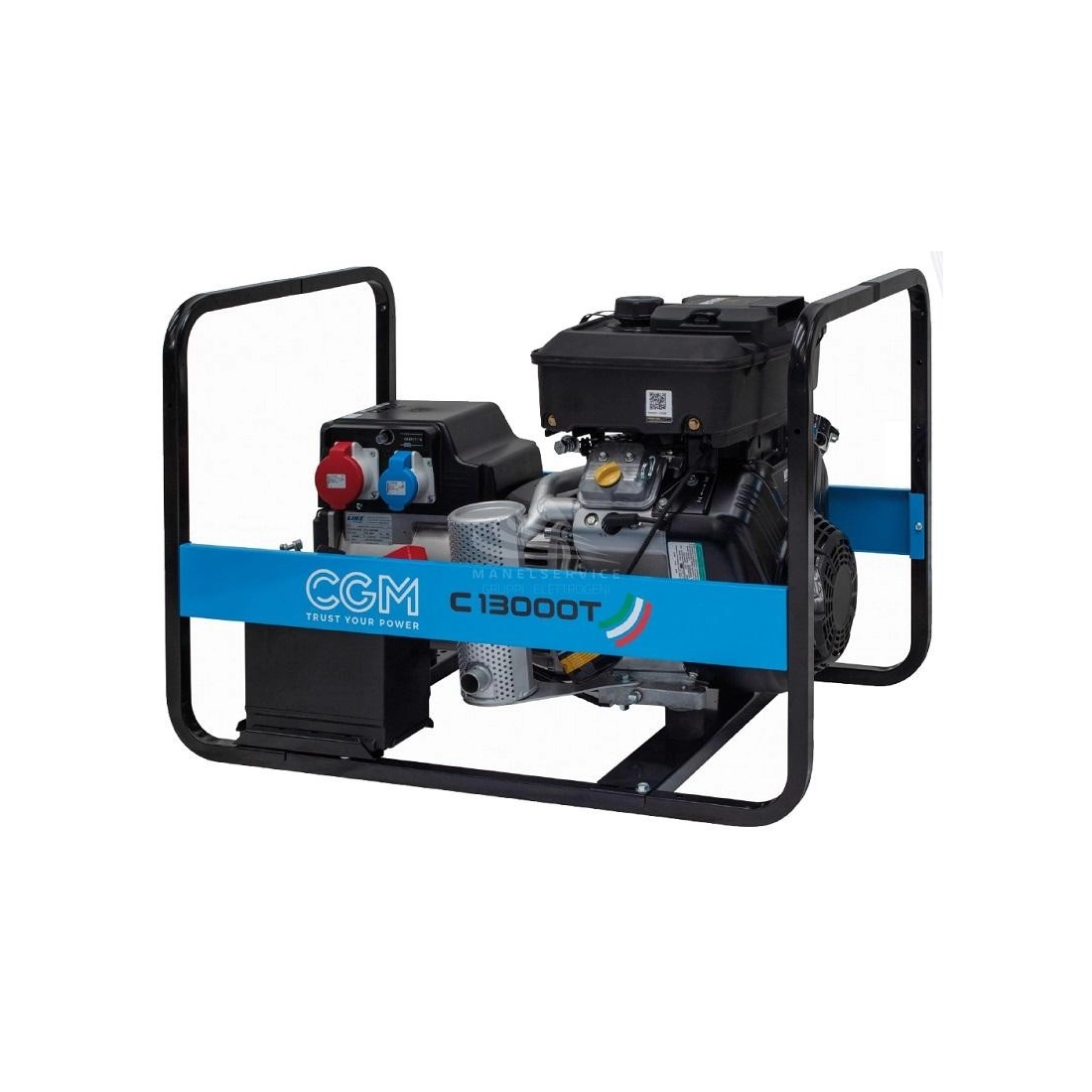

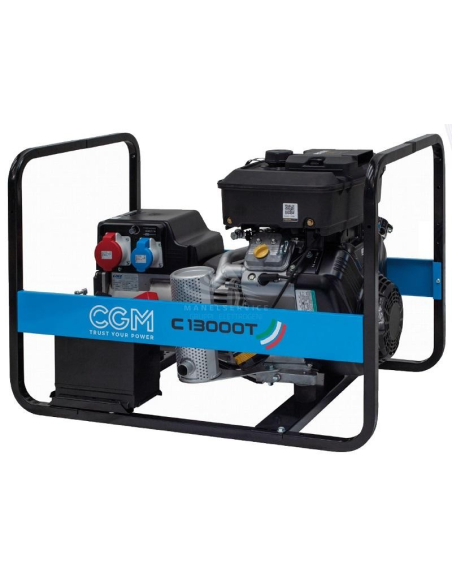

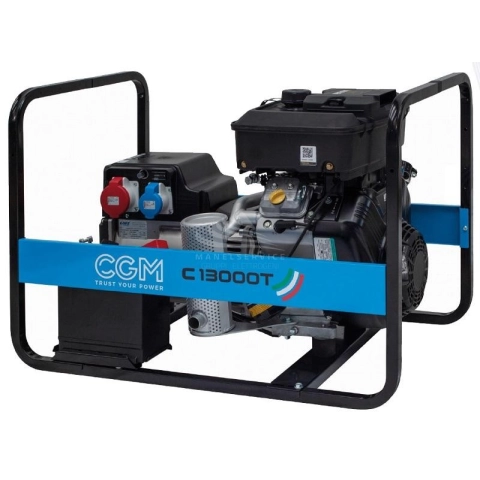

CGM C13000T Three-phase generating set 12KVA
CGM C13000T Three-phase generator 12KVA with Briggs & Stratton engine powered by STAGE V gasoline at 3000 rpm, compact and easy to use, mounted on a fixed base with rubber vibration dampers.
The CGM C13000T generator is composed of a Made in Italy alternator from Linz or NSM, self-excited with brushes and with AVR voltage regulator.
The CGM C13000T generator is equipped with manual recoil start and low fuel consumption, in fact it consumes only 4.3 liters/hour at 75% of the load for an autonomy of up to 3 hours of operation.
This CGM C13000T is perfect for outdoor use such as hobby use. It is also available in a version with electric key start and with a panel for automatic start with ATS.
The CGM C13000T is part of the CLASSIC series and is easily adaptable to a variety of uses such as homes, mobile facilities, campgrounds, hobbies, construction sites, etc. The CGM C13000T generator set at 3000 rpm is suitable for emergency use only. It is not recommended to be used for more than 6 hours continuously and for more than 500 hours per year.
Technical specifications of CGM C13000T:
Type of phase: Singlephase / Threephase
Maximum singlephase power: 4.4 KVA / 3.5KW
Continuous singlephase power: 4 KVA / 3.2 KW
Maximum threephase power: 13.2 KVA / 10.5 KW
Continuous threephase power: 12 KVA / 9.6 KW
Fuel: Petrol
Voltage: 230/400 V
Frequency: 50 Hz
Motor: BRIGGS & STRATTON 18HP
Engine revolutions: 3000 rpm
Starting: Manual
Voltage regulator system: AVR
Consumption: 4.3 Lt / h at 75% of the load
Capacity tank: 8.5 Lt
Autonomy: 2 h at 75% of the load
Length: 910 mm
Width: 580 mm
Height: 640 mm
Weight: 111 Kg
Discover the full range reserved for generator of CGM or other top brands by browsing our catalog to find the one that best suits your needs.
Images and technical data are not binding.
The CGM C13000T generator is equipped with manual start
