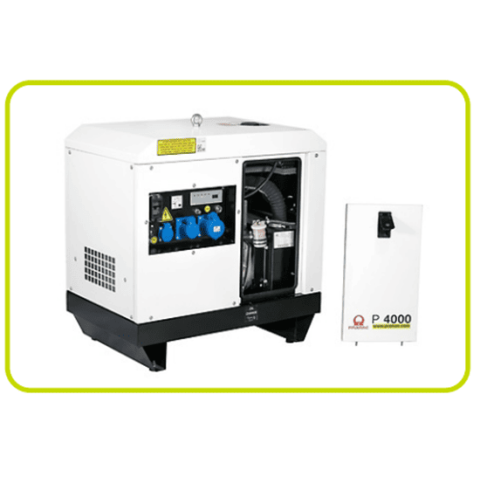

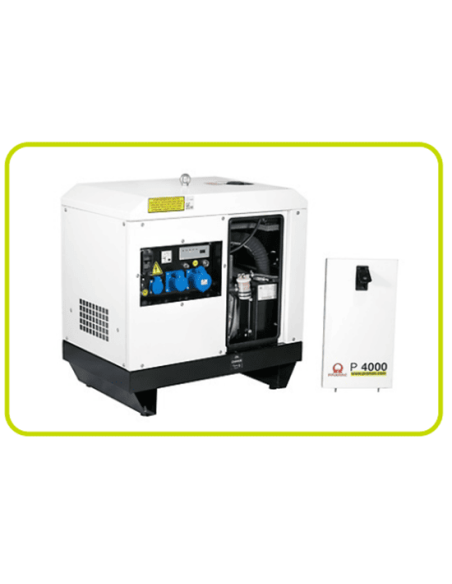

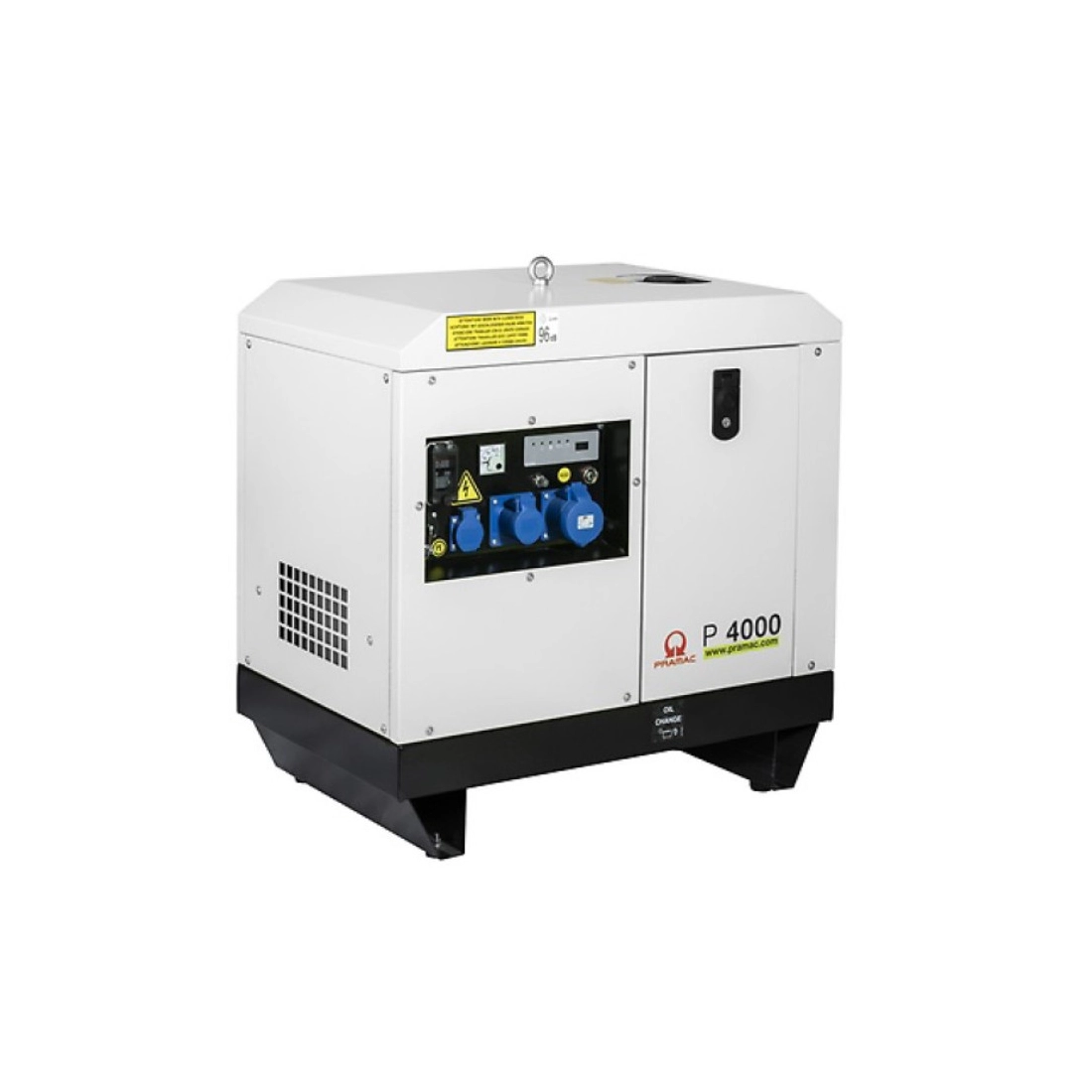

PRAMAC P4000 Generator Single-phase 3.5kVA STAGEV

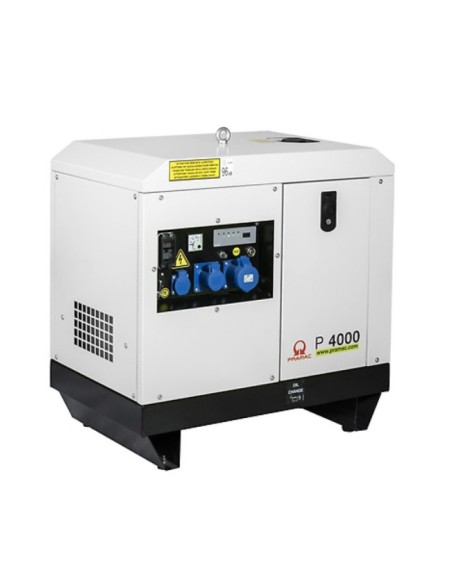

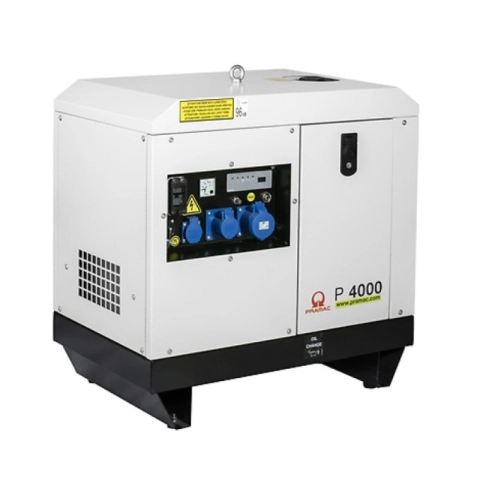

PRAMAC P4000 SINGLE-PHASE GENERATOR 3.5 KVA STAGE V

The PRAMAC P4000 single-phase generator with Yanmar L70V STAGE V diesel engine delivers 3.5 KVA of power and comes with capacitor voltage regulation (optional AVR).

The generator adapts perfectly to a wide range of uses thanks to the transport kit, which allows safe and easy relocation. With its enlarged 18 L tank, this generator offers an outstanding runtime of 15 h at 75% load.
These generators feature high-quality components, are lightweight and compact, easy to use, and boast a modern design with practical electric start.

The PRAMAC P4000 generator is equipped with electric start or automatic start via an ATS panel, enabling automatic start-up in the event of a blackout.

STAGE V EMISSIONS STANDARD

The generator set is equipped with a “mobile” STAGE V engine, as required by European Regulation 2016/1628. These new engines exponentially reduce particulate and nitrogen oxide emissions released into the environment, ensuring a 200% reduction in environmental impact compared to standard engines.

AUTOMATIC TRANSFER SWITCH (ATS) START PANEL (OPTIONAL)

The generator set is prearranged for use with an Automatic Transfer Switch (ATS) panel. Thanks to this, you no longer need to worry about blackouts: if the mains power fails, the panel can automatically start the generator so you can continue your activities without losing work data.

TECHNICAL FEATURES PRAMAC P4000 Single-Phase Generator 3.5kVA:
Phase type: Single-phase
Continuous power: 3.24 KVA / 2.92 KW
Maximum power: 3.57 KVA / 3.21 KW

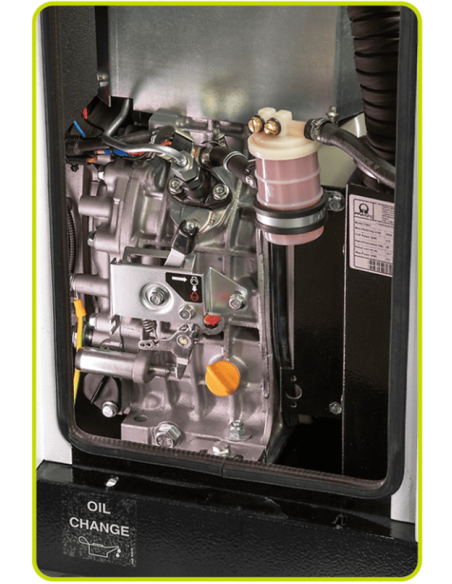

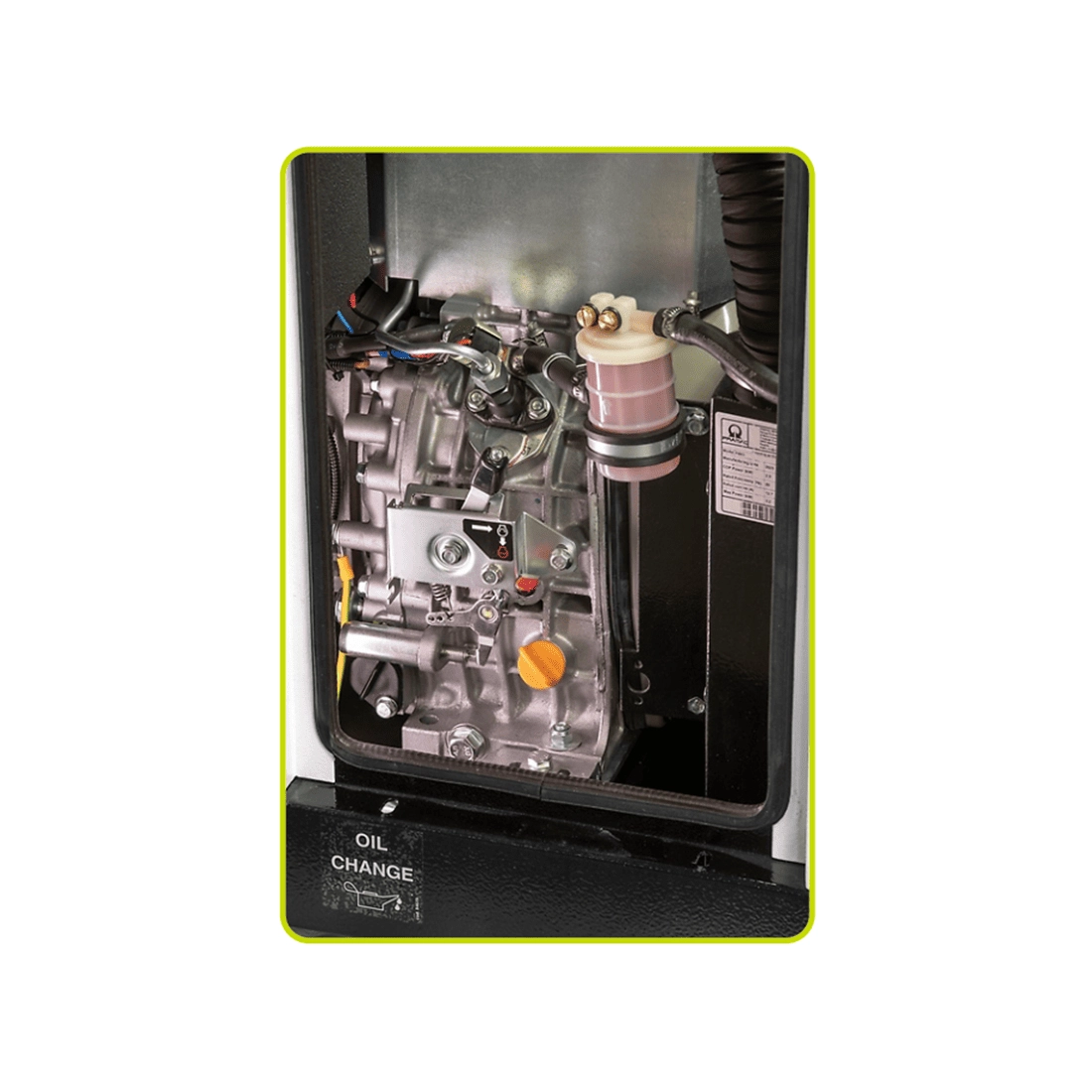

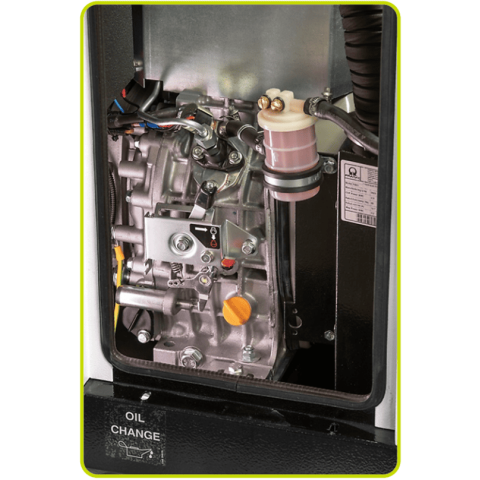

Engine: Yanmar L70V
Engine speed: 3000 rpm
Emissions standard: STAGE V
Starting: Electric
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz
Voltage regulation: Capacitor (optional AVR)

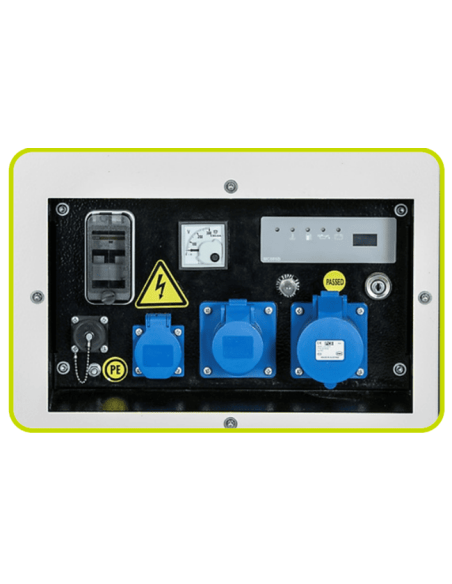

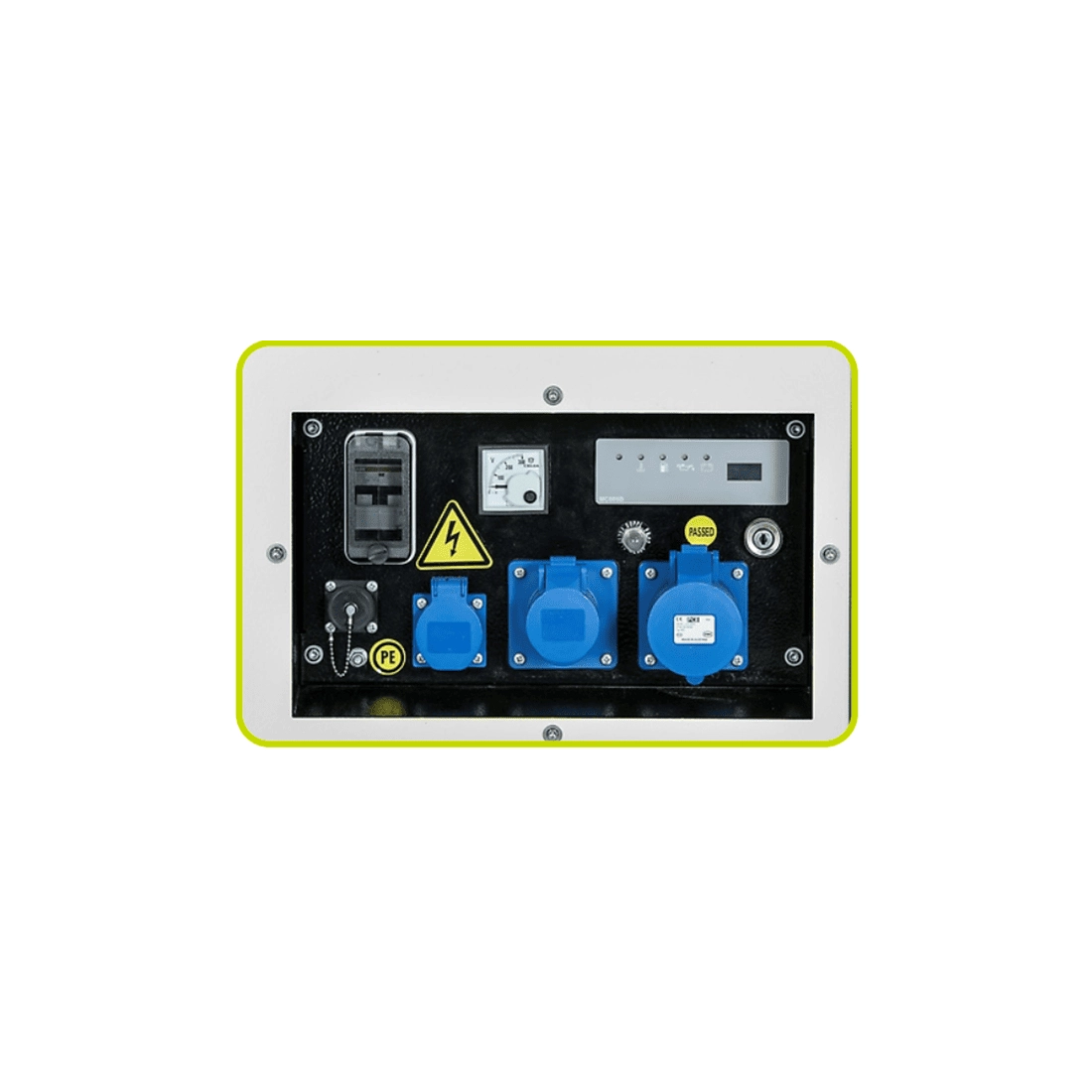

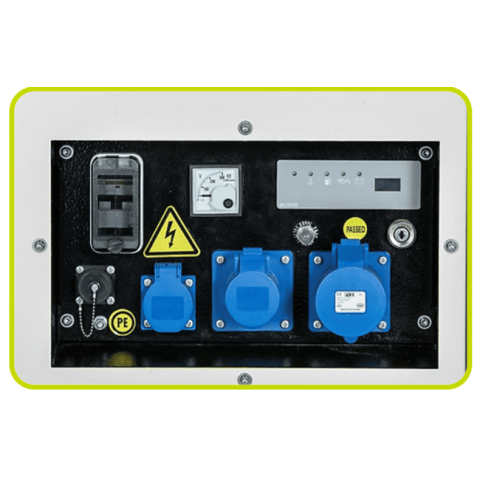

Socket panel: 1 x SCHUKO 230V 16A | 1 x CEE 230V 16A | 1 x CEE 230V 32A
Tank capacity: 18 L
Autonomy: 15.25 h at 75% load
Consumption: 1.18 L/h at 75% load
Sound pressure level: 68 dB(A) @ 7 m
Length: 800 mm
Width: 525 mm
Height: 850 mm
Dry weight: 132 kg
