TECNOGEN TENAK MI17TK
MI17TCSS
Maximum three-phase power: 13.2 KW
Maximum three-phase power: 16.5 KVA
Three-phase continuous use power: 12 KW
Three-phase continuous use power: 15 KVA
Fuel: Diesel
Voltage: 400V
Motor: Mitsubishi S4L261SD
Starter: Electric
Length: 1500 mm
Width: 750 mm
Height: 1300 mm
Weight: 400 Kg
- Phase
- Three phase
- Maximum power three phase (KW)
- 13.2
- Maximum power three phase (KVA)
- 16.5
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 400
- Engine
- MITSUBISHI S4L261SD
- Engine rpm (rpm)
- 1500
- Speed governor
- Mechanical
- Starting system
- Electric
- Engine capacity (cm³)
- 1649
- Number cylinders
- 4
- Cooling
- Water
- Consumption (L/h)
- 3.3
- Length (mm)
- 1500
- Width (mm)
- 750
- Height (mm)
- 1300
- Dry weight (Kg)
- 400
- Silenced
- No
- Super silenced
- No
- ATS Switch device
- Optional ATS
- Voltage regulator
- Digital AVR
- Engine manufacturer
- Mitsubishi
- Brand
-
The TENAX series comprises diesel generator sets, 1500 rpm
water- or air-cooled, with power ratings from 5.5 to 2255 kVA max,
delivering three-phase 400/230 V voltage.
Available in both open base and super-silenced versions, they are equipped with
silenced version, they are equipped with Perkins, John Deere industrial engines,
Iveco Aifo or Lombardini engines and alternators from world leading brands
such as Leroy Somer, Stamford, Mecc Alte or Marelli.
The enclosures, designed to guarantee an excellent level of
level of soundproofing and optimum engine cooling, are
entirely made of hot-dip galvanised steel and subsequently
painted with polyester powder, making them practically unassailable by atmospheric agents.
against atmospheric agents. Due to their characteristics, these machines
suitable for continuous use in the industrial sector.
industrial environment and, in the super-silenced versions, for applications with
switchgear in the civil sector. They are also
available on request with different engines, including Cummins, Volvo, Deutz and
including Cummins, Volvo, Deutz and Mitsubishi.

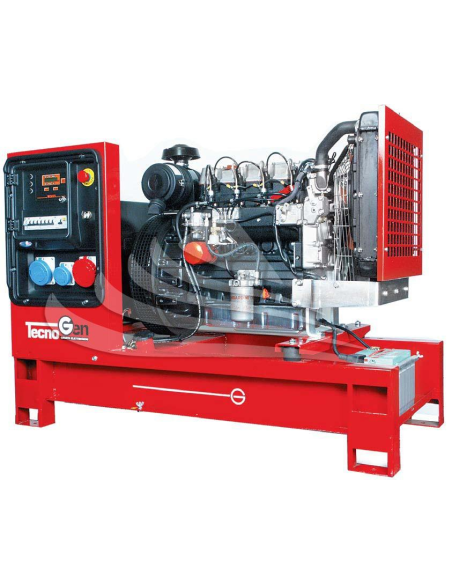

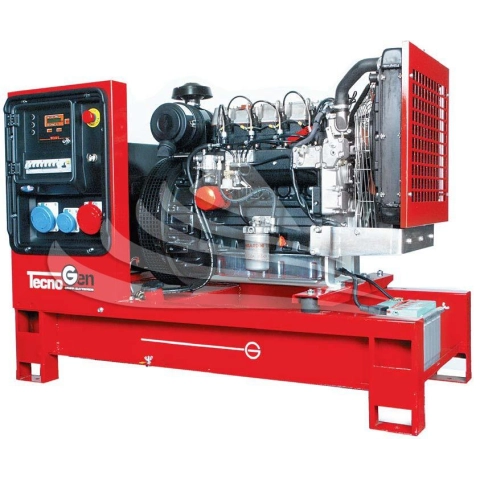

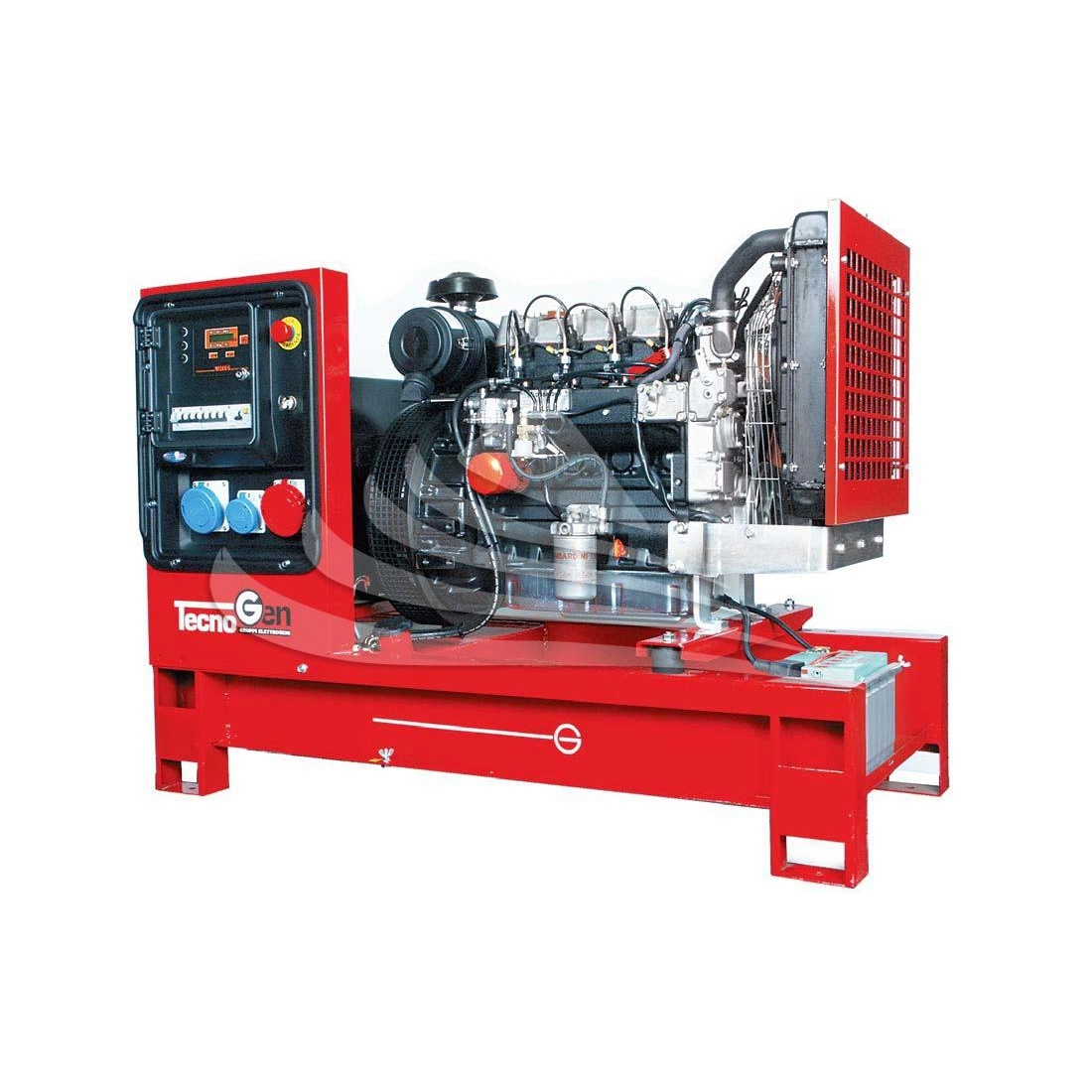

The image is purely indicative.
