MOSA GE40 YSX5 GENSET 30 KW STAGE V
CF0T8051
Three-phase maximum power: 30.4 KW
Three-phase continuous power: 27.2 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Yanmar 4TNV98C
Emissions standard: STAGE V
Starting: Electric
Measured sound power LwA: 90 dB(A) (65 dB(A) @ 7m)
Consumption: 5.9 Lt/h at 75% load
Performance class: G3
Autonomy (75% PRP): 25 h
Tank capacity: 150 l
Length: 2050 mm
Width: 900 mm
Height: 1415 mm
Weight: 975 kg
Supersilenced
- Phase
- Three phase
- Maximum power three phase (KW)
- 30.4
- Continuous power three phase (KW)
- 27.2
- Maximum power three phase (KVA)
- 39
- Continuous power three phase (KVA)
- 34
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 400
- Sockets configuration
- Terminal box
- Engine
- YANMAR 4TNV98C
- Emissions Regulations
- Stage 5
- Engine rpm (rpm)
- 1500
- Starting system
- Electric
- Engine capacity (cm³)
- 3319
- Number cylinders
- 4
- Cooling
- Water
- Inyección
- Direct
- Alternator
- Three-phase synchronous self-excited, self-regulated, brushless
- Consumption (L/h)
- 5.9
- Dry weight (Kg)
- 99
- Product type
- Generator
- ATS Switch device
- Optional ATS
- Engine manufacturer
- Yanmar
- Brand
-

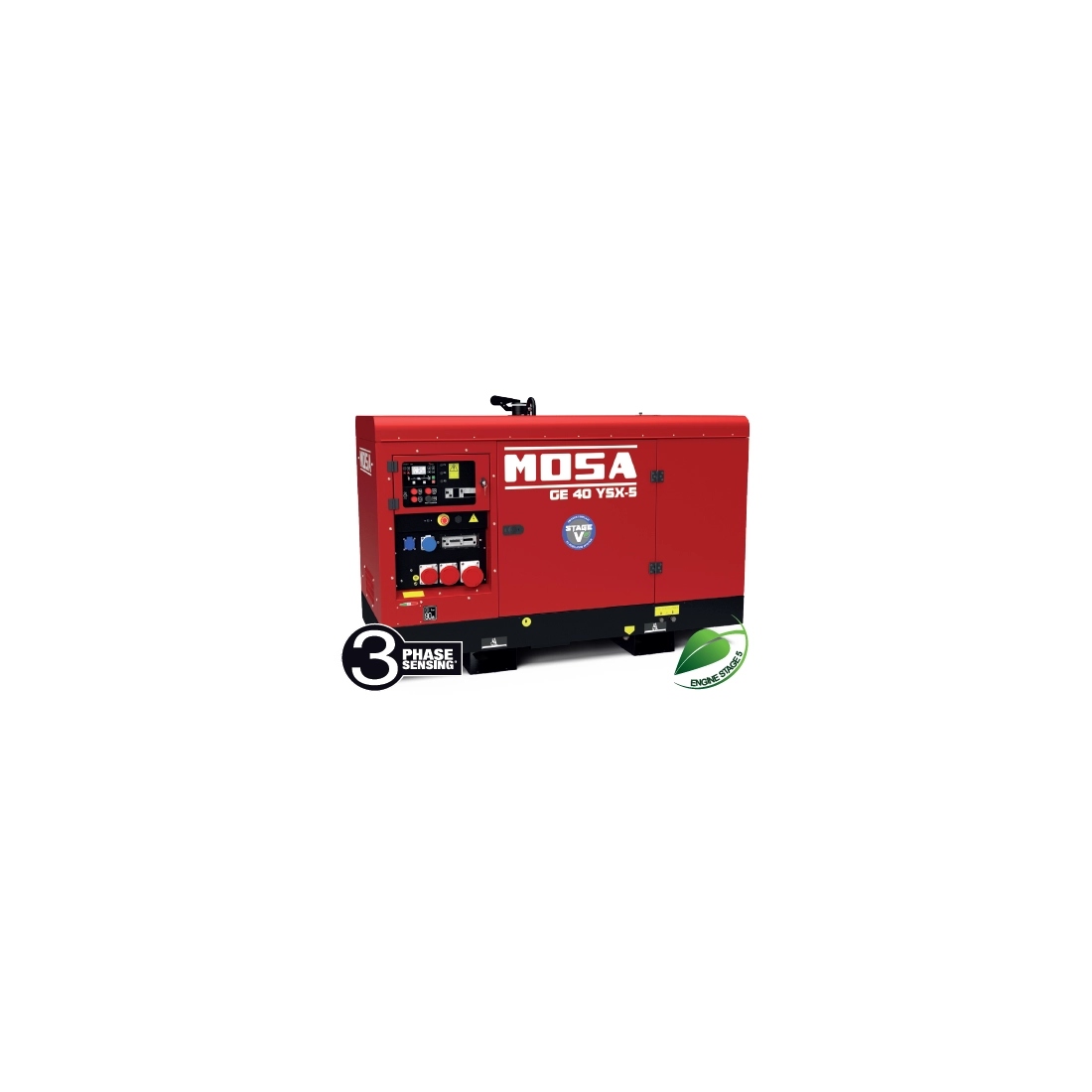

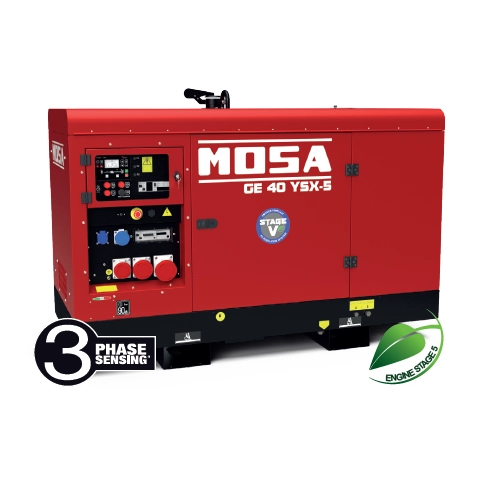

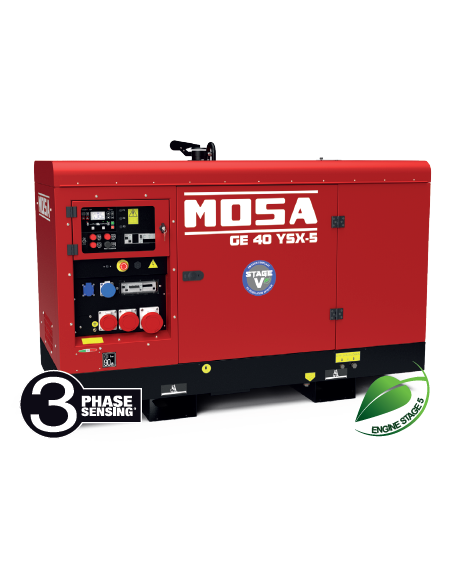

MOSA GE40 YSX5 GENSET 30KW STAGE V
The MOSA GE40 YSX5 Genset is a 30.4 KW three-phase genset with a Yanmar STAGE V diesel-powered engine. The MOSA GE40 YSX5 genset is equipped with electric start. MOSA GE40 YSX5 is synchronous, three-phase, self-excited, self-regulated, brushless with class H insulation.
This MOSA GE40 YSX5 genset is compact and convenient to manoeuvre and transport thanks to its compact dimensions, with a weight of 975 kg, as well as its practical drilled base. A genset with enclosure to reduce noise emissions, making it supersilenced.
The MOSA GE40 YSX5 with 150-litre tank has a fuel consumption of 5.9 litres/hour at 75% load for an autonomy of 25 hours.
Version with MOSA 350-litre Long Run tank to be requested when ordering:
350-litre tank: The genset increases the start-up autonomy by about 59 hours.
Dimensions with 350 litre long run tank: 2050x900x1725 mm
Weight with 350 litre long run tank: 1165 Kg.
MOSA Output sockets:
1x 400V 63A 3P+N+E CEE IP67
1x 400V 32A 3P+N+E CEE IP67
1x 400V 16A 3P+N+E CEE IP67
1x 230V 16A 2P+E CEE IP67
1x 230V 16A 2P+E SCHUKO
standard: DIGITAL CONTROL PANEL (terminal board only)
3way: (terminal board only)
3-way valve with quick couplings for supply from external tank
TOP: (terminal board only)
- Electronic differential relay
- 3-way valve with quick couplings for supply from external reservoir
- Crankcase leak detection sensor
- 350l fuel reservoir
Technical specifications of the MOSA GE40 YSX5 genset:
Three-phase maximum power: 30.4 KW
Three-phase continuous power: 27.2 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Yanmar 4TNV98C
Emissions standard: STAGE V
Starting: Electric
Measured sound power LwA: 90 dB(A) (65 dB(A) @ 7m)
Consumption: 5.9 Lt/h at 75% load
Performance class: G3
Autonomy (75% PRP): 25 h
Reservoir capacity: 150 l
Length: 2050 mm
Width: 900 mm
Height: 1415 mm
Weight: 975 kg
Supersilenced
If you are looking for another product like the generator set MOSA GE40 YSX-5 then you can see on our catalog other terrestrial generators.
Images and technical data are not binding.
