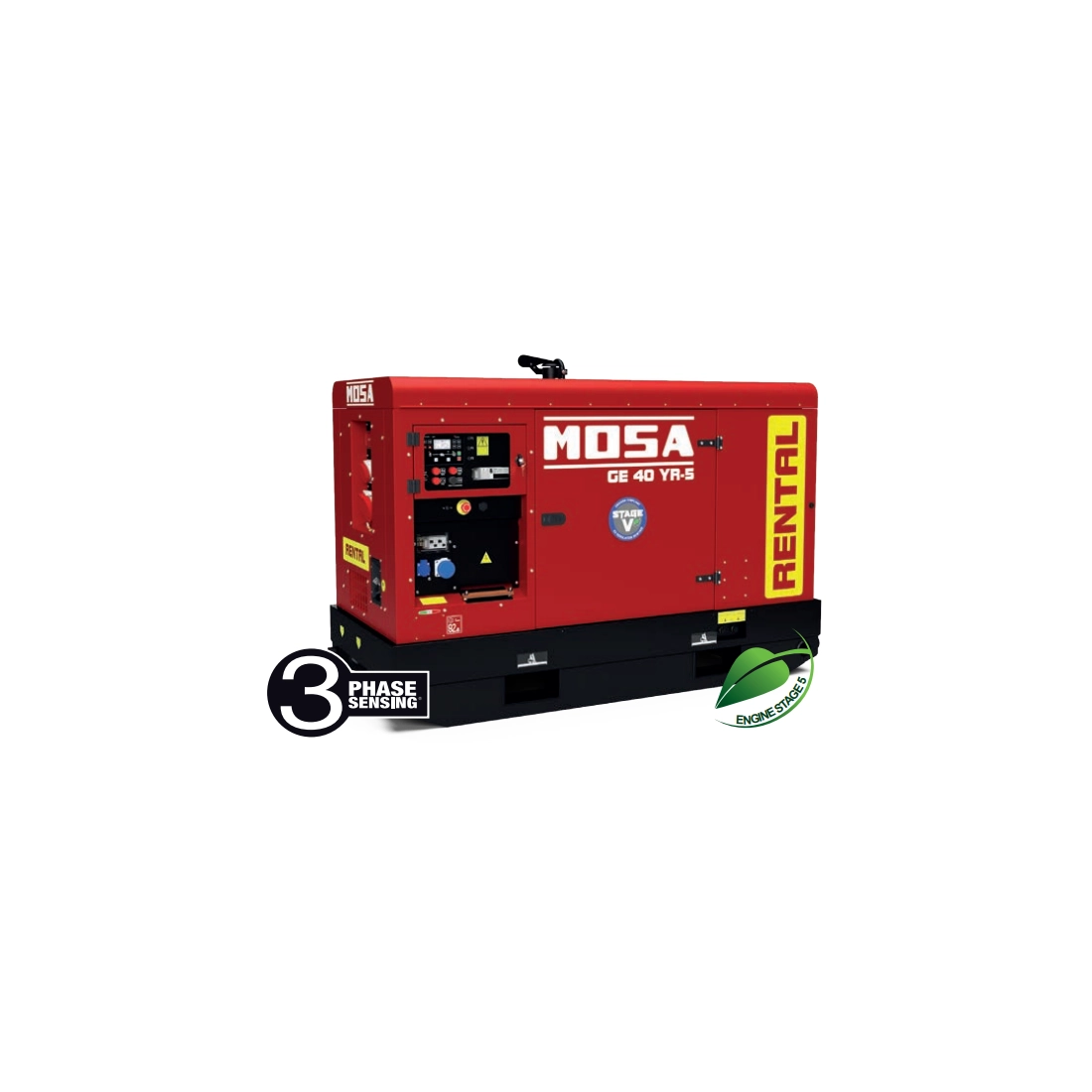

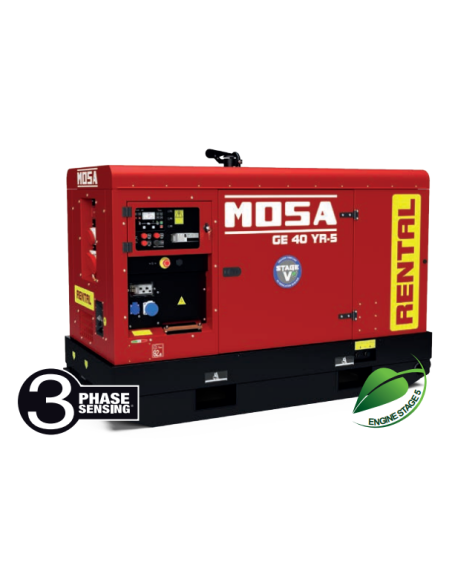

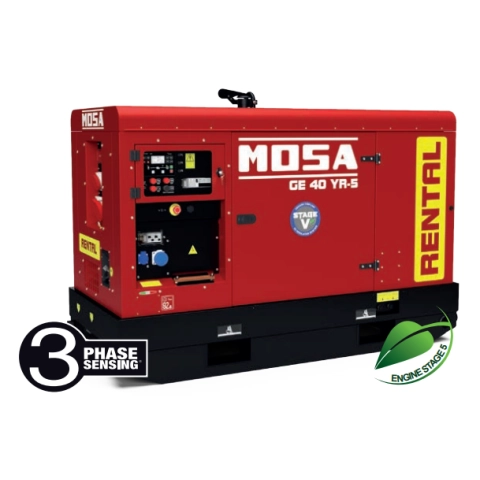

MOSA GE 40 YR-5 GENERATING THREE-PHASE STAGE V

MOSA GE40YR5 THREE-PHASE GENSET STAGE V

The three-phase MOSA GE40YR5 genset is equipped with a YANMAR 4TNV98CT StageV diesel-powered engine, and is capable of delivering a maximum power of 38 KVA.

The MOSA GE40YR5 genset is equipped with electric start.

The MOSA GE40YR5 genset guarantees efficient and quiet operation thanks to its YANMAR 4TNV98CT engine, capable of delivering a maximum power of 38 KVA.

CN1T80G1 STANDARD

DIGITAL CONTROL PANEL

CN1T80G1H 3WAY

DIGITAL CONTROL PANEL

- 3-way valve with quick couplings for supply fromexternal tank

CN1T80U1 DGUV

DGUV-"B" DIGITAL CONTROL PANEL

CN1T80U1H DGUV + 3WAY

DGUV-"B" DIGITAL CONTROL PANEL

- 3-way valve with quick couplings for supply from external tank

STAGEV EMISSION REGULATIONS

The genset is equipped with STAGEV "mobile" motorisation, as required by European Regulation 2016/1628. These new engines allow an exponential reduction in particulate and nitrogen oxide emissions from the generator into the environment, and guarantee a 200% reduction in environmental impact compared to standard engines.

TECHNICAL CHARACTERISTICS MOSA GE40YR5:

Type of phase: Three-phase
Three-phase Stand-by power: 38 kVA (30.4 kW)/ 400V / 54.8A
Three-phase PRP power: 34 kVA (27.2 kW)/ 400V / 49A
Frequency: 50 Hz
Motor speed: 1500 rpm
Motor: YANMAR 4TNV98CT
Voltage: 400 V
Fuel: Diesel
Tank capacity: 150 l
Autonomy (75% PRP): 25.5 h
Consumption: 5.9 Lt/h at 75% load
Measured sound power LwA (LpA pressure): 90 dB(A) (65 dB(A) @ 7m)
Guaranteed sound power level LwA (LpA pressure): 92 dB(A) (67 dB(A) @ 7m)
Dry weight: 1085 kg
Length: 2151 mm
Width: 950 mm
Height: 1478 mm

Are you looking for a generator with different technical characteristics? HERE you can find the area dedicated to MOSA generators or other specialized brands.

The images are purely indicative.
