MOSA GE50 YSX5 GENSET 36KW
CF1T9051
Maximum three-phase power: 36.8 KW
Three-phase continuous use power: 33.6 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: YANMAR 4TNV98CT
Emission standard: STAGE V
Starting: Electric
Measured sound power LwA: 88 dB(A) (63 dB(A) @ 7m)
Consumption: 7.2 Lt/h at 75% load
Performance class: G3
Autonomy (75% PRP): 14h
Tank capacity: 100 litres
Length: 2050 mm
Width: 900 mm
Height: 1415 mm
Weight: 1005 Kg
- Phase
- Three phase
- Maximum power three phase (KW)
- 36.8
- Continuous power three phase (KW)
- 33.6
- Maximum power three phase (KVA)
- 46
- Continuous power three phase (KVA)
- 42
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 400
- Engine
- YANMAR 4TNV98CT
- Emissions Regulations
- Stage 5
- Engine rpm (rpm)
- 1500
- Starting system
- Electric
- Engine capacity (cm³)
- 3319
- Number cylinders
- 4
- Cooling
- Water
- Inyección
- Direct
- Alternator
- Synchronous, three-phase, self-excited, brushless
- Consumption (L/h)
- 7.2
- Dry weight (Kg)
- 1005
- Product type
- Generator
- ATS Switch device
- Optional ATS
- Engine manufacturer
- Yanmar
- Brand
-

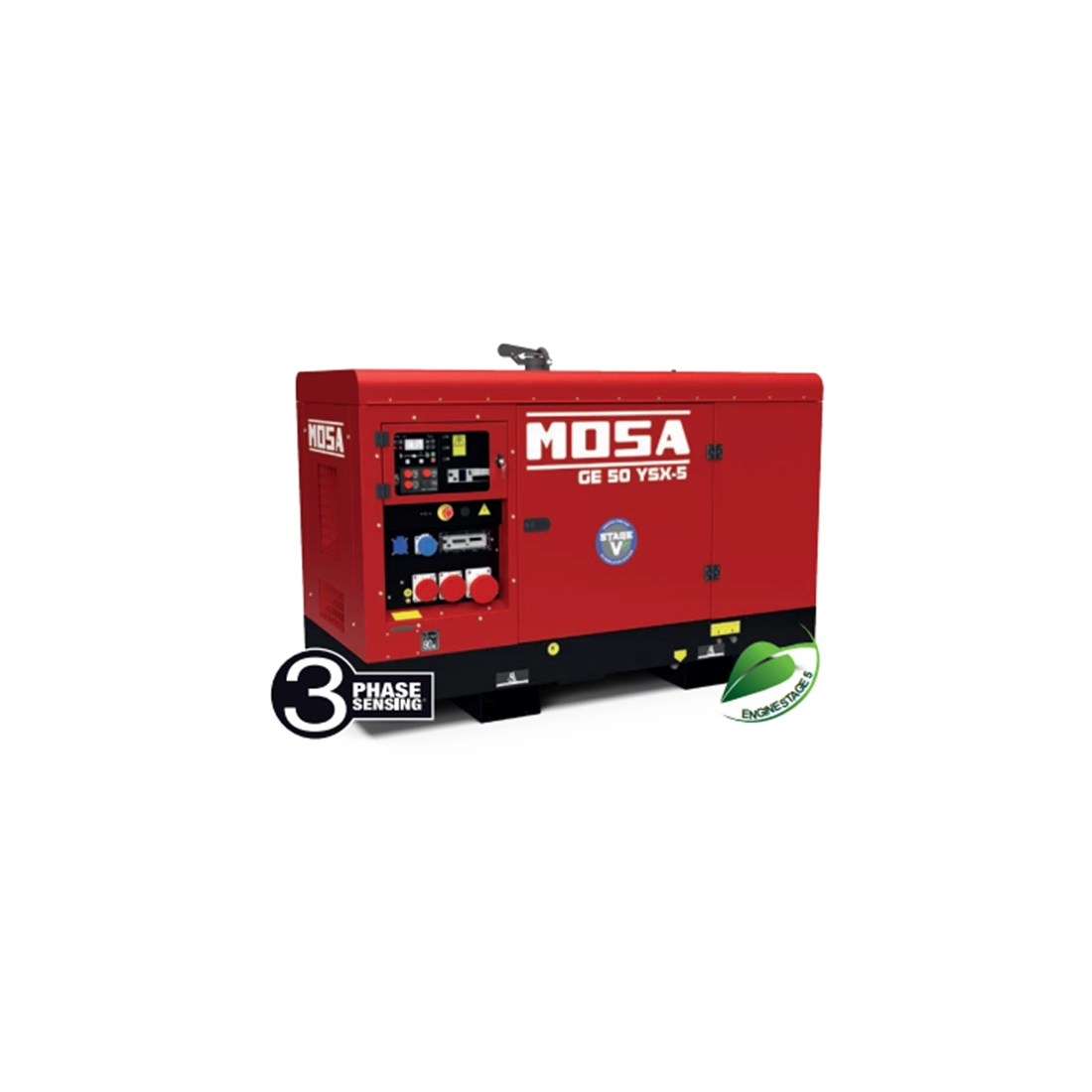

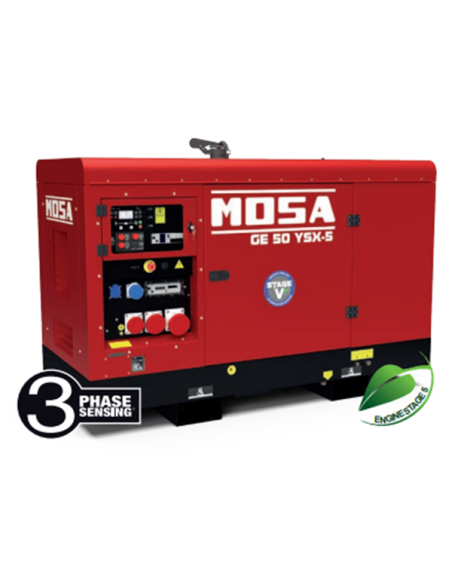

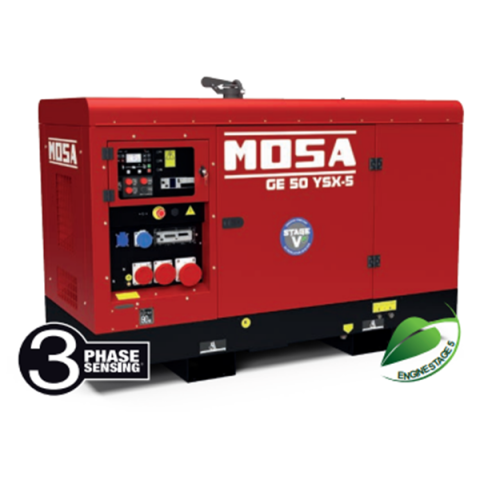

MOSA GE50 YSX5 GENSET 36KW STAGE V
The MOSA GE50 YSX5 is a 36.8 KW three-phase genset with a Yanmar STAGE V diesel-powered engine. The MOSA GE50 YSX5 genset is equipped with electric start. The MOSA GE50 YSX5 is synchronous, three-phase, self-excited, self-regulated, brushless with class H insulation.
The MOSA GE50 YSX5 with a 100-litre tank has a fuel consumption of 7.2 litres/hour at 75% load for an autonomy of 14 hours.
MOSA GE50 YSX5 Version with MOSA 350-litre tank Long Run to be requested when ordering:
350-litre tank: The generator set increases the start-up autonomy by more than 48 hours.
Dimensions with 350 litre long run tank: 2050x900x1725 mm
Weight with 350 litre long run tank: 1195 Kg.
MOSA GE50 YSX5 Output sockets Valid for Control Panel versions with sockets (without terminal board):
1x 400V 63A 3P+N+E CEE IP67
1x 400V 32A 3P+N+E CEE IP67
1x 400V 16A 3P+N+E CEE IP67
1x 230V 16A 2P+E CEE IP67
1x 230V 16A 2P+E SCHUKO
CF1T9051 STANDARD
DIGITAL CONTROL PANEL (terminal block only)
CF1T9051GH 3WAY
DIGITAL CONTROL PANEL (terminal board only)
- 3-way valve with quick couplings for supply from external tank
- Crankcase leak detection sensor
CF1T90G1R STANDARD
CONTROL PANEL WITH OUTPUTS (without terminal board)
- Electronic differential relay
CF1T90G1GHR 3WAY
CONTROL BOX WITH OUTPUTS (without terminal board)
- Electronic differential relay
- 3-way valve with quick couplings for supply from external tank
- Crankcase leak detection sensor
CF1T90G1GHLR TOP
CONTROL PANEL WITH OUTPUTS (without terminal board)
- Electronic differential relay
- 3-way valve with quick couplings for supply from external tank
- Crankcase leak detection sensor
Technical specifications of the MOSA GE50 YSX5 genset
Maximum three-phase power: 36.8 KW
Three-phase continuous use power: 33.6 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: YANMAR 4TNV98CT
Emission standard: STAGE V
Starting: Electric
Measured sound power LwA: 88 dB(A) (63 dB(A) @ 7m)
Consumption: 7.2 Lt/h at 75% load
Performance class: G3
Autonomy (75% PRP): 14h
Tank capacity: 100 litres
Length: 2050 mm
Width: 900 mm
Height: 1415 mm
Weight: 1005 Kg
If you are looking for another product like the generator set MOSA GE50 YSX5 then you can see on our catalog other terrestrial generators.
Images and technical data are not binding.
