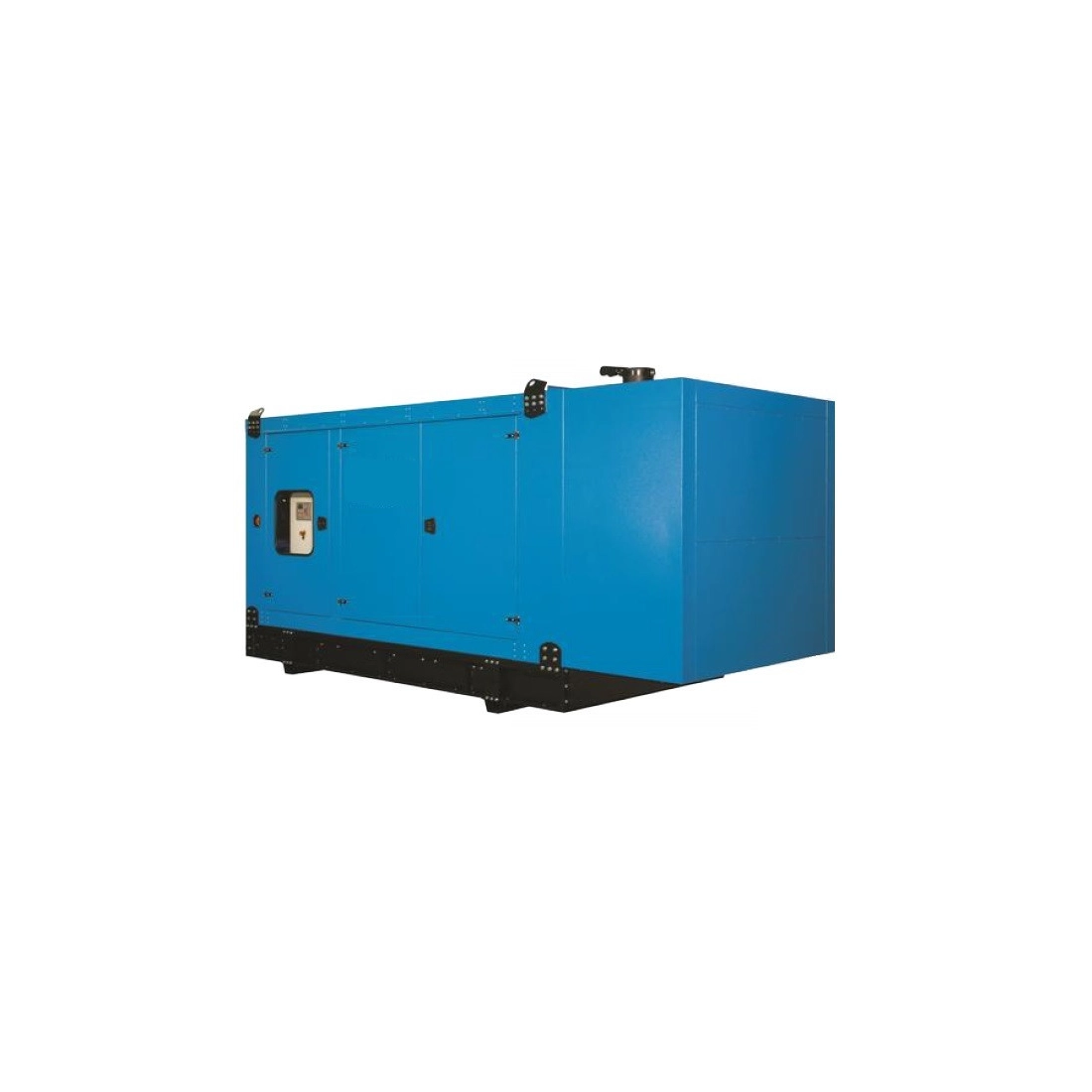

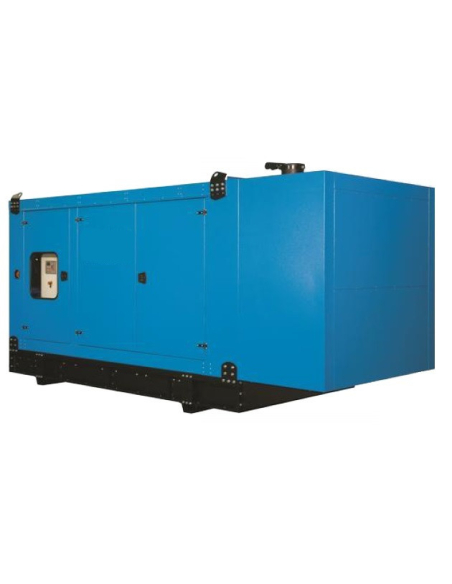

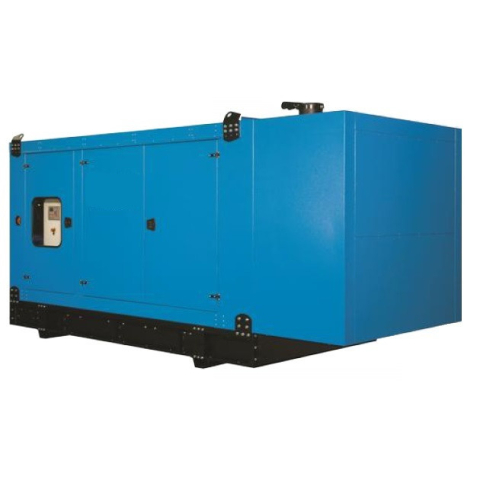

GENERATING SET 640KVA

Reference 640KVA

Phase type: Three-phase
Maximum three-phase power: 563 KW / 704 KVA
Three-phase continuous power: 512 KW / 640 KVA
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Motor: SCANIA DC16 093A 02 54
Engine speed: 1500 rpm
Starting: Electric
Consumption: 95 Lt/h at 75% load
Length: 5050 mm
Width: 2150 mm
Height: 2550 mm
Weight: 6020 Kg
Super-silenced

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 563
Continuous power three phase (KW): 512
Maximum power three phase (KVA): 704
Continuous power three phase (KVA): 640
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Sockets configuration: Terminal box
Engine: SCANIA DC16 093A 02 54
Emissions Regulations: Stationary Use
Engine rpm (rpm): 1500
Speed governor: Electronic
Starting system: Electric
Engine capacity (cm³): 16400
Number cylinders: 8
Cooling: Water
Alternator: Brushless
Poles: 4
Protection degree: IP44
Bore x stroke (mm): 130 x 153
Consumption (L/h): 95 at 75% of the load
Acoustic pressure: 69 dB(A) at 7 m
Length (mm): 5050
Width (mm): 2150
Height (mm): 2550
Dry weight (Kg): 6020
Silenced: Yes
Super silenced: Yes
Product type: Generator
Voltage regulator: AVR
Engine manufacturer: Scania

Brand

Three-phase 640KVA generator

Technical characteristics of the generator:

If you are looking for a similar product then you can browse the entire range of generators or other types of products in our catalogue to find the one that best suits your needs.

Images and technical data are not binding.
