PRAMAC GBW15Y Generator Set Three-phase ACP 13kVA Enclosure with automatic control panel

Name: PRAMAC GBW15Y Generator Set Three-phase ACP 13kVA Enclosure with automatic control panel
Brand: PRAMAC
SKU: SB130TYAK02
Price: 8129.82 EUR
Availability: InStock

Reference SB130TYAK02

Maximum three-phase power: 11.44 kW - 14.30 kVA
Continuous three-phase power: 10.4 kW - 13.00 kVA
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Yanmar 3TNV88-BGPGE
Starting system: Electric
Fuel consumption: 3.8 L/h at 100% load
Length: 1645 mm
Width: 870 mm
Height: 1072 mm
Weight: 430 Kg
Compound

Download Scheda tecnica GBW15Y COFANATO Download Technical data GBW15Y COVERED Download Disegno installazione GBW15Y

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 11.44
Continuous power three phase (KW): 10.4
Maximum power three phase (KVA): 14.3
Continuous power three phase (KVA): 13
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Sockets configuration: 1 x 400V 32A 3P+N+T CEE
Engine: Yanmar 3TNV88-BGPGE, naturally aspirated
Emissions Regulations: Stage 5
Engine rpm (rpm): 1500
Speed governor: Mechanical
Starting system: Elettrico
Engine capacity (cm³): 1642
Number cylinders: 3
Cylinders' position: In line
Oil capacity (L): 6.9
Cooling: Water
Alternator: Linz E1S13MD, with brushes
Poles: 4
Fuel tank capacity (L): 51
Consumption (L/h): 2.8 at 75% of the load / 3.8 at 100% of the load
Running time (h): 18 at 75% of the load / 13.5 at 100% of the load
Acoustic power: 93 dB(A)
Acoustic pressure: 64 dB(A) at 7 m
Length (mm): 1645
Width (mm): 870
Height (mm): 1072
Dry weight (Kg): 430
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: Optional ATS
Voltage regulator: Compound
Engine manufacturer: Yanmar

Brand

PRAMAC GBW15Y GENERATOR SET ACP THREE-PHASE 13KVA

The PRAMAC GBW15Y three-phase generator delivers 11.4 kW with a diesel engine running at 1500 rpm. The PRAMAC GBW15Y generator is equipped with electric start. The alternator of the PRAMAC GBW15Y generator has brushes with a compound voltage regulator. The Yanmar diesel engine makes the GBW15Y generator highly reliable, as it has been designed and built using top-quality materials.
Thanks to its soundproof canopy, this generator is super-silenced. In addition, it is easy to transport, install, and position thanks to its compact size. This model is ideal for emergency backup, construction, mobile workshops, and industrial applications. The PRAMAC GBW15Y three-phase generator is suitable for outdoor use on construction sites or for small professional jobs.

Technical specifications of the PRAMAC GBW15Y ACP Three-Phase Generator:
Maximum three-phase power: 11.44 kW
Continuous three-phase power: 10.4 kW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Yanmar 3TNV88-BGPGE
Starting system: Electric
Fuel consumption: 3.8 L/h at 100% load
Length: 1645 mm
Width: 870 mm
Height: 1072 mm
Weight: 430 Kg
Compound

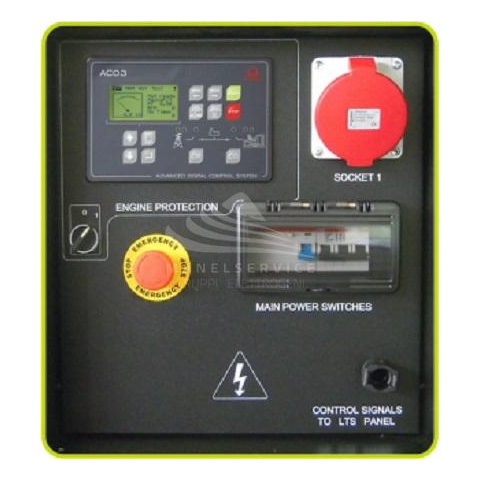

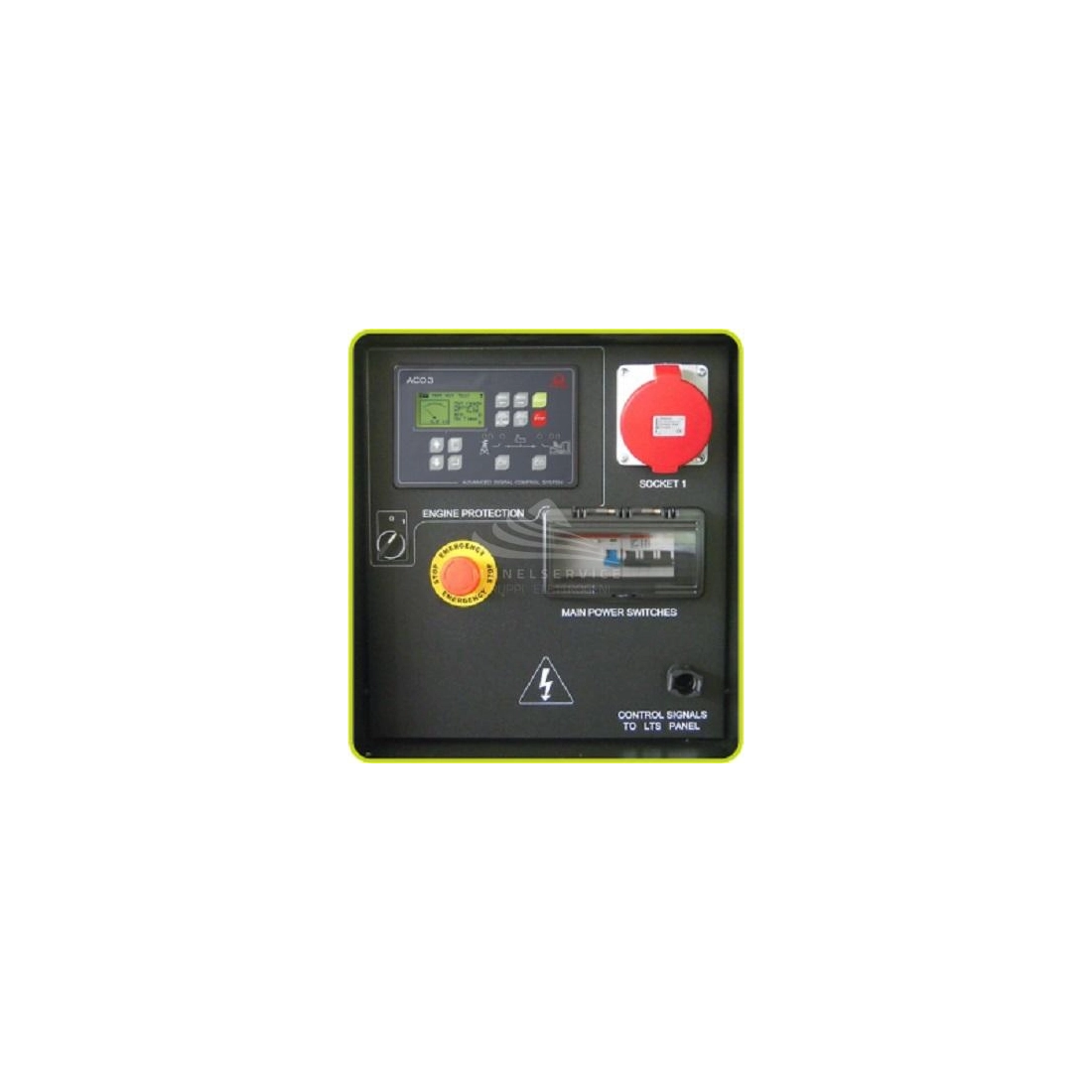

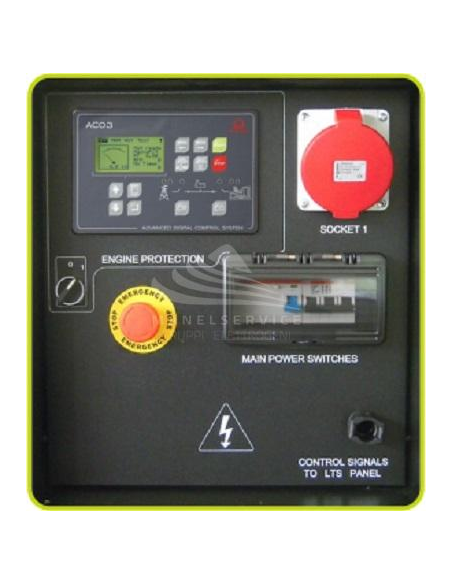

ACP Automatic Control Panel:
Integrated panel connected to the generator, with a microprocessor control module that collects all the electronic control, command, and monitoring circuits. Direct switching control terminal block (ACP)
N.1 3P+N+T CEE 400V 32A

The PRAMAC GBW15Y power generator is a professional diesel genset developed by Pramac with the features and equipment required to deliver a superior-class product. With its low noise level, the PRAMAC GBW15Y generator is ideal for use in residential areas or during non-working hours.
The GBW15Y generator is equipped with a reliable diesel engine, premium components, and complete instrumentation.

If you are looking for a generator like the PRAMAC GBW15Y three-phase power generator, we recommend browsing our catalog of land-based generators to find the one that best suits your needs.
