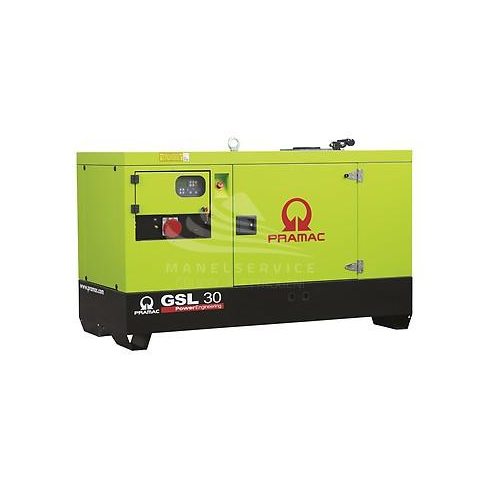

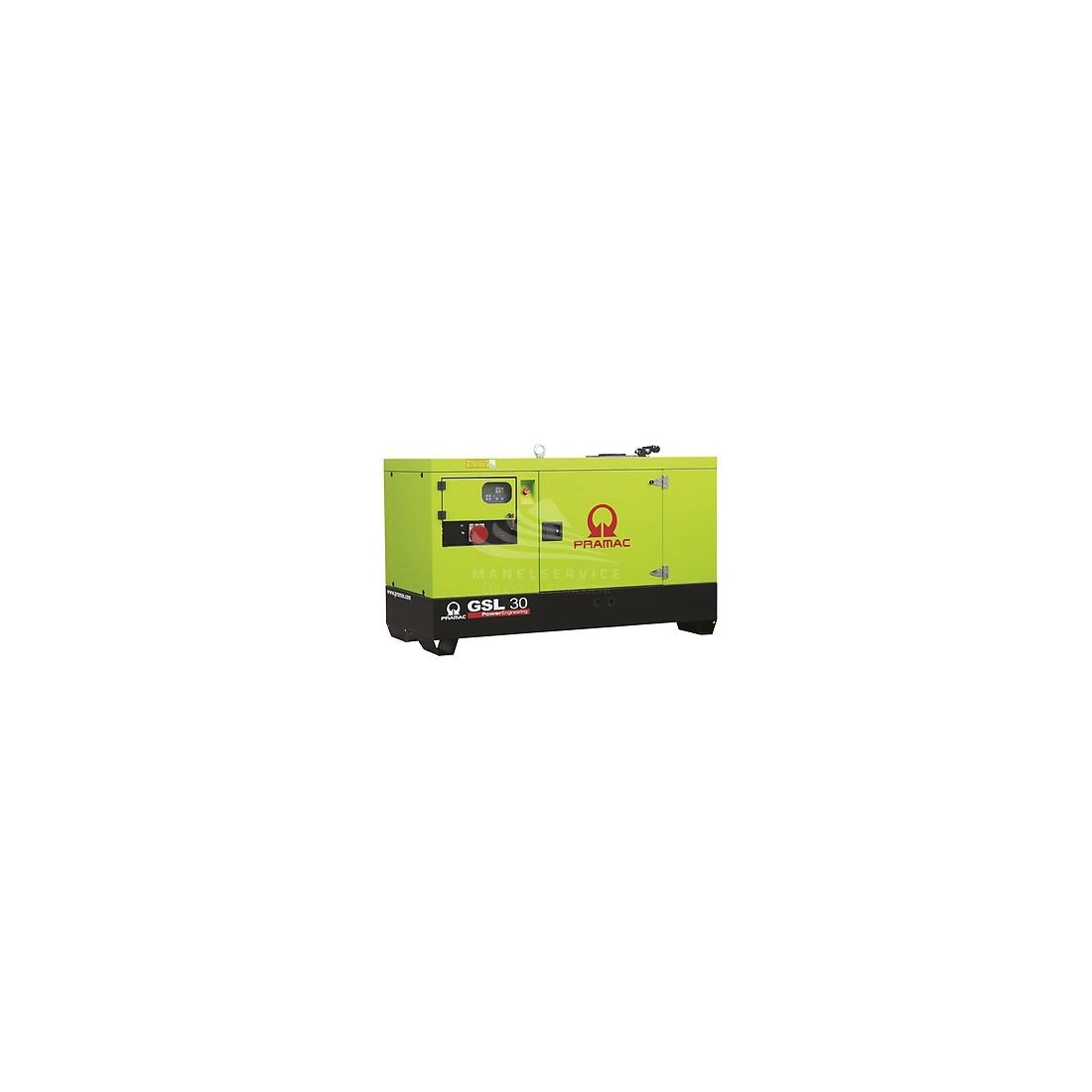

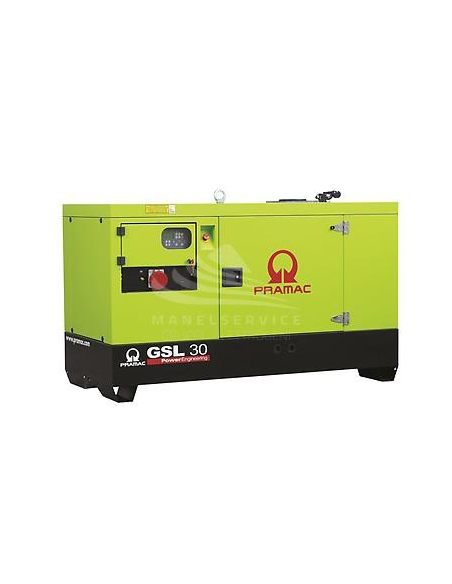

PRAMAC GSL30D COFANATO CON QUADRO COMANDO MANUALE

Name: PRAMAC GSL30D COFANATO CON QUADRO COMANDO MANUALE
Brand: PRAMAC
SKU: SU290TDAT00 /

Reference SU290TDAT00 /

OUT OF PRODUCTION

Maximum power Three-phase: 25.55 KW
Three-phase continuous use power: 24.31 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Deutz AG F4M2011
Starting: Electric
Consumption: 8 Lt/h at 100% of the load
Length: 2005 mm
Width: 948 mm
Height: 1308 mm
Weight: 760 Kg
AVR

Download Scheda tecnica GSL30D COFANATO Download Technical data GSL30D COVERED Download Disegno installazione GSL30D Download Disegno installazione GSL30D EFT

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 25.55
Continuous power three phase (KW): 24.31
Maximum power three phase (KVA): 31.94
Continuous power three phase (KVA): 30.39
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400

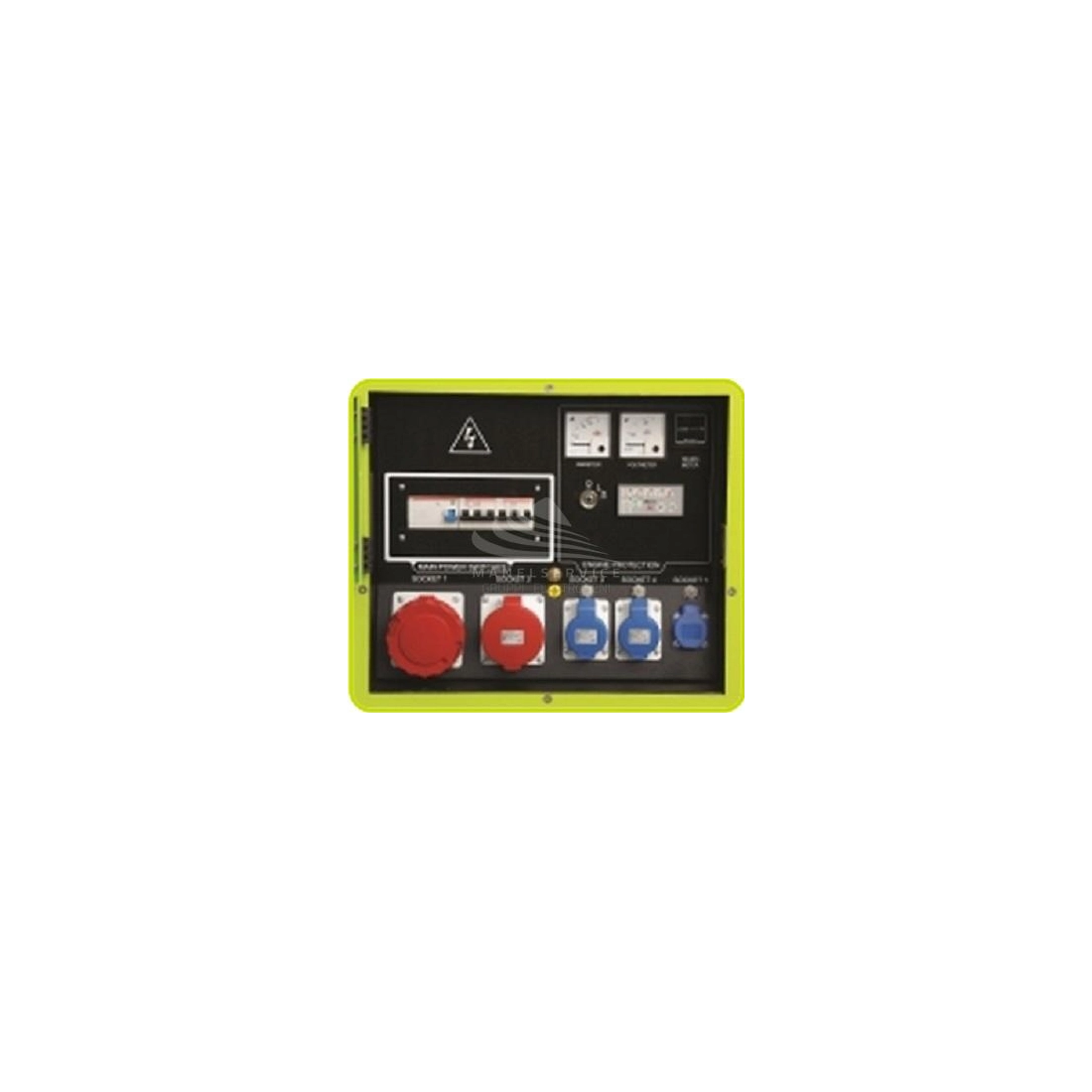

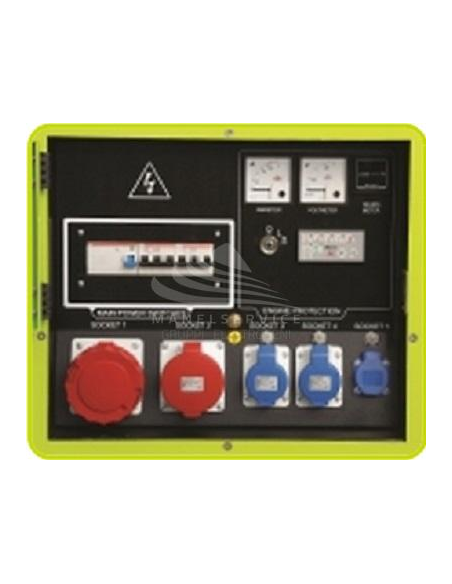

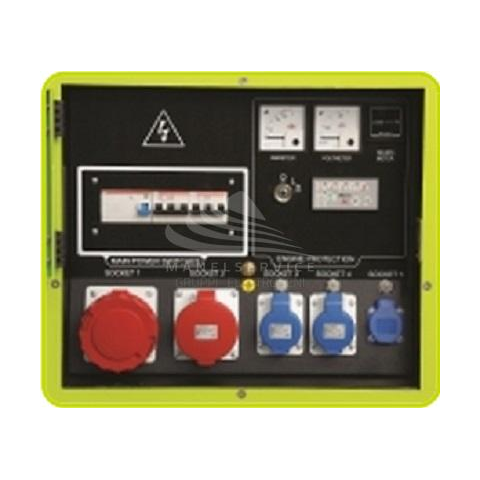

Sockets configuration: 1 x 400V 63A 3P+N+T - 1 x 400V 32A 3P+N+T CEE - 2 x 230V 16A 2P+T CEE - 1 x 230V 16A SCHUKO
Engine: Deutz AG F4M2011, naturally aspirated
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 3110
Number cylinders: 4
Cylinders' position: In line
Oil capacity (L): 10
Cooling: Oil
Alternator: Mecc Alte ECP28-VL/4, brushless
Poles: 4
Fuel tank capacity (L): 68
Consumption (L/h): 5.7 at 75% of the load / 8 at 100% of the load
Running time (h): 11.9 at 75% of the load / 8.4 at 100% of the load
Acoustic power: 89 dB(A)
Acoustic pressure: 60 dB(A) at 7 m
Length (mm): 2005
Width (mm): 948
Height (mm): 1308
Dry weight (Kg): 760
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: No ATS
Voltage regulator: AVR
Engine manufacturer: Deutz

Brand

Motore Diesel. Predisposto per Biodiesel. Raffreddamento ad olio con radiatore. Silenziatore industriale. Base forcabile con carrelli. Liquidi motore e batteria carica
