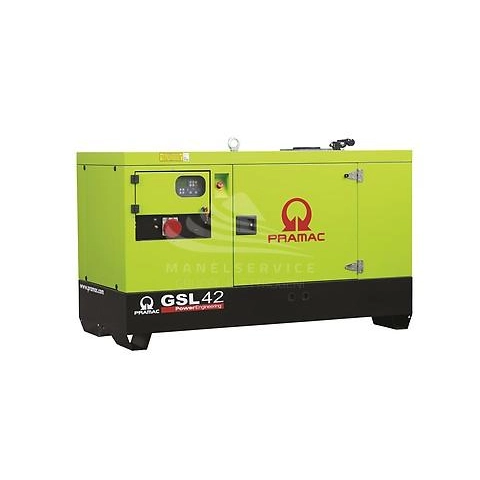

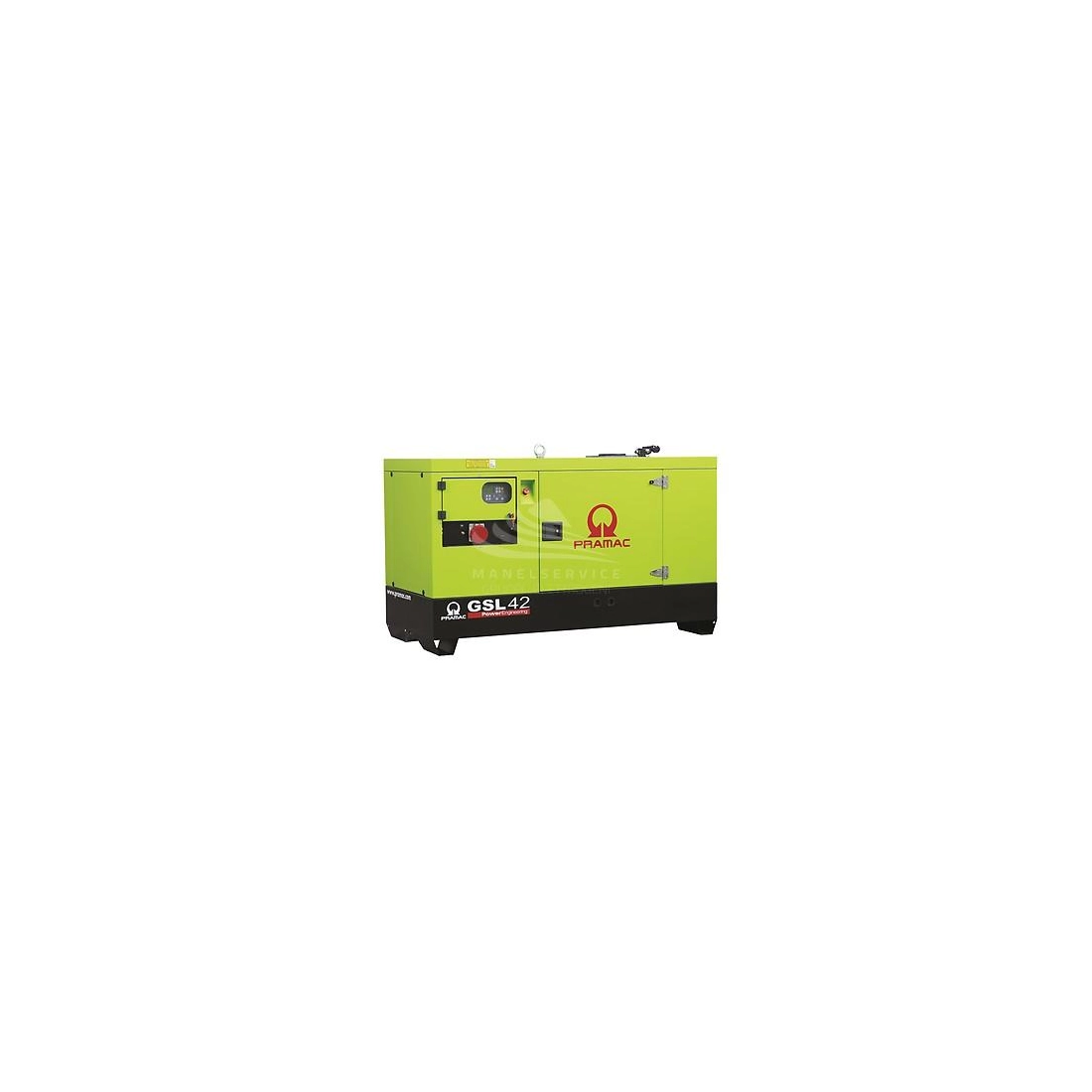

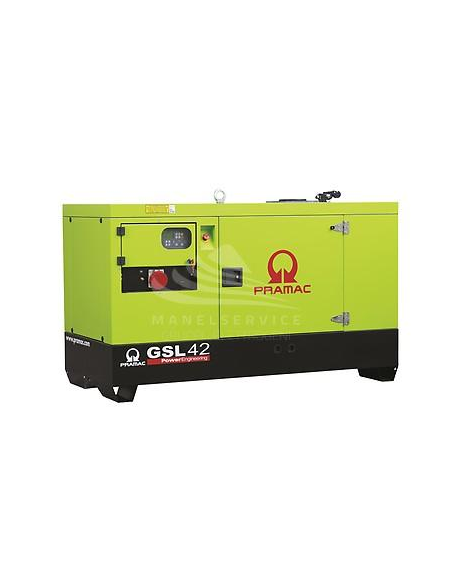

PRAMAC GSL42D COFANATO CON QUADRO COMANDO AUTOMATICO

Name: PRAMAC GSL42D COFANATO CON QUADRO COMANDO AUTOMATICO
Brand: PRAMAC
SKU: SU390TDAP02 /

Reference SU390TDAP02 /

OUT OF PRODUCTION

Maximum power Three-phase: 35.62 KW
Power continuous use Three-phase: 33.85 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Deutz AG BF4M2011
Starting: Electric
Consumption: 11.2 Lt/h at 100% of the load
Length: 2000 mm
Width: 920 mm
Height: 1310 mm
Weight: 824 Kg
AVR

Download Scheda tecnica GSL42D COFANATO Download Technical data GSL42D COVERED Download Disegno installazione GSL42D Download Disegno installazione GSL42D EFT

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 35.62
Continuous power three phase (KW): 33.85
Maximum power three phase (KVA): 44.52
Continuous power three phase (KVA): 42.31
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Sockets configuration: 1 x 400V 63A 3P+N+T CEE
Engine: Deutz AG BF4M2011, turbo
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 3110
Number cylinders: 4
Cylinders' position: In line
Oil capacity (L): 10
Cooling: Oil
Alternator: Mecc Alte ECO/P32-3S/4, brushless
Poles: 4
Fuel tank capacity (L): 68
Consumption (L/h): 8.1 at 75% of the load / 11.2 at 100% of the load
Running time (h): 8.4 at 75% of the load / 6 at 100% of the load
Acoustic power: 89 dB(A)
Acoustic pressure: 60 dB(A) at 7 m
Length (mm): 2000
Width (mm): 920
Height (mm): 1310
Dry weight (Kg): 824
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: Optional ATS
Voltage regulator: AVR
Engine manufacturer: Deutz

Brand

Motore Diesel. Predisposto per Biodiesel. Raffreddamento ad olio con radiatore. Silenziatore industriale. Base forcabile con carrelli. Liquidi motore e batteria carica
