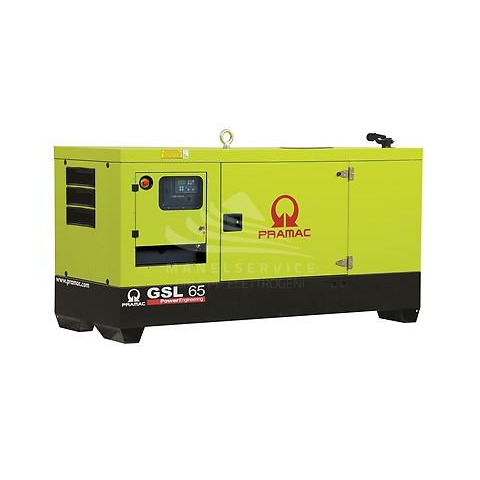

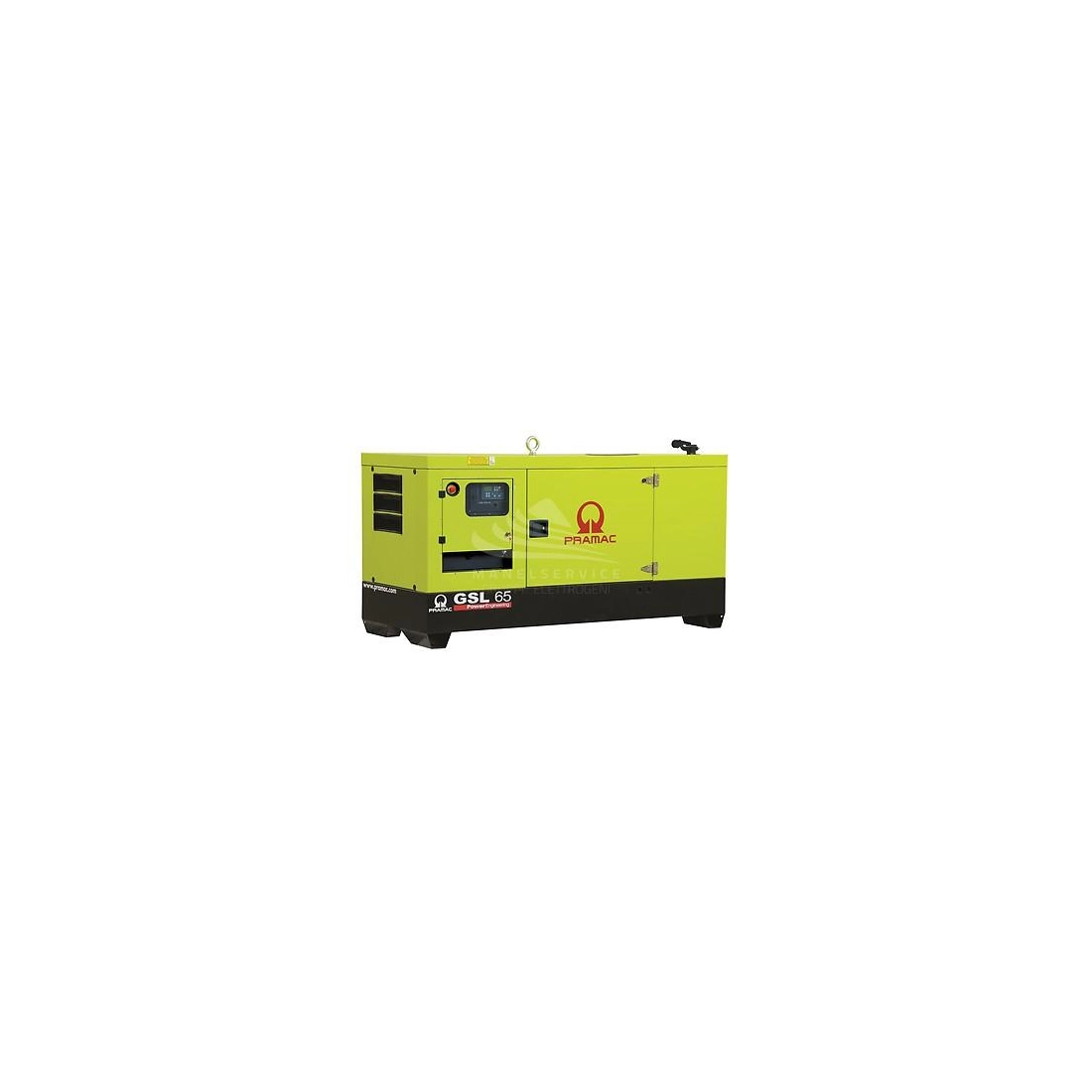

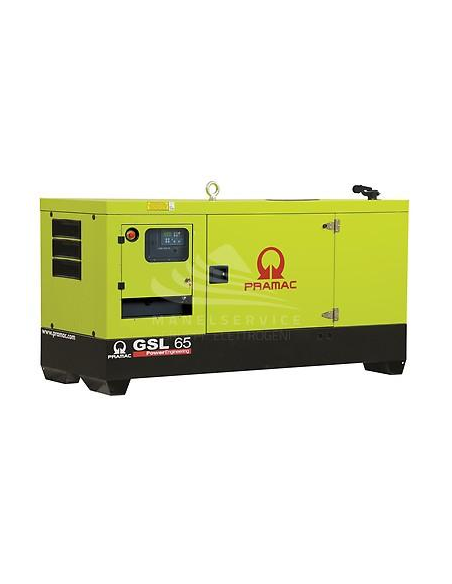

PRAMAC GSL65D COFANATO CON QUADRO COMANDO MANUALE

Name: PRAMAC GSL65D COFANATO CON QUADRO COMANDO MANUALE
Brand: PRAMAC
SKU: SU610TDAU00 /

Reference SU610TDAU00 /

OUT OF PRODUCTION

Maximum power Three-phase: 48.76 KW
Three-phase continuous use power: 46.23 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Deutz AG BF4M2011C
Starting: Electric
Consumption: 13.4 Lt/h at 100% of the load
Length: 2285 mm
Width: 920 mm
Height: 1310 mm
Weight: 981 Kg
AVR

Download Scheda tecnica GSL65D COFANATO Download Technical data GSL65D COVERED Download Disegno installazione GSL65D EFT

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 48.76
Continuous power three phase (KW): 46.23
Maximum power three phase (KVA): 60.95
Continuous power three phase (KVA): 57.79
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Engine: Deutz AG BF4M2011C, turbo intercooled
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 3110
Number cylinders: 4
Cylinders' position: In line
Oil capacity (L): 10
Cooling: Oil
Alternator: Mecc Alte ECO/P32-2L/4, brushless
Poles: 4
Fuel tank capacity (L): 209
Consumption (L/h): 9.9 at 75% of the load / 13.4 at 100% of the load
Running time (h): 21 at 75% of the load / 15.6 at 100% of the load
Acoustic power: 93 dB(A)
Acoustic pressure: 64 dB(A) at 7 m
Length (mm): 2285
Width (mm): 920
Height (mm): 1310
Dry weight (Kg): 981
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: No ATS
Voltage regulator: AVR
Engine manufacturer: Deutz

Brand

Motore Diesel. Predisposto per Biodiesel. Raffreddamento ad olio con radiatore. Silenziatore industriale. Base forcabile con carrelli. Liquidi motore e batteria carica
