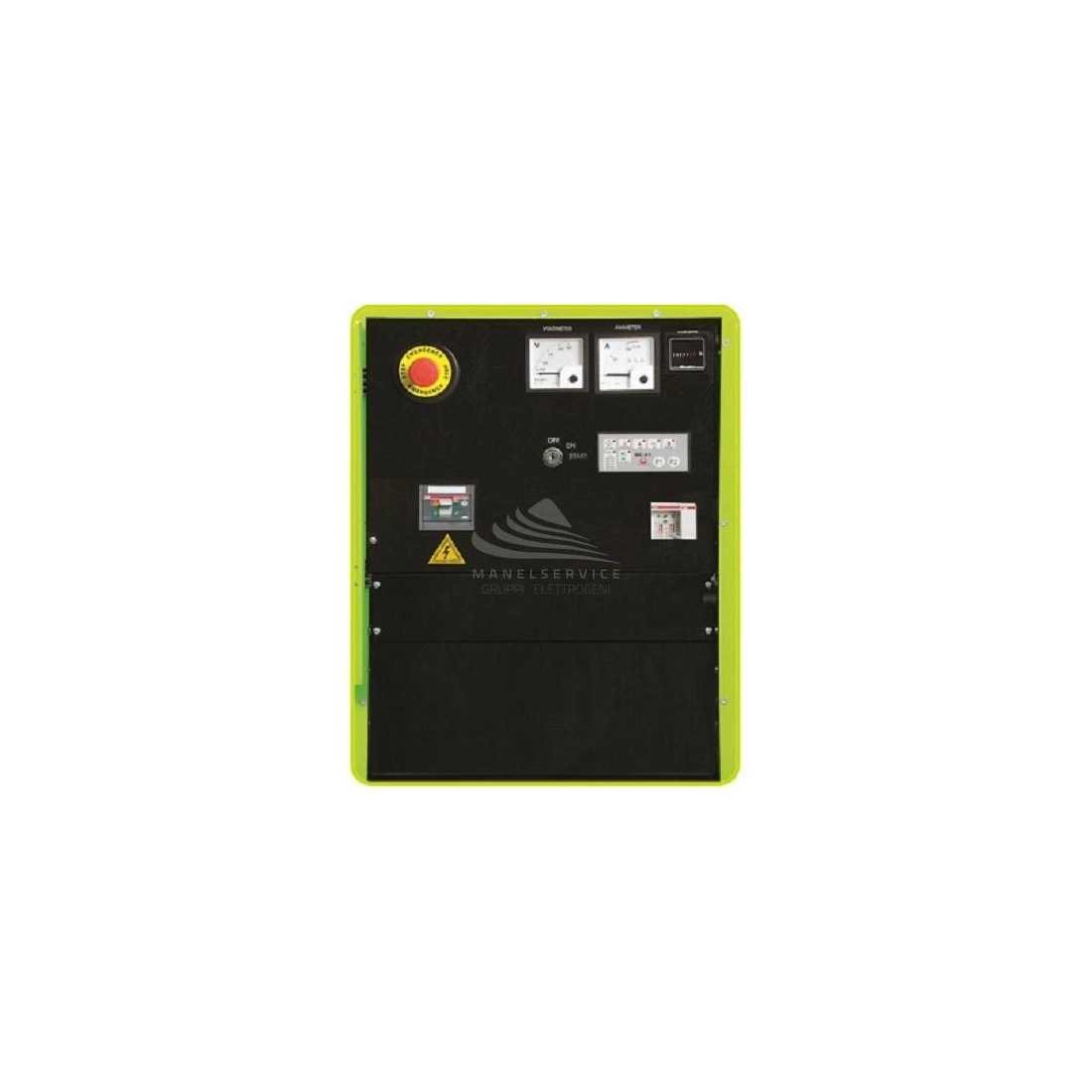

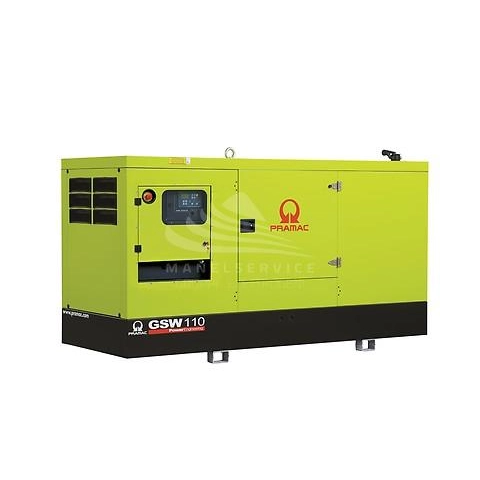

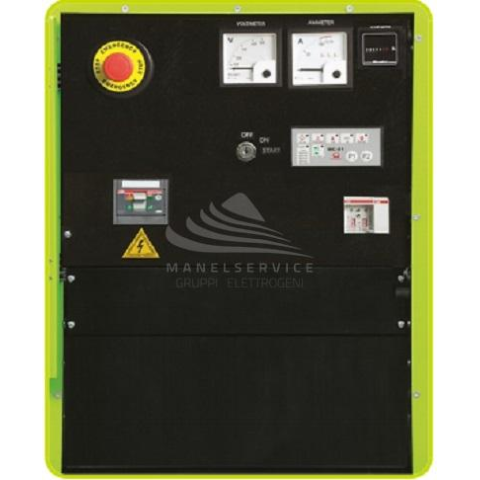

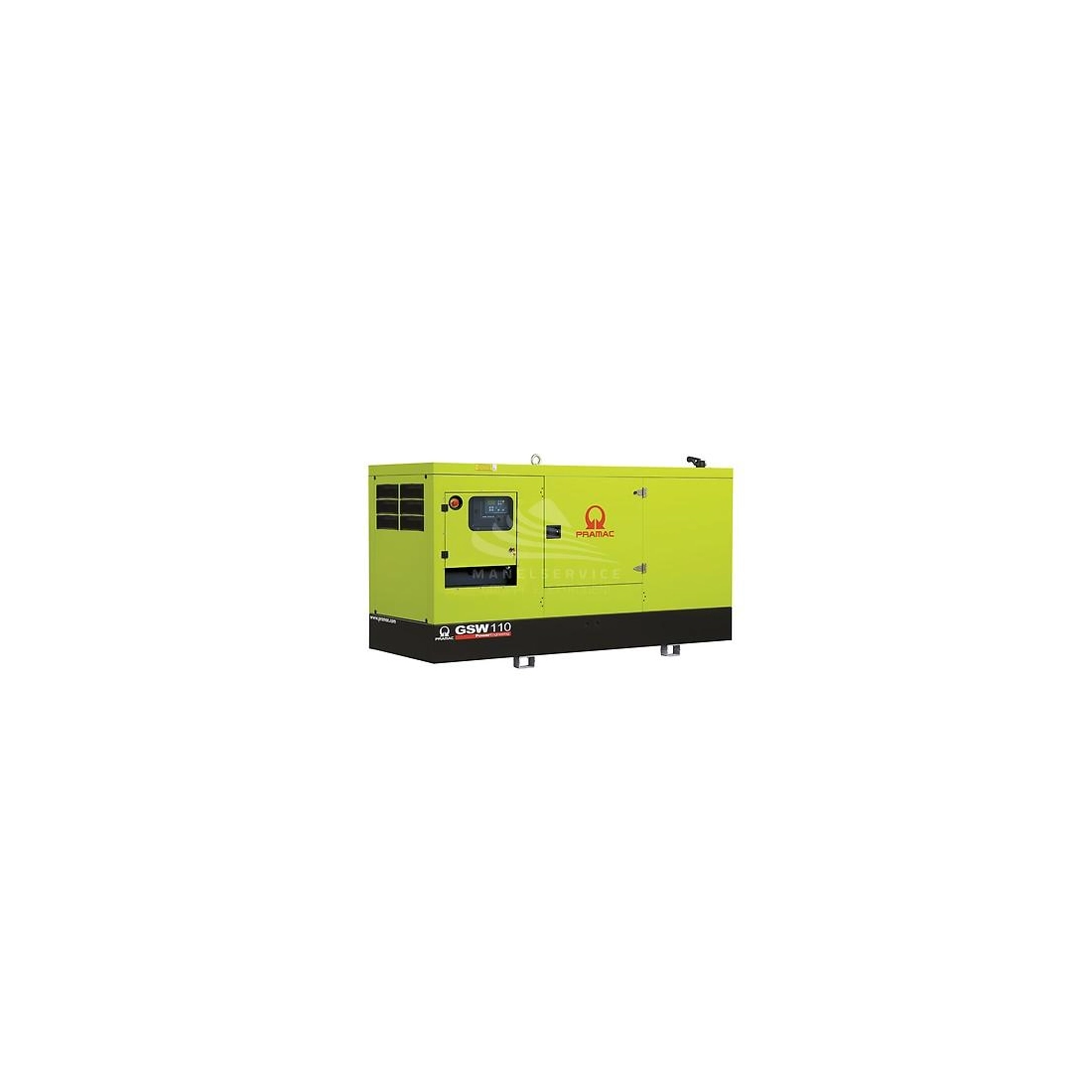

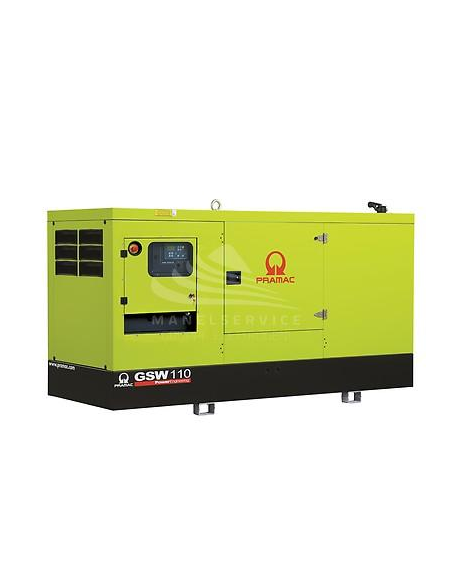

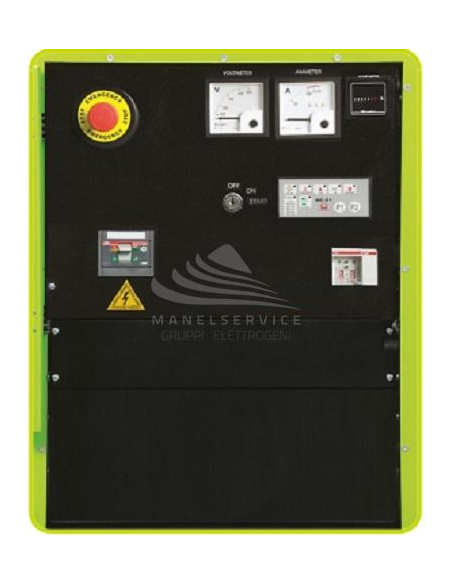

PRAMAC GSW110V COFANATO CON QUADRO COMANDO MANUALE

PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
SU101TWAT00

Maximum power Three-phase: 90.36 KW
Power continuous use Three-phase: 81.14 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: VOLVO TAD531GE
Starting: Electric
Consumption: 24 Lt/h at 100% of the load
Length: 3000 mm
Width: 1150 mm
Height: 1760 mm
Weight: 1727 Kg
AVR

Download Scheda tecnica GSW110V COFANATO Download Technical data GSW110V COVERED Download Disegno installazione GSW110V Download Disegno installazione GSW110V

Phase
Three phase
Maximum power three phase (KW)
90.36
Continuous power three phase (KW)
81.14
Maximum power three phase (KVA)
112.95
Continuous power three phase (KVA)
101.42
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
400
Engine
VOLVO TAD531GE, turbo intercooled
Emissions Regulations
Stage 2
Speed governor
Mechanical
Starting system
Electric
Engine capacity (cm³)
4760
Number cylinders
4
Cylinders' position
In line
Oil capacity (L)
13
Cooling
Water
Alternator
Mecc Alte ECP34-2S/4, brushless
Poles
4
Fuel tank capacity (L)
350
Consumption (L/h)
18 at 75% of the load / 24 at 100% of the load
Running time (h)
19.4 at 75% of the load / 14.6 at 100% of the load
Acoustic power
97 dB(A)
Acoustic pressure
68 dB(A) at 7 m
Length (mm)
3000
Width (mm)
1150
Height (mm)
1760
Dry weight (Kg)
1727
Silenced
Yes
Super silenced
Yes
ATS Switch device
No ATS
Voltage regulator
AVR
Engine manufacturer
Volvo
Brand
