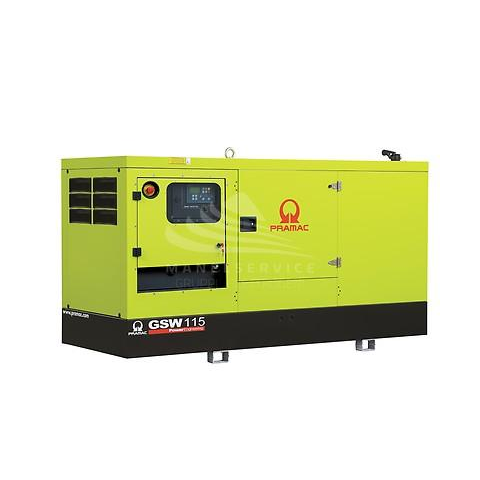

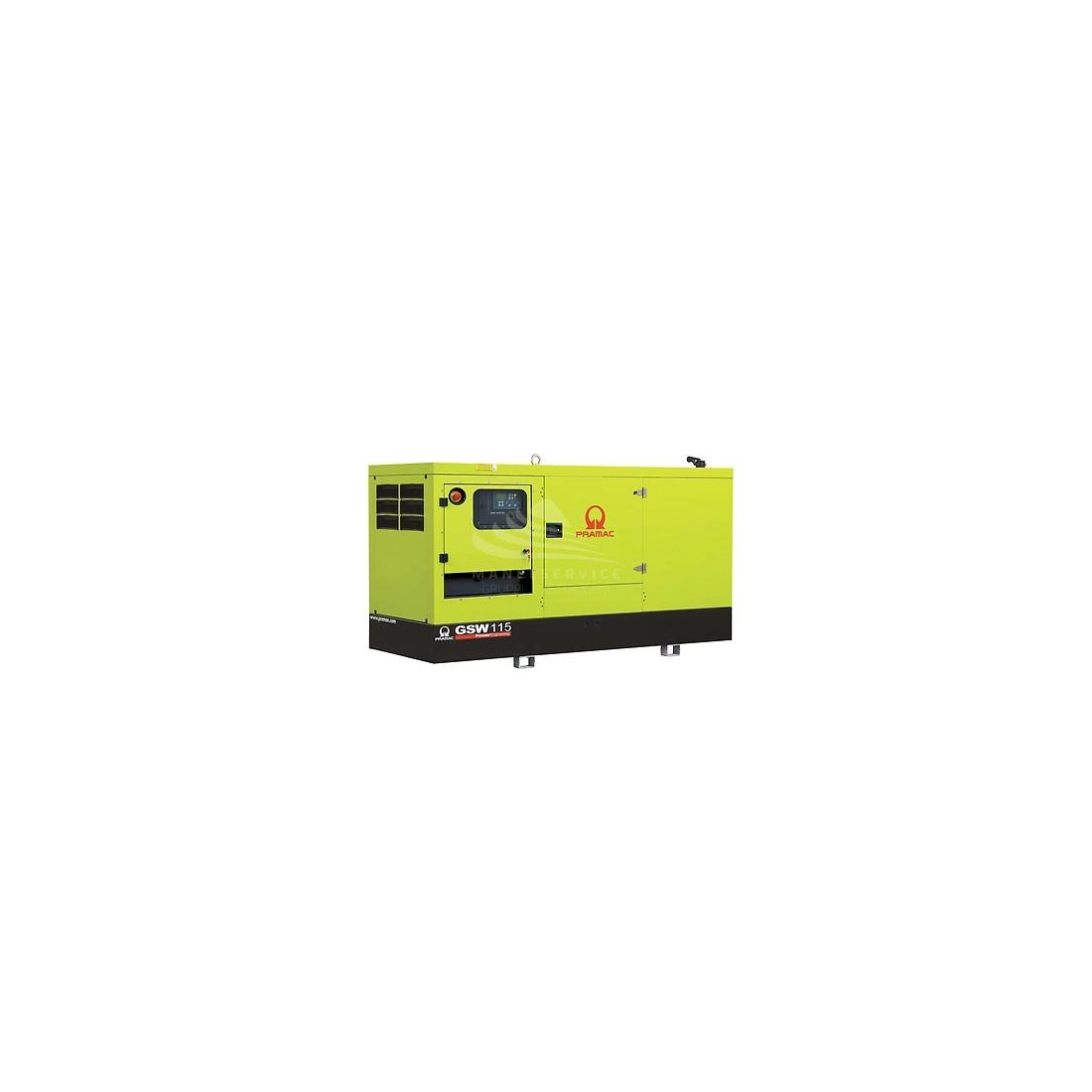

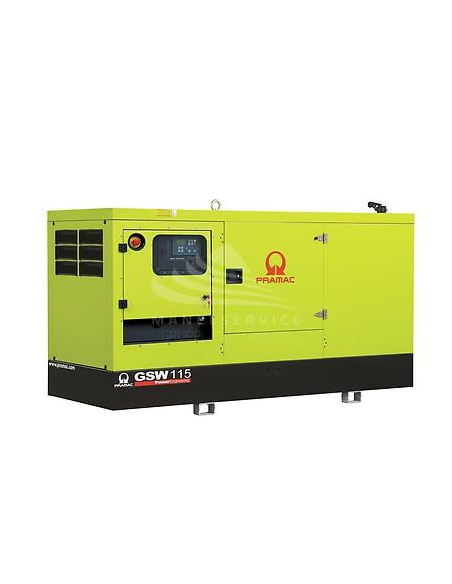

PRAMAC GSW115P COFANATO CON QUADRO COMANDO AUTOMATICO

PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)

Phase
Three phase
Maximum power three phase (KW)
92.8
Continuous power three phase (KW)
84.92
Maximum power three phase (KVA)
116
Continuous power three phase (KVA)
106.15
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
400
Engine
PERKINS 1104D-E44TAG2, turbocharged
Emissions Regulations
Stage 3A
Speed governor
Electronic
Starting system
Electric
Engine capacity (cm³)
4400
Number cylinders
4
Cylinders' position
In line
Oil capacity (L)
8
Cooling
Water
Alternator
Mecc Alte ECP34-2S/4, brushless
Poles
4
Fuel tank capacity (L)
209
Consumption (L/h)
17 at 75% of the load / 24.7 at 100% of the load
Running time (h)
12.3 at 75% of the load / 8.4 at 100% of the load
Acoustic power
96 dB(A)
Acoustic pressure
67 dB(A) at 7 m
Length (mm)
2400
Width (mm)
1000
Height (mm)
1685
Dry weight (Kg)
1500
Silenced
Yes
Super silenced
Yes
ATS Switch device
Optional ATS
Voltage regulator
AVR
Engine manufacturer
Perkins
Brand

Complete your order with:

€25,824.36 €25,824.36
Download PDF
 Calculate Shipping Cost
Shipping all over the world

Professional Consulting
Quotes in 24 hours
Manufacturer's Warranty
