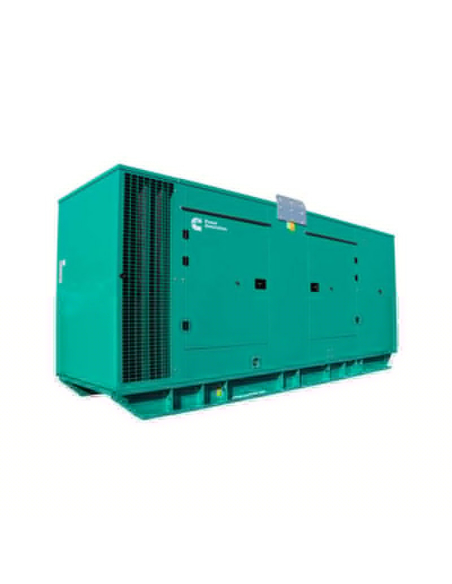

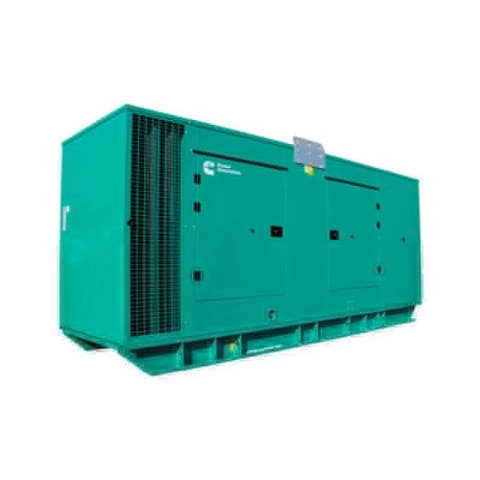

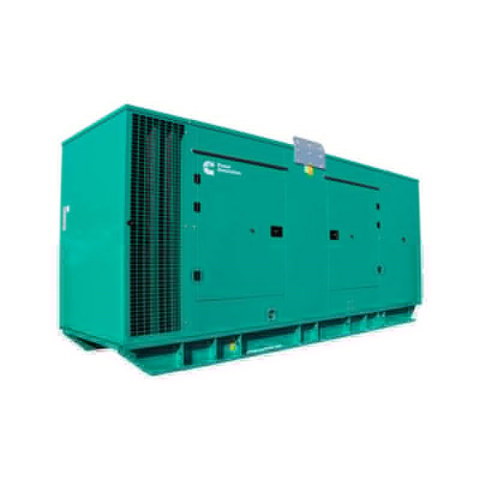

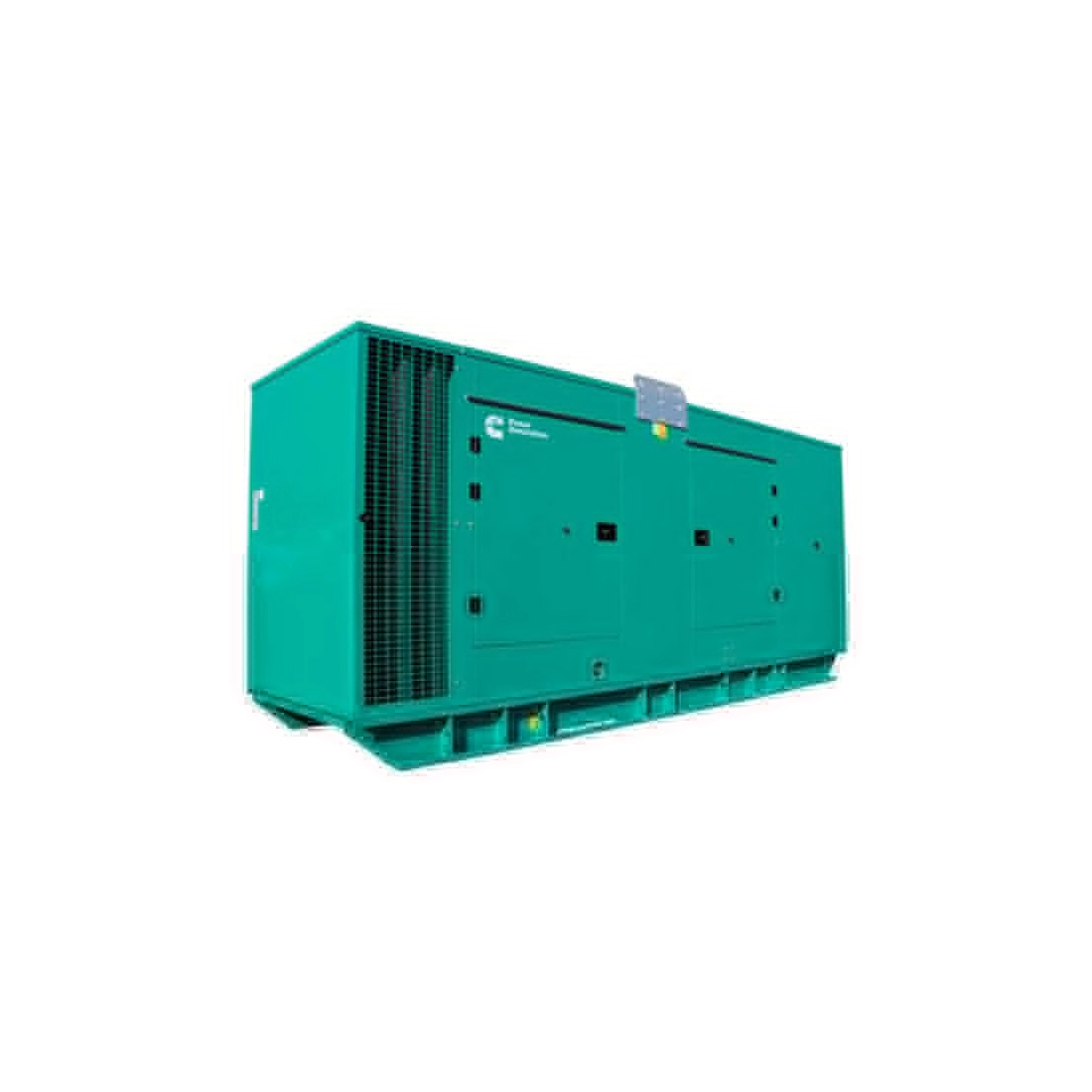

CUMMINS C825D5 Generator Set Three-phase Silenced Diesel 825KVA

CUMMINS C825D5 Three-phase Silenced Diesel Generator Set 825KVA

The CUMMINS C825D5 is a powerful three-phase electric generator designed to provide reliable and continuous power in a variety of applications. Thanks to its Cummins engine, this generator set guarantees high performance and a long service life.

Key features:

Power: With a maximum output of 825 kVA and a continuous output of 750 kVA, this generator is capable of powering a wide range of electrical equipment.
Engine: Equipped with a robust Cummins C825 D5 diesel engine, synonymous with reliability and durability.
Voltage and frequency: Provides a voltage of 380-440 V and a frequency of 50 Hz, suitable for most industrial and commercial applications.
Size and weight: With compact dimensions (5708 mm x 1763 mm x 2095 mm) and a dry weight of 9868 kg, this generator can be easily installed in a variety of environments.
Fuel consumption: Fuel consumption is 125.3 litres per hour at 75% load, offering a good balance between performance and efficiency.
Quietness: Thanks to the soundproofing system, the noise level is reduced, ensuring comfortable operation.
Electric start: The electric start makes starting the generator quick and easy.
Electronic speed regulator: Ensures precise frequency and voltage regulation.

Technical specifications CUMMINS C825D5:

Phase type: Three-phase
Continuous power: 750 KVA / 600 KW
Maximum Power: 825 KVA / 660 KW
Engine: Cummins QSK23-G3
Power supply: Diesel
Engine Speed: 1500 rpm
Starter: Electric
Speed Governor: ElectronicVoltage: 380-440 V
Frequency: 50 Hz
Consumption at 75 % load: 125.3 l/h
Length: 5708 mm
Width: 1763 mm
Height: 2095 mm
Dry weight: 9868 kg

Are you looking for a generator with different technical characteristics? HERE you can find the entire range of CUMMINS generators and other specialized brands.

Non-binding images and technical data
