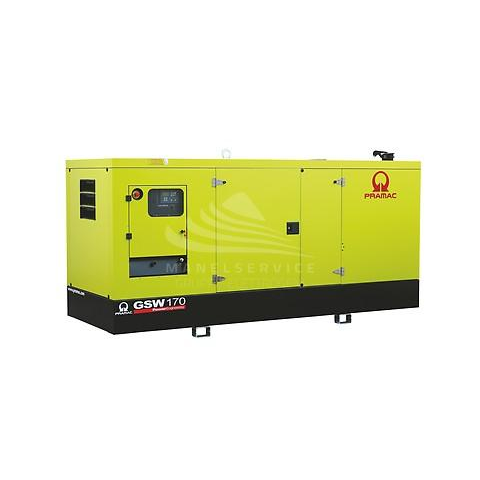

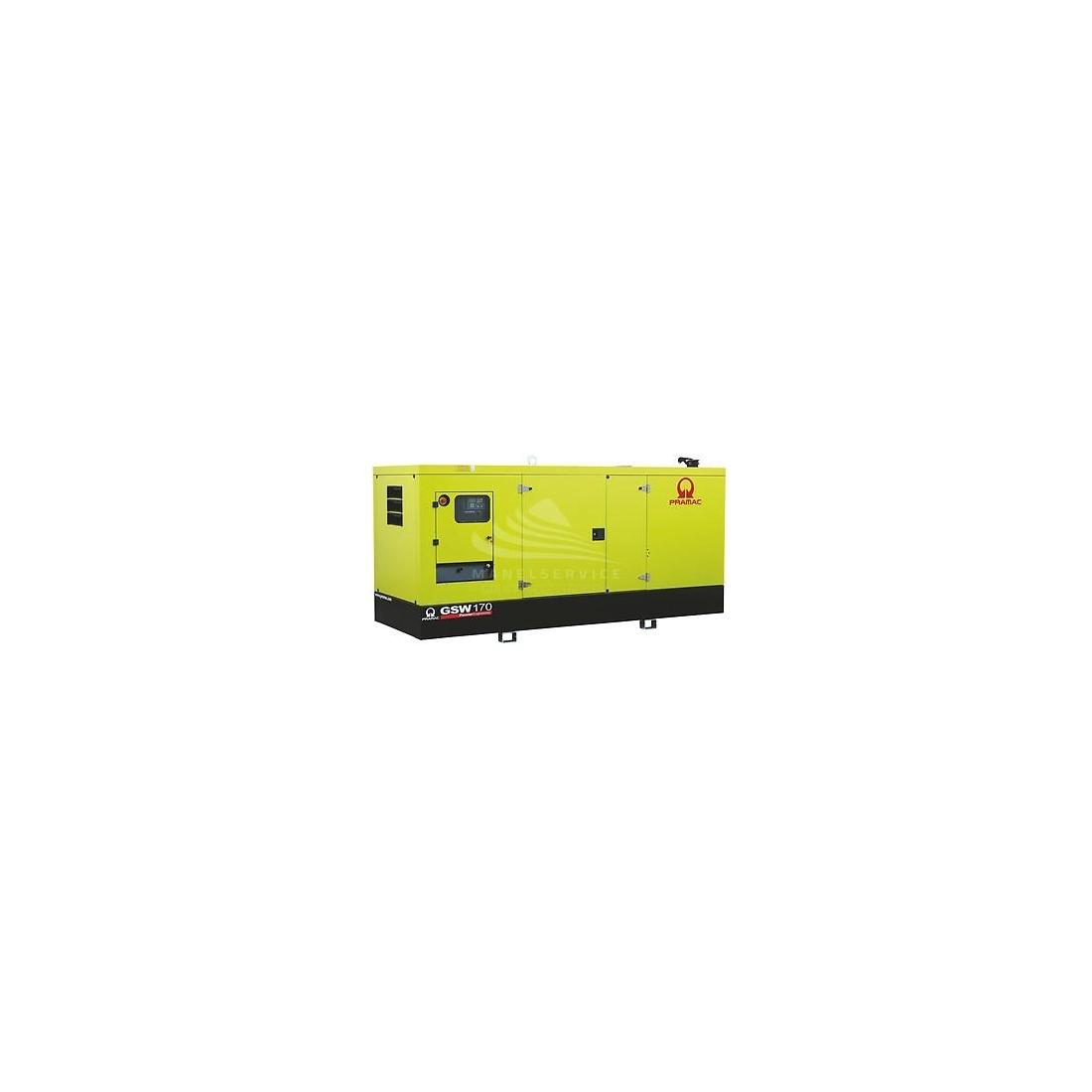

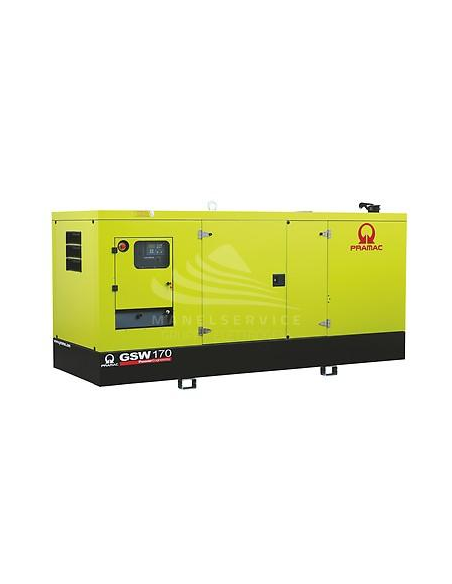

PRAMAC GSW170I COFANATO CON QUADRO COMANDO MANUALE

PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)

Phase
Three phase
Maximum power three phase (KW)
131.2
Continuous power three phase (KW)
126.4
Maximum power three phase (KVA)
164
Continuous power three phase (KVA)
158
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
400
Engine
FPT NEF67TM3A, turbo aftercooler
Emissions Regulations
Stage 2
Speed governor
Mechanical
Starting system
Electric
Engine capacity (cm³)
6
Number cylinders
6
Cylinders' position
In line
Oil capacity (L)
17.2
Cooling
Water
Alternator
Mecc Alte ECP34-2L, brushless
Poles
4
Fuel tank capacity (L)
240
Consumption (L/h)
27.1 at 75% of the load / 35.6 at 100% of the load
Running time (h)
8.9 at 75% of the load / 6.7 at 100% of the load
Acoustic power
96 dB(A)
Acoustic pressure
67 dB(A) at 7 m
Length (mm)
3400
Width (mm)
1250
Height (mm)
1770
Dry weight (Kg)
2057
Silenced
Yes
Super silenced
Yes
ATS Switch device
No ATS
Voltage regulator
AVR
Engine manufacturer
FPT Iveco
Brand
