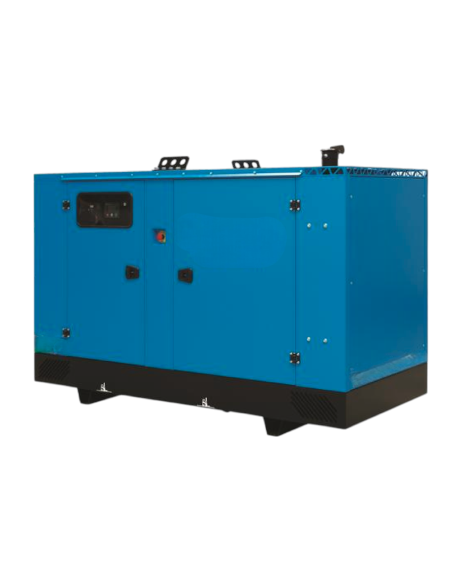

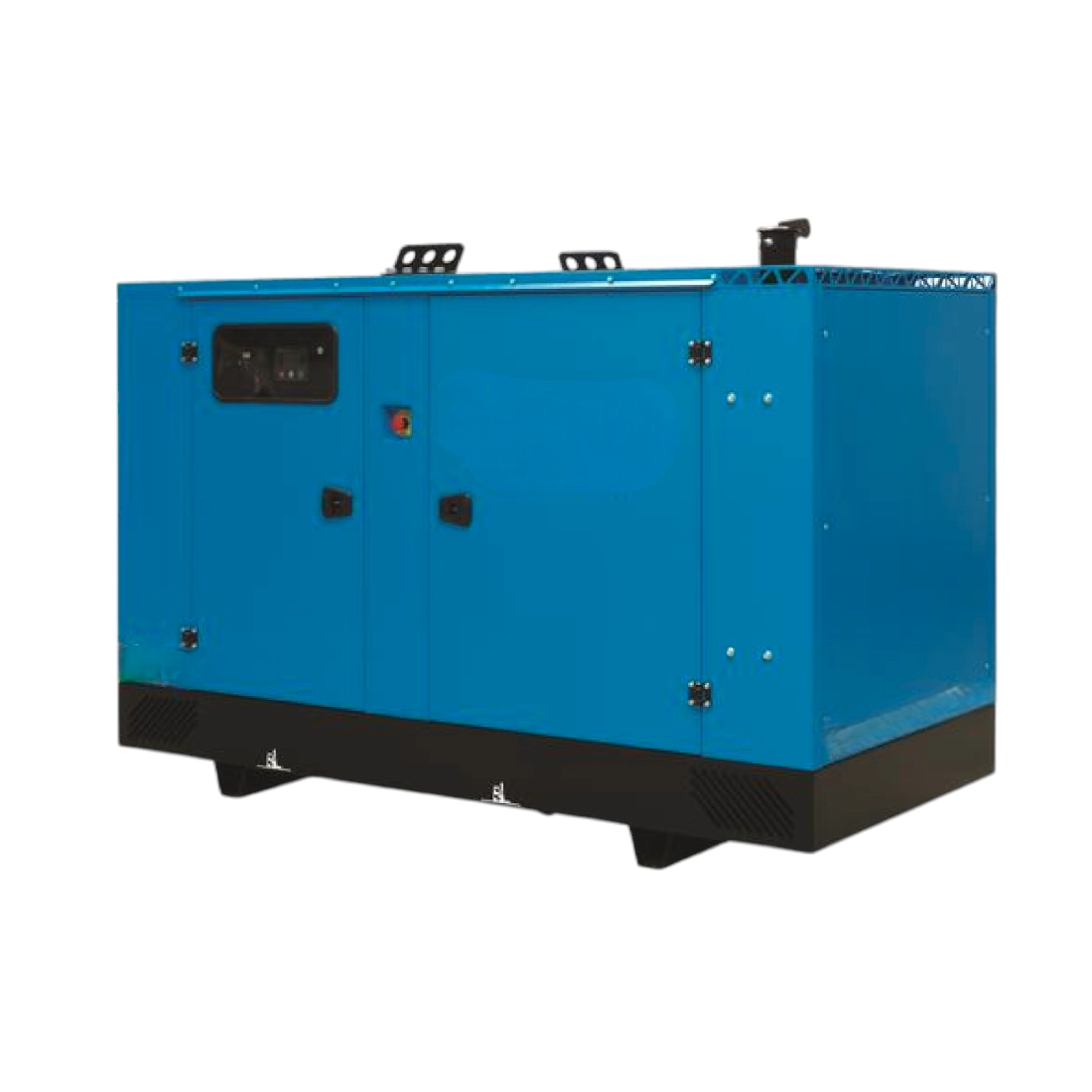

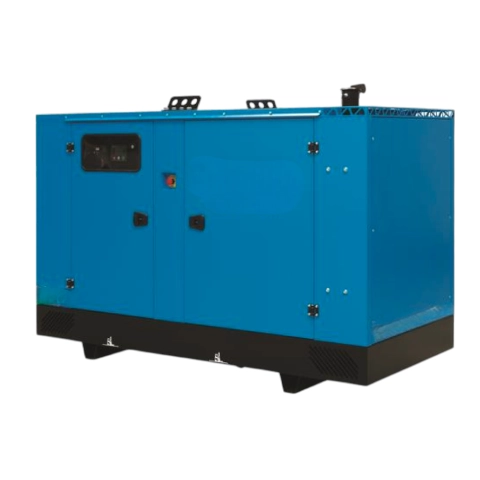

Generator Set Three Phase 400v 143KVA Silenced

Generator set Three Phase 400v 143KVA Silenced

The Generator set Three Phase 400v 143KVA Silenziato is a robust and reliable power solution,
designed to provide stable three-phase power in a variety of applications. With a maximum power of 143 KVA (114.4 KW),
this diesel generator is ideal for powering industrial and commercial equipment or as an emergency power system.

Main Features:

High Power: With 143 KVA of maximum power, this generator set can handle high three-phase loads.

Reliable Engine: The Baudouin 6M11G2D0/S engine ensures high performance and long durability.

Silent Operation: The soundproof canopy ensures low-noise operation, with a sound pressure of only 69 dB(A) at 7 meters.

Long Autonomy: The 250-liter fuel tank and efficient fuel consumption allow for an autonomy of approximately 9.6 hours.

AVR Regulation: The AVR voltage regulator ensures stable output voltage, protecting connected equipment.

Customizable Options: The optional ATS switch panel allows for automatic switching to emergency power.

Robust Construction: Designed to withstand harsh conditions, with dimensions of 3200 x 1100 x 2090 mm and a weight of 1995 kg.

Technical Features:

Phase type: Three-phase
Maximum three-phase power (KVA): 143
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Engine: BAUDOUIN 6M11G2D0/S
Engine speed (rpm): 1500
Speed governor: Electronic
Starting: Electric
Displacement (cm³): 6750
Number of cylinders: 6
Cooling: Water
Alternator: STAMFORD – MECC ALTE – MARELLI MOTORI
Fuel tank capacity (L): 250
Consumption (L/h): 34.2 at 100% load
Autonomy (h): 9.6
Sound pressure: 69 dB(A) at 7 m
Length (mm): 3200
Width (mm): 1100
Height (mm): 2090
Weight (Kg): 1995
Silenced: Yes
Bore x stroke (mm): 105 x 130
Product type: Generator set
ATS switch panel: Optional
Voltage regulator: AVR
Engine brand: Baudouin
Emission standard: Non-Emissioned
Maximum three-phase power (KW): 114.4

If you are looking for another product like this generator set, you can consult our catalog for other land generator sets.
Images and technical data are non-binding.
