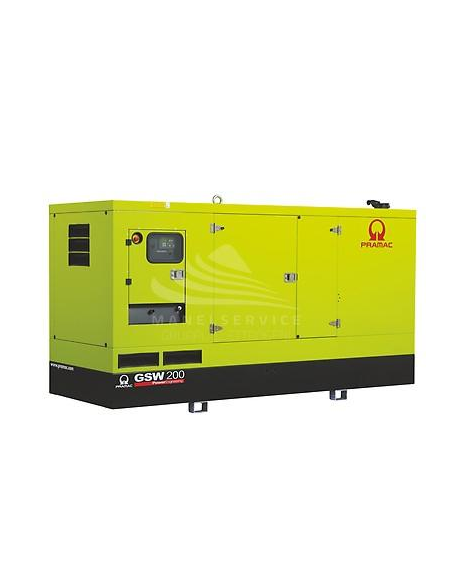

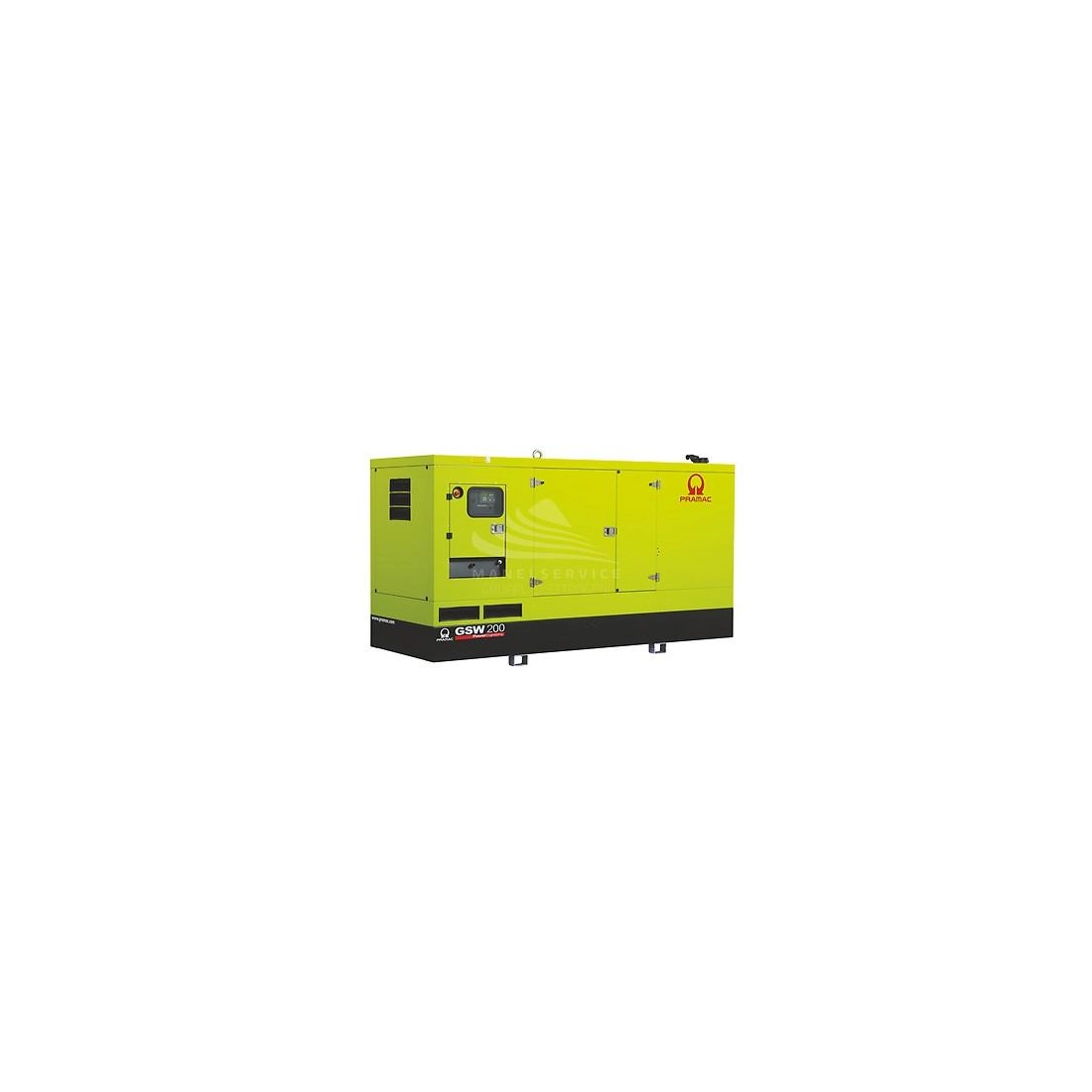

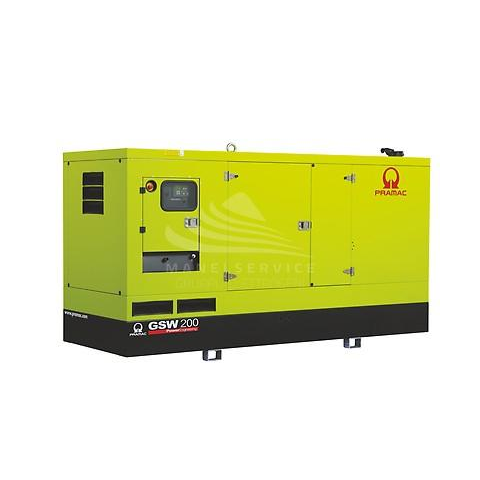

PRAMAC GSW200V COFANATO CON QUADRO COMANDO AUTOMATICO

PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)

Phase
Three phase
Maximum power three phase (KW)
156.8
Continuous power three phase (KW)
143.22
Maximum power three phase (KVA)
196
Continuous power three phase (KVA)
179.02
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
400
Engine
VOLVO TAD752GE, turbo intercooled
Emissions Regulations
Stage 3A
Speed governor
Electronic
Starting system
Electric
Engine capacity (cm³)
7150
Number cylinders
6
Cylinders' position
In line
Oil capacity (L)
34
Cooling
Water
Alternator
Mecc Alte ECO38-1SN/4, brushless
Poles
4
Fuel tank capacity (L)
350
Consumption (L/h)
32.6 at 75% of the load / 40.5 at 100% of the load
Running time (h)
10.7 at 75% of the load / 8.6 at 100% of the load
Acoustic power
94 dB(A)
Acoustic pressure
65 dB(A) at 7 m
Length (mm)
3400
Width (mm)
1250
Height (mm)
1980
Dry weight (Kg)
2224
Silenced
Yes
Super silenced
Yes
ATS Switch device
Optional ATS
Voltage regulator
AVR
Engine manufacturer
Volvo
Brand

Complete your order with:

€37,152.07 €37,152.07
Download PDF
 Calculate Shipping Cost
Shipping all over the world

Professional Consulting
Quotes in 24 hours
Manufacturer's Warranty
