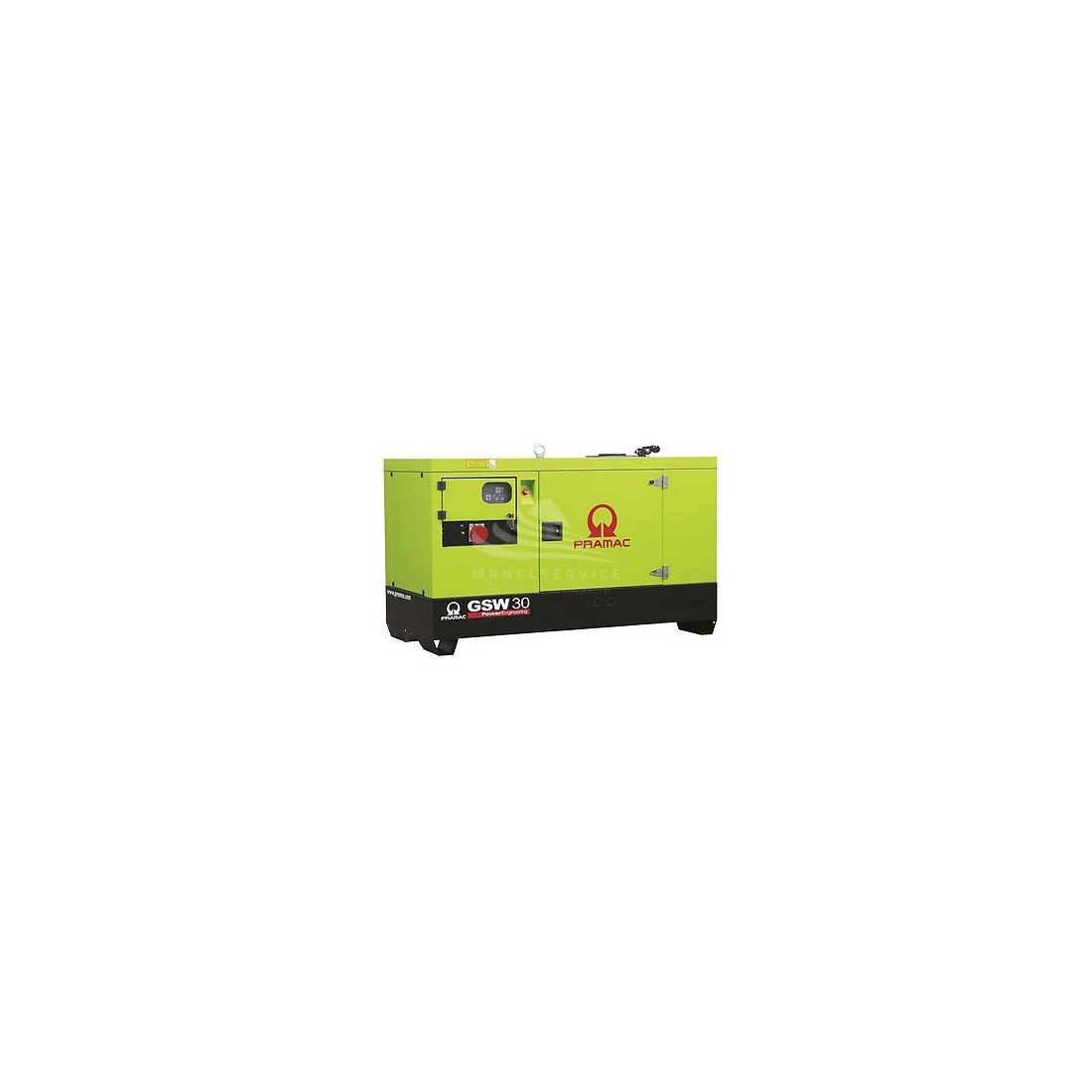

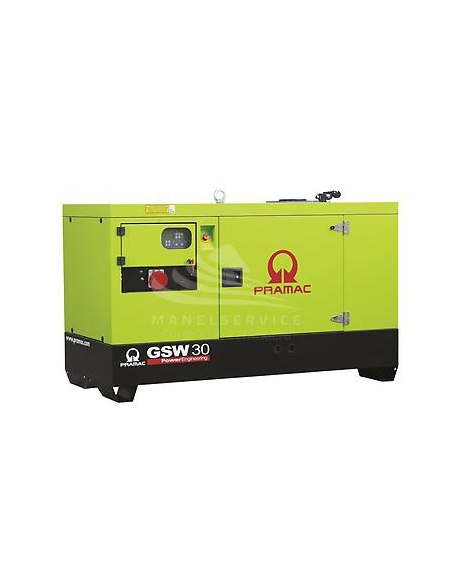

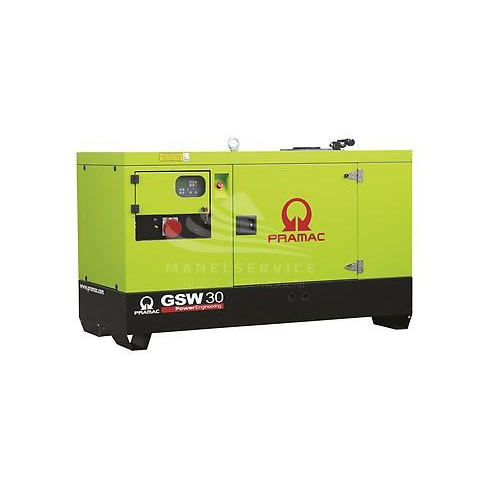

PRAMAC GSW30P COFANATO CON QUADRO COMANDO AUTOMATICO

PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)

Phase
Three phase
Maximum power three phase (KW)
26
Continuous power three phase (KW)
24.4
Maximum power three phase (KVA)
32.5
Continuous power three phase (KVA)
30.5
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
400
Sockets configuration
1 x 400V 63A 3P+N+T
Engine
PERKINS 1103A-33G, naturally aspirated
Speed governor
Mechanical
Starting system
Electric
Engine capacity (cm³)
3300
Number cylinders
3
Cylinders' position
In line
Oil capacity (L)
8.3
Cooling
Water
Alternator
Mecc Alte ECP28-VL/4, brushless
Poles
4
Fuel tank capacity (L)
68
Consumption (L/h)
5.4 at 75% of the load / 7.1 at 100% of the load
Running time (h)
12.6 at 75% of the load / 9.6 at 100% of the load
Acoustic power
93 dB(A)
Acoustic pressure
64 dB(A) at 7 m
Length (mm)
2000
Width (mm)
920
Height (mm)
1310
Dry weight (Kg)
877
Silenced
Yes
Super silenced
Yes
Product type
Generator
ATS Switch device
Optional ATS
Voltage regulator
AVR
Engine manufacturer
Perkins
Brand
