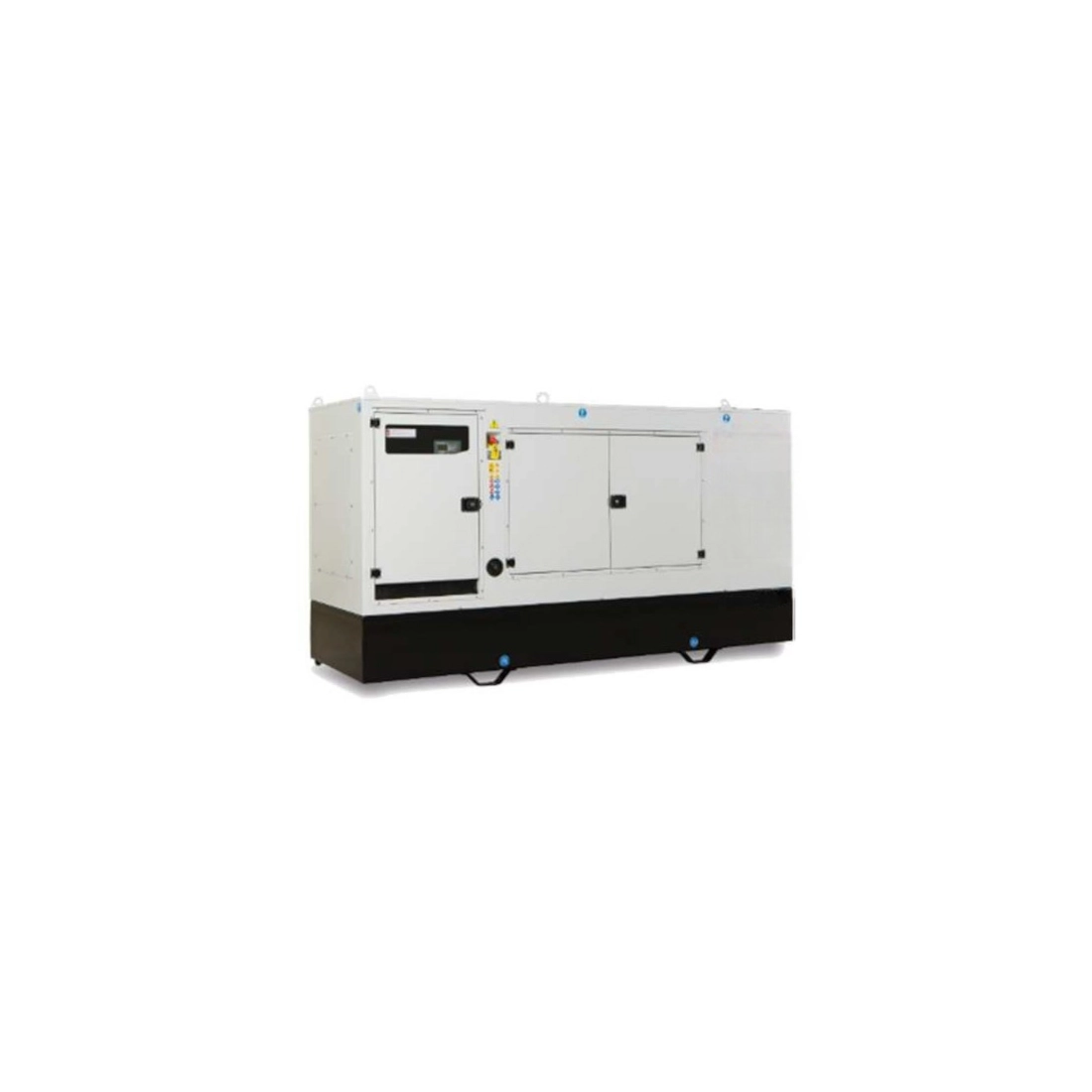

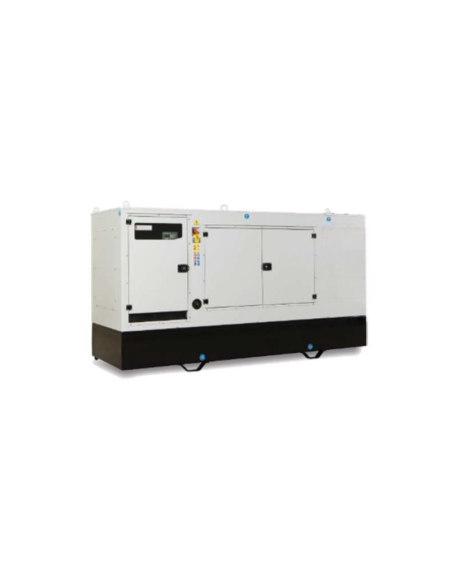

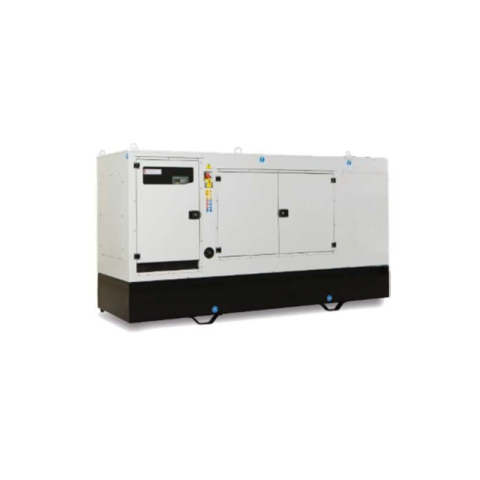

Generator Set Silenced Non-Emission 250KVA

Reference GESSNE250

Maximum three-phase power: 250 KVA
Maximum three-phase power: 200 KW
Fuel: Diesel
Voltage: 230/400 V
Engine: Perkins 1206A-E70TTAG2
Start: Electric
Length: 3300 mm
Width: 1100 mm
Height: 1770 mm
Weight: 2450 Kg

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 200
Continuous power three phase (KW): 180
Maximum power three phase (KVA): 250
Continuous power three phase (KVA): 225
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine: Perkins 1206A-E70TTAG2
Engine rpm (rpm): 1500
Speed governor: Electronic
Starting system: Elettrico
Engine capacity (cm³): 7010
Number cylinders: 6
Cylinders' position: In line
Cooling: Water
Alternator: LEROY SOMER
Poles: 4
Protection degree: IP23
Fuel tank capacity (L): 170
Consumption (L/h): 35.7 Lt/h al 75% del carico
Acoustic pressure: 70 dB(A)
Width (mm): 1100
Height (mm): 1770
Dry weight (Kg): 2450
Silenced: Yes
Super silenced: Yes
ATS Switch device: Optional ATS
Voltage regulator: AVR

Brand

Silent, Non-Emitting Generator Set 250KVA

This generator delivers a maximum three-phase power of 200 kW (250 kVA) and a continuous power of 180 kW (225 kVA).
It operates at a frequency of 50 Hz and provides a standard voltage of 230 / 400 V, suitable for most industrial and commercial applications.
Voltage stability is ensured by an AVR voltage regulator, which protects sensitive connected electronic equipment.

The generator is equipped with a Perkins 1206A-E70TTAG2 engine, a 6-cylinder in-line diesel unit with a displacement of 7035 cm³ and water cooling.
The engine operates at 1500 rpm, a feature that ensures greater durability and lower noise during use. extended.
The alternator is a LEROY SOMER TAL046C model, known for its reliability. The starter is electric and the engine speed is managed electronically for greater precision.

Technical Features:

Maximum three-phase power: 250 KVA
Maximum three-phase power: 200 KW
Fuel: Diesel
Voltage: 230/400 V
Engine: Perkins 1206A-E70TTAG2
Starter: Electric
Length: 3300 mm
Width: 1100 mm
Height: 1770 mm
Weight: 2450 kg
