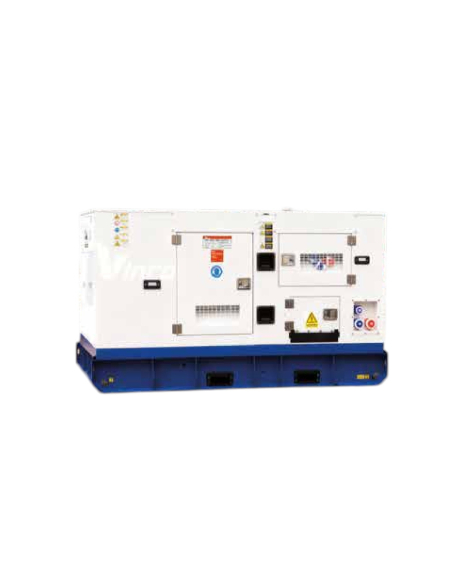

VINCO Generator set Three-Phase 100 kW/125 kVA Stage II
60250
Rated three-phase power: 100 kW / 125 kVA?
Maximum three-phase power: 110 kW / 138 kVA?
Single-phase power: 100 kW / 125 kW?
Voltage: 230/400 V - 50 Hz?
Amperage: 180 A?
Noise level: 75 dBA measured at 7 m?
Protection rating: IP23?
Maximum altitude: 1000 m a.s.l.?
Brand and model: YTO LR4M3L-D88?
Number of cylinders: 4?
Displacement: 4750 cc?
Engine speed: 1500 min?¹?
Lubrication system: 14 L?
Cooling system: Liquid, capacity 16 L?
Emissions: STAGE II?
Fuel type: Diesel?
Tank capacity: 165 L?
Consumption (100/75/50% load): 26.1 / 19.6 / 13.0 L/h?
Alternator and Control
Alternator model: LK274ES?
Type: Brushless, self-excitation?
Control module: DeepSea DSE6120?
Main functions: Low oil pressure, high engine temperature, excessive speed, emergency stop, fault signaling?
Predisposition: ATS
Dimensions: 277 x 108 x 140 cm?
Weight: 1710 kg
Insulation Cases: H
Injection: Direct
- Phase
- Three phase
- Maximum power three phase (KW)
- 110
- Maximum power three phase (KVA)
- 5.5
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 230/400
- Engine
- YTO LR4M3L-D88?
- Emissions Regulations
- Stage 2
- Engine rpm (rpm)
- 1500
- Number cylinders
- 4
- Inyección
- Direct
- Alternator
- LK274ES?
- Single-phase power (KW)
- 100 kW / 125 kW?
- Protection degree
- IP23
- Tank capacity (L)
- 165
- Consumption (L/h)
- 100/75/50% load: 26.1 / 19.6 / 13.0 L/h?
- Running time (h)
- 50 - 80
- Acoustic pressure
- 75 dBA
- Silenced
- Yes
- ATS Switch device
- No ATS
- displacement
- 4750 cc
- Insulation Class
- H
- Three-phase rated power (KW)
- 100 kW / 125 kVA?
- lubrication system
- 14 L
- Cooling system
- Liquid, capacity 16 L?
- Predisposition
- ATS
- Brand
-

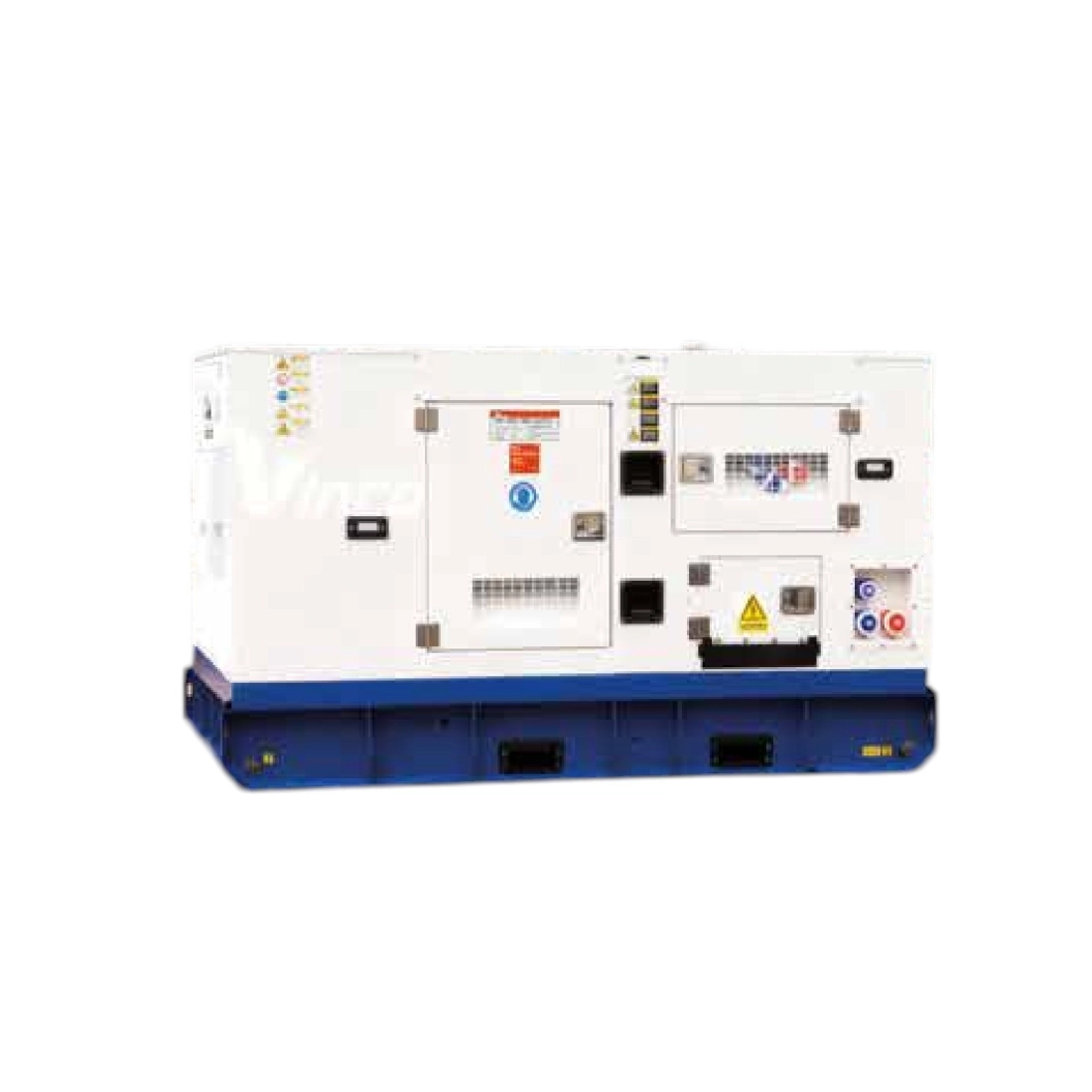

VINCO Three-Phase Generator 100 kW/125 kVA Stage II
Discover the silenced three-phase generator VINCO LG100YTO, a powerful solution for professional power supply with a three-phase nominal power of 100 kW / 125 kVA and a maximum of 110 kW / 138 kVA. Ideal for construction sites, events and industrial backup, this 1500 rpm diesel generator guarantees reliability with a YTO LR4M3L-D88 engine, 4 cylinders, 4750 cc, liquid cooling (16 L) and Stage 2 emissions.
Main Technical Specifications
Phase type: Three-phase, with single-phase power 100 kW / 125 kW
Voltage / Frequency: 230/400 V - 50 Hz
Fuel: Diesel, 165 L tank, consumption 26.1 / 19.6 / 13.0 L/h (100/75/50% load), autonomy 50-80 hours
Noise level: 75 dBA at 7 m (silenced), dry weight 1710 kg
Protections: IP23, max altitude 1000 m, lubrication 14 L, ATS predisposition (without integrated ATS switchboard)
Technical Features:
Three-phase rated power: 100 kW / 125 kVA?
Maximum three-phase power: 110 kW / 138 kVA?
Single-phase power: 100 kW / 125 kW?
Voltage: 230/400 V - 50 Hz?
Amperage: 180 A?
Noise level: 75 dBA measured at 7 m?
Protection level: IP23?
Maximum altitude: 1000 m a.s.l.?
Brand and Model: YTO LR4M3L-D88?
Number of cylinders: 4?
Displacement: 4750 cc?
Engine speed: 1500 min?¹?
Lubrication system: 14 L?
Cooling system: Liquid, capacity 16 L?
Emissions: STAGE II?
Fuel type: Diesel?
Tank capacity: 165 L?
Consumption (100/75/50% load): 26.1 / 19.6 / 13.0 L/h?
Alternator and Control
Alternator model: LK274ES?
Type: Brushless, self-excitation?
Control module: DeepSea DSE6120?
Main functions: Low oil pressure, high engine temperature, overspeed, emergency stop, fault signaling?
Predisposition: ATS
Dimensions: 277 x 108 x 140 cm?
Weight: 1710 kg
Insulation Cases: H
Initiation: Direct
If you are looking for a generator with different features CLICK HERE.
