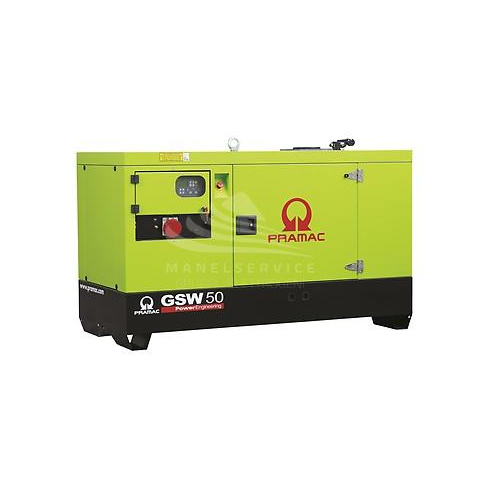

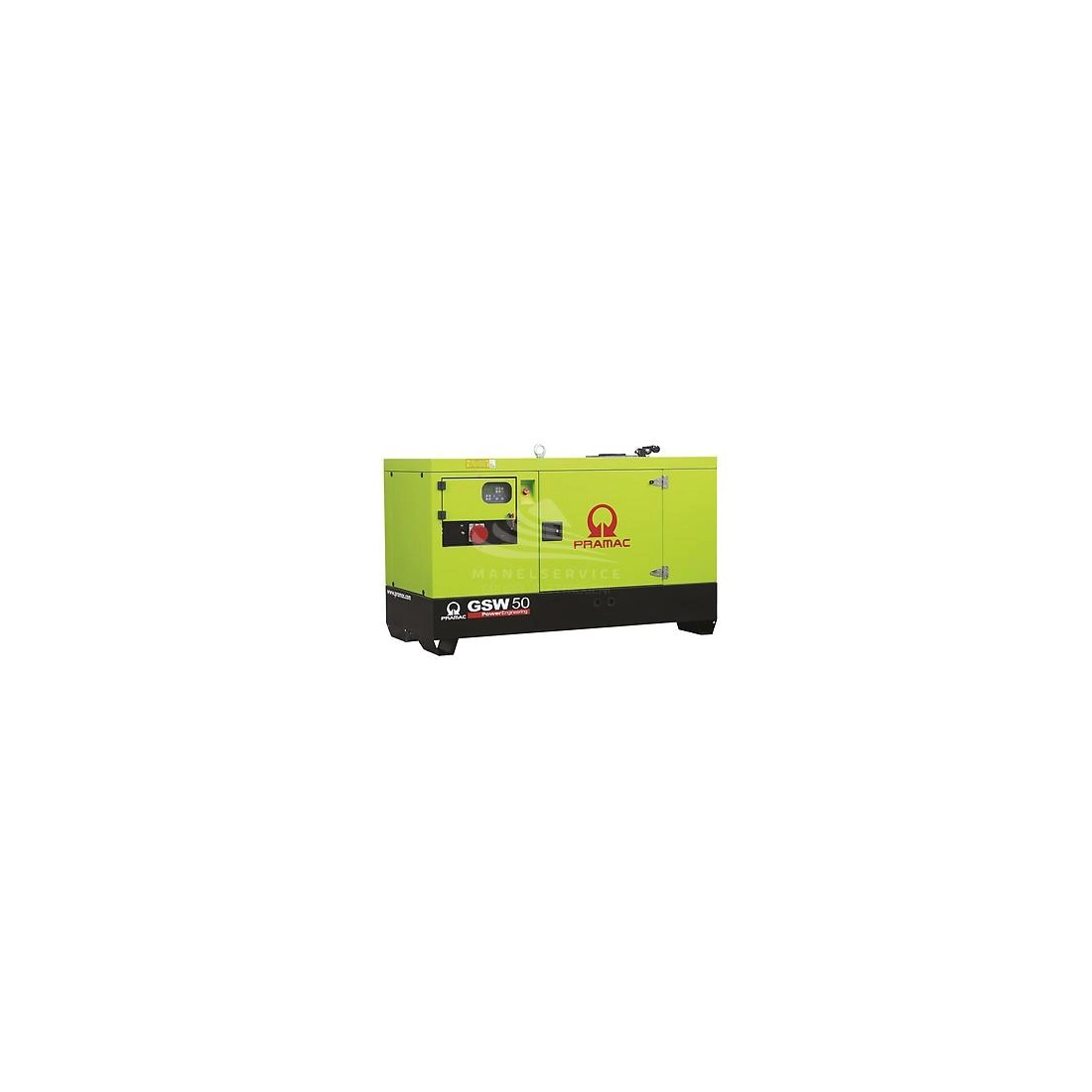

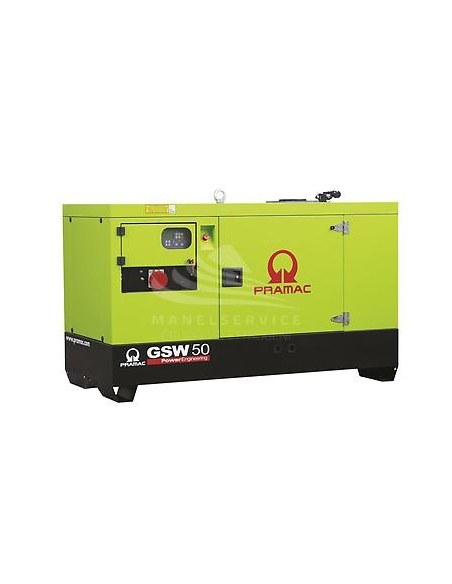

PRAMAC GSW50Y COFANATO CON QUADRO COMANDO AUTOMATICO

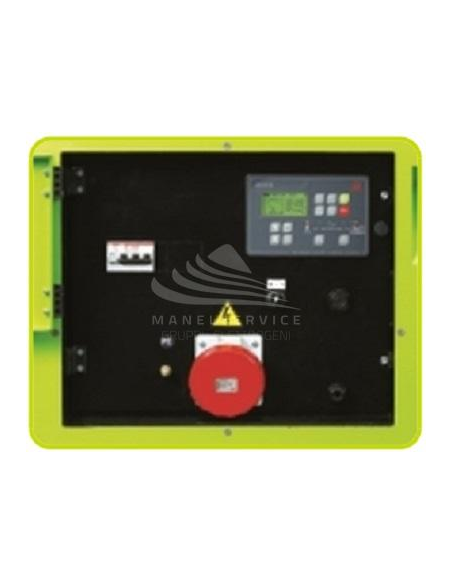

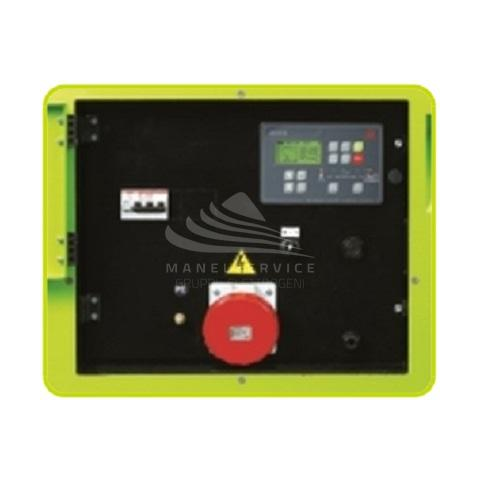

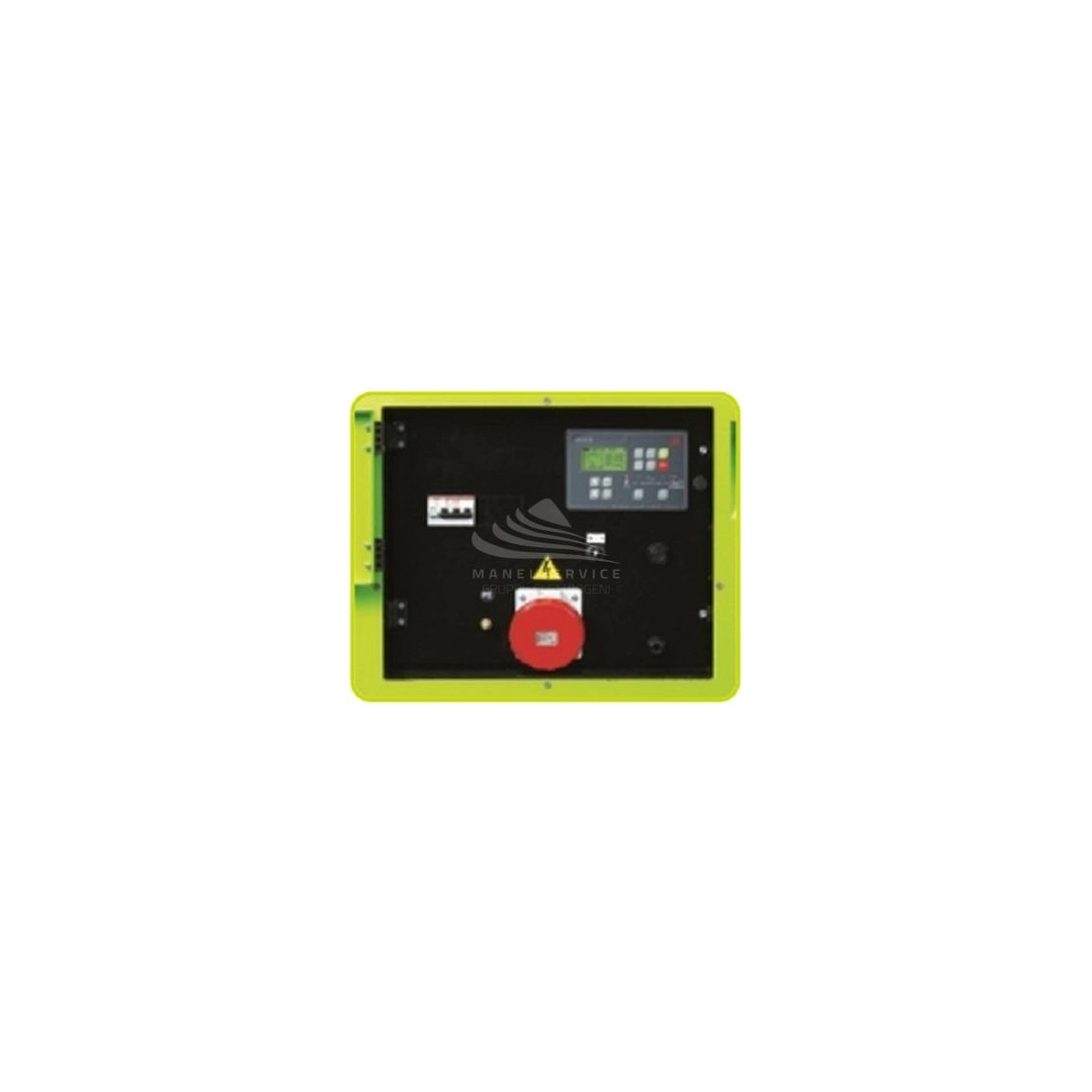

PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)
PRAMAC GSW10Y COFANATO CON QUADRO COMANDO MANUALE (MCP)

Phase
Three phase
Maximum power three phase (KW)
37.03
Continuous power three phase (KW)
35.18
Maximum power three phase (KVA)
46.29
Continuous power three phase (KVA)
43.97
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
400
Sockets configuration
1 x 400V 63A 3P+N+T
Engine
Yanmar 4TNV98T-ZGPGE, turbocharged
Emissions Regulations
Stage 3A
Speed governor
Electronic
Starting system
Electric
Engine capacity (cm³)
3319
Number cylinders
4
Cylinders' position
In line
Oil capacity (L)
11.2
Cooling
Water
Alternator
Mecc Alte ECO/P32-3S/4, brushless
Poles
4
Fuel tank capacity (L)
68
Consumption (L/h)
8.3 at 75% of the load / 11.1 at 100% of the load
Running time (h)
8.2 at 75% of the load / 6.1 at 100% of the load
Acoustic power
95 dB(A)
Acoustic pressure
66 dB(A) at 7 m
Length (mm)
2000
Width (mm)
920
Height (mm)
1310
Dry weight (Kg)
839
Silenced
Yes
Super silenced
Yes
Product type
Generator
ATS Switch device
Optional ATS
Voltage regulator
AVR
Engine manufacturer
Yanmar
