PRAMAC S5000 SINGLE PHASE Generator set AVR

Name: PRAMAC S5000 SINGLE PHASE Generator set AVR
Brand: PRAMAC
SKU: PD412SH2Z02
Price: 2155.51 EUR
Availability: InStock

Reference PD412SH2Z02

Potenza Consumo uso continuativo: 10 kva
Tipo carburante: Benzina
Capacità serbatoio carburante: 24 LT
Autonomia: 6.1 h al 75% del carico
Dimensioni: L 96 cm x L 64.1 cm x A 66.7 cm
Peso a secco: 162 Kg
Potenza acustica LpA: 96 LWA dB(A)
Configurazione delle prese: 1 x Schuko ,1 x 230V 16A ,1 x 230V 32A

Download Scheda tecnica S5000 AVR Download Technical data S5000 AVR

Product Details
Description

Phase: Single phase
Maximum power single phase (KW): 4.8
Continuous power single phase (KW): 3.9
Maximum power single phase (KVA): 5.3
Continuous power single phase (KVA): 4.2
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230
Engine: Honda GX270 Electric, naturally aspirated
Engine rpm (rpm): 3000
Speed governor: Mechanical
Starting system: Elettrico
Engine capacity (cm³): 270
Oil capacity (L): 1.1
Cooling: Air
Alternator: With brushes
Poles: 2
Fuel tank capacity (L): 26.5
Consumption (L/h): 1.66 at 75% of the load / 2.21 at 100% of the load
Running time (h): 15.96 at 75% of the load / 11.94 at 100% of the load
Acoustic power: 97 dB(A)
Acoustic pressure: 73 dB(A) at 7 m
Length (mm): 840
Width (mm): 615
Height (mm): 753
Dry weight (Kg): 89
Silenced: No
Super silenced: No
Product type: Generator
ATS Switch device: Optional ATS
Voltage regulator: AVR
Engine manufacturer: Honda

Brand

Motore Honda Serie GX. Raffreddamento ad aria. Batteria fornita di serie. Protezione Oil Guard. Tubazioni telaio maggiorate. Serbatoio maggiorato. Bandelle laterali di protezione

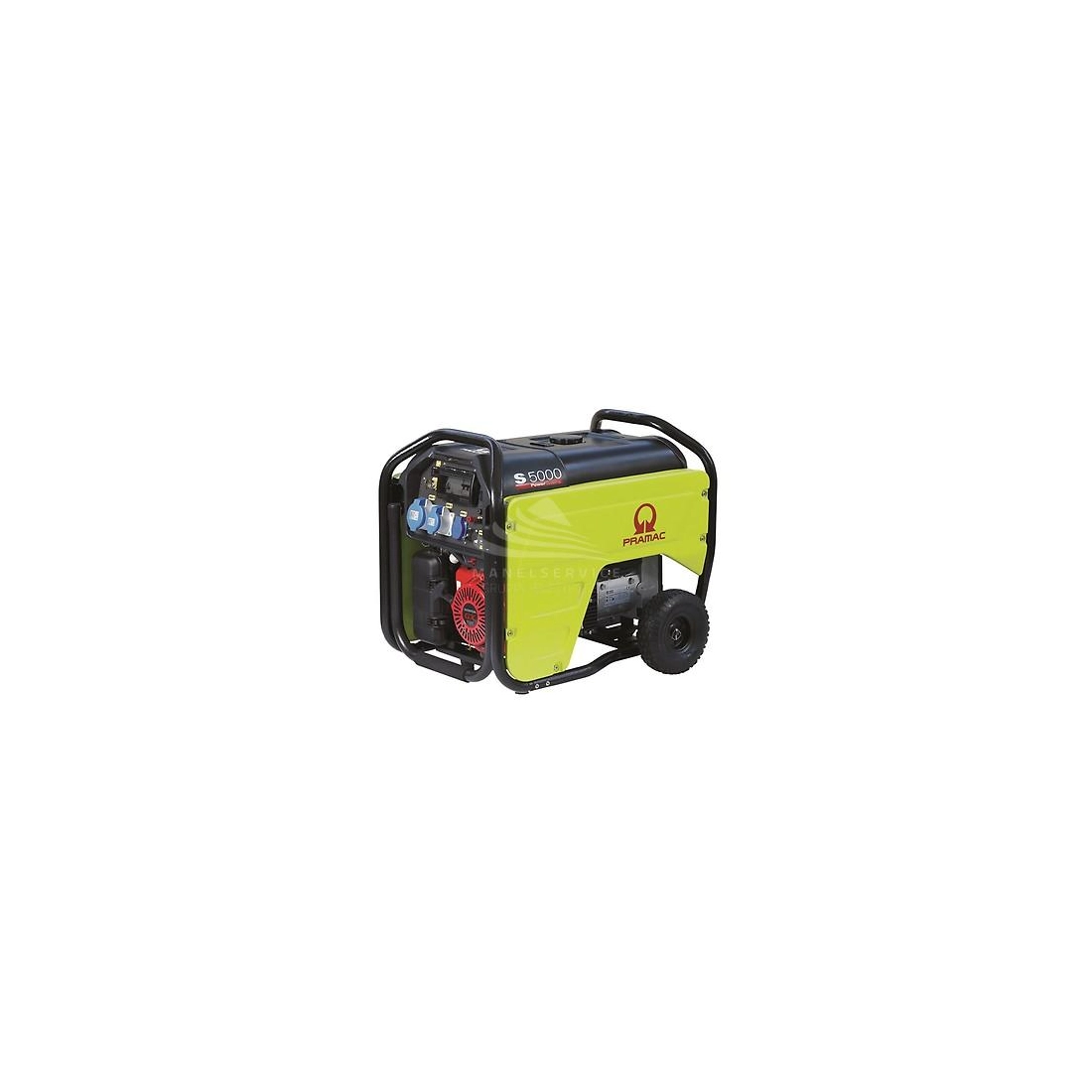

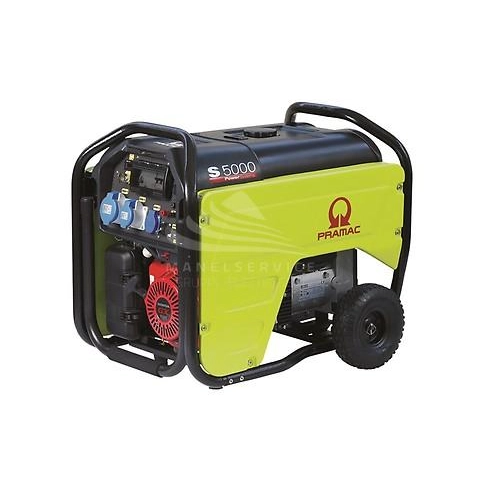

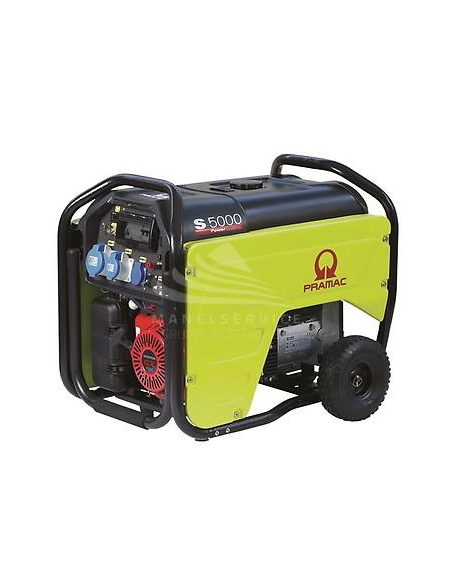

L'immagine è puramente indicativa
