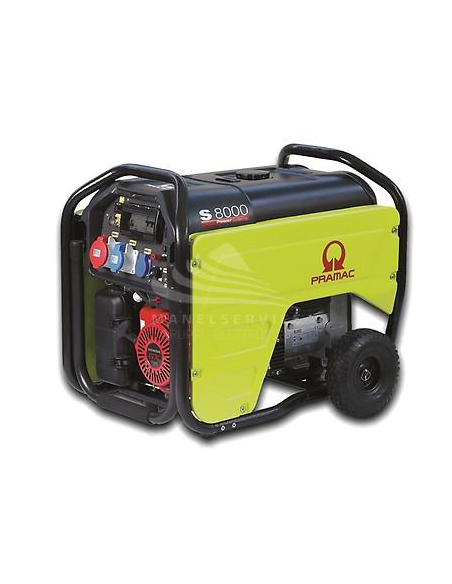

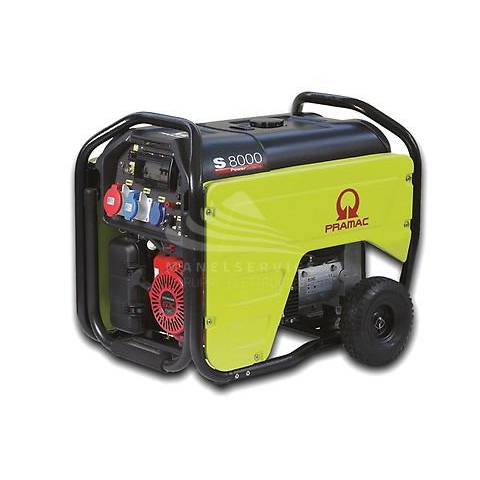

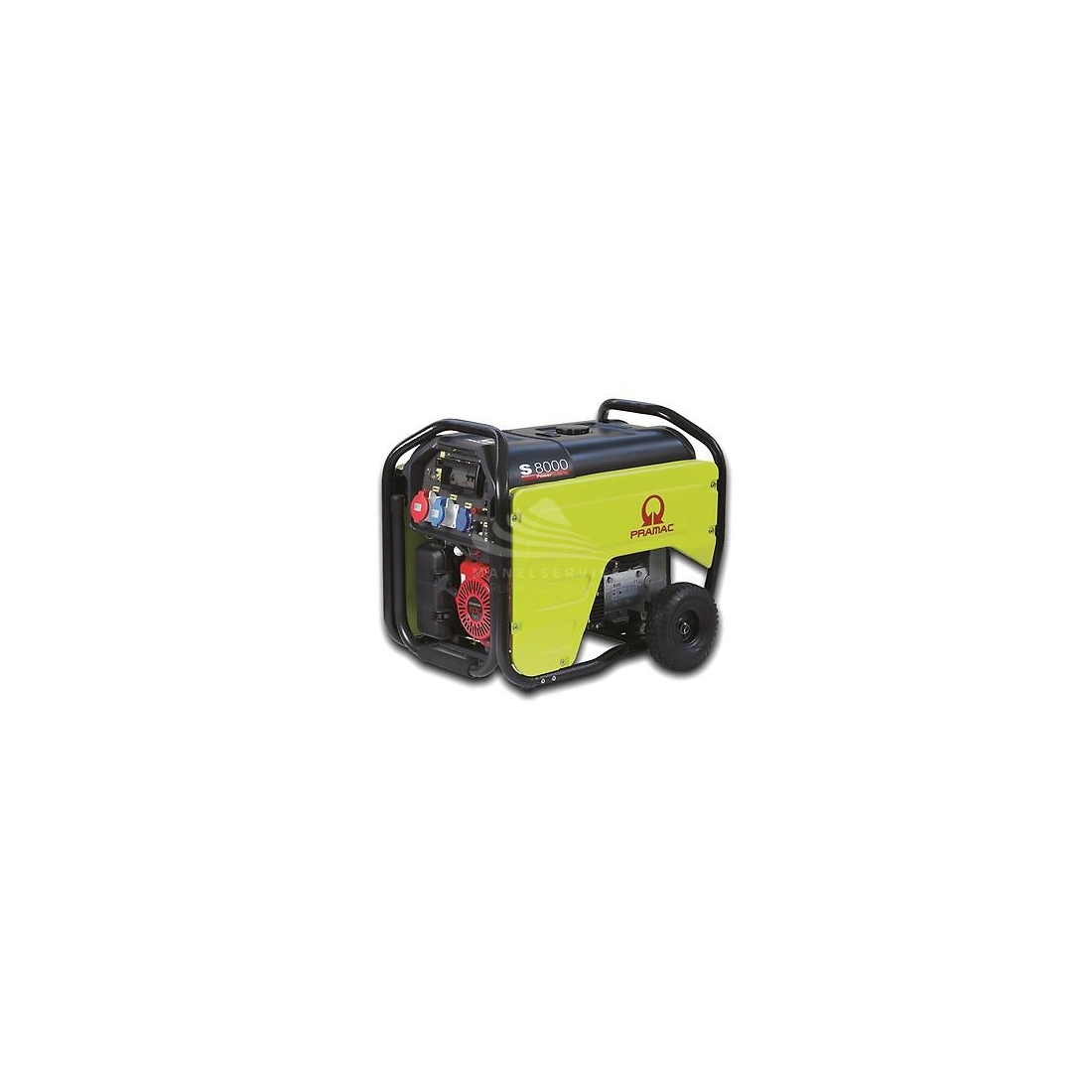

PRAMAC S8000 THREE-PHASE Generator set + DPP, AVR

Name: PRAMAC S8000 THREE-PHASE Generator set + DPP, AVR
Brand: PRAMAC
SKU: PD652TH2Z05
Price: 2969.46 EUR
Availability: InStock

Reference PD652TH2Z05

Potenza Consumo uso continuativo: 10 kva
Tipo carburante: Benzina
Capacità serbatoio carburante: 24 LT
Autonomia: 6.1 h al 75% del carico
Dimensioni: L 96 cm x L 64.1 cm x A 66.7 cm
Peso a secco: 162 Kg
Potenza acustica LpA: 96 LWA dB(A)
Configurazione delle prese: 1 x Schuko ,1 x 230V 16A ,1 x 230V 32A

Download Scheda tecnica S8000 DPP AVR Download Technical data S8000 DPP AVR

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KW): 3.2
Continuous power single phase (KW): 2.96
Maximum power single phase (KVA): 4
Continuous power single phase (KVA): 3.7
Maximum power three phase (KW): 6.6
Continuous power three phase (KW): 5.6
Maximum power three phase (KVA): 8.3
Continuous power three phase (KVA): 7
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 16A 3P+N+T CEE - 1 x 230V 16A 2P+T CEE - 1 x 230V 16A SCHUKO
Engine: Honda GX390 Electric, naturally aspirated
Engine rpm (rpm): 3000
Speed governor: Mechanical
Starting system: Elettrico
Engine capacity (cm³): 389
Oil capacity (L): 1.1
Cooling: Air
Alternator: With brushes
Poles: 2
Fuel tank capacity (L): 26.5
Consumption (L/h): 2.14 at 75% of the load / 2.87 at 100% of the load
Running time (h): 12.33 at 75% of the load / 9.23 at 100% of the load
Acoustic power: 97 dB(A)
Acoustic pressure: 73 dB(A) at 7 m
Length (mm): 840
Width (mm)
Height (mm): 753
Dry weight (Kg): 112
Silenced: No
Super silenced: No
Product type: Generator
ATS Switch device: Optional ATS
Voltage regulator: AVR
Engine manufacturer: Honda

Brand

Motore Honda Serie GX. Raffreddamento ad aria. Batteria fornita di serie. Protezione Oil Guard. Tubazioni telaio maggiorate. Serbatoio maggiorato. Bandelle laterali di protezione

L'immagine è puramente indicativa
