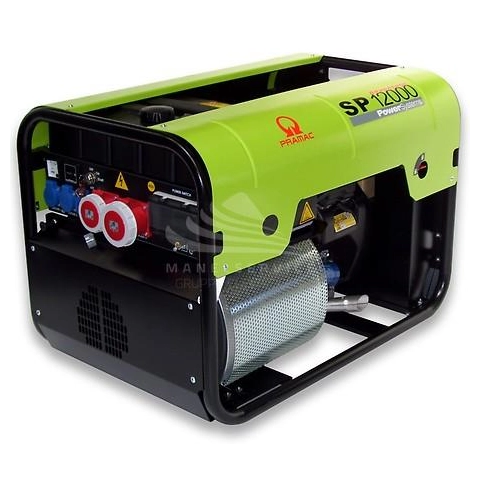

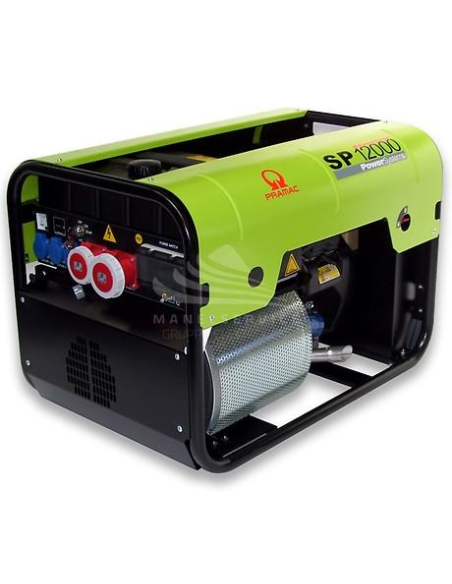

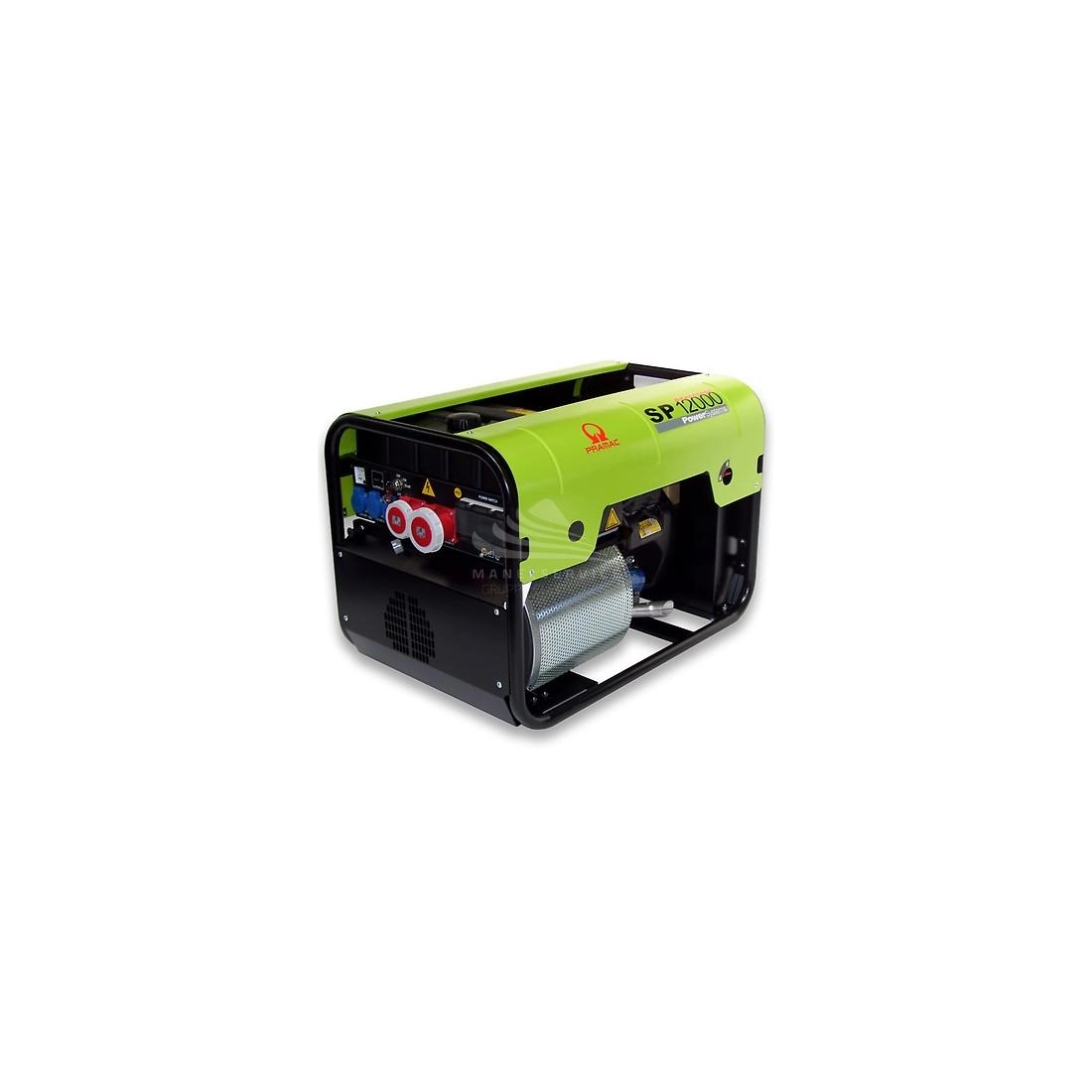

PRAMAC SP12000 THREE-PHASE Generator set, AVR

Name: PRAMAC SP12000 THREE-PHASE Generator set, AVR
Brand: PRAMAC
SKU: PD133TH2Y00
Price: 5449.91 EUR
Availability: InStock

Reference PD133TH2Y00

Potenza Consumo uso continuativo: 10 kva
Tipo carburante: Benzina
Capacità serbatoio carburante: 24 LT
Autonomia: 6.1 h al 75% del carico
Dimensioni: L 96 cm x L 64.1 cm x A 66.7 cm
Peso a secco: 162 Kg
Potenza acustica LpA: 96 LWA dB(A)
Configurazione delle prese: 1 x Schuko ,1 x 230V 16A ,1 x 230V 32A

Download Scheda tecnica SP12000 Download Technical data SP12000

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KW): 6
Continuous power single phase (KW): 5.44
Maximum power single phase (KVA): 7.5
Continuous power single phase (KVA): 6.8
Maximum power three phase (KW): 11.1
Continuous power three phase (KW): 9.4
Maximum power three phase (KVA): 13.8
Continuous power three phase (KVA): 11.8
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 16A 3P+N+T CEE - 1 x 400V 32A 3P+N+T CEE - 3 x 230V 16A SCHUKO
Engine: Honda GX630, naturally aspirated
Engine rpm (rpm): 3000
Speed governor: Mechanical
Starting system: Elettrico
Engine capacity (cm³)
Oil capacity (L): 1.9
Cooling: Air
Alternator: Brushless
Poles: 2
Fuel tank capacity (L): 24
Consumption (L/h): 4.23 at 75% of the load / 5.63 at 100% of the load
Running time (h): 5.67 at 75% of the load / 4.26 at 100% of the load
Acoustic power: 96 dB(A)
Acoustic pressure: 72 dB(A) at 7 m
Length (mm): 960
Width (mm): 641
Height (mm): 667
Dry weight (Kg): 170
Silenced: No
Super silenced: No
Product type: Generator
ATS Switch device: No ATS
Voltage regulator: AVR
Engine manufacturer: Honda

Brand

Motore Honda Serie GX. Raffreddamento ad aria. Batteria fornita di serie. Protezione Oil Guard. Tubazioni telaio maggiorate. Serbatoio maggiorato. Bandelle laterali di protezione

L'immagine è puramente indicativa
