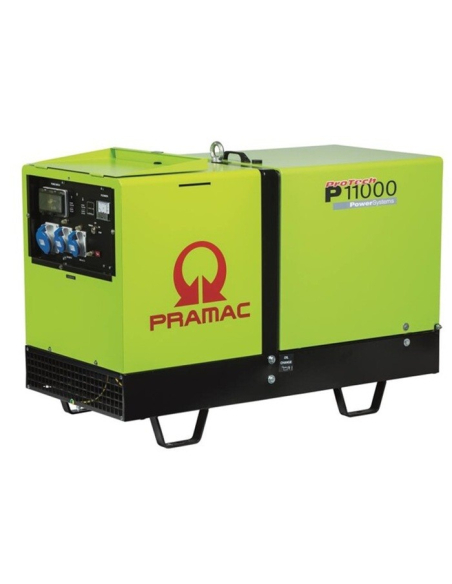

PRAMAC P11000 Generator Set Single-phase 9.7KW AMF

Name: PRAMAC P11000 Generator Set Single-phase 9.7KW AMF
Brand: PRAMAC
SKU: PF113SY4002
Price: 6550.19 EUR
Availability: InStock

Reference PF113SY4002

Maximum power Single-phase: 9.7 KW
Power continuous use Single-phase: 9 KW
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz
Engine: Yanmar 3TNV70-HGE
Starter: Electric
Consumption: 3.97 Lt/h at 100% load
Length: 1400 mm
Width: 650 mm
Height: 975 mm
Weight: 325 Kg

Download Scheda tecnica P11000 Monofase Download Technical data P11000 Monophase Download Disegno installazione P11000

Product Details
Description

Phase: Single phase
Maximum power single phase (KW): 9.7
Continuous power single phase (KW): 9
Maximum power single phase (KVA): 10.8
Continuous power single phase (KVA): 10
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230
Sockets configuration: 2 x 230V 16A 2P+T CEE - 1 x 230V 32A 2P+T CEE
Engine: Yanmar 3TNV70-HGE, naturally aspirated
Engine rpm (rpm): 3000
Speed governor: Mechanical
Starting system: Elettrico
Engine capacity (cm³): 854
Oil capacity (L): 3.8
Cooling: Water
Poles: 2
Fuel tank capacity (L): 24
Consumption (L/h): 3.04 at 75% of the load / 3.96 at 100% of the load
Running time (h): 7.87 at 75% of the load / 6.05 at 100% of the load
Acoustic power: 96 dB(A)
Acoustic pressure: 68 dB(A) at 7 m
Length (mm): 1400
Width (mm): 650
Height (mm): 975
Dry weight (Kg): 325
Silenced: Yes
Super silenced: No
Product type: Generator
ATS Switch device: ATS Included
Voltage regulator: Capacitor
Engine manufacturer: Yanmar

Brand

PRAMAC P11000 SINGLE-PHASE GENERATOR 9.7KW

The PRAMAC P11000 single-phase generator delivers 9.7 kW of power with a diesel engine running at 3000 rpm. The PRAMAC P11000 generator is equipped with electric start. Its alternator is fitted with a capacitor voltage regulator. The Yanmar diesel engine makes the PRAMAC P11000 highly reliable, as it has been built and designed using top-quality materials.
With its compact dimensions, it can be easily handled and transported. The PRAMAC P11000 single-phase generator is suitable for outdoor use in small construction sites or for light-duty applications.

Technical specifications of the PRAMAC P11000 AMF single-phase generator:
Maximum Single-phase Power: 9.7 kW
Continuous Single-phase Power: 9 kW
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz
Engine: Yanmar 3TNV70-HGE
Starting: Electric
Fuel Consumption: 3.97 L/h at 100% load
Length: 1400 mm
Width: 650 mm
Height: 975 mm
Weight: 325 kg

CONTROL PANEL
Controls:
- Ignition key: OFF - ON - START

Instrumentation:
- Voltmeter
- Hour counter
- Low oil pressure indicator

Protections:
- Circuit breaker
- Automatic with transfer switch (AMF)

Outlets:
2 × 2P+T CEE 230V 16A IP44
1 × 2P+T CEE 230V 32A IP44

The PRAMAC P11000 generator is a professional diesel genset developed by Pramac, featuring a soundproofed canopy design, making it ideal for use in residential areas. Thanks to its low noise level, the PRAMAC P11000 is the perfect solution for residential use or outside working hours. The P11000 generator is equipped with high-quality components and complete instrumentation, suitable for construction sites or as a backup power source during blackouts.

If you are looking for a generator like the PRAMAC P11000 AMF single-phase model, we recommend browsing our catalog of land-based generators to find the one that best suits your needs.
