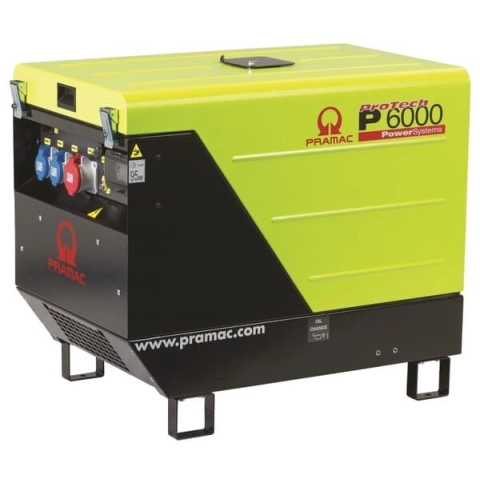

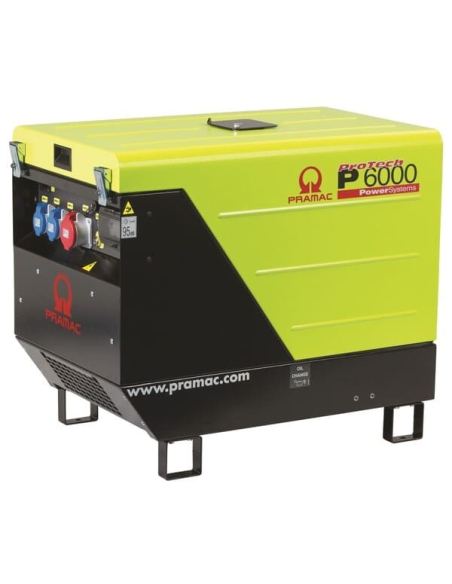

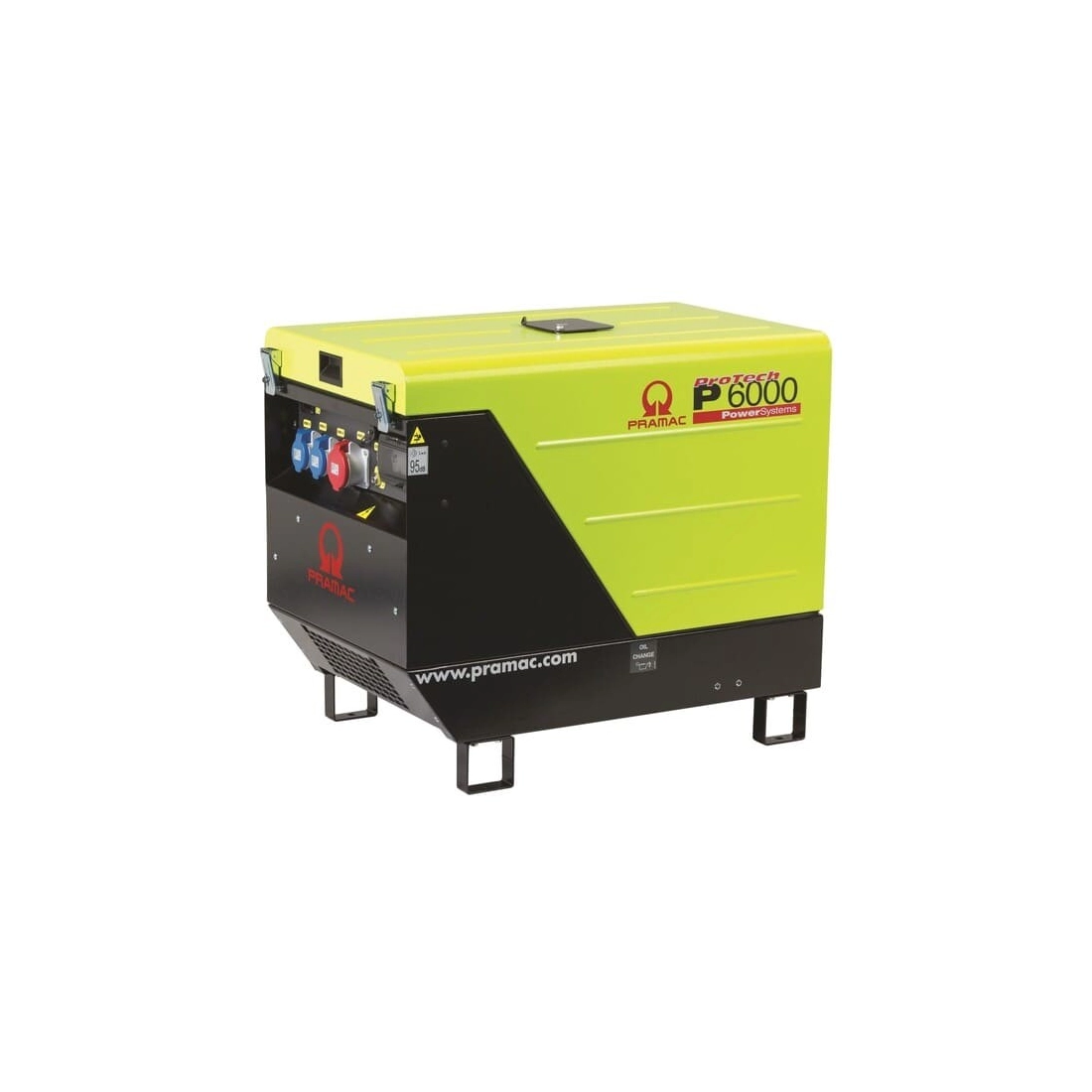

PRAMAC P6000 Generator Set Single-phase - Three-phase 5.5KW DPP
PF572TY4003
Maximum Single-phase Power: 2.56 kW
Continuous Single-phase Power: 2.4 kW
Maximum Three-phase Power: 5.5 kW
Continuous Three-phase Power: 4.5 kW
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: Yanmar L100N Electric
Starting: Electric
Fuel Consumption: 1.94 L/h at 100% load
Length: 990 mm
Width: 602 mm
Height: 826 mm
Weight: 186 kg
Compound
- Phase
- Single phase / Three phase
- Maximum power single phase (KW)
- 2.56
- Continuous power single phase (KW)
- 2.4
- Maximum power single phase (KVA)
- 3.2
- Continuous power single phase (KVA)
- 3
- Maximum power three phase (KW)
- 5.5
- Continuous power three phase (KW)
- 4.5
- Maximum power three phase (KVA)
- 6.9
- Continuous power three phase (KVA)
- 5.6
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Sockets configuration
- 1 x 400V 16A 3P+N+T CEE - 2 x 230V 16A 2P+T CEE - 1 x 230V 16A SCHUKO
- Engine
- Yanmar L100N Electric, naturally aspirated
- Engine rpm (rpm)
- 3000
- Speed governor
- Mechanical
- Starting system
- Elettrico
- Engine capacity (cm³)
- 435
- Oil capacity (L)
- 1.6
- Cooling
- Air
- Alternator
- Brushless
- Poles
- 2
- Fuel tank capacity (L)
- 24
- Consumption (L/h)
- 1.45 at 75% of the load / 1.94 at 100% of the load
- Running time (h)
- 16.55 at 75% of the load / 12.37 at 100% of the load
- Acoustic power
- 93 dB(A)
- Acoustic pressure
- 65 dB(A) at 7 m
- Length (mm)
- 990
- Width (mm)
- 602
- Height (mm)
- 826
- Dry weight (Kg)
- 186
- Silenced
- Yes
- Super silenced
- No
- Product type
- Generator
- ATS Switch device
- Optional ATS
- Voltage regulator
- Compound
- Engine manufacturer
- Yanmar
- Brand
-
PRAMAC P6000 SINGLE-PHASE / THREE-PHASE GENERATOR 5.5KW SUPER-SILENCED
The PRAMAC P6000 single-phase/three-phase generator delivers 5.5 kW of power with a diesel engine running at 3000 rpm. The PRAMAC P6000 generator is equipped with electric start. Its alternator is brushless and fitted with a compound voltage regulator. The Yanmar diesel engine makes the PRAMAC P6000 generator highly reliable, as it has been built and designed using top-quality materials.
Thanks to its soundproof canopy, it can be considered super-silenced, and with its compact dimensions it can be easily handled and transported. The PRAMAC P6000 single-phase/three-phase generator is suitable for outdoor use in small construction sites or for light-duty outdoor work.
Technical specifications of the PRAMAC P6000 Single-phase/Three-phase generator:
Maximum Single-phase Power: 2.56 kW
Continuous Single-phase Power: 2.4 kW
Maximum Three-phase Power: 5.5 kW
Continuous Three-phase Power: 4.5 kW
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: Yanmar L100N Electric
Starting: Electric
Fuel Consumption: 1.94 L/h at 100% load
Length: 990 mm
Width: 602 mm
Height: 826 mm
Weight: 186 kg
Compound

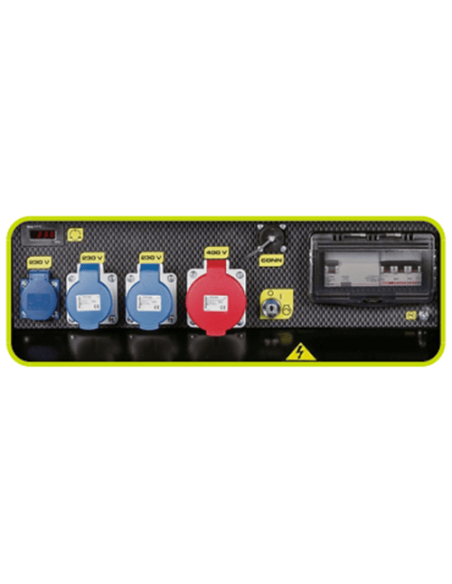

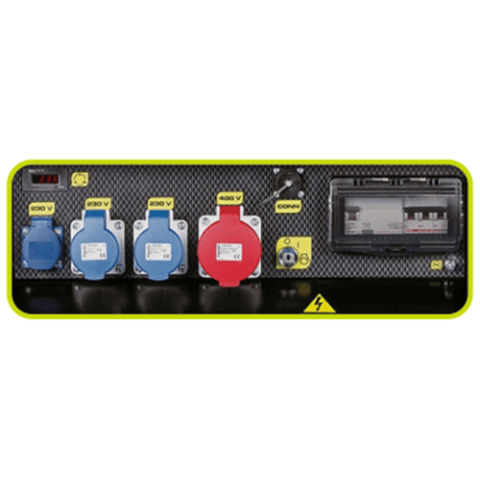

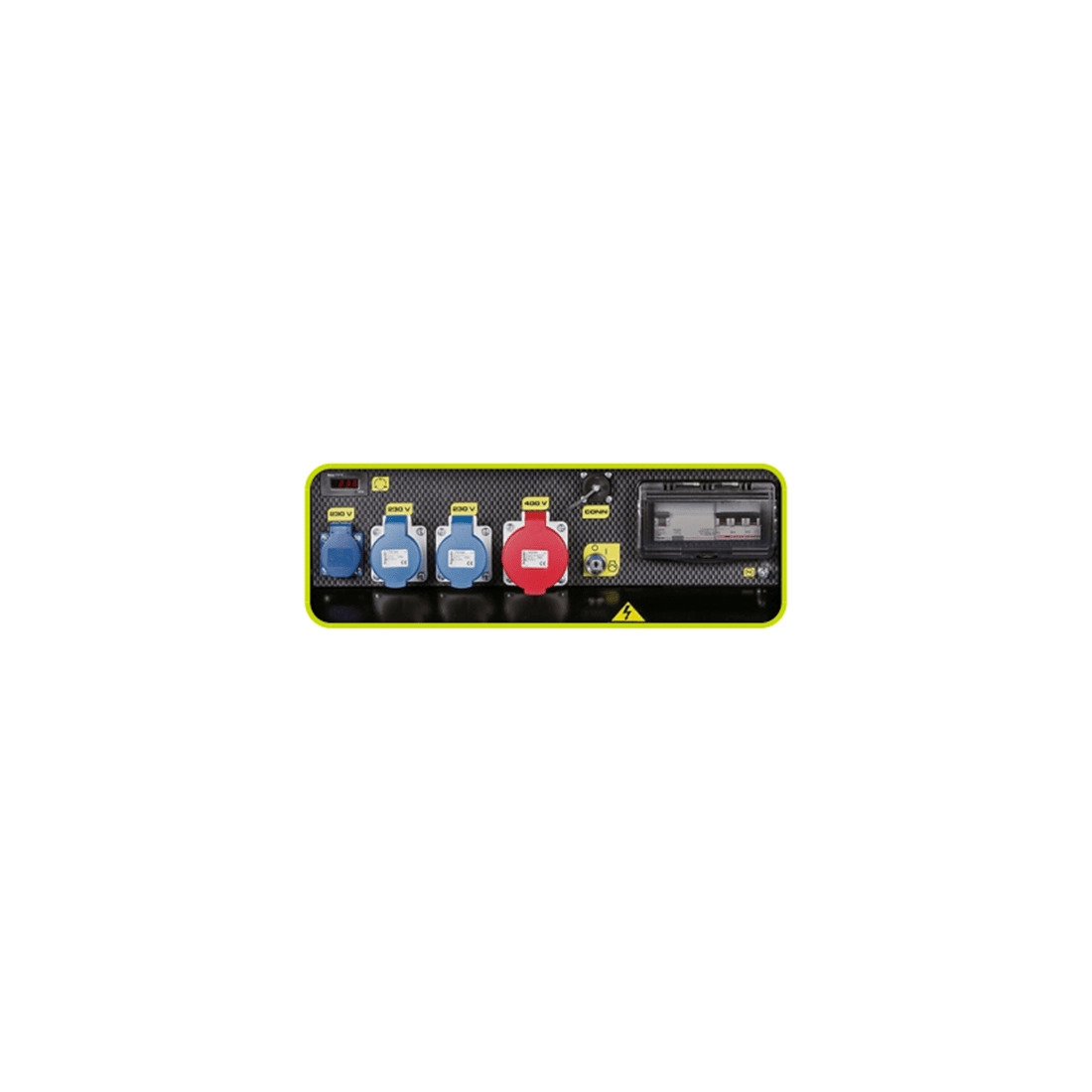

CONTROL PANEL
Controls:
- Ignition key: OFF - ON - START
- Connector (ready for remote control via AMF automatic panel accessories; RSS remote radio control)
Instrumentation (DGT):
- Voltmeter
- Frequency meter
- Hour counter
Protections:
- Circuit breaker
- Differential protection (DPP)
- Low oil pressure protection
Outlets:
1 × SCHUKO 230V 16A IP54
2 × 2P+T CEE 230V 16A IP44
1 × 3P+N+T CEE 400V 16A IP44
The PRAMAC P6000 generator is a professional diesel genset developed by Pramac, featuring a diesel engine with a soundproofed canopy design, making it ideal for residential areas. Thanks to its low noise level, the PRAMAC P6000 is the perfect solution for residential use or outside working hours.
The P6000 generator is equipped with high-quality components, complete with protections and instrumentation.
If you are looking for a generator like the PRAMAC P6000 single-phase/three-phase model, we recommend browsing our catalog of land-based generators to find the one that best suits your needs.
