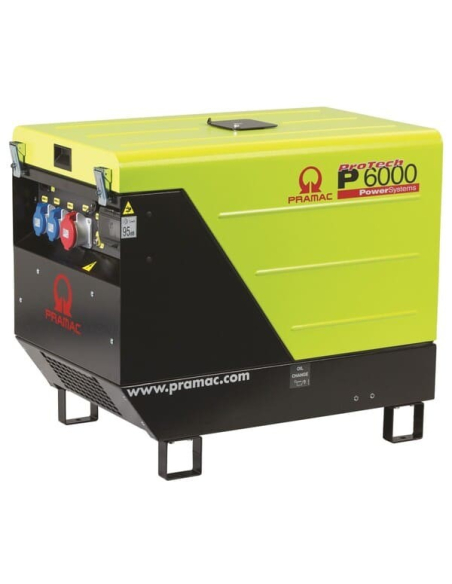

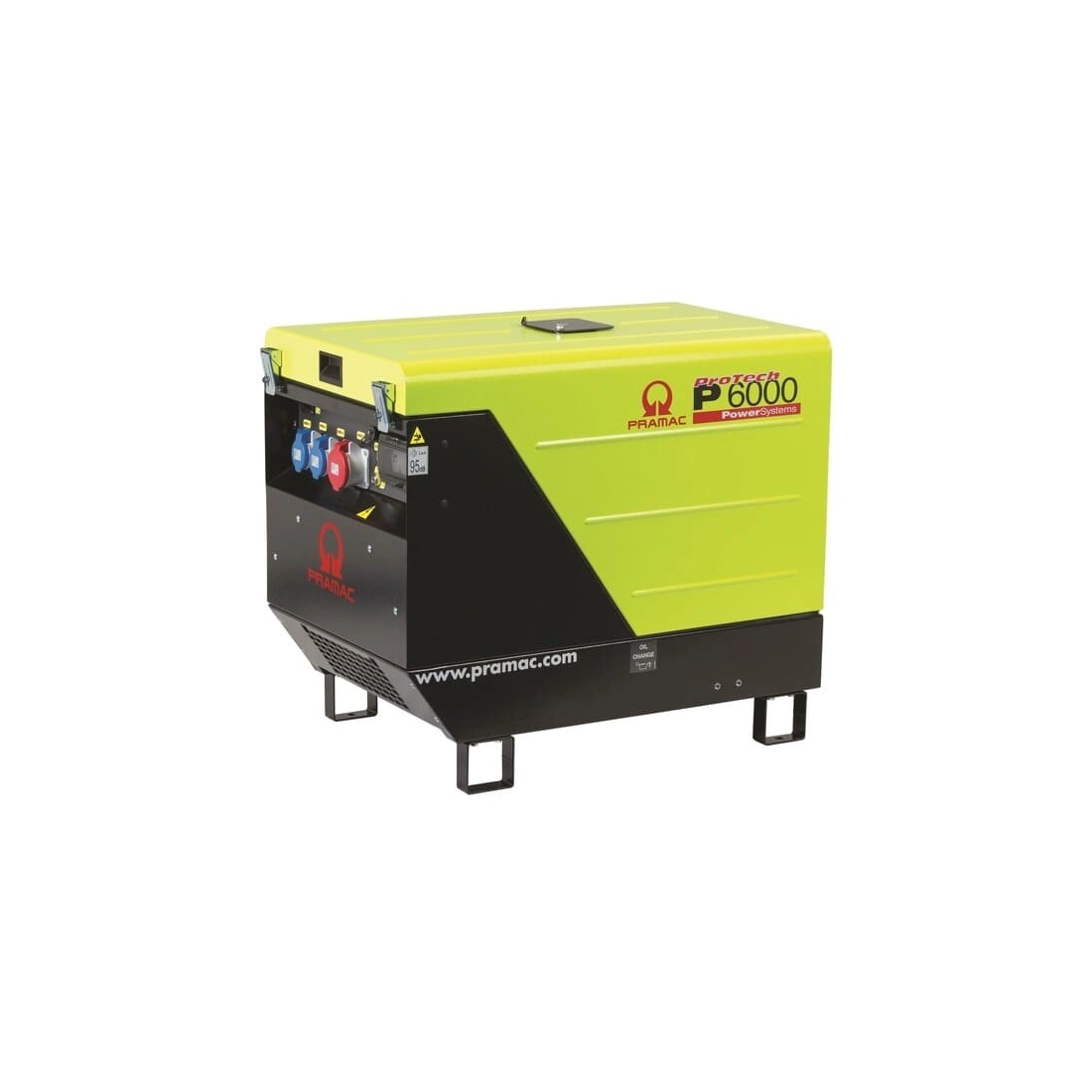

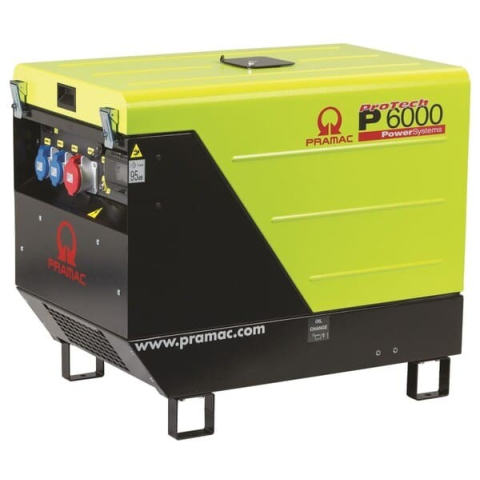

PRAMAC P6000 Generator Set Single-phase - Three-phase 5.5KW DPP, AVR

Name: PRAMAC P6000 Generator Set Single-phase - Three-phase 5.5KW DPP, AVR
Brand: PRAMAC
SKU: PF572TY4001
Price: 3953.92 EUR
Availability: InStock

Reference PF572TY4001

Maximum power Single-phase: 2.56 KW
Single-phase continuous power use: 2.4 KW
Maximum power three-phase: 5.5 KW
Three-phase continuous use power: 4.5 KW
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: Yanmar L100N Electric
Starter: Electric
Consumption: 1.94 Lt/h at 100% load
Length: 990 mm
Width: 602 mm
Height: 826 mm
Weight: 186 Kg
AVR

Download Disegno installazione P6000 DPP Download DP3+EB Techsheet Download Manuale C50i CHR

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KW): 2.56
Continuous power single phase (KW): 2.4
Maximum power single phase (KVA): 3.2
Continuous power single phase (KVA): 3
Maximum power three phase (KW): 5.5
Continuous power three phase (KW): 4.5
Maximum power three phase (KVA): 6.9
Continuous power three phase (KVA): 5.6
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine: Yanmar L100N Electric, naturally aspirated
Engine rpm (rpm): 3000
Speed governor: Mechanical
Starting system: Elettrico
Engine capacity (cm³): 435
Oil capacity (L): 1.6
Cooling: Air
Alternator: Brushless
Poles: 2
Fuel tank capacity (L): 24
Consumption (L/h): 1.45 at 75% of the load / 1.94 at 100% of the load
Running time (h): 16.55 at 75% of the load / 12.37 at 100% of the load
Acoustic power: 93 dB(A)
Acoustic pressure: 65 dB(A) at 7 m
Length (mm): 990
Width (mm): 602
Height (mm): 826
Dry weight (Kg): 186
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: Optional ATS
Voltage regulator: AVR
Engine manufacturer: Yanmar

Brand

PRAMAC P6000 SINGLE-PHASE / THREE-PHASE GENERATOR 5.5KW AVR

The PRAMAC P6000 single-phase/three-phase generator delivers 5.5 kW of power with a diesel engine running at 3000 rpm. The PRAMAC P6000 generator is equipped with electric start. Its alternator is brushless and fitted with an AVR voltage regulator. The Yanmar diesel engine makes the PRAMAC P6000 generator highly reliable, as it has been built and designed using top-quality materials.
Thanks to its soundproof canopy, it is considered super-silenced, and with its compact dimensions it can be easily handled and transported. The PRAMAC P6000 AVR single-phase/three-phase generator is suitable for outdoor use in small construction sites or light-duty applications.

The PRAMAC P12000 can be supplied with or without AVR.

Technical specifications of the PRAMAC P6000 Single-phase/Three-phase AVR generator:
Maximum Single-phase Power: 2.56 kW
Continuous Single-phase Power: 2.4 kW
Maximum Three-phase Power: 5.5 kW
Continuous Three-phase Power: 4.5 kW
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: Yanmar L100N Electric
Starting: Electric
Fuel Consumption: 1.94 L/h at 100% load
Length: 990 mm
Width: 602 mm
Height: 826 mm
Weight: 186 kg
AVR

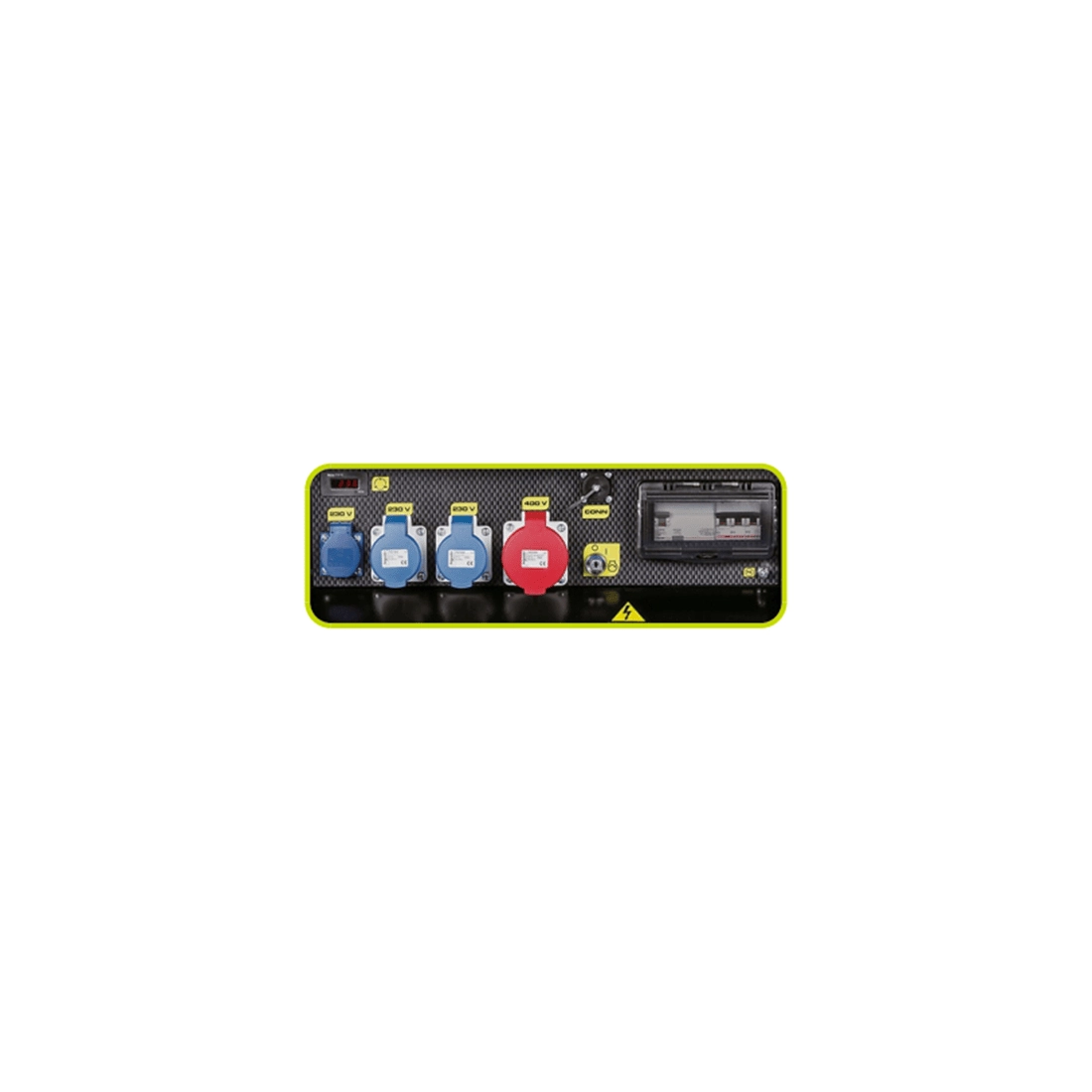

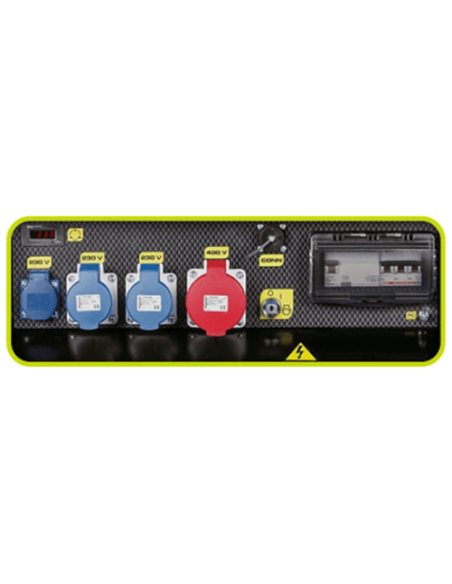

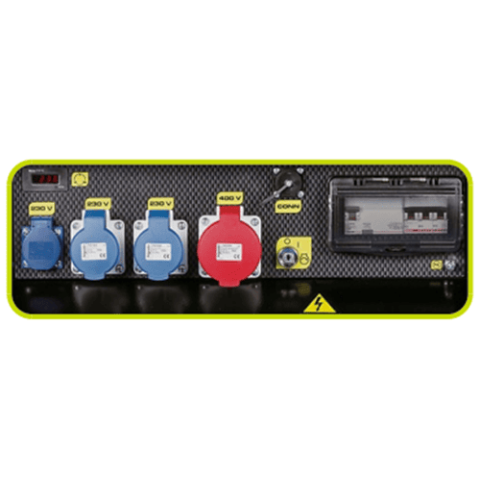

CONTROL PANEL
Controls:
- Ignition key: OFF - ON - START
- Connector (ready for remote control via AMF automatic panel accessories; RSS remote radio control)

Instrumentation (DGT):
- Voltmeter
- Frequency meter
- Hour counter

Protections:
- Circuit breaker
- Differential protection (DPP)
- Low oil pressure protection

Outlets:
1 × SCHUKO 230V 16A IP54
2 × 2P+T CEE 230V 16A IP44
1 × 3P+N+T CEE 400V 16A IP44

The PRAMAC P6000 generator is a professional diesel genset developed by Pramac, equipped with a diesel engine in a soundproof canopy version, making it ideal for use in residential areas. Thanks to its low noise level, the PRAMAC P6000 is the perfect generator for residential use or outside working hours.
The P6000 generator is equipped with high-quality components, complete with protections and instrumentation.
