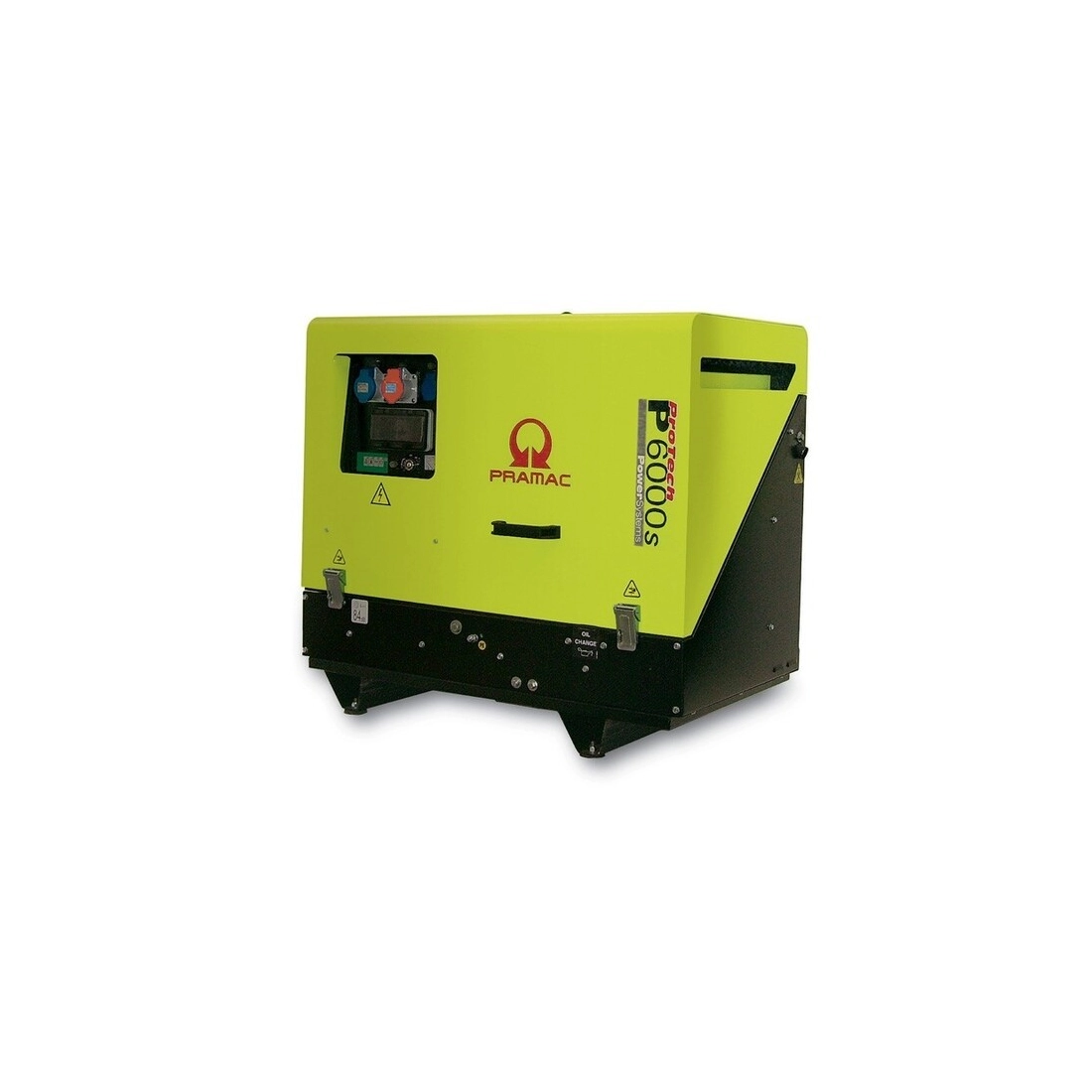

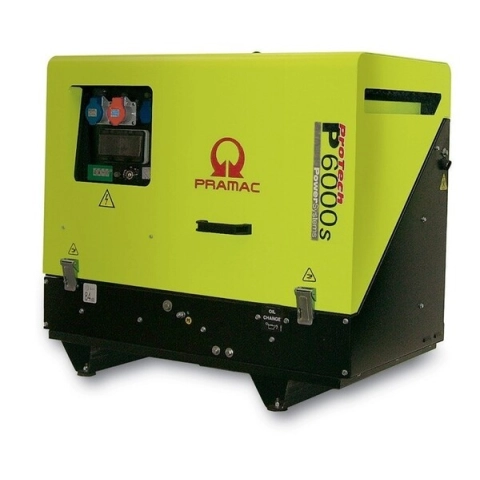

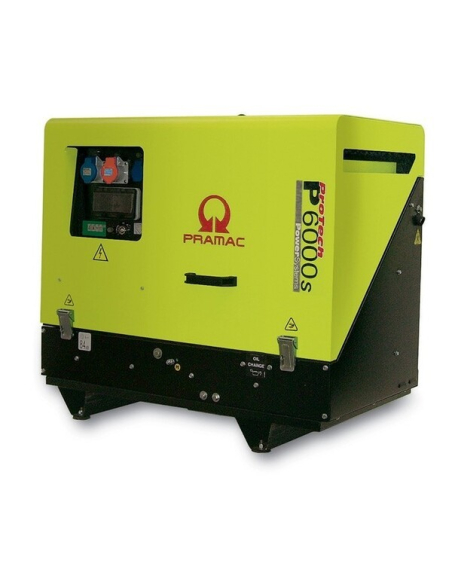

PRAMAC P6000S Generator Set Single-phase - Three-phase DPP

Name: PRAMAC P6000S Generator Set Single-phase - Three-phase DPP
Brand: PRAMAC
SKU: PF602TY400A
Price: 4516.93 EUR
Availability: InStock

Reference PF602TY400A

Maximum power Single-phase: 2.56 KW
Single-phase continuous power use: 2.4 KW
Maximum power three-phase: 5.5 KW
Three-phase continuous use power: 4.5 KW
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: Yanmar L100N Electric
Starter: Electric
Consumption: 1.94 Lt/h at 100% load
Length: 970 mm
Width: 580 mm
Height: 927 mm
Weight: 203 Kg

Compound

Download Disegno installazione P6000s Download Scheda Tecnica TELWIN ST18A

Product Details
Description

Phase: Single phase
Maximum power single phase (KW): 2.56
Continuous power single phase (KW): 2.4
Maximum power single phase (KVA): 3.2
Continuous power single phase (KVA): 3
Maximum power three phase (KW): 5.5
Continuous power three phase (KW): 4.5
Maximum power three phase (KVA): 6.9
Continuous power three phase (KVA): 5.6
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 16A 3P+N+T CEE - 1 x 230V 16A 2P+T CEE - 1 x 230V 16A SCHUKO
Engine: Yanmar L100N Electric, naturally aspirated
Engine rpm (rpm): 3000
Speed governor: Mechanical
Starting system: Elettrico
Engine capacity (cm³): 435
Oil capacity (L): 1.6
Cooling: Air
Poles: 2
Fuel tank capacity (L): 19
Consumption (L/h): 1.46 at 75% of the load / 1.94 at 100% of the load
Running time (h): 13.01 at 75% of the load / 9.79 at 100% of the load
Acoustic power: 84 dB(A)
Acoustic pressure: 56 dB(A) at 7 m
Length (mm): 970
Width (mm): 580
Height (mm): 927
Dry weight (Kg): 203
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: Optional ATS
Voltage regulator: Compound
Engine manufacturer: Yanmar

Brand

PRAMAC P6000S SINGLE-PHASE / THREE-PHASE GENERATOR 5.5KW

The PRAMAC P6000S single-phase/three-phase generator delivers 5.5 kW of power with a diesel engine running at 3000 rpm. The PRAMAC P6000S generator is equipped with electric start. Its alternator features a compound voltage regulator. The Yanmar diesel engine makes the PRAMAC P6000S generator highly reliable, as it has been built and designed using top-quality materials.
Thanks to its soundproof canopy, it is considered super-silenced, and with its compact dimensions it can be easily handled and transported. The PRAMAC P6000S single-phase/three-phase generator is suitable for outdoor use in small construction sites or for light-duty applications.

Technical specifications of the PRAMAC P6000S Single-phase/Three-phase generator:
Maximum Single-phase Power: 2.56 kW
Continuous Single-phase Power: 2.4 kW
Maximum Three-phase Power: 5.5 kW
Continuous Three-phase Power: 4.5 kW
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: Yanmar L100N Electric
Starting: Electric
Fuel Consumption: 1.94 L/h at 100% load
Length: 970 mm
Width: 580 mm
Height: 927 mm
Weight: 203 kg
Compound

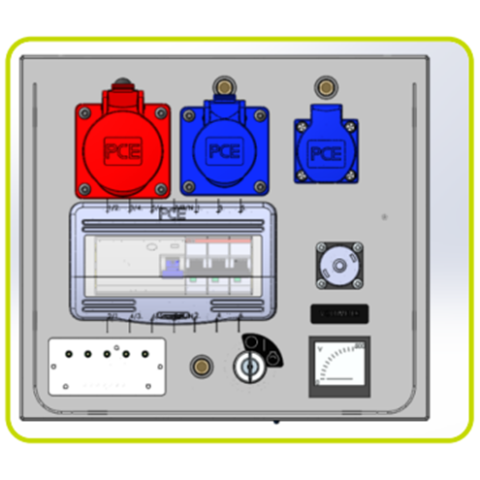

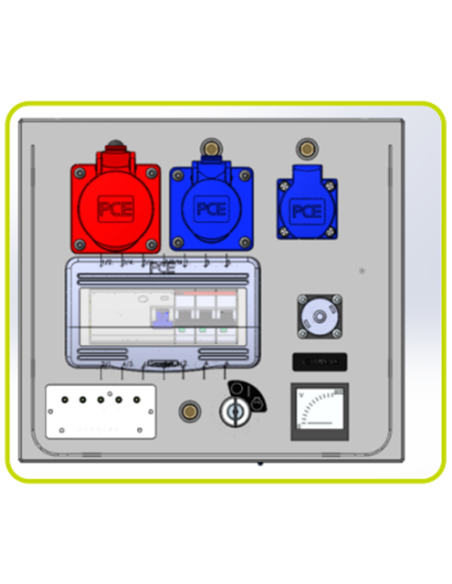

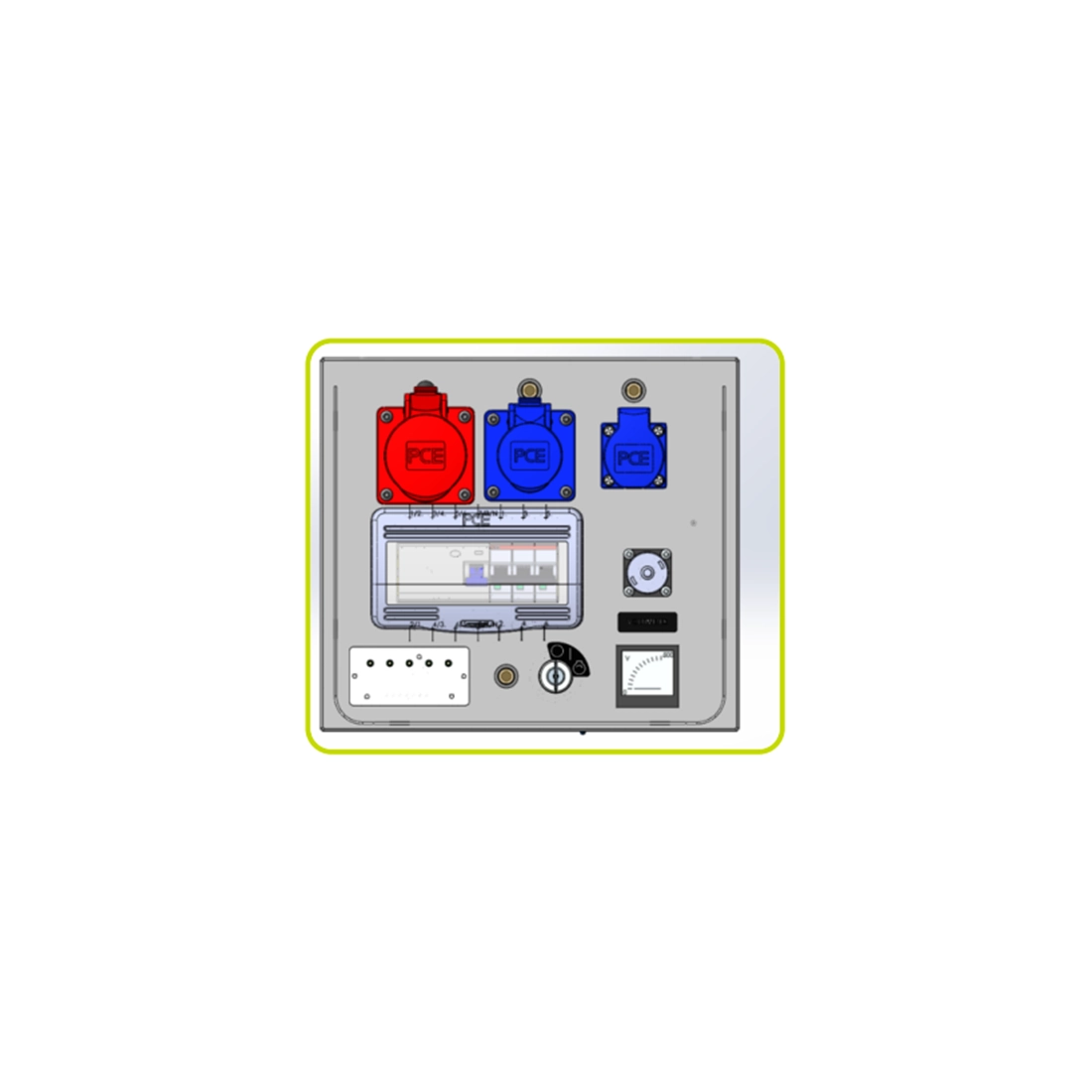

CONTROL PANEL
Controls:
- Ignition key: OFF - ON - START
- Connector for AMF/RSS automatic panel

Instrumentation:
- Voltmeter

Protections:
- Circuit breaker
- Differential protection (DPP)
- Engine protection board: Low oil pressure; High engine temperature; Fuel reserve; Battery charging fault

Outlets:
1 × SCHUKO 230V 16A IP54
1 × 2P+T CEE 230V 16A IP44
1 × 3P+N+T CEE 400V 16A IP44

The PRAMAC P6000S generator is a professional diesel genset developed by Pramac, featuring a diesel engine with a soundproofed canopy design, making it ideal for residential use. Thanks to its low noise level, the PRAMAC P6000S is the perfect generator for residential areas or outside working hours.
The P6000S generator is equipped with high-quality components, complete with protections and instrumentation.
