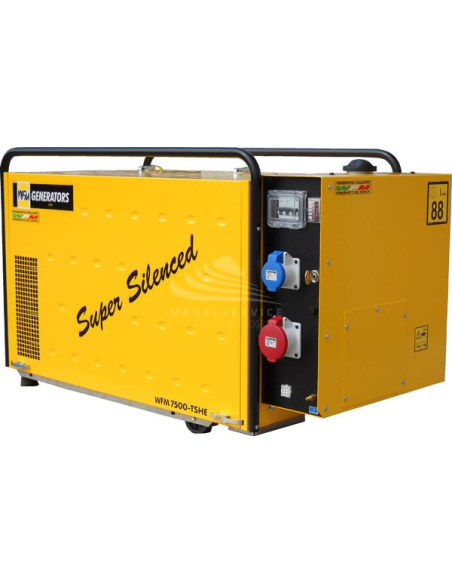

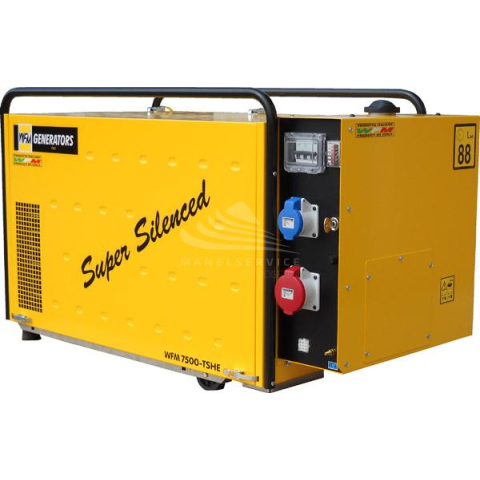

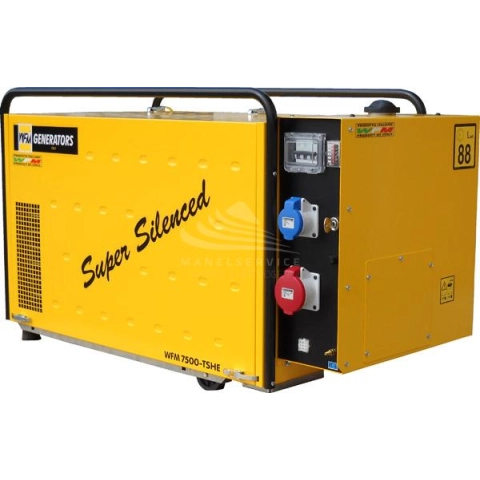

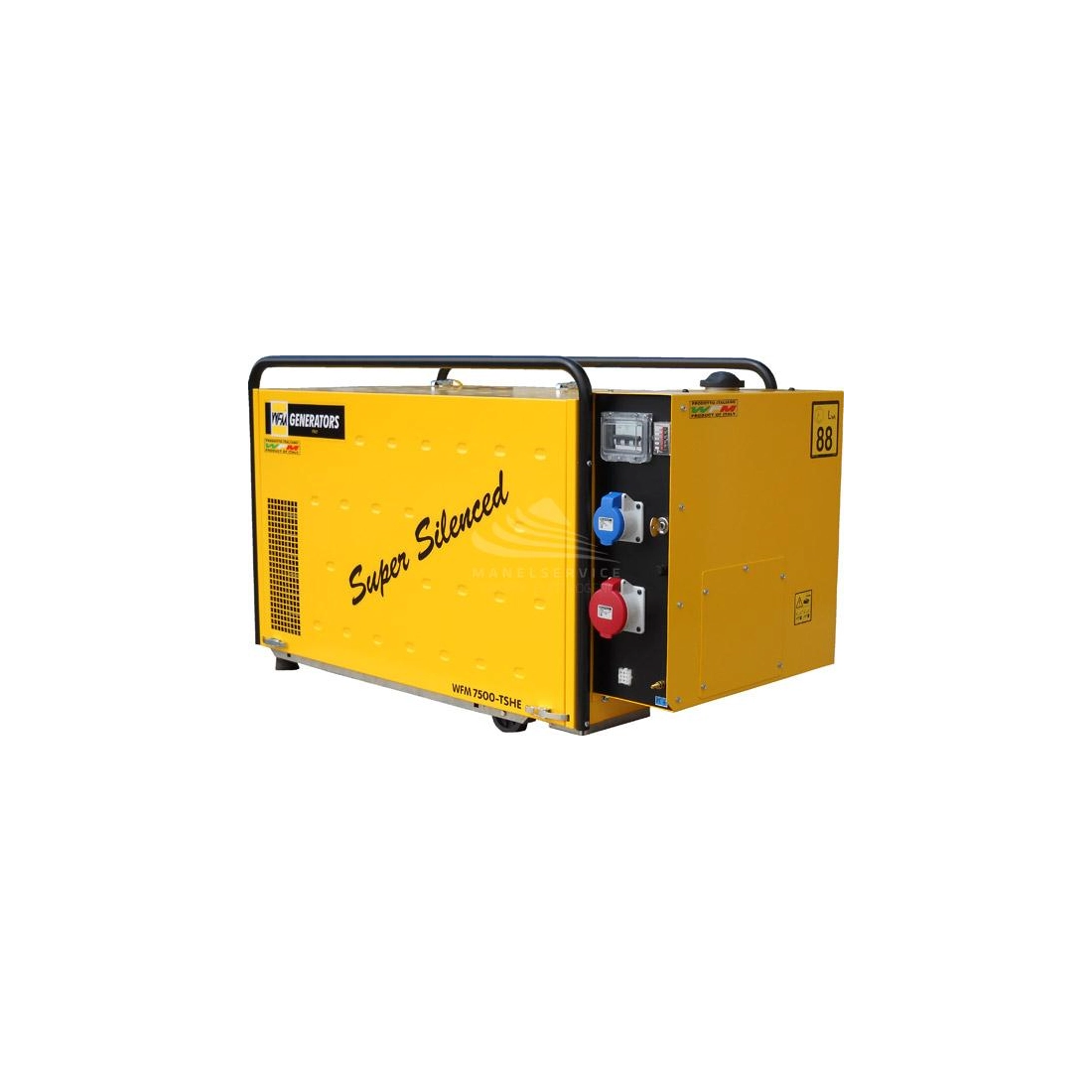

WFM 7500-TSHE AVR

Name: WFM 7500-TSHE AVR
Brand: WFM
SKU: 04060
Price: 2478 EUR
Availability: InStock

Reference 04060

Maximum single-phase power: 1.8 KW
Maximum single-phase power: 2.3 KVA
Maximum three-phase power: 5.6 KW
Maximum three-phase power: 7 KVA
Fuel: Petrol
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: Honda GX390
Start-up: Electric
Consumption: 3.1 litres at 100% load
Length: 1100 mm
Width: 540 mm
Height: 650 mm
Weight: 140 kg

Download Istruzioni per 7500-TSHE GAS Download Scheda tecnica 7500-TSHE AVR Download Technical data 7500-TSHE AVR Download Scheda tecnica 7500-TSHE AVR GAS

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KW): 1.8
Maximum power single phase (KVA): 2.3
Maximum power three phase (KW): 5.6
Maximum power three phase (KVA): 7
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230 / 400

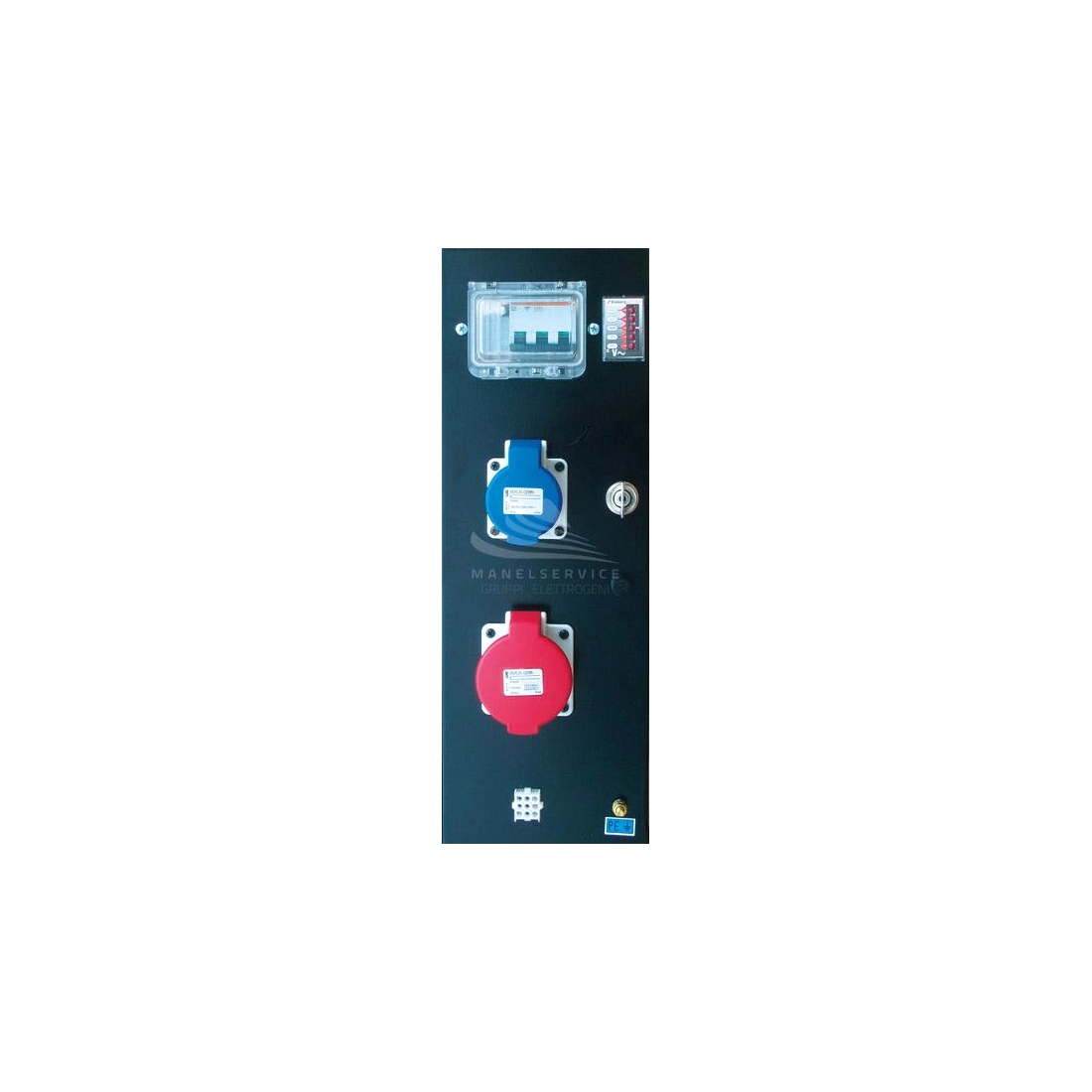

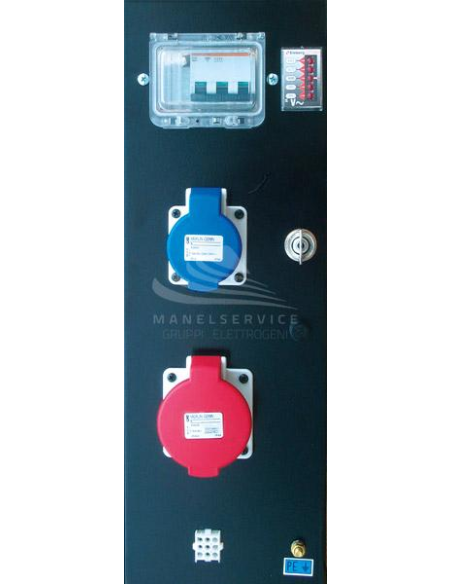

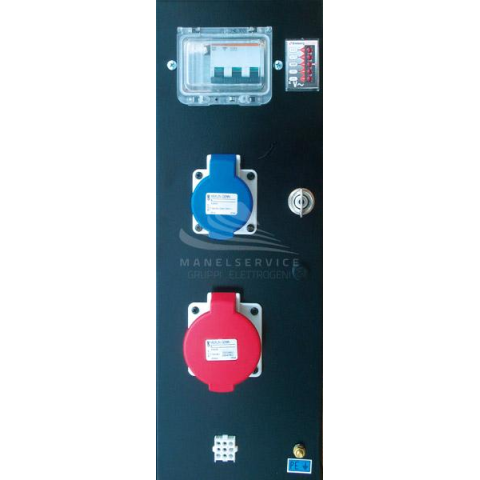

Sockets configuration: 1 CEE 5P 400V 16A + 1 CEE 3P 230V 16A
Engine: Honda GX390, OHV
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 389
Number cylinders: 1
Oil capacity (L): 1.1
Cooling: Air
Fuel tank capacity (L): 15
Consumption (L/h): 3.1 at 100% of the load
Running time (h): 4.83 at 100% of the load
Acoustic power: 88 dB(A)
Acoustic pressure: 63 dB(A) at 7 m
Length (mm): 1100
Width (mm): 540
Height (mm): 650
Dry weight (Kg): 140
Silenced: Yes
Super silenced: Yes
ATS Switch device: Optional ATS
Voltage regulator: AVR
Engine manufacturer: Honda

Brand

GENERATORS WITH AVR

Generator sets with Honda petrol or Lombardini diesel engines, in open version on base or in soundproofed frame with power ratings from 4.5 to 12 KVA, single-phase or single-phase/three-phase, 3000 rpm, air-cooled with recoil starter or key starter, including battery and electrical panel with sockets and standard protection.
Indispensable for electronic users as they are all equipped with an output voltage stabiliser of less than 1%.
Compliance with Directive 2000/14/EC of 01/01/2006 concerning noise levels based on the model.

Recommended for domestic and professional users who connect highly sensitive electronic equipment:
- Inverter welders
- Power tools with circuit boards
- Electronics, accumulators
- Plasma TVs, computers
- Latest generation boilers
- Telephone switchboards
- Burglar alarms
- Uninterruptible power supplies
- HI-FI systems

Main features:
- Open or soundproof protective frame
- Original Honda or Lombardini engine
- Low oil level protection
- Silencer muffler
- Leading Italian brand alternator
- Recoil or electric start with 12V battery supplied with acid
- Full load test with test certificate
- User manual compliant with safety standards

The images are purely indicative.
