WFM SE12000-MHE generator set AVR
Single-phase maximum power: 8 kW
Single-phase maximum apparent power: 10 kVA
Fuel: Petrol
Voltage: 230 V
Frequency: 50 Hz
Engine: Honda GX690
Starting: Electric
Fuel consumption: 5.8 L/h at 100% load
Length: 1070 mm
Width: 560 mm
Height: 920 mm
Weight: 210 kg
- Phase
- Single phase
- Maximum power single phase (KW)
- 8
- Maximum power single phase (KVA)
- 10
- Fuel
- Gasoline
- Frequency (Hz)
- 50
- Voltage (V)
- 230
- Sockets configuration
- 1 x 230V 16A 3P CEE - 1 x 230V 32A 3P CEE
- Engine
- HONDA GX690
- Engine rpm (rpm)
- 3000
- Starting system
- Elettrico
- Engine capacity (cm³)
- 690
- Number cylinders
- 2
- Oil capacity (L)
- 1.8
- Cooling
- Air
- Fuel tank capacity (L)
- 20
- Consumption (L/h)
- 5.8 at 100% of the load
- Running time (h)
- 3.44 at 100% of the load
- Acoustic power
- 92 dB(A)
- Acoustic pressure
- 67 dB(A) at 7 m
- Length (mm)
- 1070
- Width (mm)
- 560
- Height (mm)
- 920
- Dry weight (Kg)
- 210
- Silenced
- Yes
- Super silenced
- Yes
- ATS Switch device
- Optional ATS
- Voltage regulator
- AVR
- Engine manufacturer
- Honda

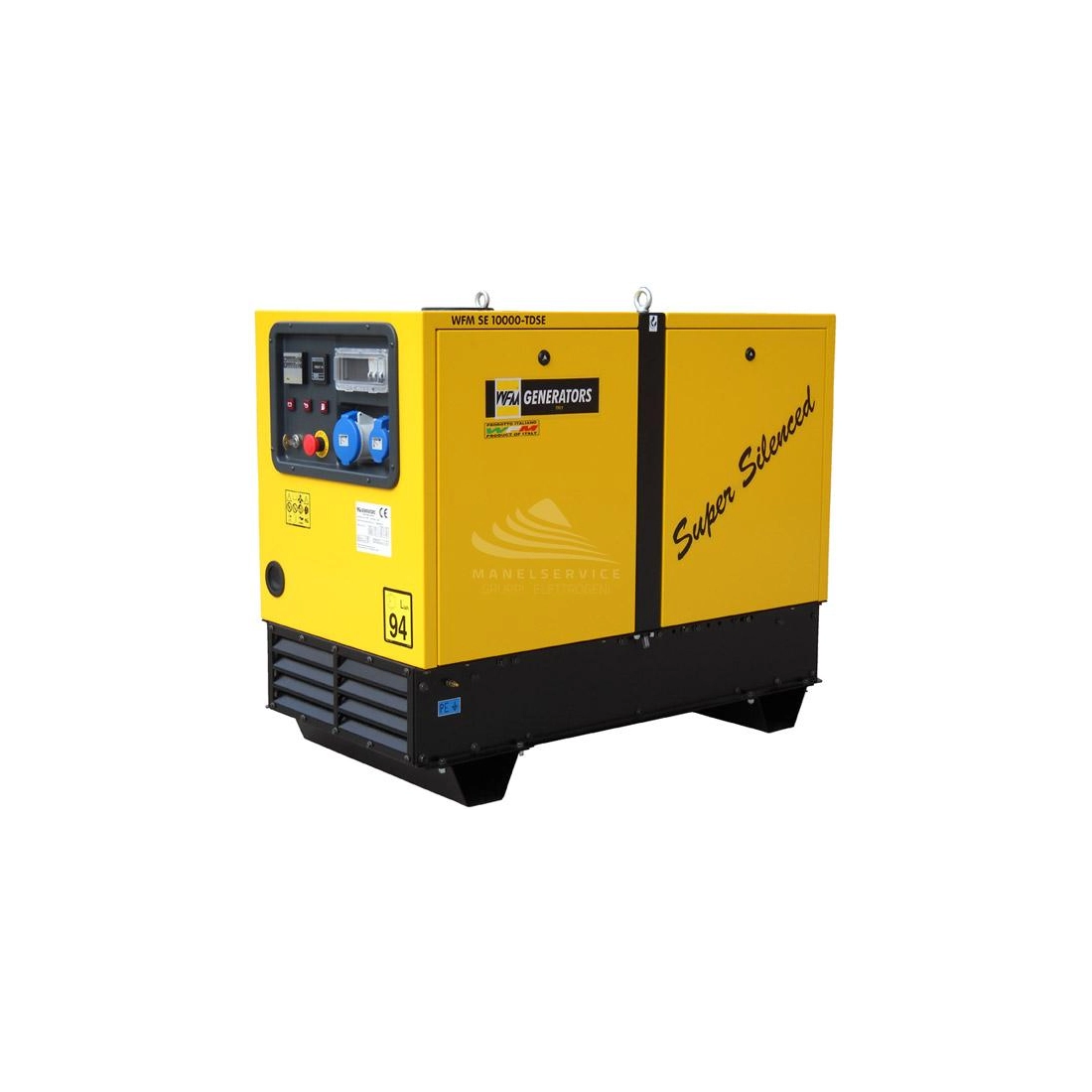

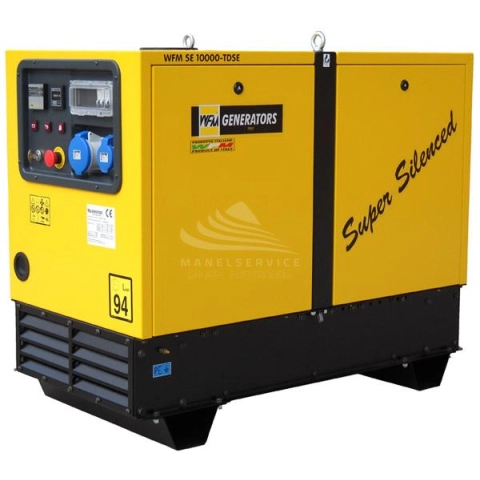

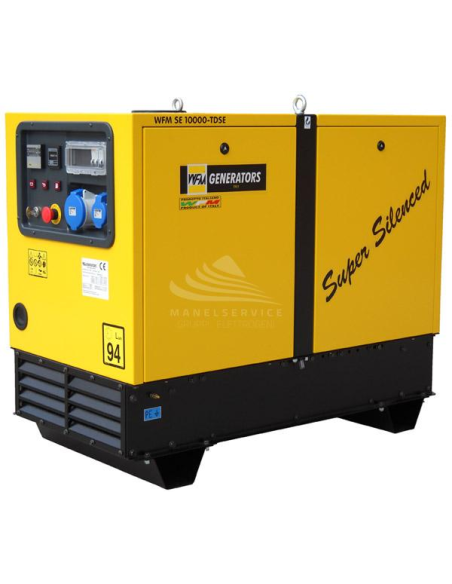

WFM SE12000-MHE GENERATOR SET AVR

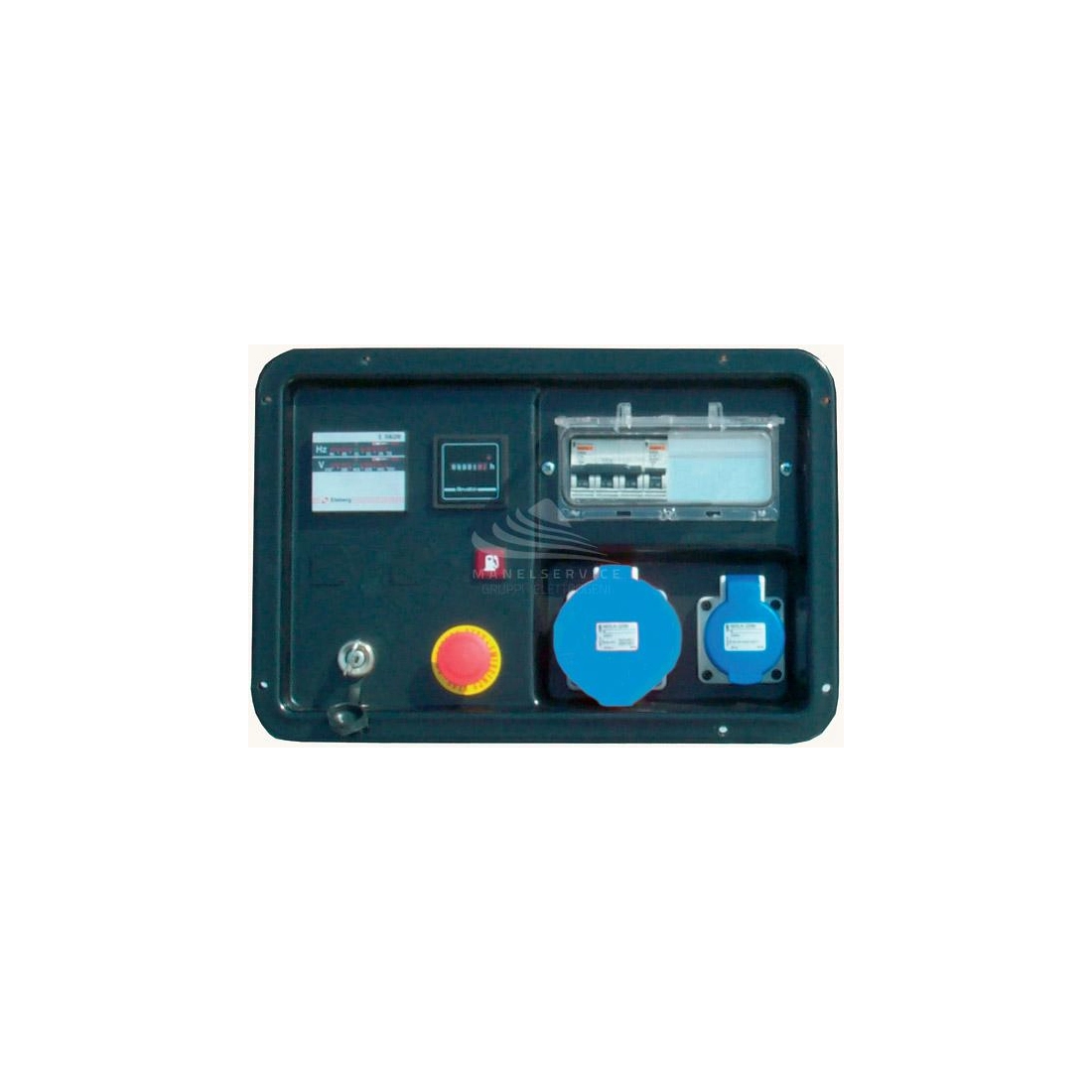

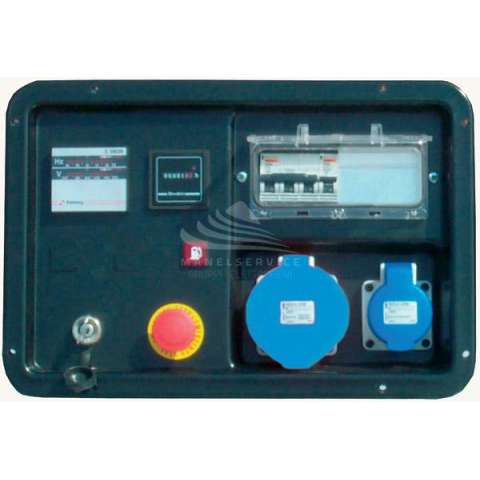

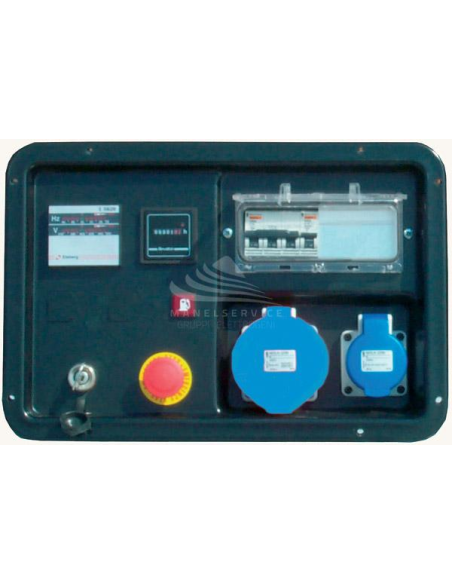

The WFM SE12000-MHE generator set AVR, with either a Honda petrol engine or a Lombardini diesel engine, is available in open-frame base version or in soundproofed frame, with power ratings from 4.5 to 12 kVA, single-phase or single-/three-phase, 3000 rpm, air-cooled, with recoil (self-retracting) or key start. It includes a battery and an electrical panel with sockets and standard protections.
The WFM SE12000-MHE generator set AVR is essential for sensitive electronic loads, as all models are equipped with an output voltage stabilizer with regulation better than ±1%.
Compliant with Directive 2000/14/EC of 01/01/2006 regarding noise emissions (depending on model).
WFM SE12000-MHE generator set AVR – Recommended for domestic and professional users connecting highly sensitive electronic devices:
- Inverter welders
- Power tools with electronic boards
- Electronics, battery chargers
- Plasma TVs, computers
- Latest-generation boilers
- Telephone switchboards
- Alarm systems
- UPS systems
- Hi-Fi systems
Main features – WFM SE12000-MHE generator set AVR:

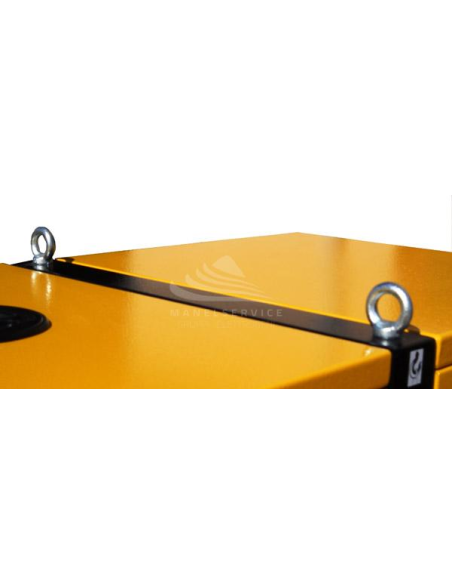

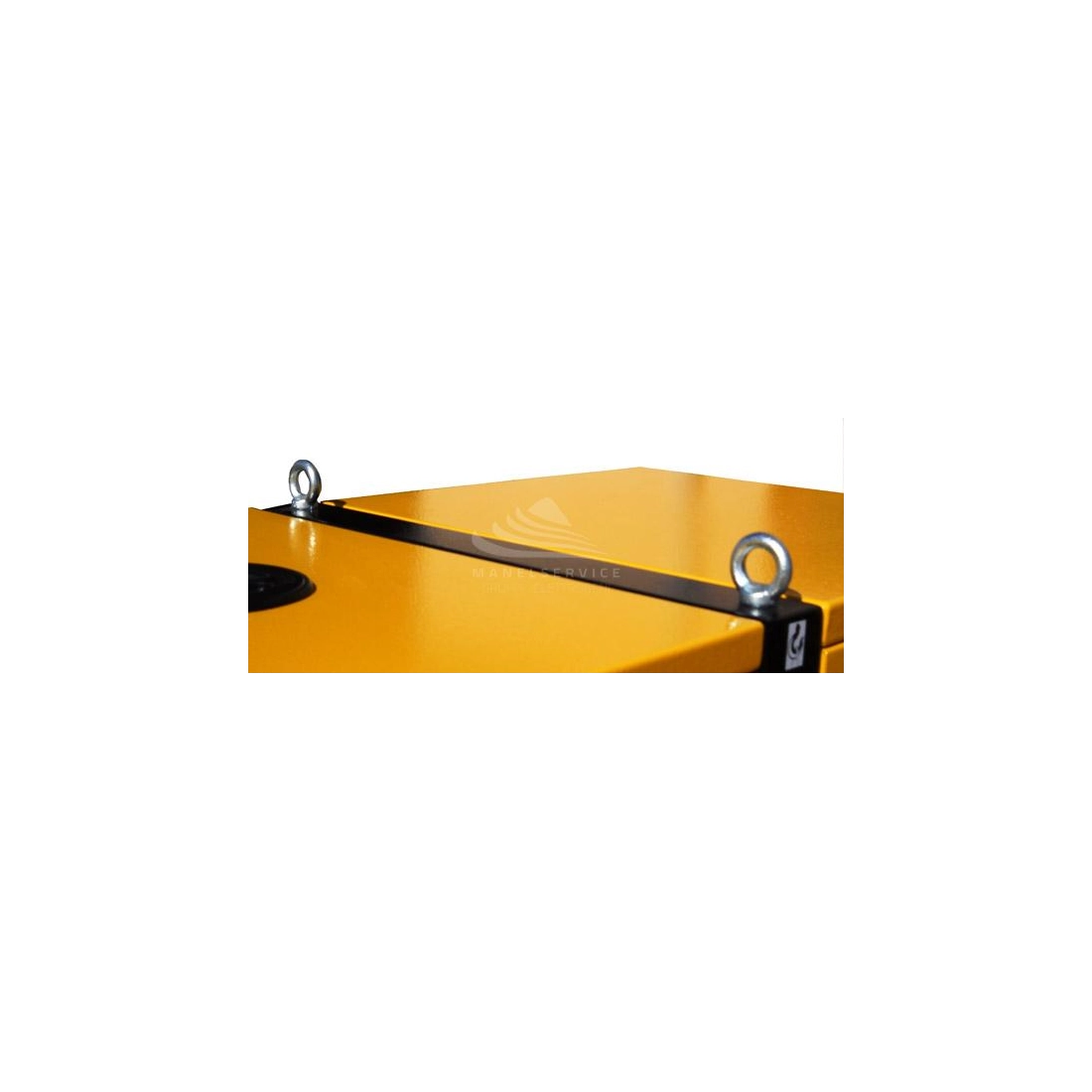

- Open or soundproof protective frame
- Original Honda or Lombardini engine
- Low oil level protection
- Silencing muffler
- Alternator from a leading Italian brand
- Recoil start or electric start with 12V battery supplied with acid
- Full-load test with test certificate
- User manual compliant with safety standards
Are you looking for a generator similar to the WFM SE12000-MHE but with different features? CLICK HERE to discover our full range.
