GENSET MGF 16 Y - SINGLE-PHASE/THREE-PHASE GENERATOR 16 KVA

Name: GENSET MGF 16 Y - SINGLE-PHASE/THREE-PHASE GENERATOR 16 KVA
Brand: GENSET
SKU: MGF 16 Y
Price: 7651 EUR
Availability: InStock

Reference MGF 16 Y

Maximum power Three-phase: 16 KVA
Maximum power Three-phase: 12.8 KW
Maximum power Single phase: 5.3 KVA
Maximum power Single-phase: 4.24 KW
Fuel: Diesel
Voltage: 230/400 V
Frequency: 50 Hz
Engine: Yanmar 3TNV88 (STAGE V)
Starting: Electric
Consumption: 2.7 Lt/h
Length: 1430 mm
Width: 690 mm
Height: 930 mm
Weight: 470 Kg
Super silenced

Download Scheda tecnica MGF 16 Y Download Technical data MGF 16 Y

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KW): 4.24
Maximum power single phase (KVA): 5.3
Maximum power three phase (KW): 12.8
Maximum power three phase (KVA): 16
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400

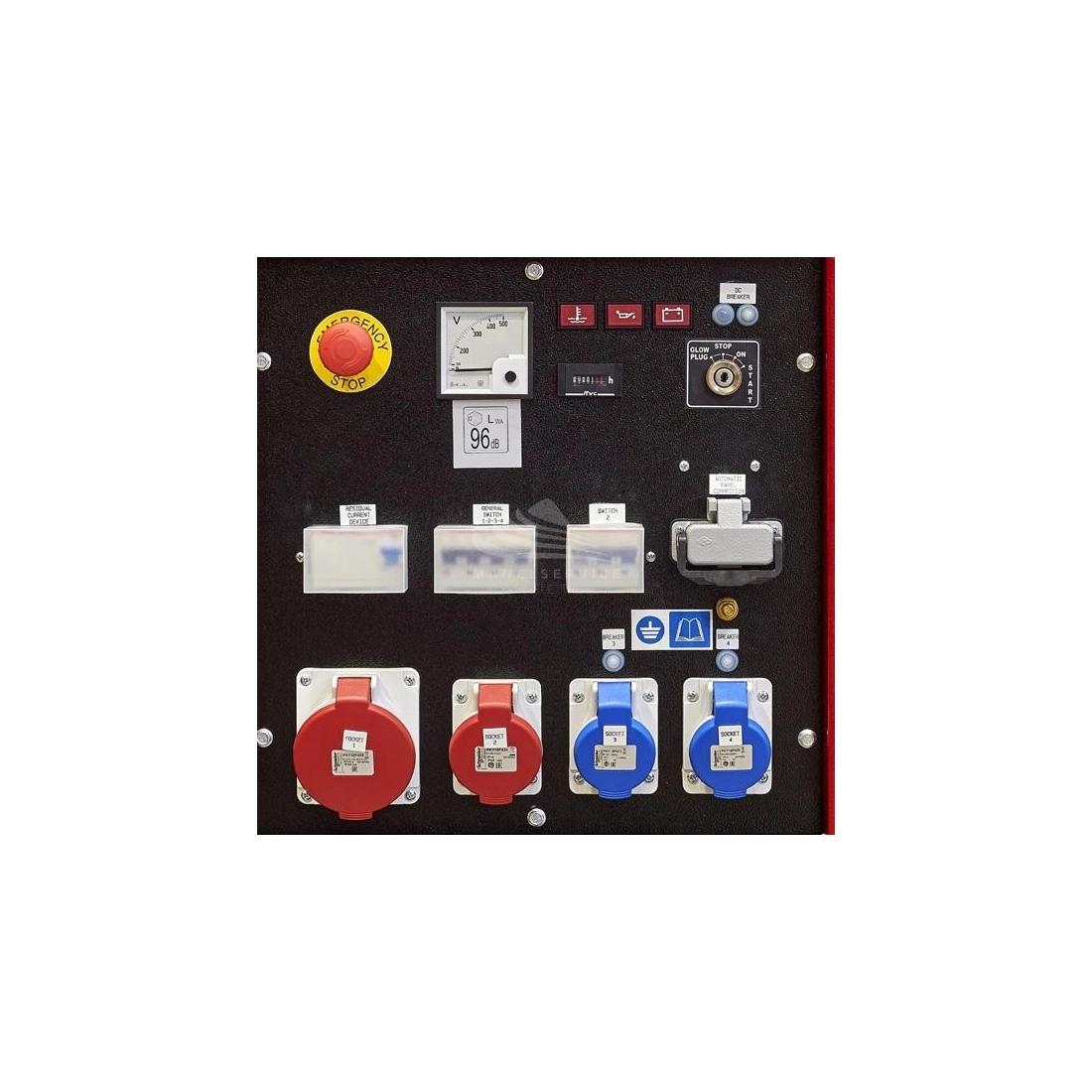

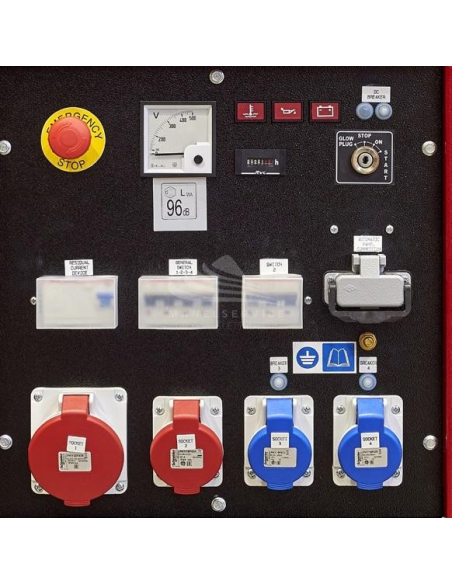

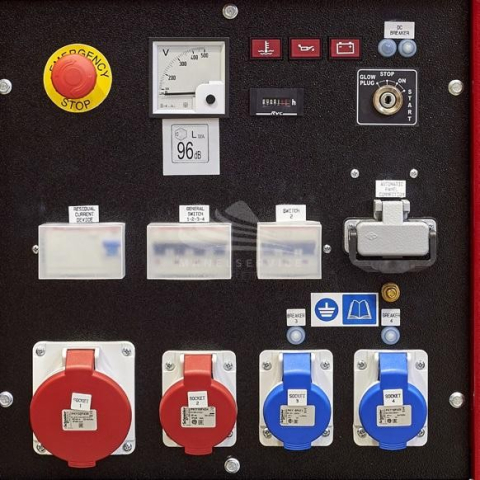

Sockets configuration: 1 x 400V 16A CEE - 1 x 400V 32A CEE - 2 x 230V 16A CEE
Engine: Yanmar 3TNV88, 4 stroke
Emissions Regulations: Stage 5
Engine rpm (rpm): 1500
Starting system: Electric
Engine capacity (cm³): 1642
Number cylinders: 3
Cooling: Water
Alternator: Synchronous
Protection degree: IP23
Motor insulation class: H

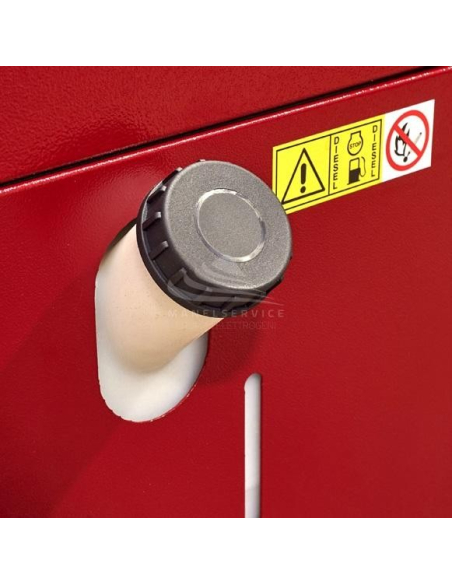

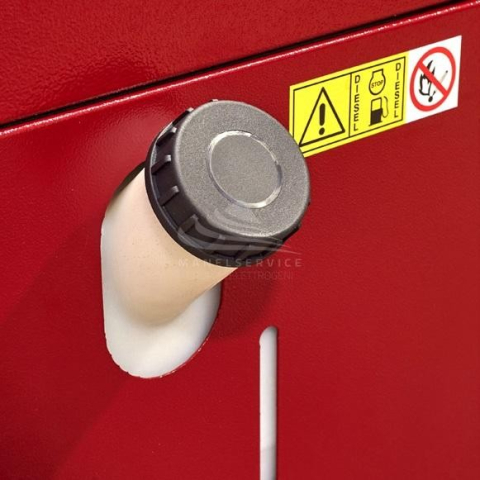

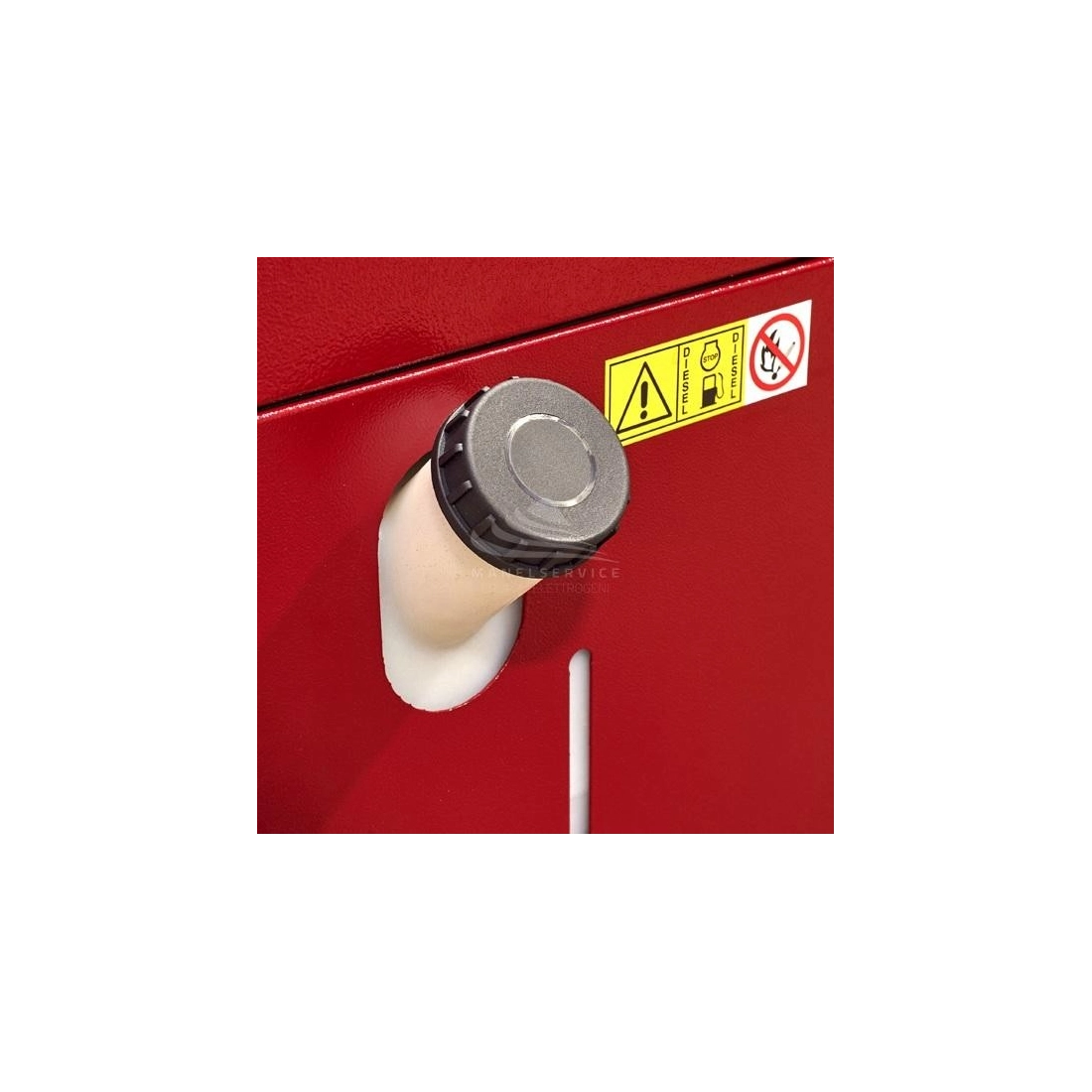

Fuel tank capacity (L): 40
Consumption (L/h): 2.7
Running time (h): 14.81
Acoustic power: 96 dB(A)
Acoustic pressure: 71 dB(A) at 7 m
Length (mm): 1430
Width (mm): 690
Height (mm): 930
Dry weight (Kg): 470
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: Optional ATS
Voltage regulator: AVR (optional)
Engine manufacturer: Yanmar

Brand

GENSET MGF 16 Y

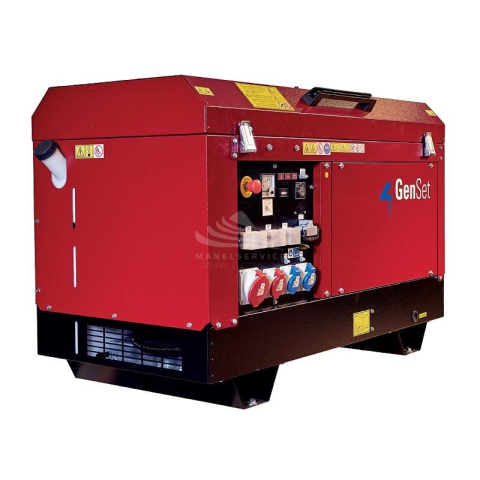

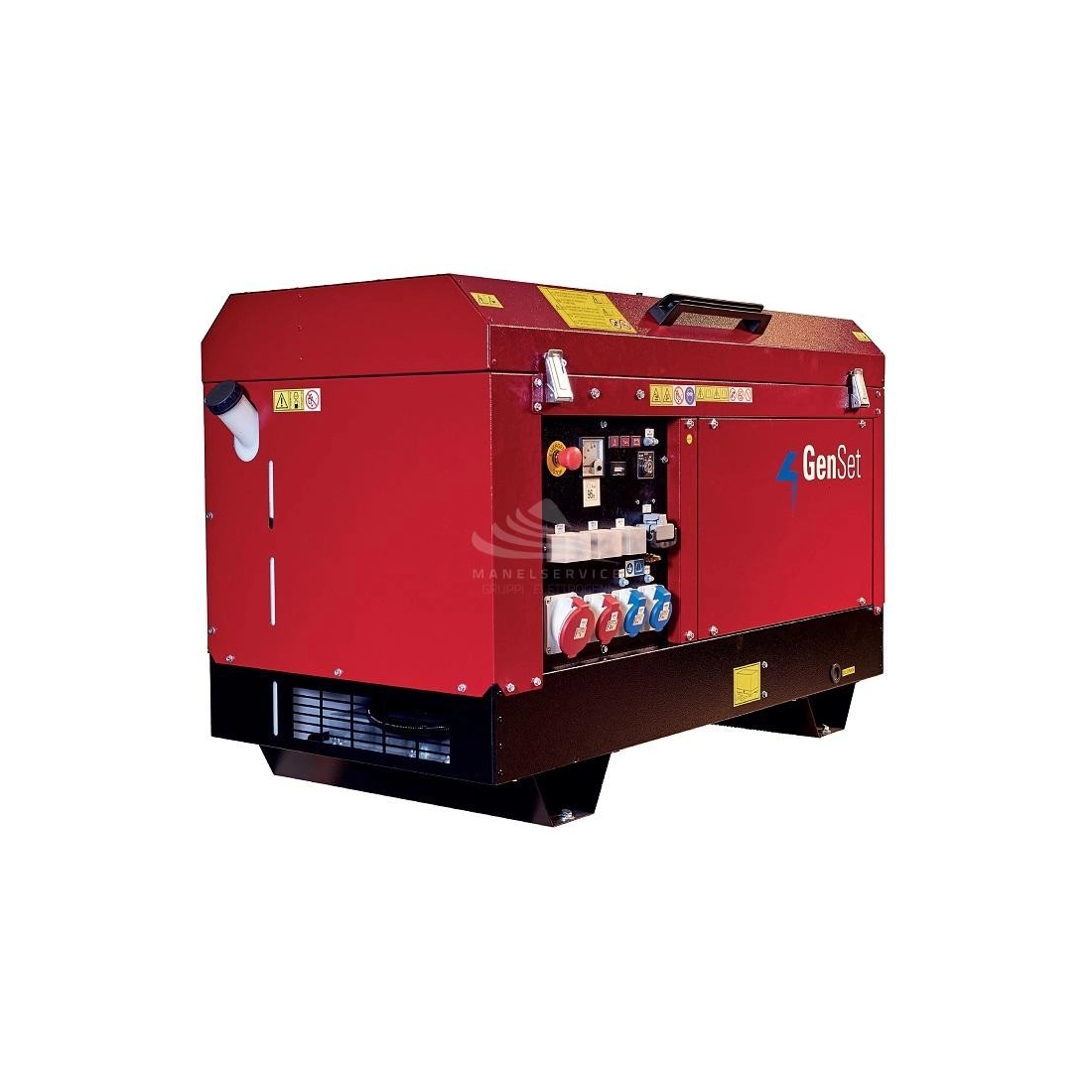

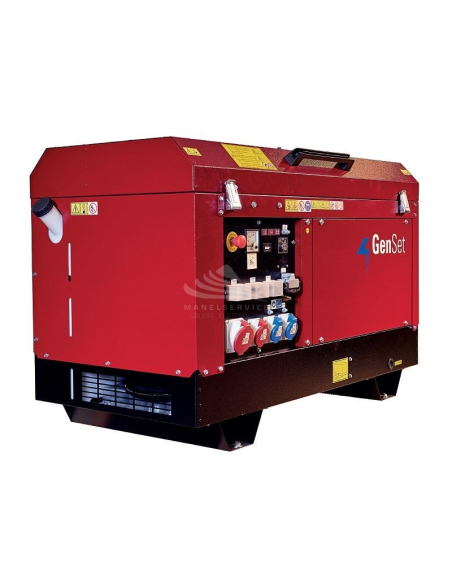

The GENSET MGF 16 Y is a single-phase/three-phase 16 KVA diesel generator with electric start.
Thanks to its compact size and its very low weight, the GENSET MGF 16 Y is a light and easy to transport generator.
The GENSET MGF 16 Y also has a low fuel consumption: only 2.7 Lt/h at 75% of the load.
The GENSET MGF 16 Y generator set, thanks to the high quality and efficiency of its components, is ideal for various types of work: from small hobby jobs to large construction sites.

Images and technical data are not binding.
