HONDA ECMT 7000 Petrol Single/Three Phase Generator 7 kW max

Name: HONDA ECMT 7000 Petrol Single/Three Phase Generator 7 kW max
Brand: HONDA
SKU: ECMT7000K1 /

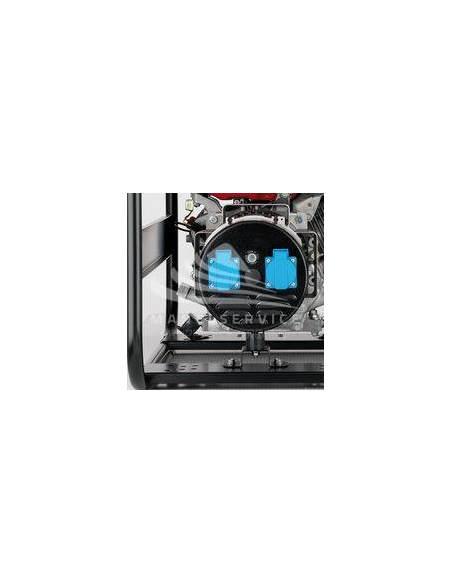

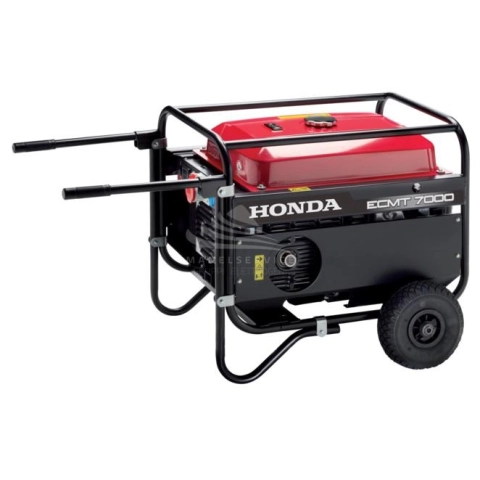

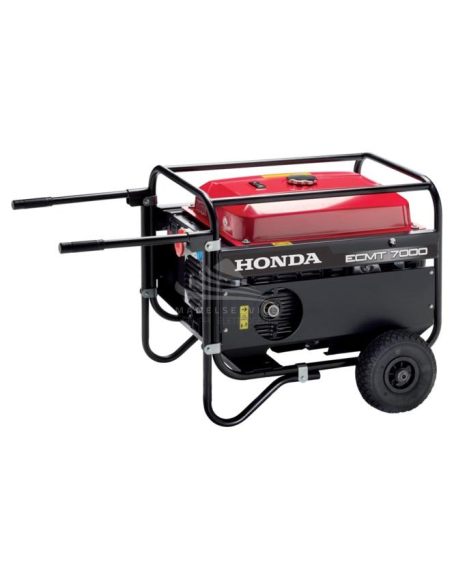

HONDA ECMT 7000 With wheels and transport handles

HONDA ECMT 7000 Professional gasoline generator

Man El.Service - Sale and worldwide shipping Honda ECMT 7000 Generator

Reference ECMT7000K1 /

OUT OF PRODUCTION

Output technology: Condenser
Type: Single/Three phase
Maximum output Single Phase (kW): 4
Maximum output Three Phase (kW): 7
Rated output Single Phase (kW): 3.6
Rated output Three Phase (kW): 6.5
Maximum output Single Phase (kVA): 5.0
Maximum output Three Phase (kVA): 8.75
Rated output Single Phase (kVA): 4.5
Rated output Three Phase (kVA): 8.12
Fuel : Petrol
Rated voltage (V): 230/400
Rated frequency (Hz): 50
Rated current (A): 16/9.5
Engine model: Honda GC390
Engine type: 4-stroke, OHV, 1 cylinder
Starter system: Manual
Operating time at rated: 8h 10
Length (mm): 755
Width (mm): 550
Height (mm): 560
Dry weight (kg): 104

Download Manuale ECMT7000 Download Scheda tecnica ECMT7000

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KW): 4
Continuous power single phase (KW): 3.6
Maximum power single phase (KVA): 5
Continuous power single phase (KVA): 4.2
Maximum power three phase (KW): 7
Continuous power three phase (KW): 6.5
Maximum power three phase (KVA): 8.75
Continuous power three phase (KVA): 8.12
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230 / 400

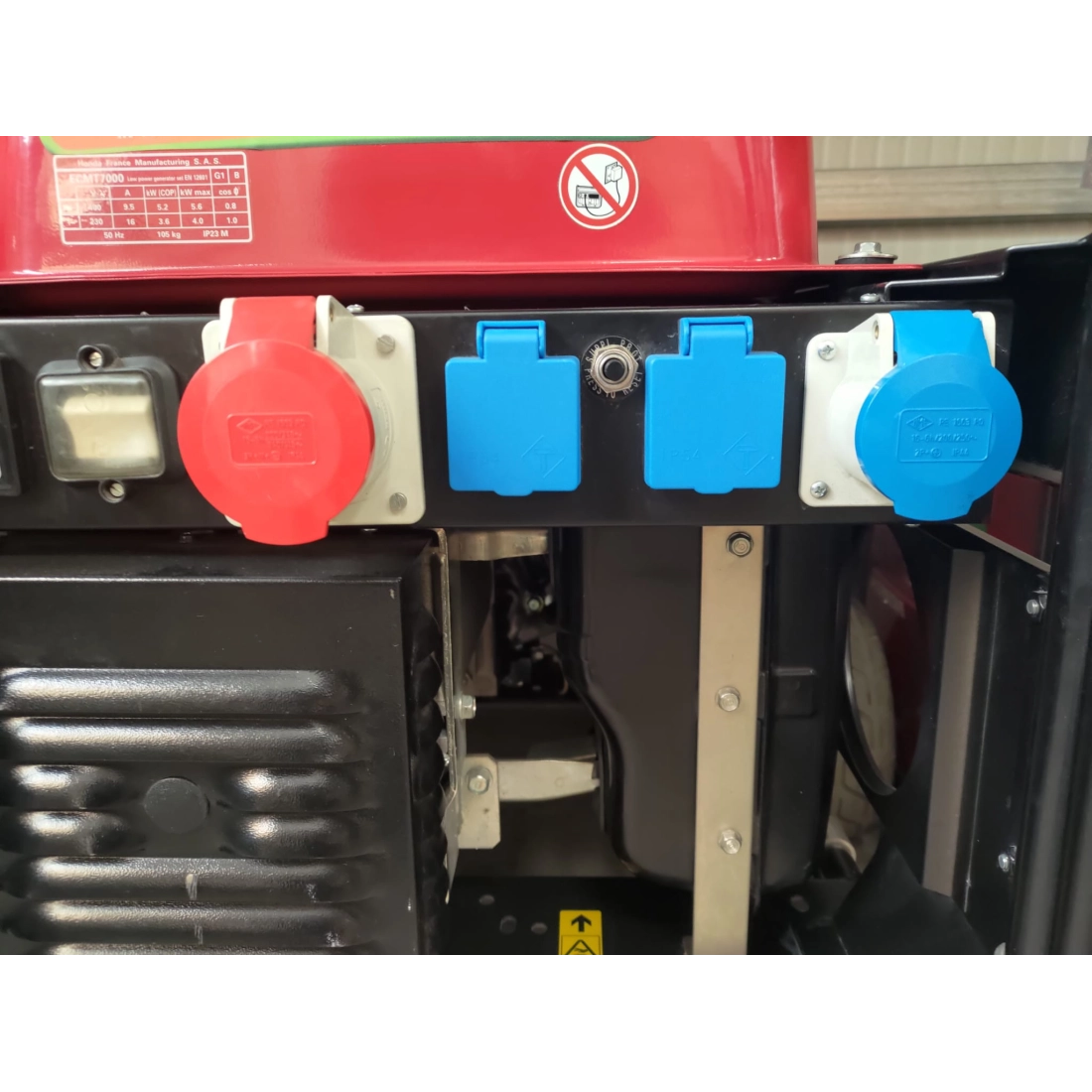

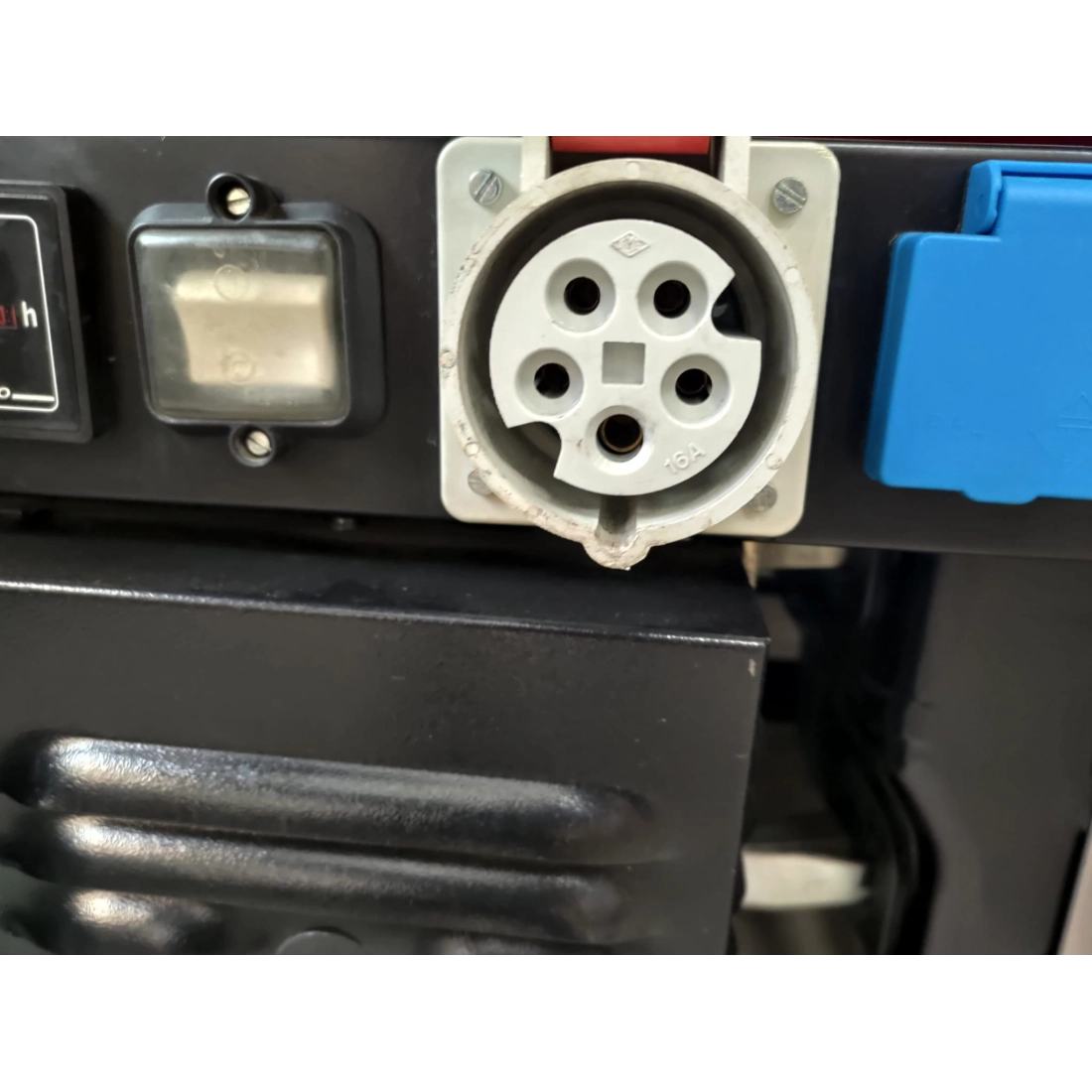

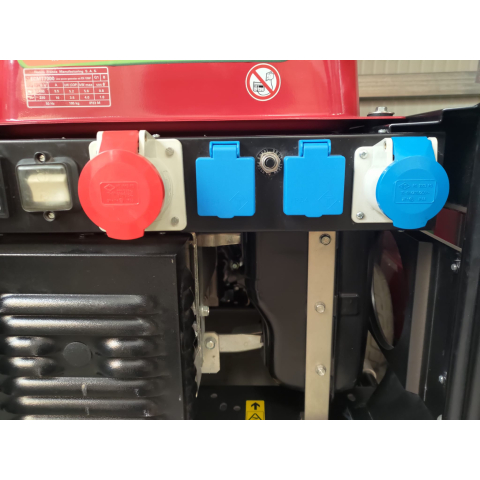

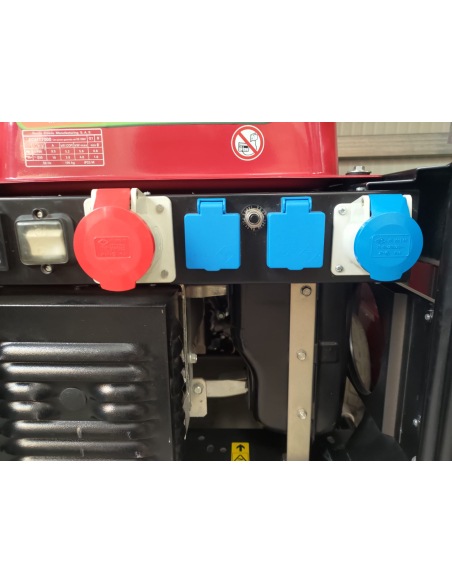

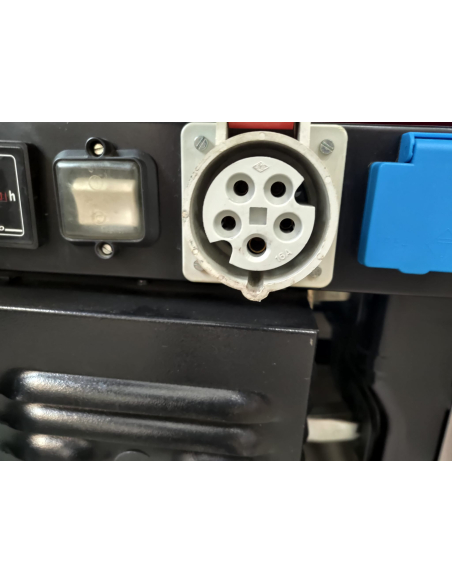

Sockets configuration: 1 x 400V CEE - 2 x 230V SCHUKO
Engine: Honda GC390, 4 tempi, OHV
Engine rpm (rpm): 3000
Ignition: Transistorized
Starting system: Manual
Engine capacity (cm³): 389
Number cylinders: 1
Oil capacity (L): 1.1
Cooling: Air
Alternator: Tripolar
Bore x stroke (mm): 88 x 64
Tank capacity (L): 110
Fuel tank capacity (L): 22.8
Consumption (L/h): 2.79
Running time (h): 8.17
Acoustic power: 97 dB(A)
Acoustic pressure: 85 dB(A)
Length (mm): 755
Width (mm): 550
Height (mm): 560
Dry weight (Kg): 104
Silenced: No
Super silenced: No
Product type: Generator
ATS Switch device: No ATS
Voltage regulator: Compound
Engine manufacturer: Honda
Video: _lb7Wt-5FOM

EAN13: 3573390003670

Brand

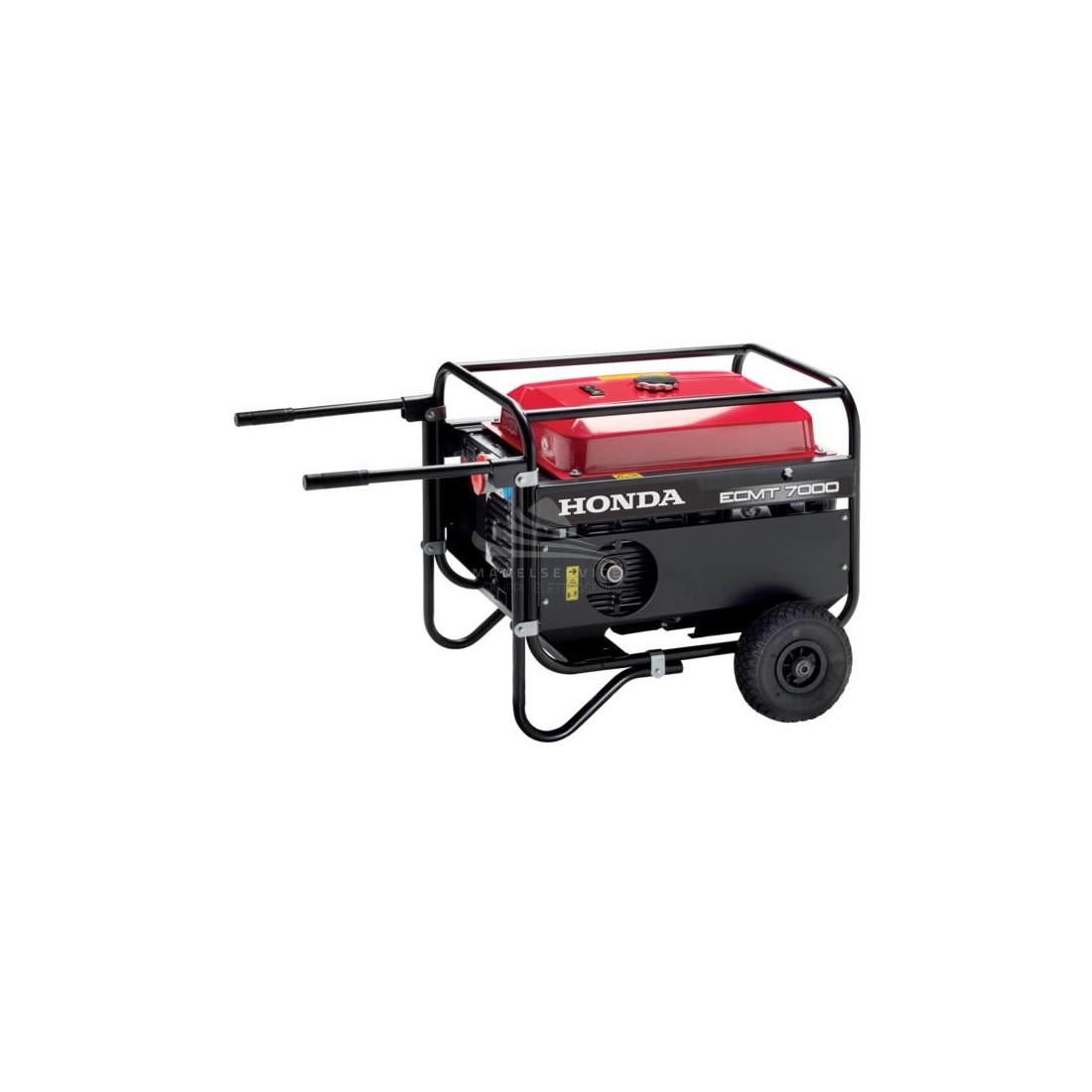

EC generators are highly portable with optional wheels and transport handles.

Plenty of energy

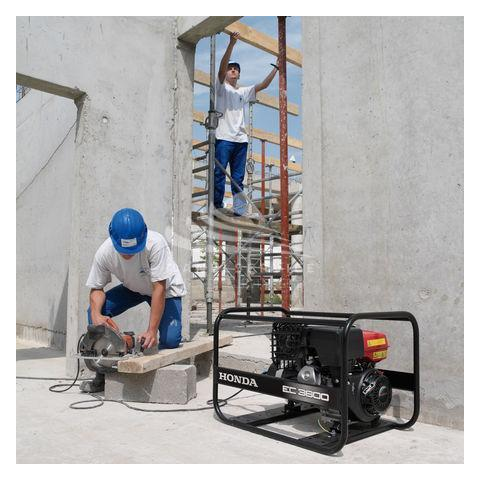

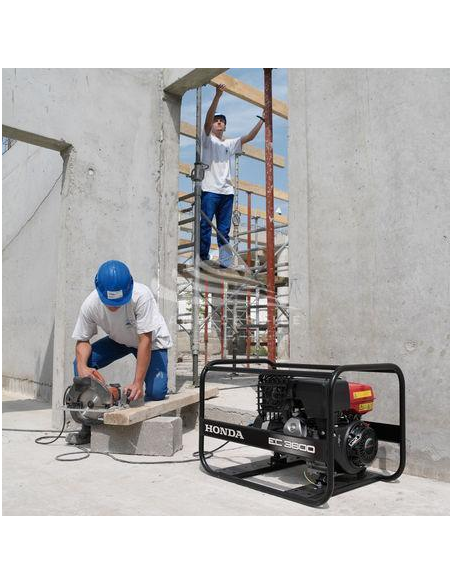

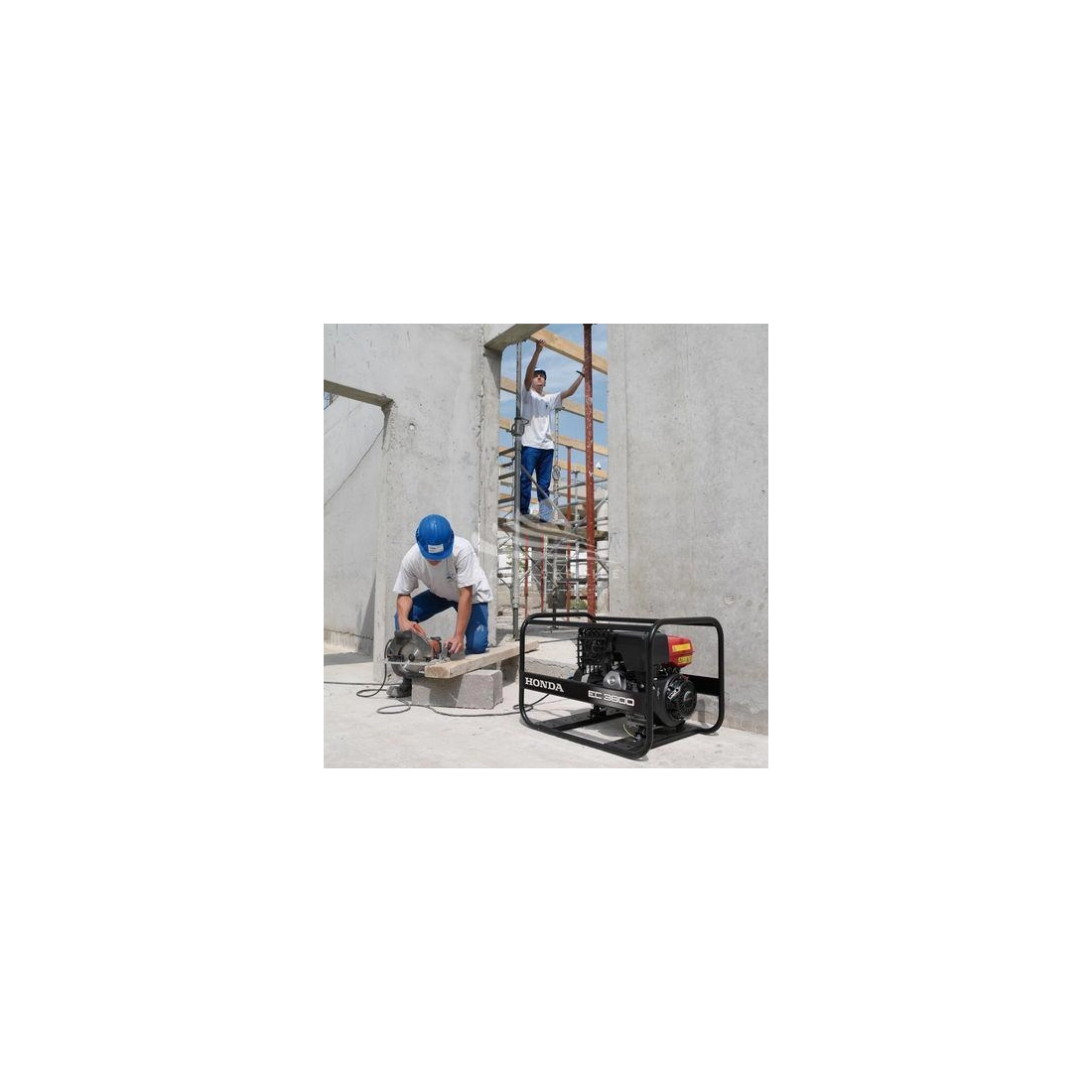

Simplicity and cost effectiveness go hand in hand with a condenser/inductive type EC generator. The power produced is perfect for resistive loads like power drills, circular saws and concrete breakers. Automatic Voltage Regulator (AVR) allows for better output consistency and stability, delivering a stable wave of clean power. Available on the ECT 7000 P, it improves the performance of reactive type loads such as compressors, welders and halogen spotlights.

Smooth running

Honda has built an engine mount system into the durable steel frame.
These rubber shock absorbers are positioned either side of the engine at 45? and significantly reduce the engine vibration of an already quiet Honda ECMT7000.
Nice and smoothly does it.

The images shown are for illustrative purposes only.
