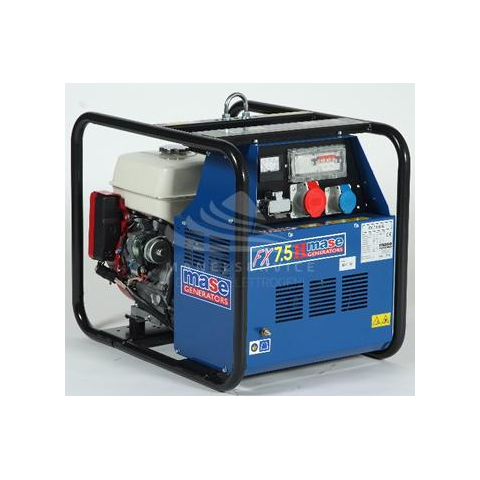

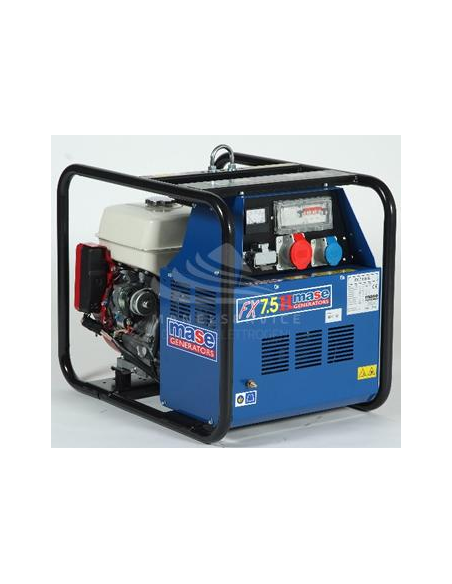

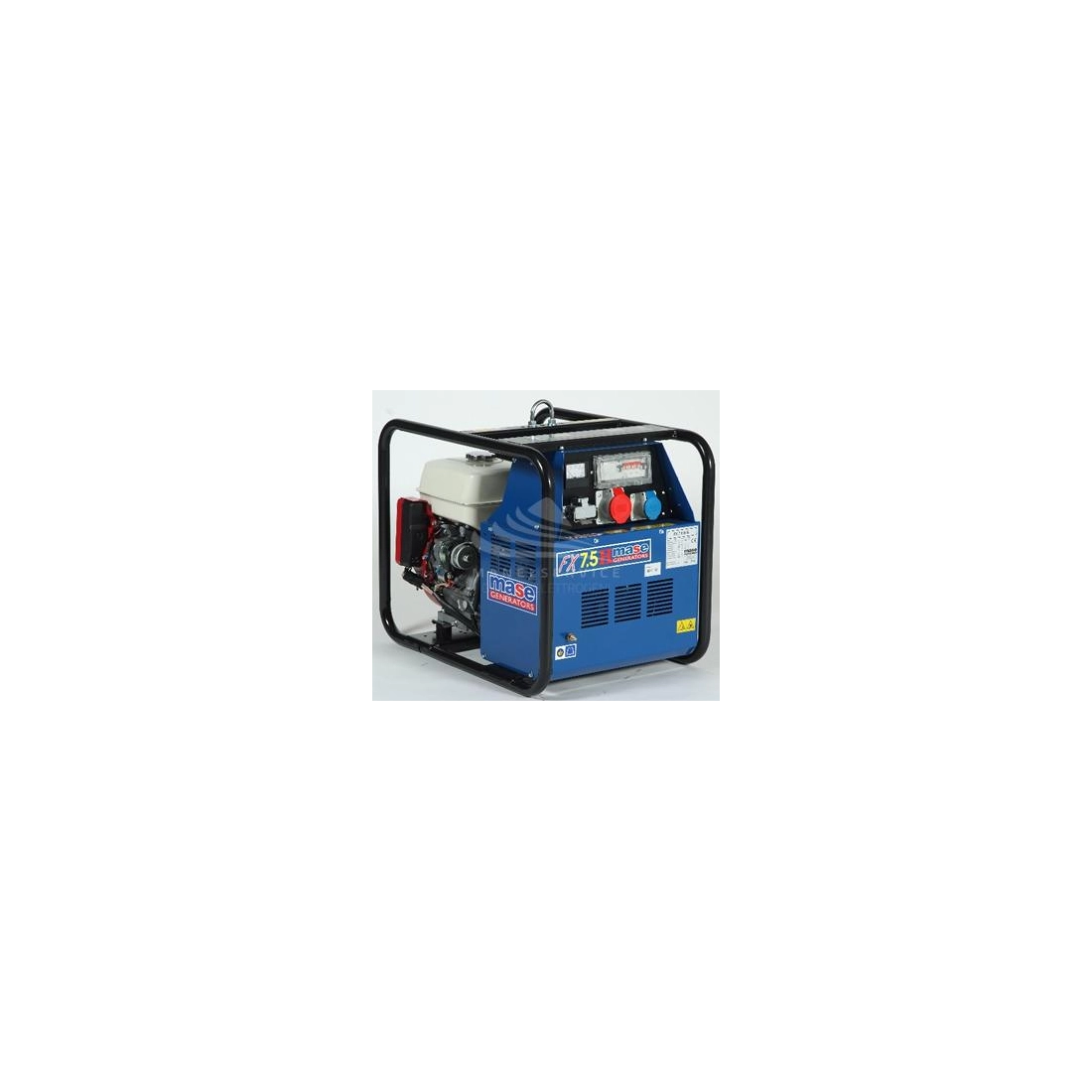

MASE FX 7.5 H/A STAGE V

Online only

Reference 003239

Maximum power Single-phase: 4.6 KW
Single-phase continuous power: 3.3 KW
Maximum power three-phase: 5.6 KW
Three-phase continuous use power: 5.2 KW
Fuel: Petrol
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: Honda GX390
Starter: Electric
Consumption: 2.6 Lt/h at 75% load
Length: 725 mm
Width: 515 mm
Height: 585 mm
Weight: 95 Kg
STAGE V

Download Scheda tecnica FX 7.5 H/A Download Technical data FX 7.5 H/A

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KW): 4.6
Continuous power single phase (KW): 3.3
Maximum power single phase (KVA): 4.6
Continuous power single phase (KVA): 3.3
Maximum power three phase (KW): 5.6
Continuous power three phase (KW): 5.2
Maximum power three phase (KVA): 7
Continuous power three phase (KVA): 6.5
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 2 x 230V 16A CE
Engine: Honda GX390, 4 stroke
Emissions Regulations: Stage 5
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 389
Number cylinders: 1
Cooling: Air
Alternator: Synchronous
Fuel tank capacity (L): 6.5
Consumption (L/h): 2.6 at 75% of the load
Running time (h): 2.5 at 75% of the load
Acoustic power: 100 dB(A)
Acoustic pressure: 75 dB(A) at 7 m
Length (mm): 725
Width (mm): 515
Height (mm): 585
Dry weight (Kg): 95
Silenced: No
Super silenced: No
ATS Switch device: Optional ATS
Voltage regulator: No
Engine manufacturer: Honda

Brand

La linea di prodotti Mase marini è stata sviluppata per installazioni a bordo di imbarcazioni.
I modelli IS ( Intercooler System), generatori diesel dalle caratteristiche innovative, assicurano ai costruttori di imbarcazioni e agli utilizzatori finali estrema facilità d'installazione, alta efficienza, elevate prestazioni e silenziosità, garantendo al tempo stesso un bassissimo livello di impatto ambientale.

L'immagine è puramente indicativa
