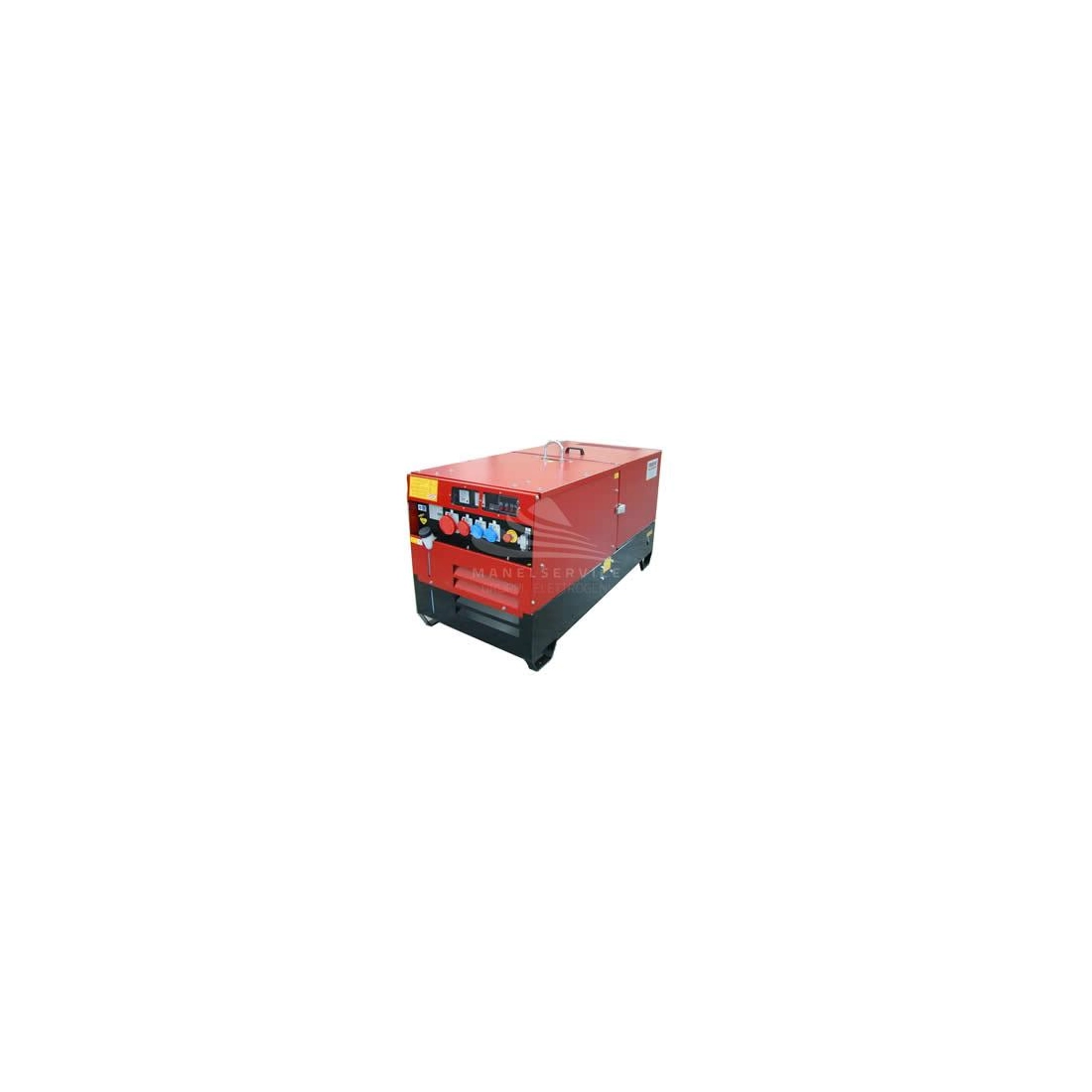

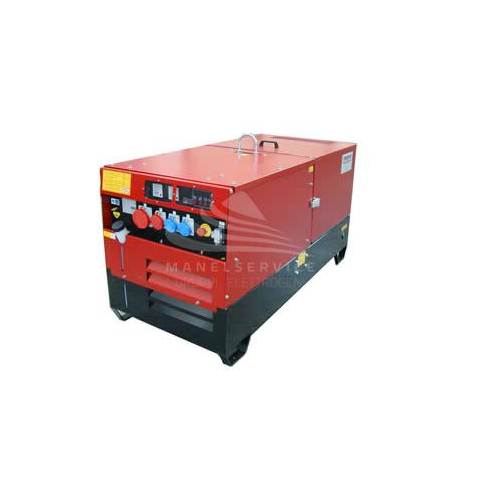

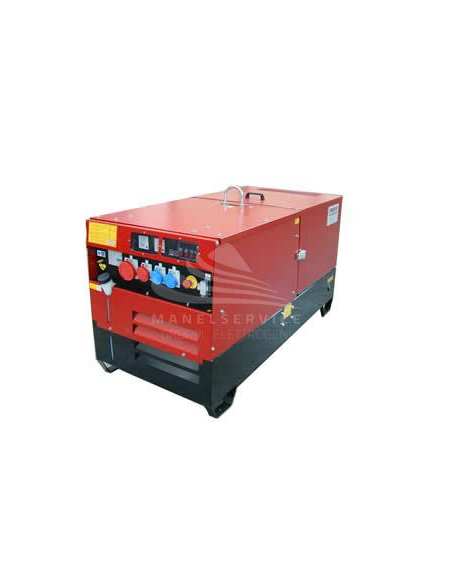

MASE MPV 16 BA
007851
OUT OF PRODUCTION
Single-phase maximum power: 11 KW
Three-phase maximum power: 12.8 KW
Three-phase continuous use power: 12 KW
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: Yanmar 3TNV88
Starting: Electric
Consumption: 2.5 Lt / h at 75% of the load
Length: 1750 mm
Width: 800 mm
Height: 900 mm
Weight: 600 Kg
Compound
- Phase
- Single phase / Three phase
- Maximum power single phase (KW)
- 11
- Maximum power single phase (KVA)
- 11
- Maximum power three phase (KW)
- 12.8
- Continuous power three phase (KW)
- 12
- Maximum power three phase (KVA)
- 16
- Continuous power three phase (KVA)
- 15
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Sockets configuration
- 2 x 230V 16A CE
- Engine
- Yanmar 3TNV88, 4 stroke
- Engine rpm (rpm)
- 1500
- Speed governor
- Mechanical
- Starting system
- Electric
- Engine capacity (cm³)
- 1642
- Number cylinders
- 3
- Oil capacity (L)
- 6.7
- Cooling
- Water
- Inyección
- Direct
- Alternator
- Synchronous, self-excited
- Poles
- 4
- Lubrication
- Forced
- Fuel tank capacity (L)
- 50
- Consumption (L/h)
- 2.5 at 75% of the load
- Running time (h)
- 20 at 75% of the load
- Acoustic power
- 94 dB(A)
- Acoustic pressure
- 69 dB(A) at 7 m
- Length (mm)
- 1750
- Height (mm)
- 900
- Dry weight (Kg)
- 600
- Silenced
- Yes
- Super silenced
- Yes
- ATS Switch device
- Optional ATS
- Voltage regulator
- Compound
- Engine manufacturer
- Yanmar
- Brand
-
OUT OF PRODUCTION
Single-phase maximum power: 11 KW
Three-phase maximum power: 12.8 KW
Three-phase continuous use power: 12 KW
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: Yanmar 3TNV88
Starting: Electric
Consumption: 2.5 Lt / h at 75% of the load
Length: 1750 mm
Width: 800 mm
Height: 900 mm
Weight: 600 Kg
Compound
