MASE MPL 230 I

Name: MASE MPL 230 I
Brand: MASE
SKU: MPL 230 I

Reference MPL 230 I

OUT OF PRODUCTION

Single-phase maximum power: 61.28 KW
Three-phase maximum power: 184 KW
Three-phase continuous use power: 160 KW
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: FPT (IVECO) NEF67TE2A turbo
Starting: Electric
Consumption: 35.7 Lt / h at 75% of the load
Length: 3000 mm
Width: 1100 mm
Height: 1500 mm
Weight: 2100 Kg

Download Scheda tecnica MPL 230 I Download Technical data MPL 230 I

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KW): 61.28
Maximum power single phase (KVA): 76.6
Maximum power three phase (KW): 184
Continuous power three phase (KW): 160
Maximum power three phase (KVA): 230
Continuous power three phase (KVA): 200
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine: FPT (IVECO) NEF67TE2A turbo
Engine rpm (rpm): 1500
Starting system: Electric
Engine capacity (cm³): 6
Number cylinders: 6
Cooling: Water
Alternator: Synchronous
Fuel tank capacity (L): 230
Consumption (L/h): 35.7 at 75% of the load
Running time (h): 6.44 at 75% of the load
Length (mm): 3000
Width (mm): 1100
Height (mm): 1500
Dry weight (Kg): 2100
Silenced: No
Super silenced: No
ATS Switch device: Optional ATS
Voltage regulator: No
Engine manufacturer: FPT Iveco

Brand

La linea di prodotti Mase marini è stata sviluppata per installazioni a bordo di imbarcazioni.
I modelli IS ( Intercooler System), generatori diesel dalle caratteristiche innovative, assicurano ai costruttori di imbarcazioni e agli utilizzatori finali estrema facilità d'installazione, alta efficienza, elevate prestazioni e silenziosità, garantendo al tempo stesso un bassissimo livello di impatto ambientale.

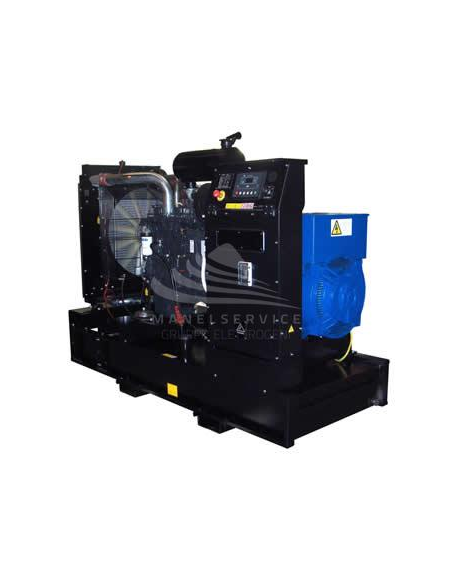

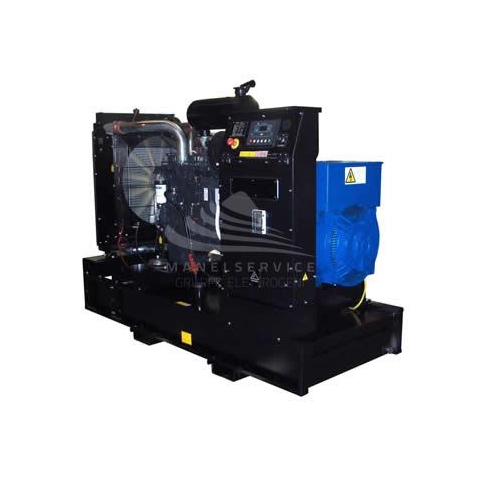

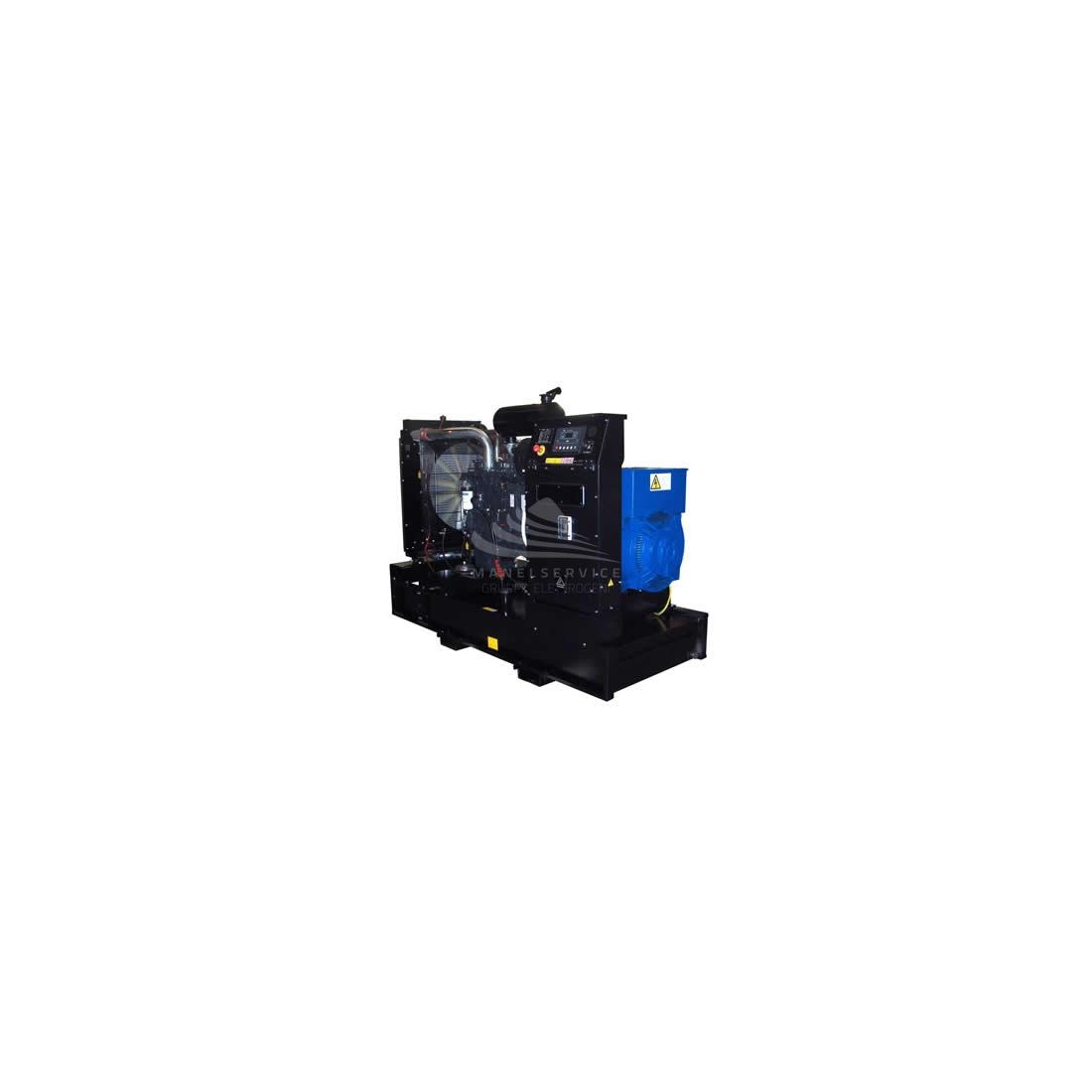

L'immagine è puramente indicativa
