TECNOGEN LD22000TE/A GENERATOR SET WITH SEPARATE AUTOMATIC PANEL

Name: TECNOGEN LD22000TE/A GENERATOR SET WITH SEPARATE AUTOMATIC PANEL
Brand: TECNOGEN
SKU: LD22000TE/A
Price: 5310 EUR
Availability: InStock

Reference LD22000TE/A

Maximum three-phase power: 16.8 KW
Maximum three-phase power: 21 KVA
Fuel: Diesel
Voltage: 400V
Engine: Lombardini 9LD625-2
Starting: Automatic
Length: 1150 mm
Width: 700 mm
Height: 850 mm
Weight: 270 Kg

Download Scheda tecnica LD22000TE-A

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KW): 5.6
Maximum power single phase (KVA): 7
Maximum power three phase (KW): 16.8
Maximum power three phase (KVA): 21
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine: HONDA GC160
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 1248
Number cylinders: 2
Cooling: Air
Fuel tank capacity (L): 52
Consumption (L/h): 4.9
Running time (h): 10.6
Length (mm): 1150
Width (mm): 700
Height (mm): 850
Dry weight (Kg): 270
Silenced: No
Super silenced: No
ATS Switch device: ATS Included
Voltage regulator: Compound
Engine manufacturer: Lombardini

Brand

TECNOGEN LD22000TE/A GENERATOR WITH SEPARATE AUTOMATIC PANEL

Generating sets available in both single-phase and three-phase versions, with powers from 2.3 to 21 kVA MAX, equipped with gasoline or diesel engines, air-cooled, 3000 rpm, with electric and / or manual starting with recoil . Compact, simplified and economical, they boast an excellent price / performance / size and weight ratio.
Easily transportable thanks to the reduced dimensions due to an essential set-up, they are suitable for all those who need an economic source of energy. assembled with first-rate components that guarantee absolute reliability. Thanks to the latest generation Honda engines, the petrol versions of the COMPACT line fall within the parameters of the noise directive 2000/14 / EC.

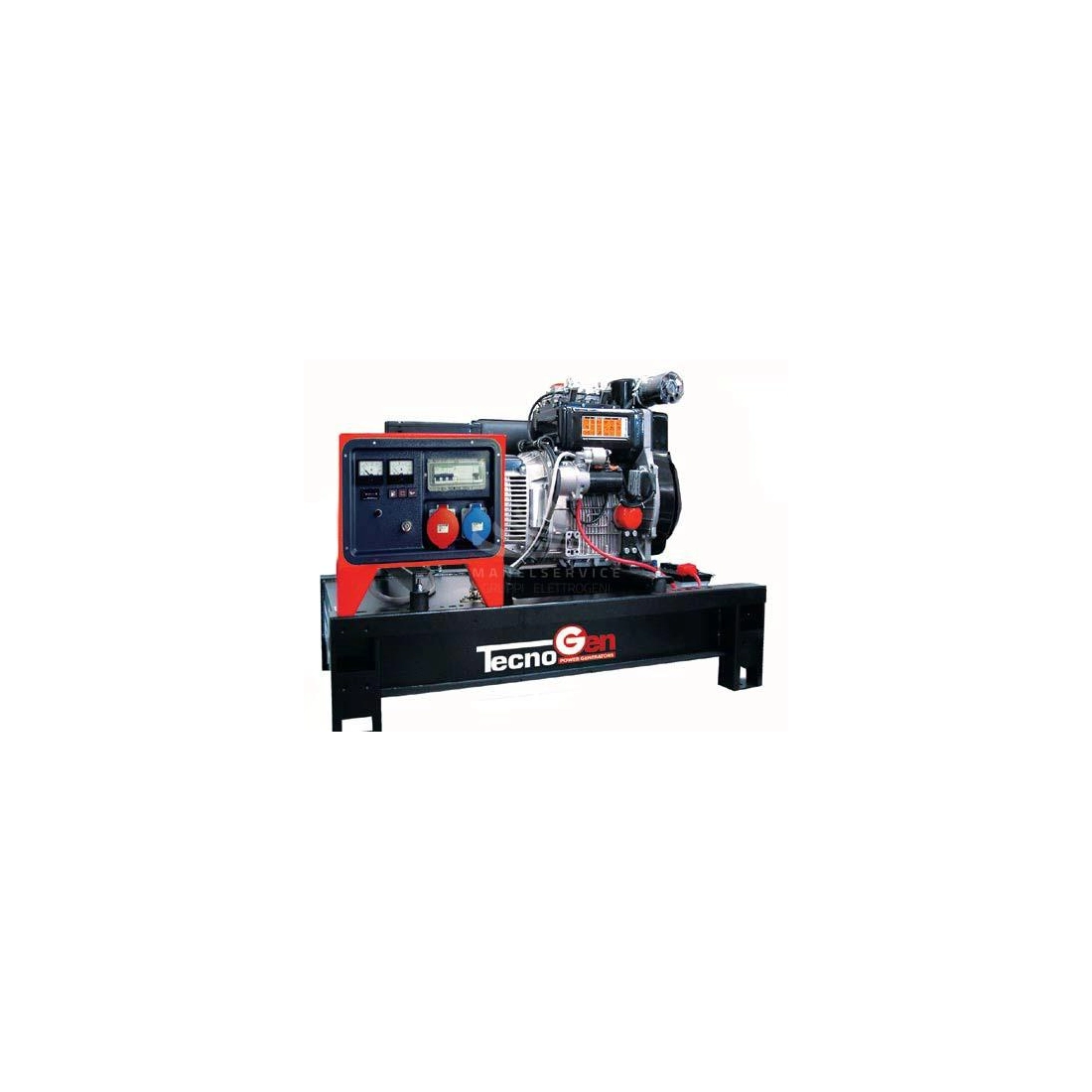

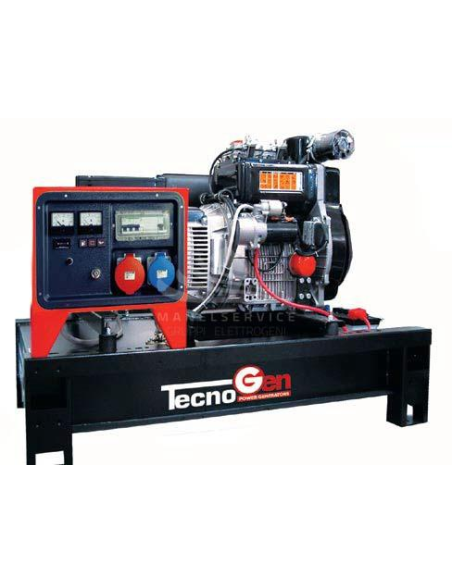

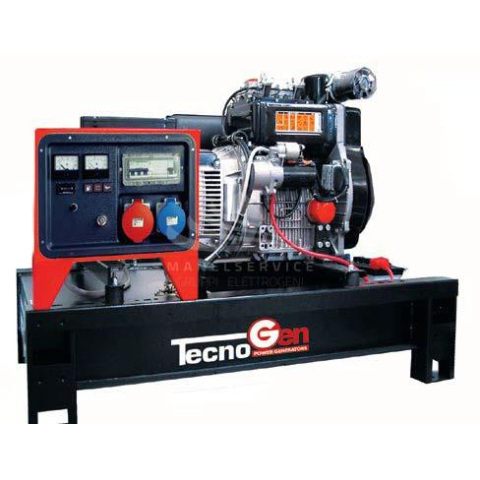

The image is purely indicative.
