TECNOGEN LD22000TSS/A GENERATOR WITH SEPARATE AUTOMATIC PANEL
LD22000TSS/A
Maximum three-phase power: 16.8 KW
Maximum three-phase power: 21 KVA
Fuel: Diesel
Voltage: 400V
Engine: Lombardini 9LD625-2
Starting: Automatic
Length: 1450 mm
Width: 800 mm
Height: 1060 mm
Weight: 400 Kg
- Phase
- Single phase / Three phase
- Maximum power single phase (KW)
- 5.6
- Maximum power single phase (KVA)
- 7
- Maximum power three phase (KW)
- 16.8
- Maximum power three phase (KVA)
- 21
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Engine
- HONDA GC160
- Engine rpm (rpm)
- 3000
- Starting system
- Electric
- Engine capacity (cm³)
- 1248
- Number cylinders
- 2
- Cooling
- Air
- Fuel tank capacity (L)
- 48
- Consumption (L/h)
- 4.9 at 75% of the load
- Running time (h)
- 9.7 at 75% of the load
- Acoustic power
- 96 dB(A)
- Length (mm)
- 1450
- Width (mm)
- 800
- Height (mm)
- 1060
- Dry weight (Kg)
- 400
- Silenced
- No
- Super silenced
- Yes
- ATS Switch device
- ATS Included
- Voltage regulator
- Compound
- Engine manufacturer
- Lombardini
- Brand
-
TECNOGEN LD22000TSS/A GENERATOR WITH SEPARATE AUTOMATIC PANEL
Super-silenced diesel generator sets with electric start, air-cooled, 3000 rpm, available in both single-phase and three-phase versions, with powers from 6.3 to 21 kVA MAX. Extremely small in size, the carpentry of this series boast a particular configuration that facilitates routine maintenance operations. The excellent performance / size ratio and the high level of soundproofing make these generators the ideal solution for limited spaces in which it is necessary to operate with the utmost silence (vans set up for road maintenance, mobile workshops, etc.). Easy and versatile to position, they are also suitable for installations with automatic intervention electrical panel, in full compliance with current regulations.

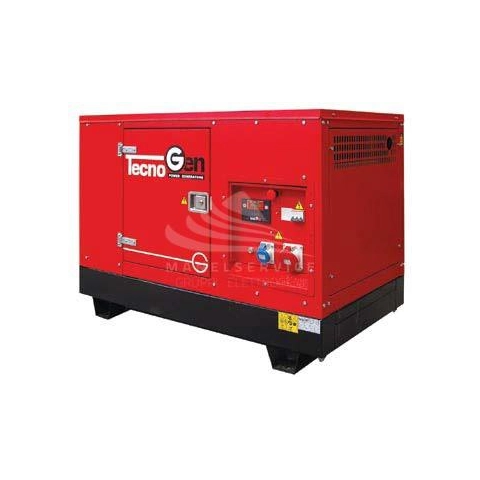

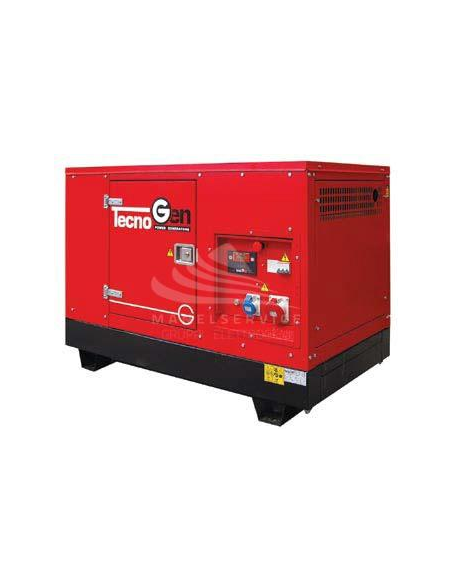

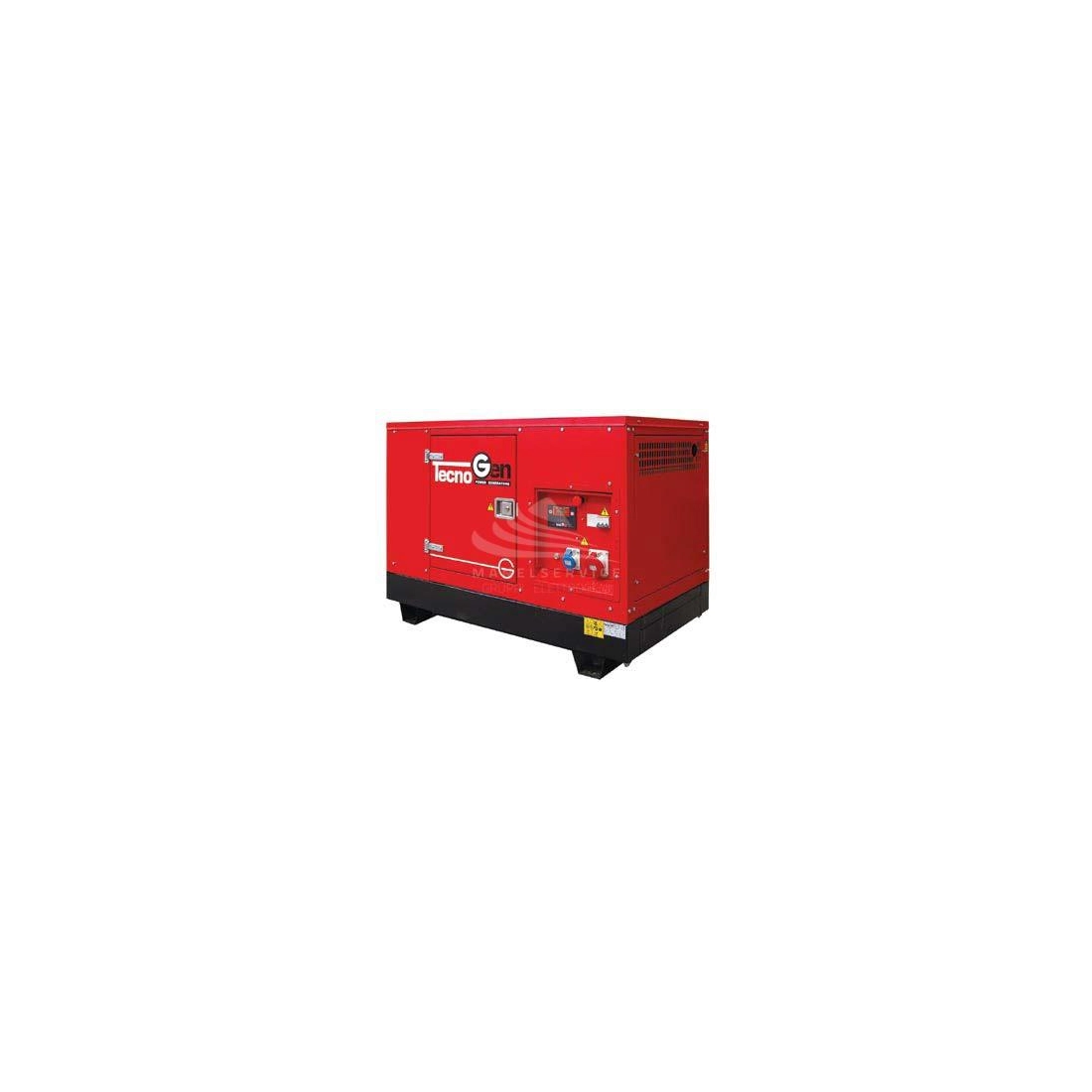

The image is purely indicative.
