TECNOGEN LW16000TSS/A GENERATOR WITH SEPARATE AUTOMATIC PANEL
LW16000TSS/A - C
Maximum three-phase power: 14 KW
Maximum three-phase power: 17.5 KVA
Fuel: Diesel
Voltage: 400V
Engine: Lombardini LDW1003FOCS
Starting: Automatic
Length: 1750 mm
Width: 770 mm
Height: 1070 mm
Weight: 405 Kg
- Phase
- Single phase / Three phase
- Maximum power single phase (KW)
- 4.7
- Maximum power single phase (KVA)
- 5.8
- Maximum power three phase (KW)
- 14
- Maximum power three phase (KVA)
- 17.5
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Engine
- HONDA GC160
- Engine rpm (rpm)
- 3000
- Starting system
- Electric
- Engine capacity (cm³)
- 1028
- Number cylinders
- 3
- Cooling
- Water
- Fuel tank capacity (L)
- 54
- Consumption (L/h)
- 3.5
- Running time (h)
- 15.4
- Acoustic power
- 94 dB(A)
- Length (mm)
- 1750
- Width (mm)
- 770
- Height (mm)
- 1070
- Dry weight (Kg)
- 405
- Silenced
- No
- Super silenced
- Yes
- ATS Switch device
- ATS Included
- Voltage regulator
- Compound / AVR (optional)
- Engine manufacturer
- Lombardini
- Brand
-
TECNOGEN LW16000TSS/A GENERATOR WITH SEPARATE AUTOMATIC PANEL
Electric start diesel generators, water-cooled, 3000 rpm, available in both single-phase and three-phase versions, with powers from 11.7 to 34.7 kVA MAX. Sturdy and reliable, they are suitable to operate for long periods despite the high rotation rate. The set-up relative to the base-mounted versions includes a built-in fuel tank with a capacity of 52 l, a metal grille placed to protect the radiator and a professional electrical panel, entirely made of ABS with a high degree of protection, equipped with instruments that respect the strictest safety standards. The silenced models are also equipped with a soundproofed canopy in hot-dip galvanized steel. The generators of the W 3000 series are the ideal choice for applications with automatic intervention panel or for use in the mechanical / industrial field.

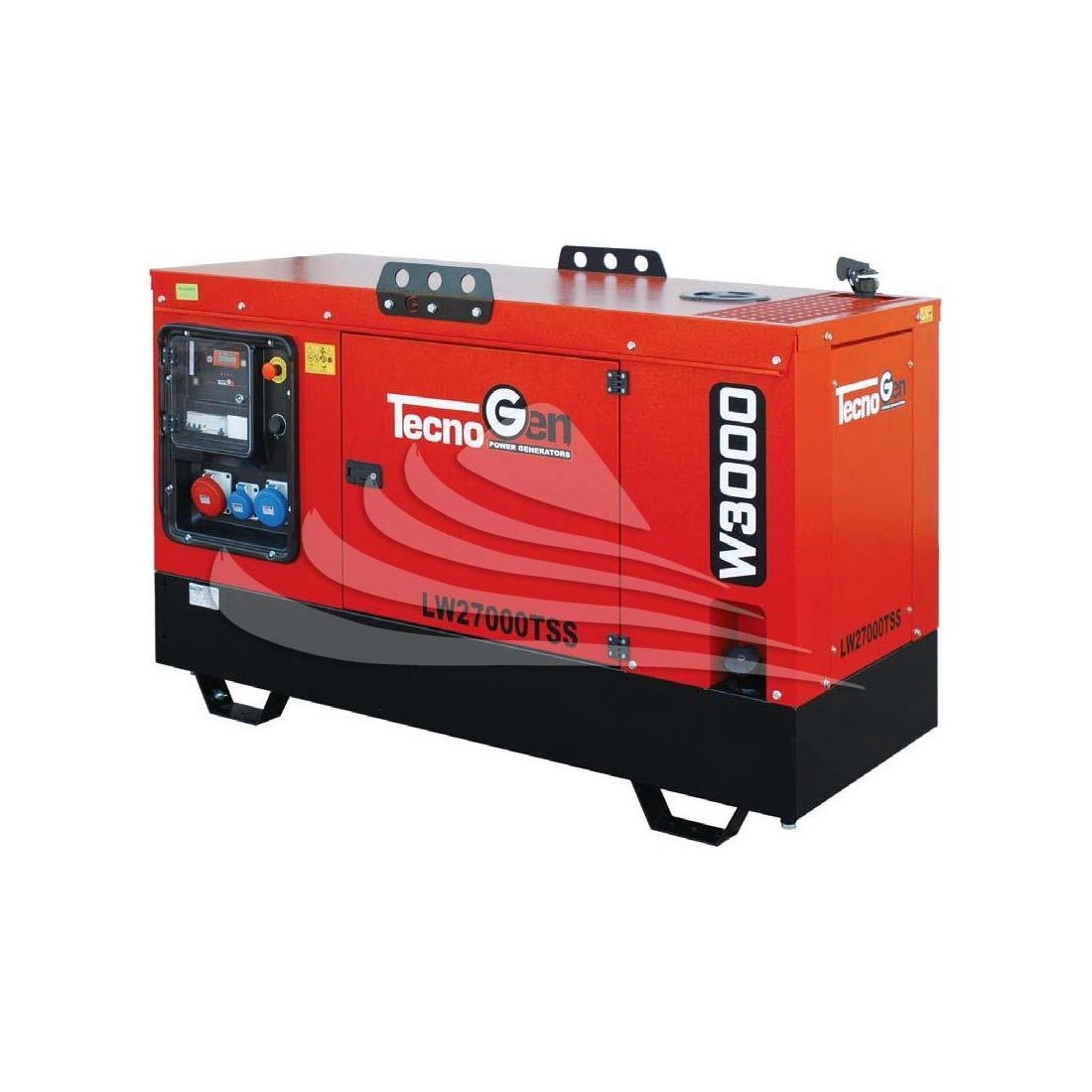

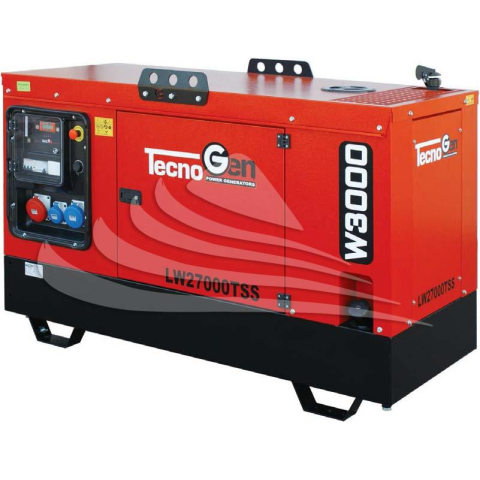

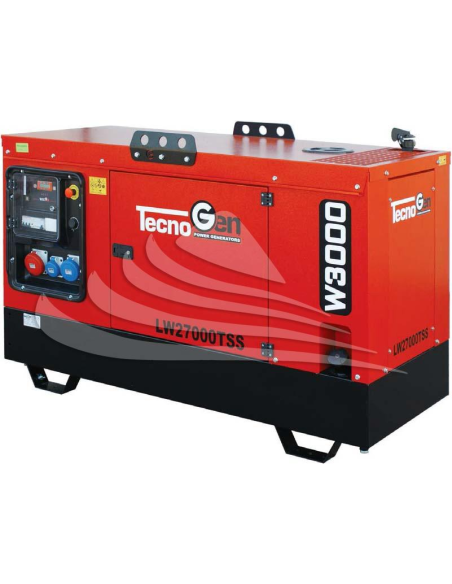

The image is purely indicative.
