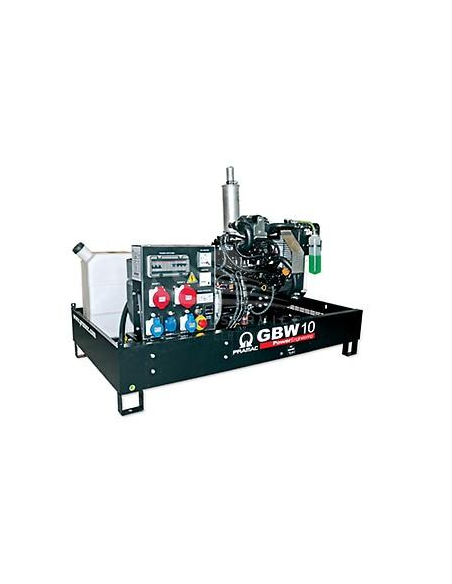

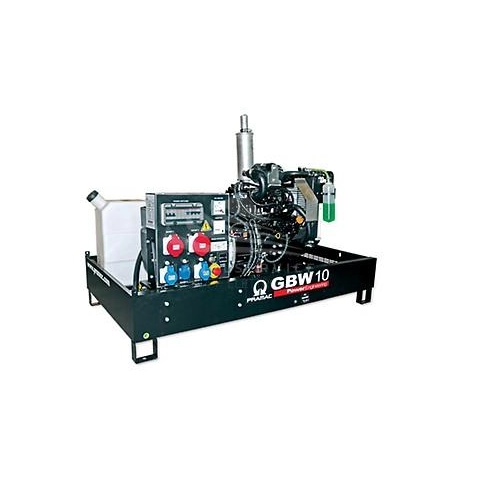

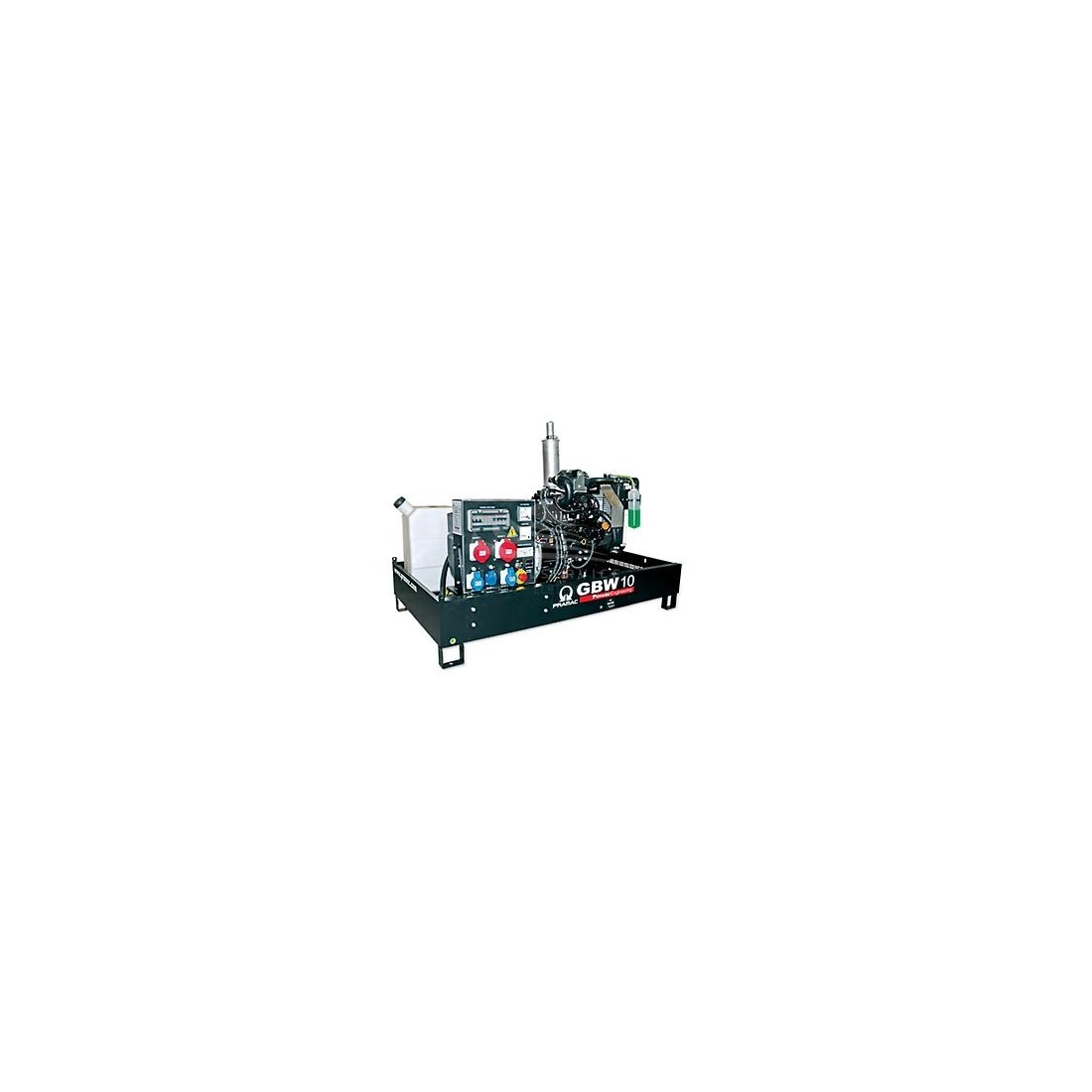

PRAMAC GBW10Y STAGE V APERTO CON QUADRO COMANDO AUTOMATICO
SH100TYAV02 /
OUT OF PRODUCTION
Maximum power Three-phase: 7.47 KW
Three-phase continuous use power: 6.81 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Yanmar 3TNV80F-NGPGE STAGE V
Starting: Electric
Consumption: 2.6 Lt/h at 100% of the load
Length: 1600 mm
Width: 870 mm
Height: 875 mm
Weight: 250 Kg
Compound
- Phase
- Three phase
- Maximum power three phase (KW)
- 7.47
- Continuous power three phase (KW)
- 6.81
- Maximum power three phase (KVA)
- 9.34
- Continuous power three phase (KVA)
- 8.51
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 400
- Sockets configuration
- 1 x 400V 32A 3P+N+T CEE
- Emissions Regulations
- Stage 5
- Speed governor
- Mechanical
- Starting system
- Electric
- Engine capacity (cm³)
- 1116
- Number cylinders
- 3
- Cylinders' position
- In line
- Oil capacity (L)
- 3.5
- Cooling
- Water
- Alternator
- Linz E1S13SB , with brushes
- Poles
- 4
- Fuel tank capacity (L)
- 51
- Consumption (L/h)
- 2 at 75% of the load / 2.6 at 100% of the load
- Running time (h)
- 25.6 at 75% of the load / 19.2 at 100% of the load
- Length (mm)
- 1600
- Width (mm)
- 870
- Height (mm)
- 875
- Dry weight (Kg)
- 250
- Silenced
- No
- Super silenced
- No
- Product type
- Generator
- ATS Switch device
- Optional ATS
- Voltage regulator
- Compound
- Engine manufacturer
- Yanmar
- Brand
-
