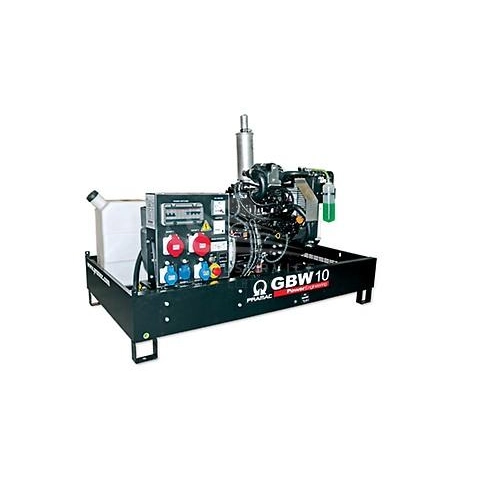

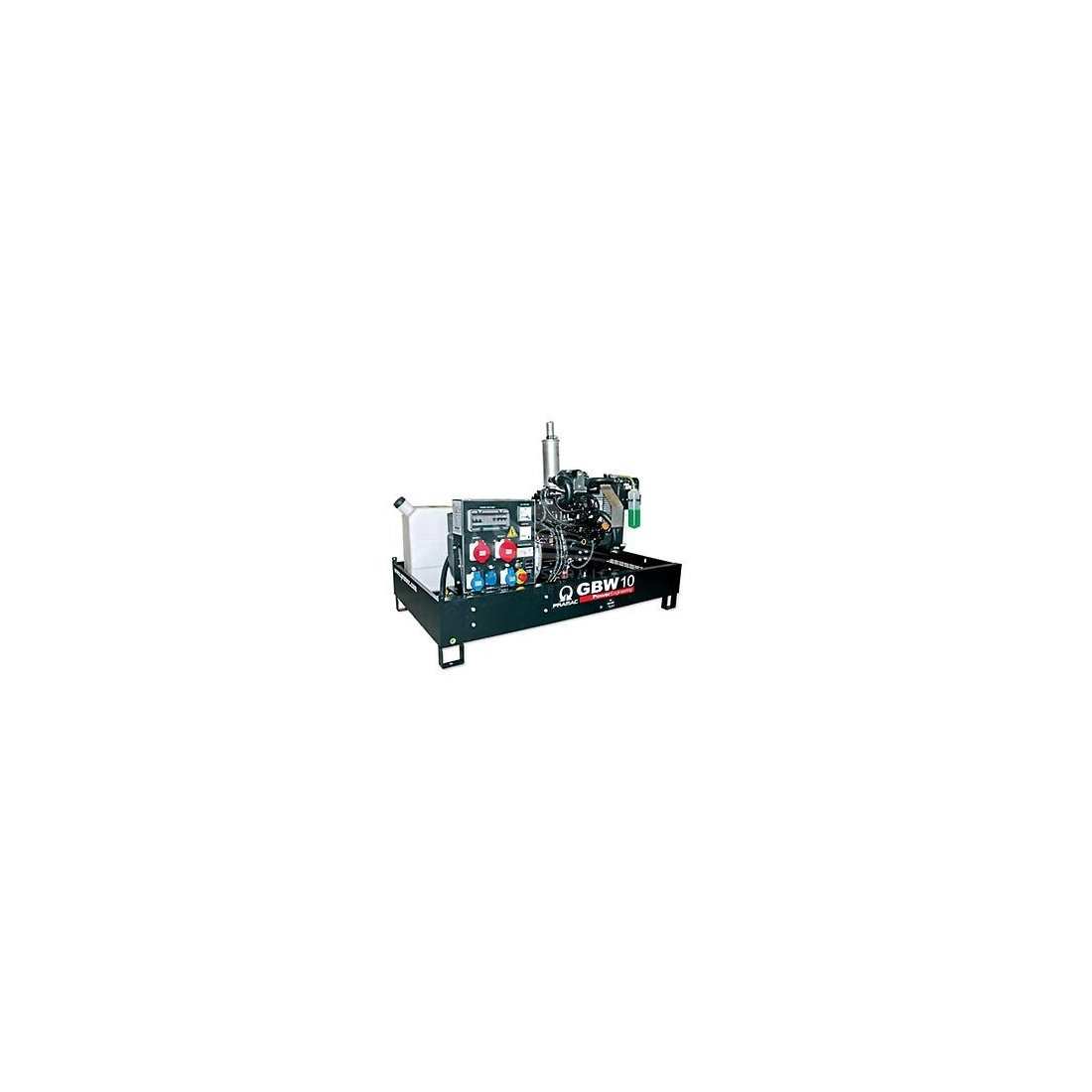

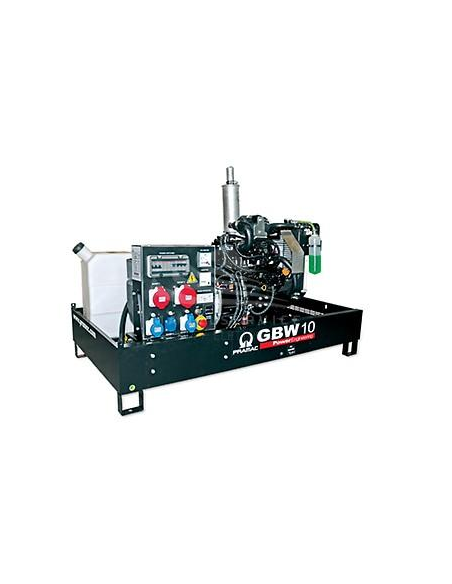

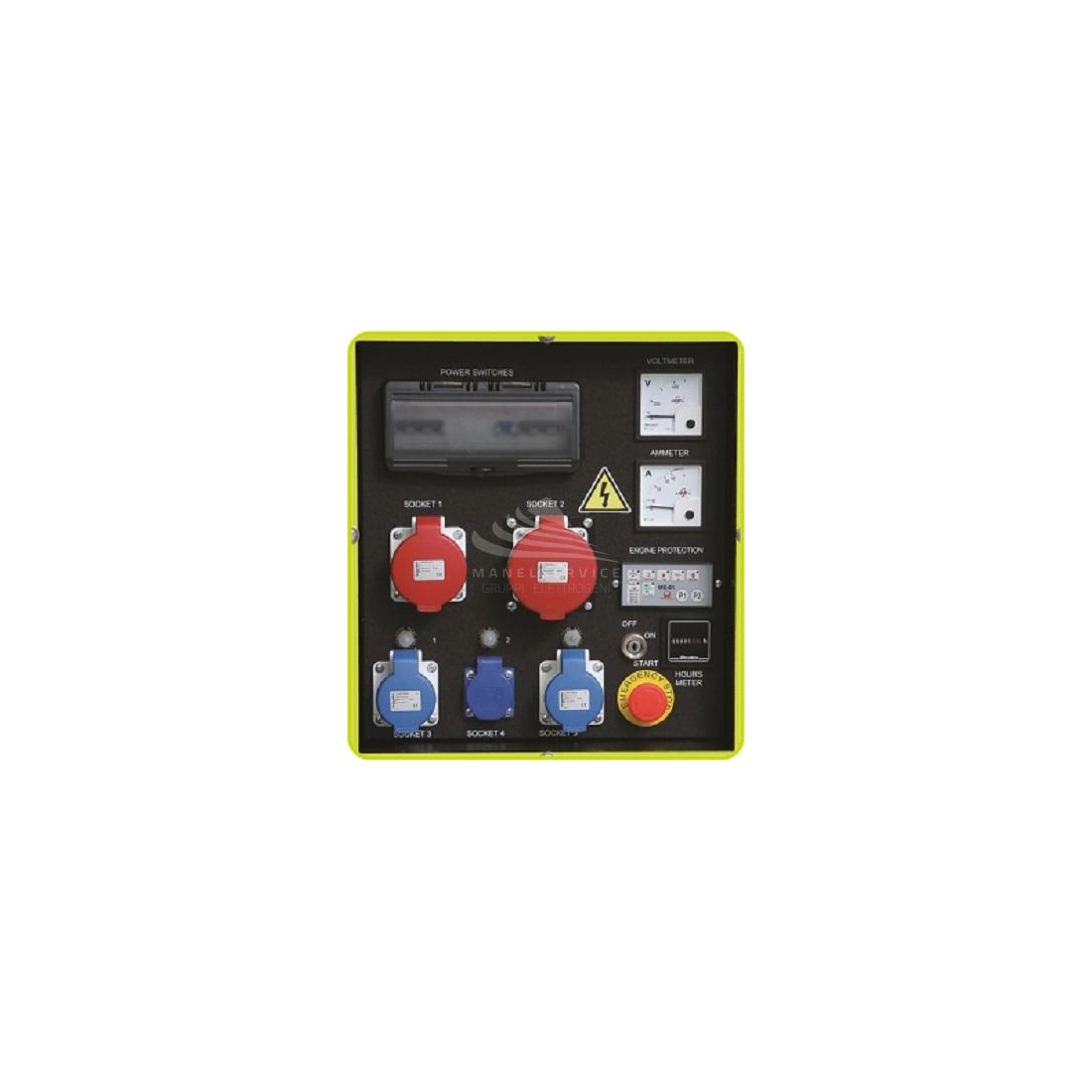

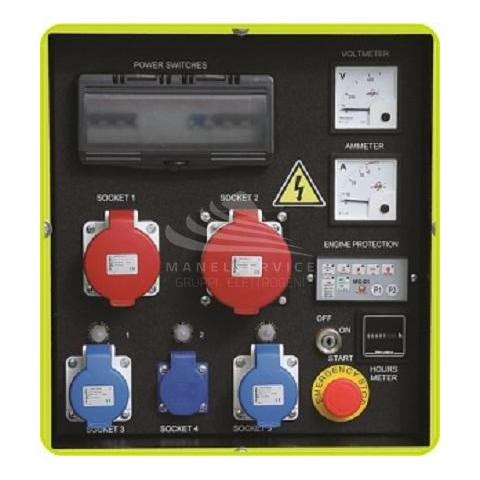

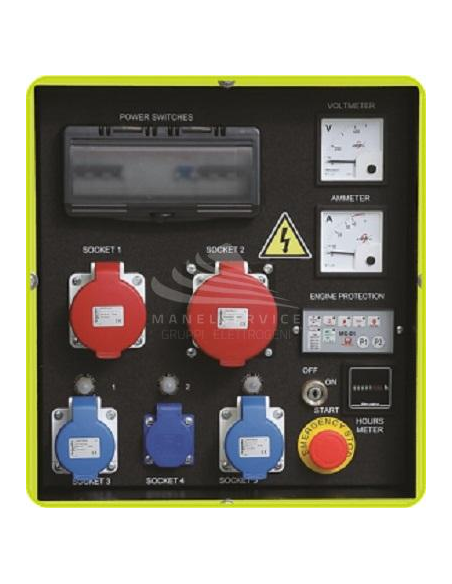

PRAMAC GBW22P OPEN WITH MANUAL CONTROL PANEL (MCP)

Name: PRAMAC GBW22P OPEN WITH MANUAL CONTROL PANEL (MCP)
Brand: PRAMAC
SKU: SH200TPAL00 /

Reference SH200TPAL00 /

OUT OF PRODUCTION

Maximum power Three-phase: 17.46 KW
Three-phase continuous use power: 15.82 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Perkins 404D-22G STAGE III A
Starting: Electric
Consumption: 5.3 Lt/h at 100% of the load
Length: 1600 mm
Width: 870 mm
Height: 950 mm
Weight: 425 Kg
Compound

Download Scheda tecnica GBW22P APERTO Download Technical data GBW22P OPEN

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 17.46
Continuous power three phase (KW): 15.42
Maximum power three phase (KVA): 21.82
Continuous power three phase (KVA): 19.78
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Sockets configuration: 1 x 400V 32A 3P+N+T CEE - 1 x 400V 16A 3P+N+T CEE - 2 x 230V 16A 2P+T CEE - 1 x 230V 16A SCHUKO
Engine: PERKINS 404D-22G, naturally aspirated
Emissions Regulations: Stage 3A
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 2216
Number cylinders: 4
Cylinders' position: In line
Oil capacity (L): 10.6
Cooling: Water
Fuel tank capacity (L): 51
Consumption (L/h): 4 at 75% of the load / 5.3 at 100% of the load
Running time (h): 12.8 at 75% of the load / 9.7 at 100% of the load
Length (mm): 1600
Width (mm): 870
Height (mm): 950
Dry weight (Kg): 425
Silenced: No
Super silenced: No
Product type: Generator
ATS Switch device: No ATS
Voltage regulator: Compound
Engine manufacturer: Perkins
