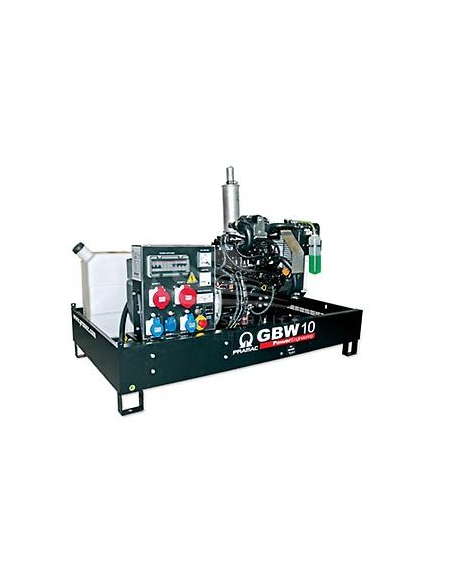

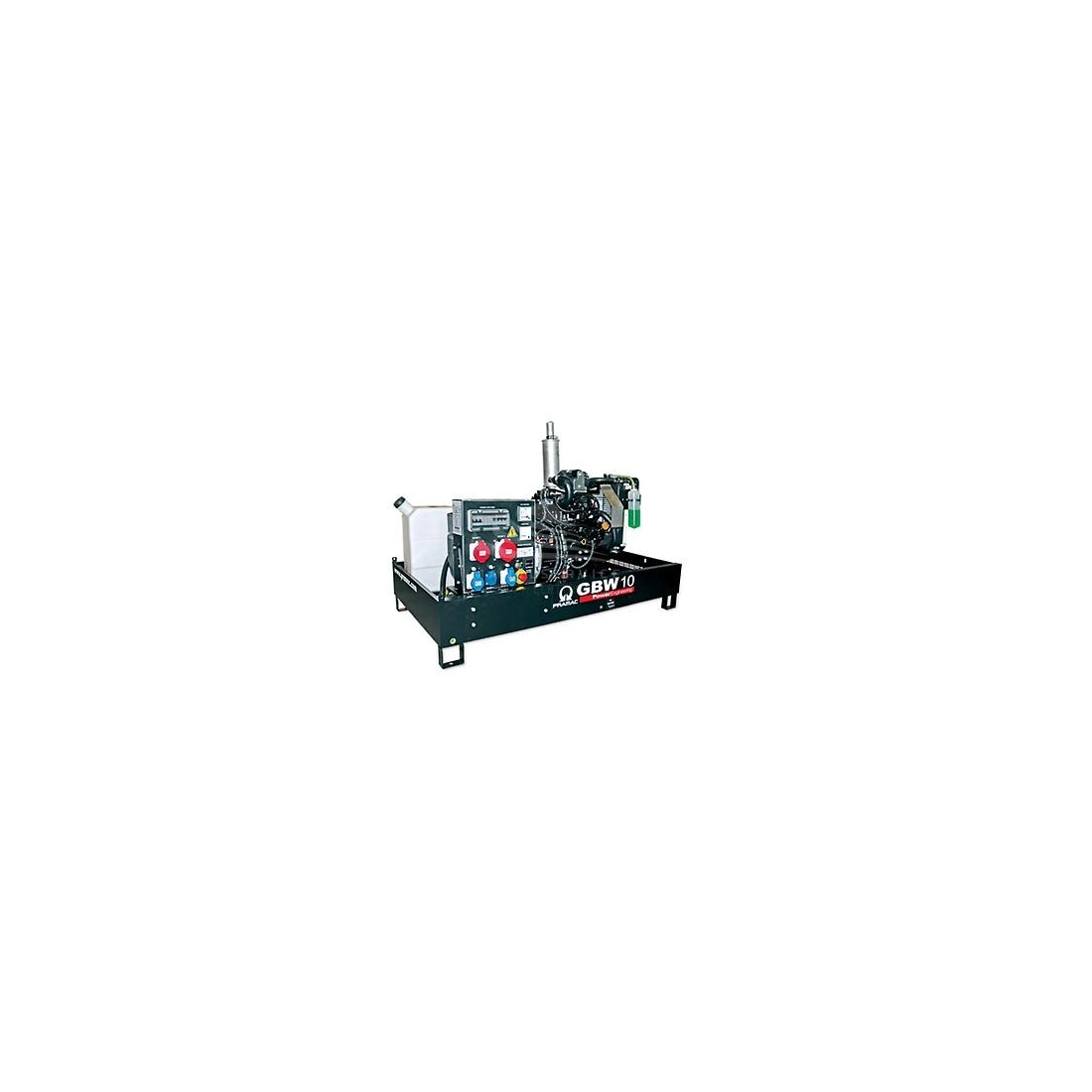

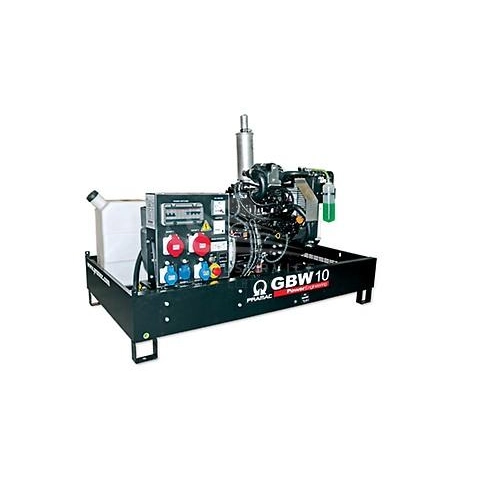

PRAMAC GBW22Y APERTO CON QUADRO COMANDO MANUALE

Name: PRAMAC GBW22Y APERTO CON QUADRO COMANDO MANUALE
Brand: PRAMAC
SKU: SH200TYAJ00 /

Reference SH200TYAJ00 /

OUT OF PRODUCTION

Maximum power Three-phase: 15.48 KW
Three-phase continuous use power: 14.1 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Yanmar 4TNV98-IGPGE
STAGE III A
Starting: Electric
Consumption: 5 Lt/h at 100% of the load
Length: 1600 mm
Width: 870 mm
Height: 1000 mm
Weight: 507 Kg
Compound

Download Scheda tecnica GBW22Y APERTO Download Technical data GBW22Y OPEN Download Disegno installazione GBW22Y

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 15.48
Continuous power three phase (KW): 14.1
Maximum power three phase (KVA): 19.35
Continuous power three phase (KVA): 17.63
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400

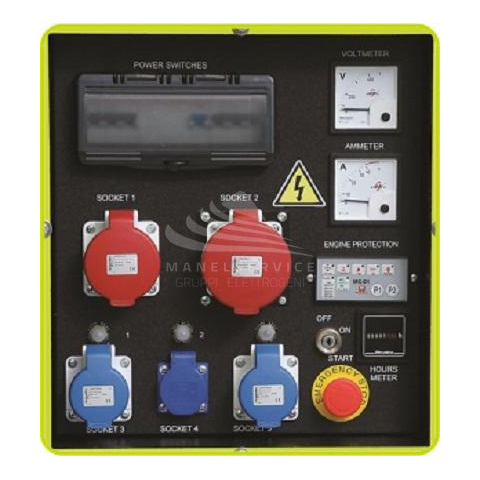

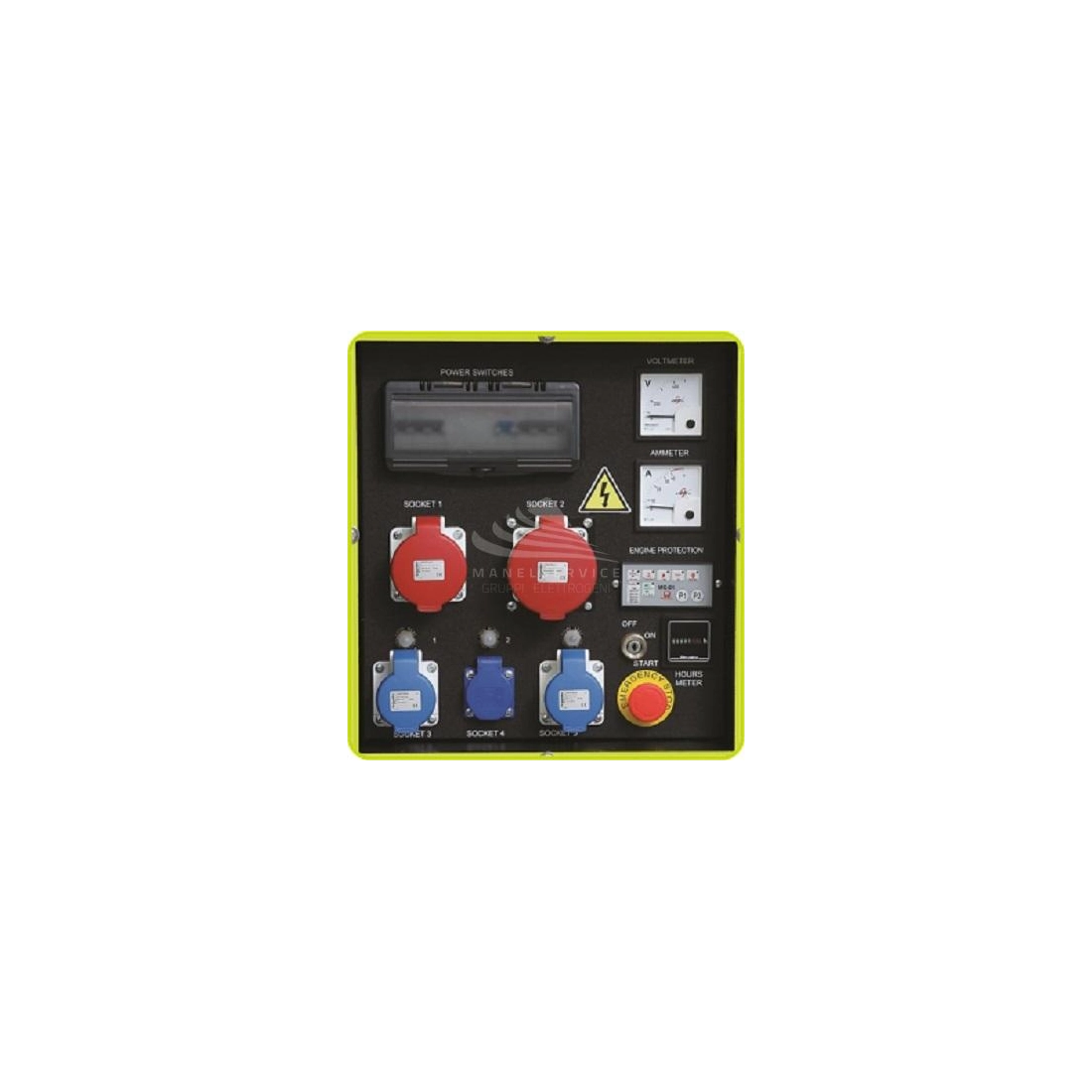

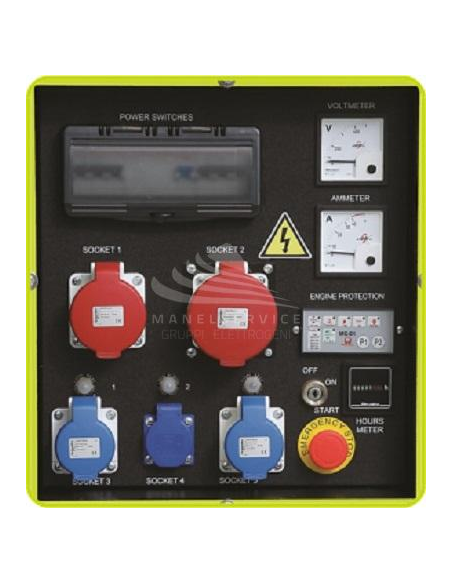

Sockets configuration: 1 x 400V 32A 3P+N+T CEE - 1 x 400V 16A 3P+N+T CEE - 2 x 230V 16A 2P+T CEE - 1 x 230V 16A SCHUKO
Emissions Regulations: Stage 5
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 2190
Number cylinders: 4
Cylinders' position: In line
Oil capacity (L): 7.4
Cooling: Water
Alternator: Linz E1S13MF, with brushes
Poles: 4
Fuel tank capacity (L): 51
Consumption (L/h): 3.8 at 75% of the load / 5 at 100% of the load
Running time (h): 13.4 at 75% of the load / 10.1 at 100% of the load
Length (mm): 1600
Width (mm): 870
Height (mm): 1000
Dry weight (Kg): 507
Silenced: No
Super silenced: No
Product type: Generator
ATS Switch device: No ATS
Voltage regulator: Compound
Engine manufacturer: Yanmar
