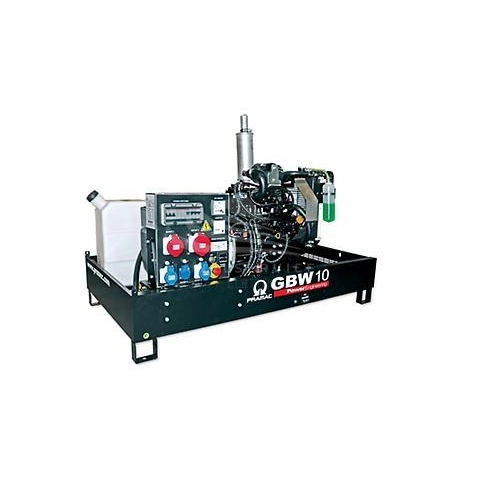

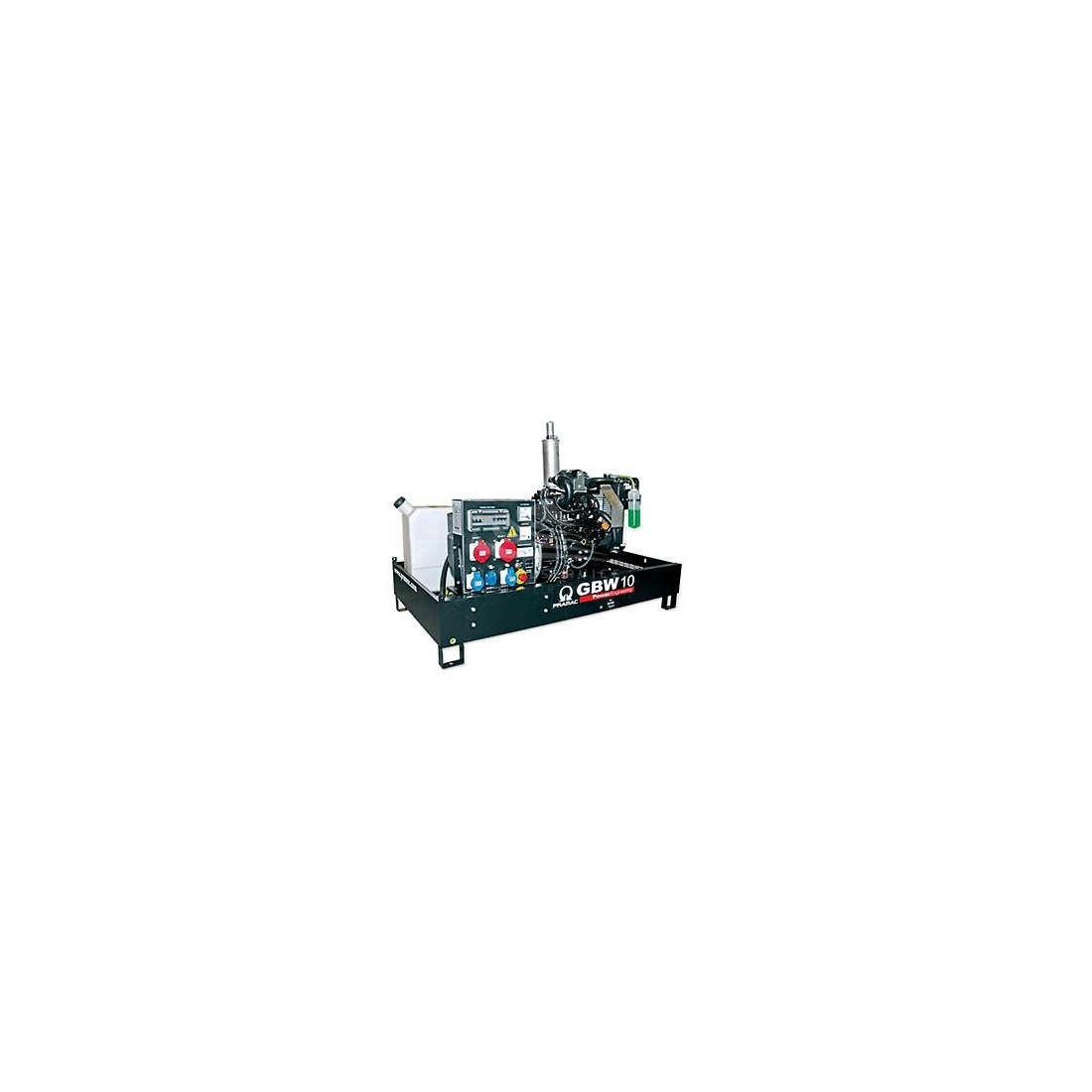

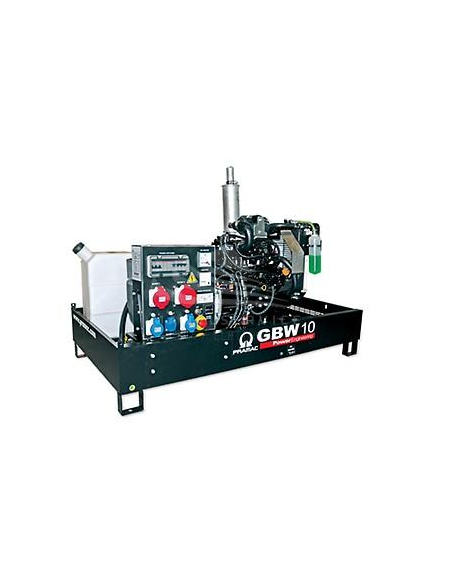

PRAMAC GBW30P APERTO CON QUADRO COMANDO MANUALE (MCP)

Name: PRAMAC GBW30P APERTO CON QUADRO COMANDO MANUALE (MCP)
Brand: PRAMAC
SKU: SH260TPAI00 /

Reference SH260TPAI00 /

OUT OF PRODUCTION

Maximum power Three-phase: 26 KW
Three-phase continuous use power: 24.4 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Perkins 1103A-33G
Starting: Electric
Consumption: 7.1 Lt/h at 100% of the load
Length: 2000 mm
Width: 920 mm
Height: 1100 mm
Weight: 700 Kg
AVR

Download Scheda tecnica GBW30P APERTO Download Technical data GBW30P OPEN

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 26
Continuous power three phase (KW): 24.4
Maximum power three phase (KVA): 32.5
Continuous power three phase (KVA): 30.5
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Sockets configuration: 1 x 400V 32A 3P+N+T CEE - 1 x 400V 16A 3P+N+T CEE - 2 x 230V 16A 2P+T CEE - 1 x 230V 16A SCHUKO
Emissions Regulations: Stationary Use
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 3300
Number cylinders: 3
Cylinders' position: In line
Oil capacity (L): 8.3
Cooling: Water
Alternator: Mecc Alte ECP28-VL/4, brushless
Poles: 4
Fuel tank capacity (L): 51
Consumption (L/h): 5.4 at 75% of the load / 7.1 at 100% of the load
Running time (h): 9.4 at 75% of the load / 7.2 at 100% of the load
Length (mm): 2000
Width (mm): 920
Height (mm): 1100
Dry weight (Kg): 700
Silenced: No
Super silenced: No
Product type: Generator
ATS Switch device: No ATS
Voltage regulator: AVR
Engine manufacturer: Perkins
