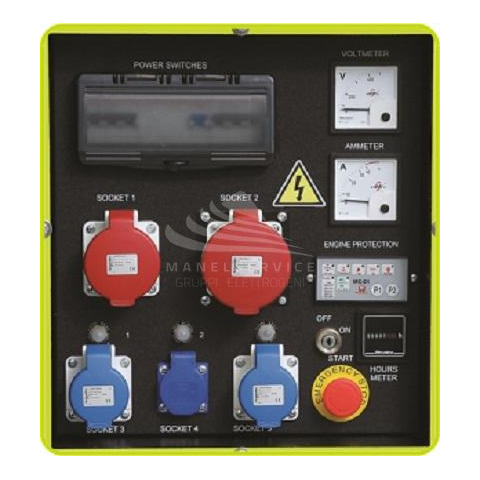

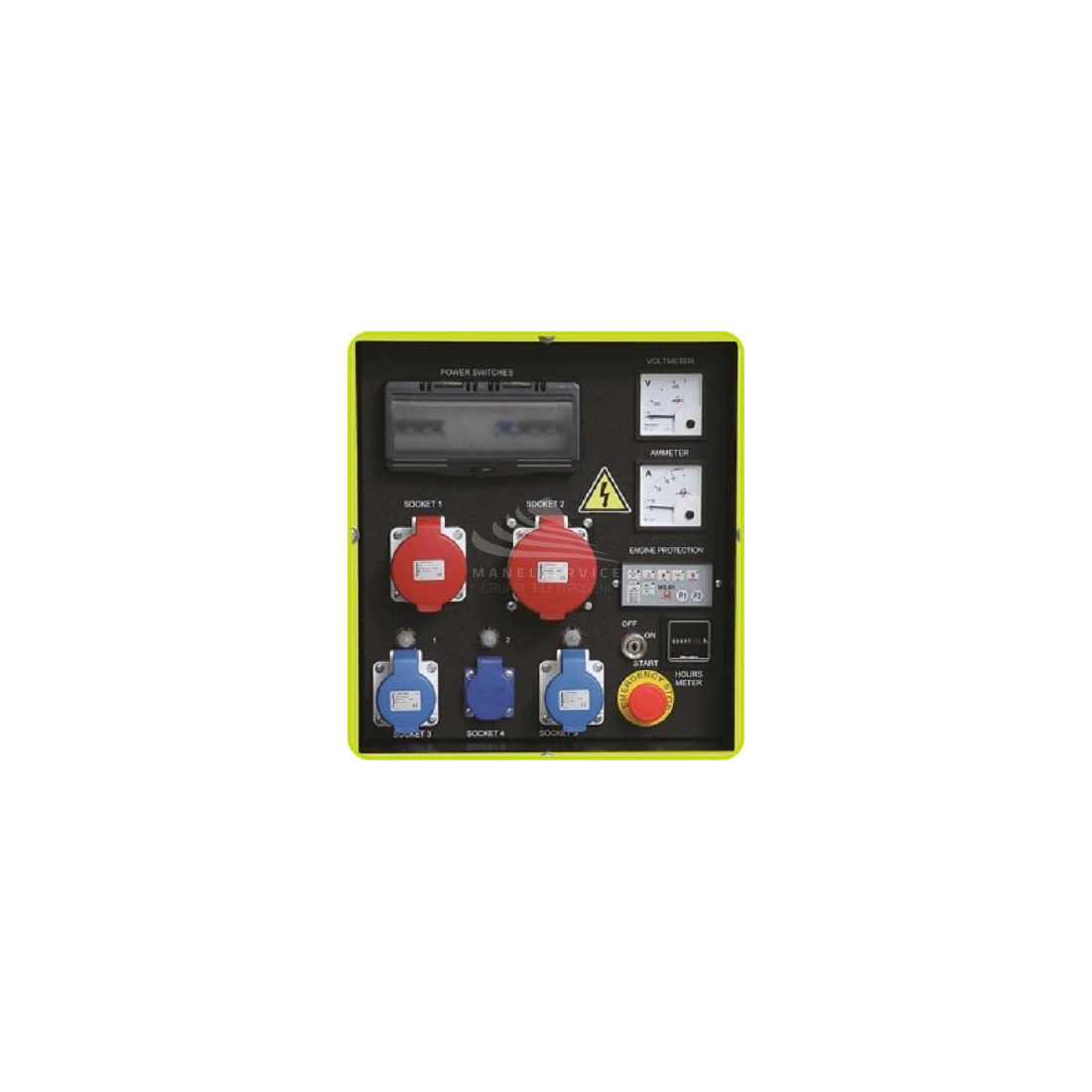

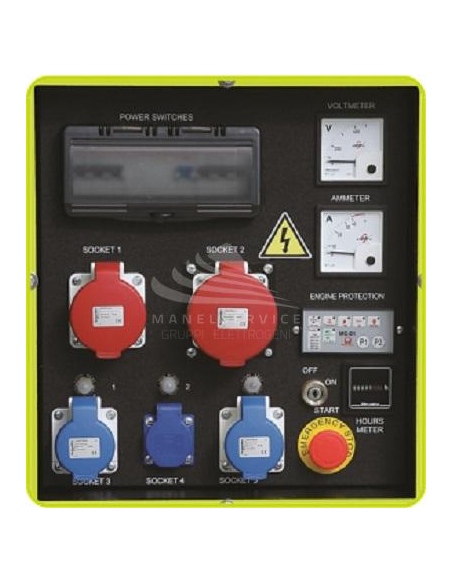

PRAMAC GBW45Y APERTO CON QUADRO COMANDO MANUALE (MCP)

Name: PRAMAC GBW45Y APERTO CON QUADRO COMANDO MANUALE (MCP)
Brand: PRAMAC
SKU: SH450TYAI00 /

Reference SH450TYAI00 /

OUT OF PRODUCTION

Maximum power Three-phase: 36.68 KW
Power continuous use Three-phase: 34.82 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Yanmar 4TNV98T-GPGE STAGE II
Starting: Electric
Consumption: 10.9 Lt/h at 100% of the load
Length: 2000 mm
Width: 920 mm
Height: 1100 mm
Weight: 611 Kg
AVR

Download Scheda tecnica GBW45Y APERTO Download Technical data GBW45Y OPEN Download Disegno installazione GBW45Y

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 36.68
Continuous power three phase (KW): 34.82
Maximum power three phase (KVA): 45.85
Continuous power three phase (KVA): 43.52
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Sockets configuration: 1 x 400V 32A 3P+N+T CEE - 1 x 400V 16A 3P+N+T CEE - 2 x 230V 16A 2P+T CEE - 1 x 230V 16A SCHUKO
Engine: Yanmar 4TNV98T-GPGE, turbocharged
Emissions Regulations: Stage 2
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 3319
Number cylinders: 4
Cylinders' position: In line
Oil capacity (L): 10.5
Cooling: Water
Alternator: Mecc Alte ECO/P32-3S/4, brushless
Poles: 4
Fuel tank capacity (L): 51
Consumption (L/h): 8.2 at 75% of the load / 10.9 at 100% of the load
Running time (h): 6.2 at 75% of the load / 4.7 at 100% of the load
Length (mm): 2000
Width (mm): 920
Height (mm): 1100
Dry weight (Kg): 611
Silenced: No
Super silenced: No
Product type: Generator
ATS Switch device: No ATS
Voltage regulator: AVR
Engine manufacturer: Yanmar
