PRAMAC GSL65D

Name: PRAMAC GSL65D
Brand: PRAMAC
SKU: SG610TDAU00 /

Reference SG610TDAU00 /

OUT OF PRODUCTION

Maximum power Three-phase: 51.47 KW
Three-phase continuous use power: 48.76 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Deutz BF4M2011C Stage II
Starting: Electric
Consumption: 14.7 Lt/h at 100% of the load
Length: 2200 mm
Width: 1000 mm
Height: 1620 mm
Weight: 954 Kg
AVR

Download Scheda Tecnica GSL65D

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 51.47
Continuous power three phase (KW): 48.76
Maximum power three phase (KVA): 64.34
Continuous power three phase (KVA): 60.95
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Emissions Regulations: Stationary Use
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 5650
Number cylinders: 6
Cylinders' position: In line
Oil capacity (L): 13.5
Cooling: Air
Alternator: Mecc Alte ECO/P32-2L/4, brushless
Poles: 4
Fuel tank capacity (L): 240
Consumption (L/h): 10.7 at 75% of the load / 14.7 at 100% of the load
Running time (h): 22.4 at 75% of the load / 16.3 at 100% of the load
Length (mm): 2200
Width (mm): 1000
Height (mm): 1620
Dry weight (Kg): 954
Inverter: No
AVR: Yes
Compound: No
Silenced: No
Super silenced: No

Brand

Compliance with Directive 2000/14/EC on environmental noise emissions and the high level of safety, which minimizes the danger of unauthorized use or accidental damage, make this series of generators suitable for all industrial and residential applications.

DEUTZ diesel engines (prepared for BIODIESEL)
? Oil cooling with radiator
? MECCALTE electronic control alternators
? Galvanized casing with residential muffler
? Lifting hook and forklift base with trolleys
? Motor fluids and charged battery
? Oil extraction piping

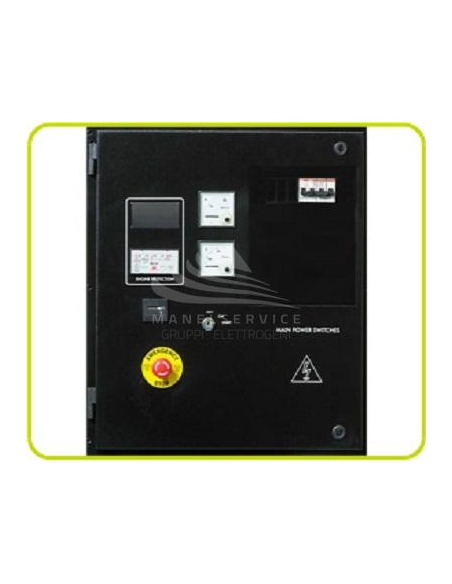

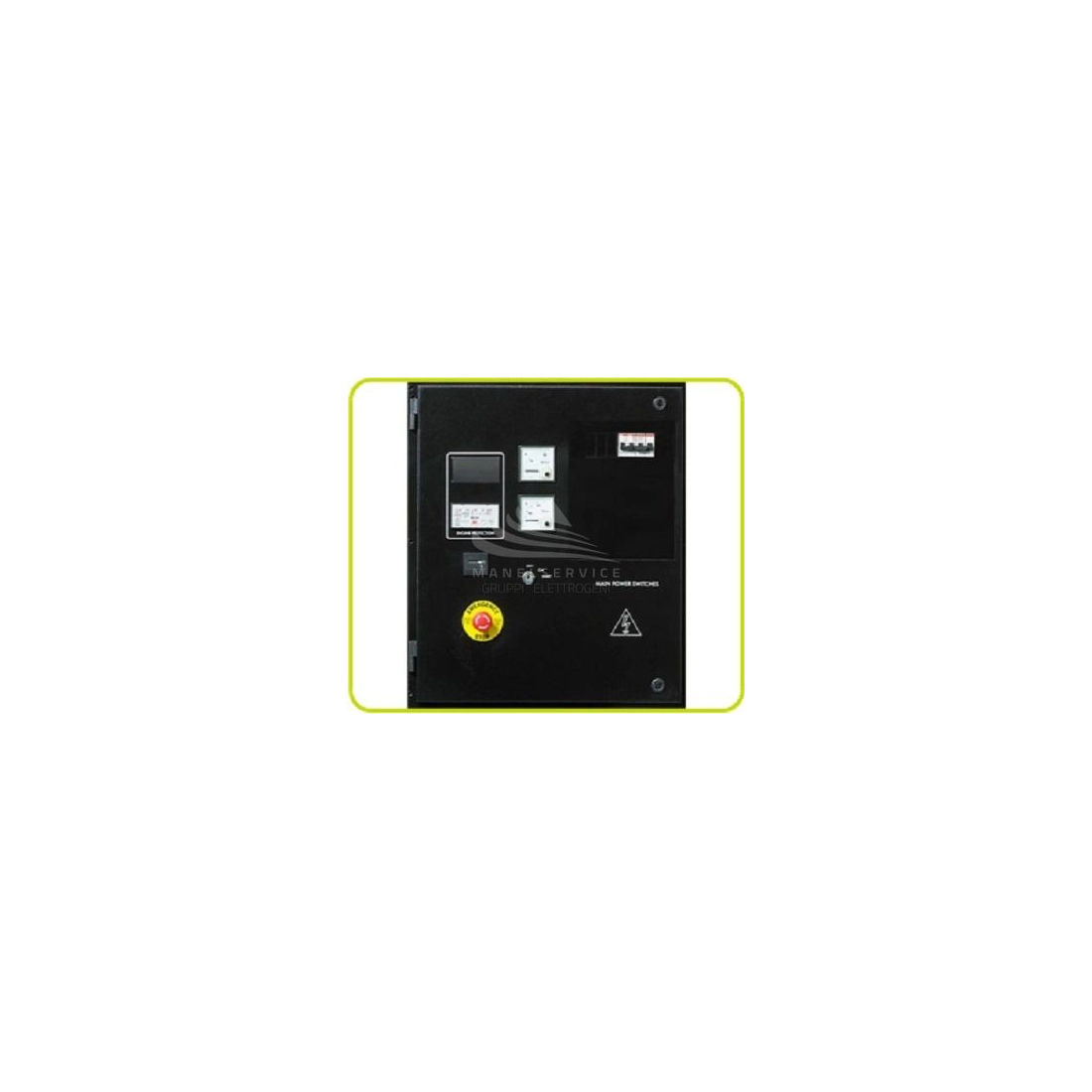

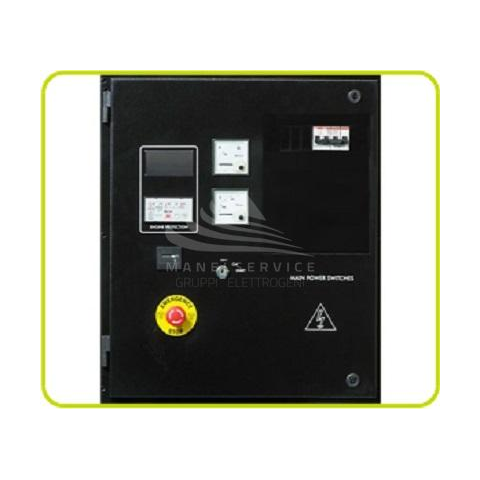

? MCP cabinet with 4 service sockets (GSL65 optional)
? ETB terminal block power connection GSL65
? KPR Dispersed liquid collection basin (std ACP)

The images are purely indicative.
