HYUNDAI DHY9K(S)Em COD. 65500SIL
65500SIL
Maximum power Single-phase: 8.8 KVA
Single-phase continuous power: 8 KVA
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz
Motor: HY380
Starting: Electric
Consumption: 3.5 Lt/h at 100% load
Length: 1500 mm
Width: 760 mm
Height: 1090 mm
Weight: 480 Kg
AVR
- Phase
- Single phase
- Maximum power single phase (KW)
- 8.8
- Continuous power single phase (KW)
- 8
- Maximum power single phase (KVA)
- 8.8
- Continuous power single phase (KVA)
- 8
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 230
- Engine
- HY380
- Engine rpm (rpm)
- 1500
- Starting system
- Electric
- Engine capacity (cm³)
- 1357
- Number cylinders
- 3
- Oil capacity (L)
- 10
- Cooling
- Coolant Liquid
- Alternator
- 164C
- Brand
-

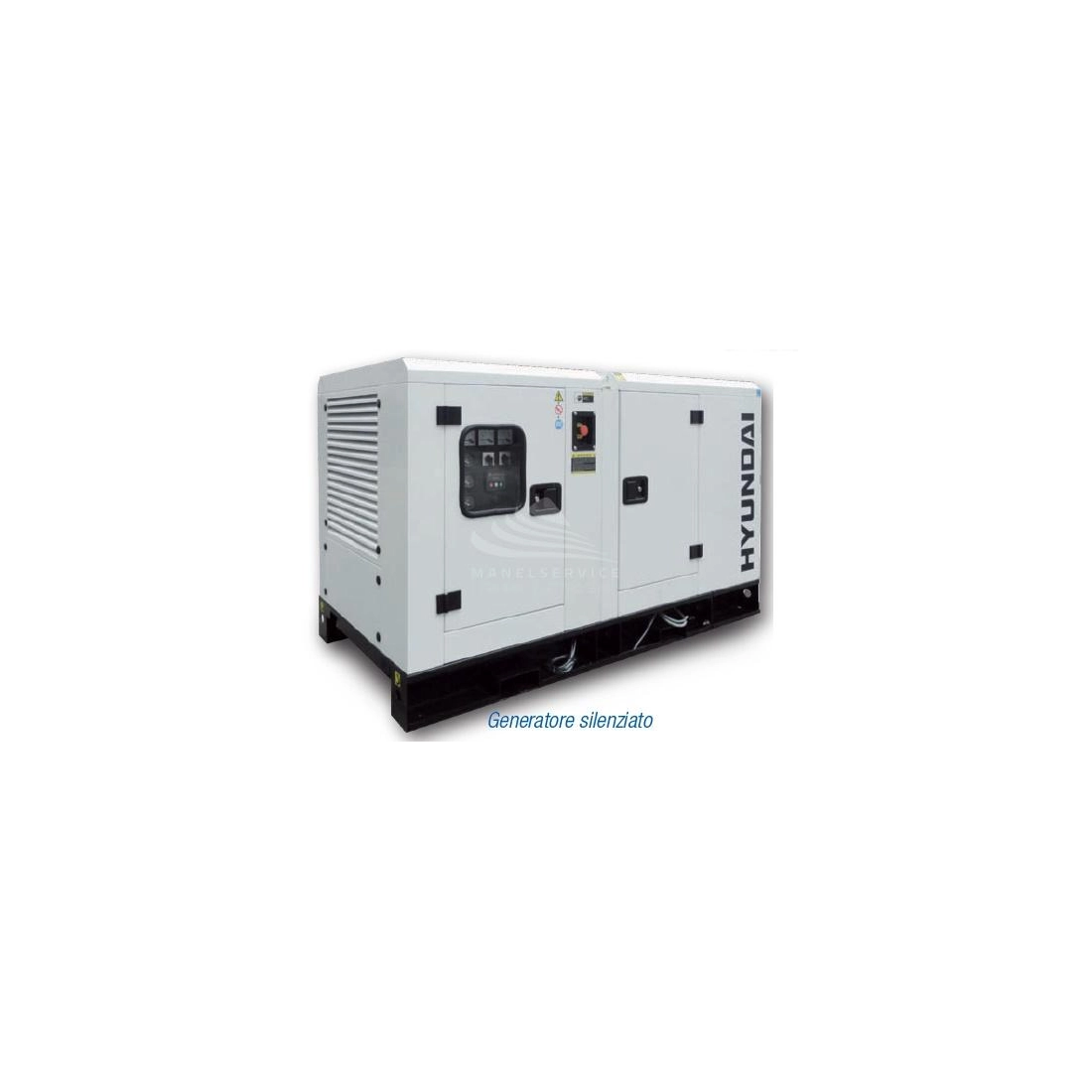

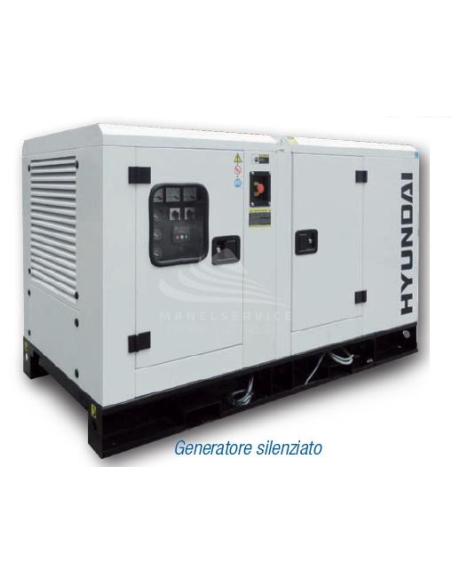

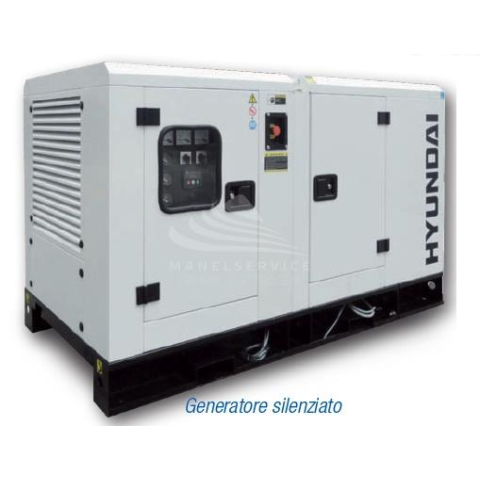

Single-phase 8.8 KW generator set with AVR voltage regulator.
The brushless AVR regulator is installed on the entire range of Hyundai generators. The copper coils provide optimum voltage control and are impregnated with special resins to withstand harsh, humid and hot environments.
Main features
- Galvanised and painted steel body for protection against oxidation
- Digital control and programming panel
- Emergency shutdown buttons (external and positioned on the control panel)
- AVR regulator
- IP67 single-phase socket connection
- External fuel filler port
- Large doors for easy access and maintenance
- Fuel tank integrated in the chassis (depending on model)
- Liquid drain valve
- Forklift access
- Robust lifting rings
- Liquid drain valve
- Steel inlet and outlet hoses and silicone sleeves
Instrumentation and controls
The digital control panel provides intuitive and easy access to all functions, even for inexperienced users. The control screen shows in the foreground all the values required for the unit's configuration parameters and authorises remote operation via a USB connection.
The image is purely indicative.
