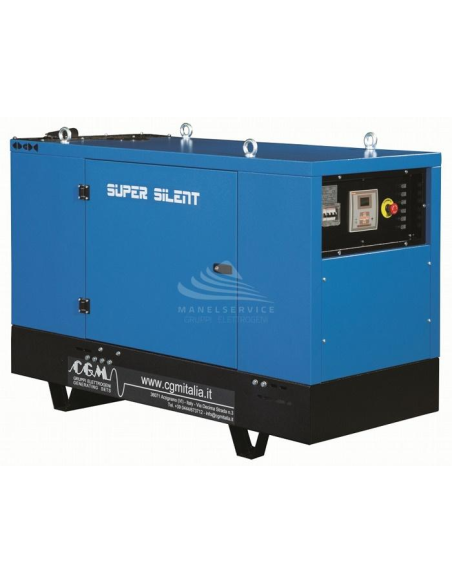

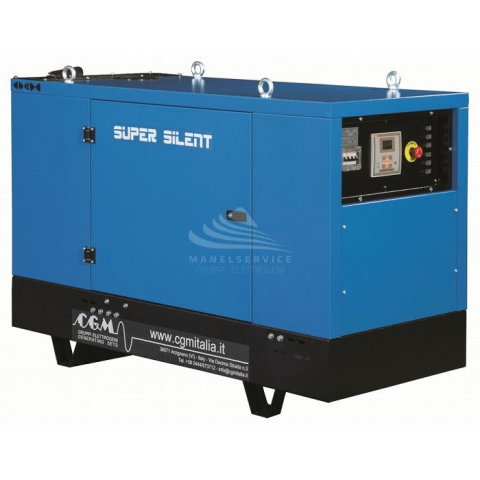

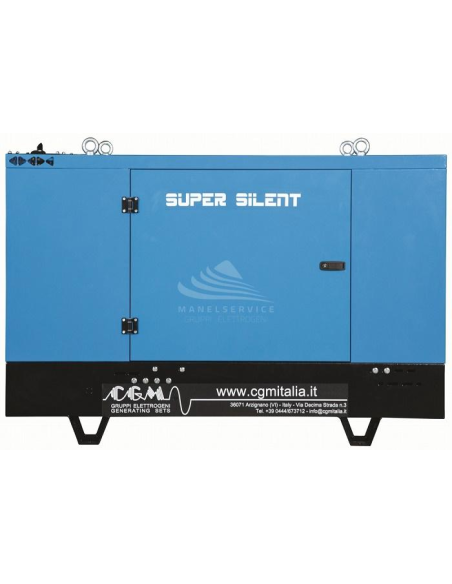

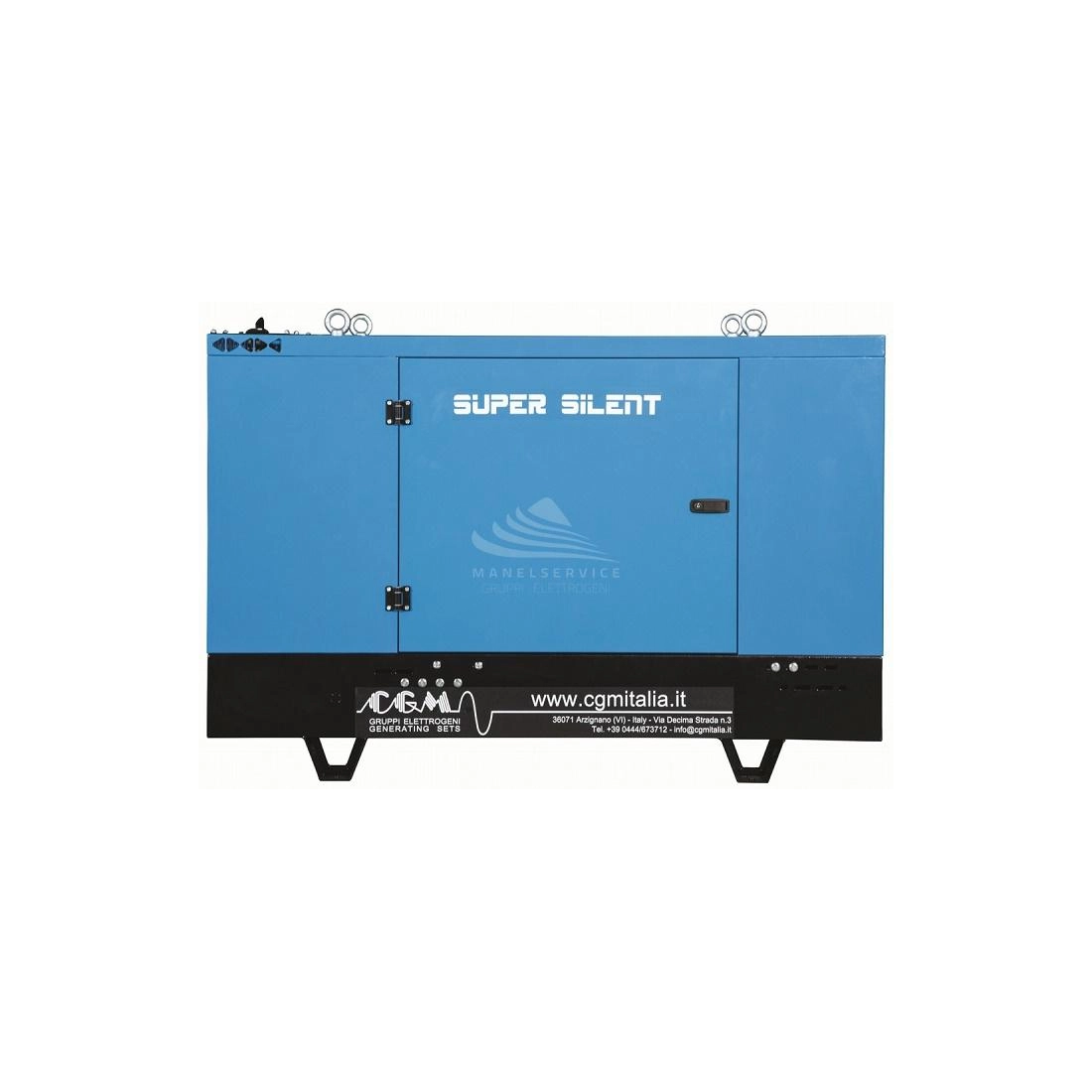

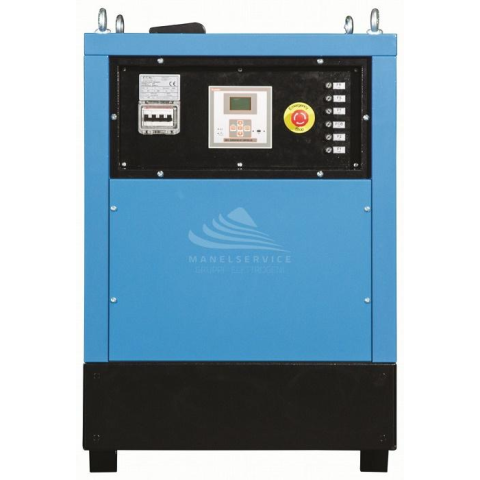

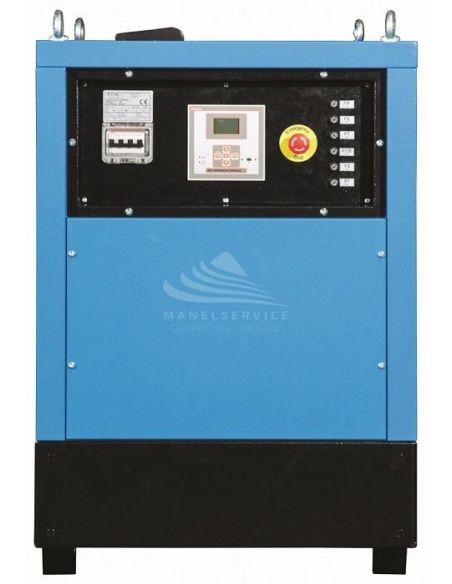

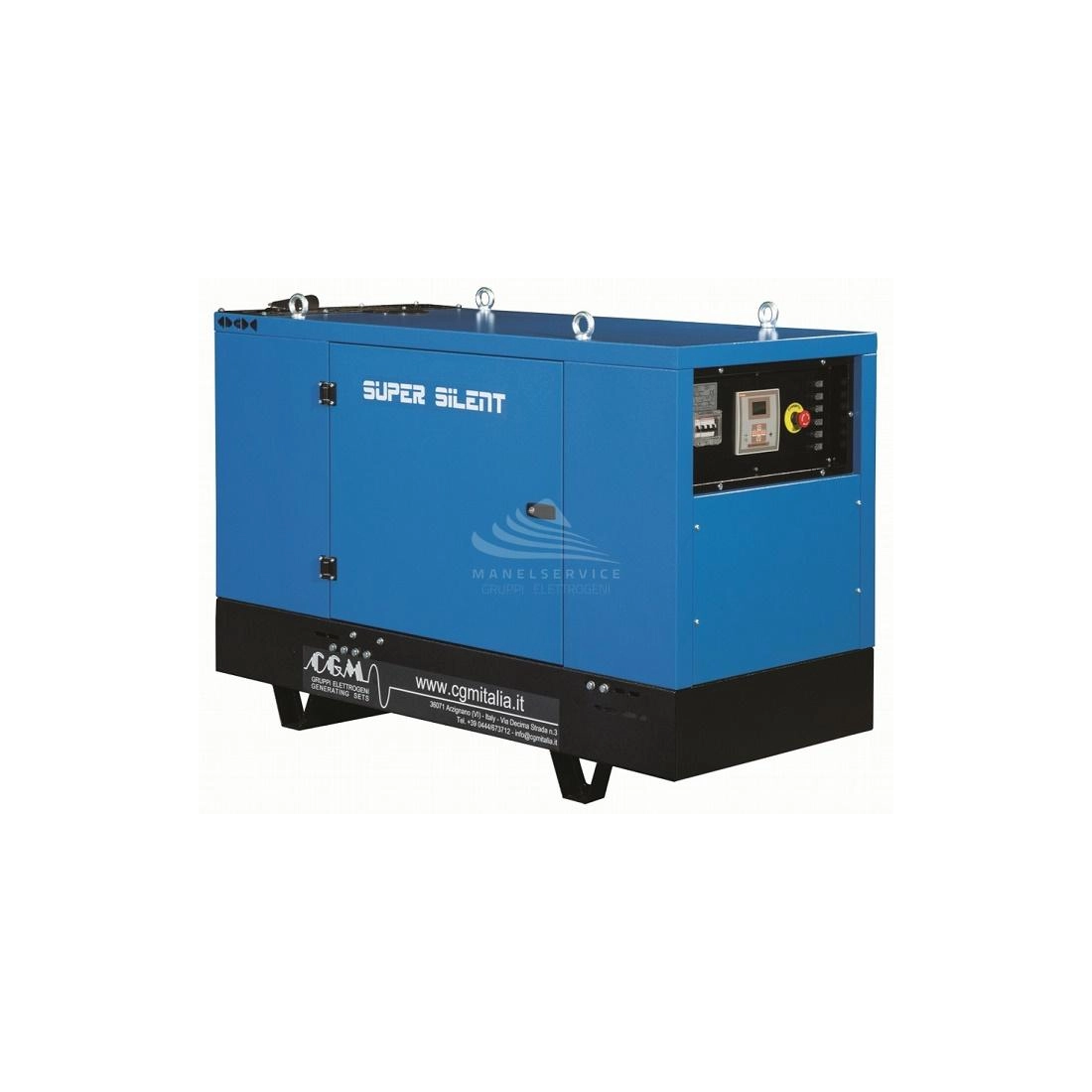

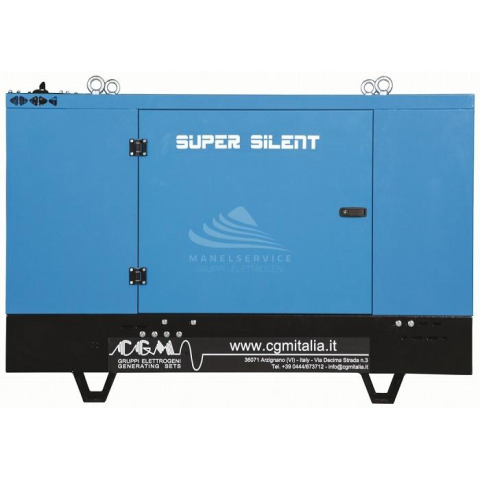

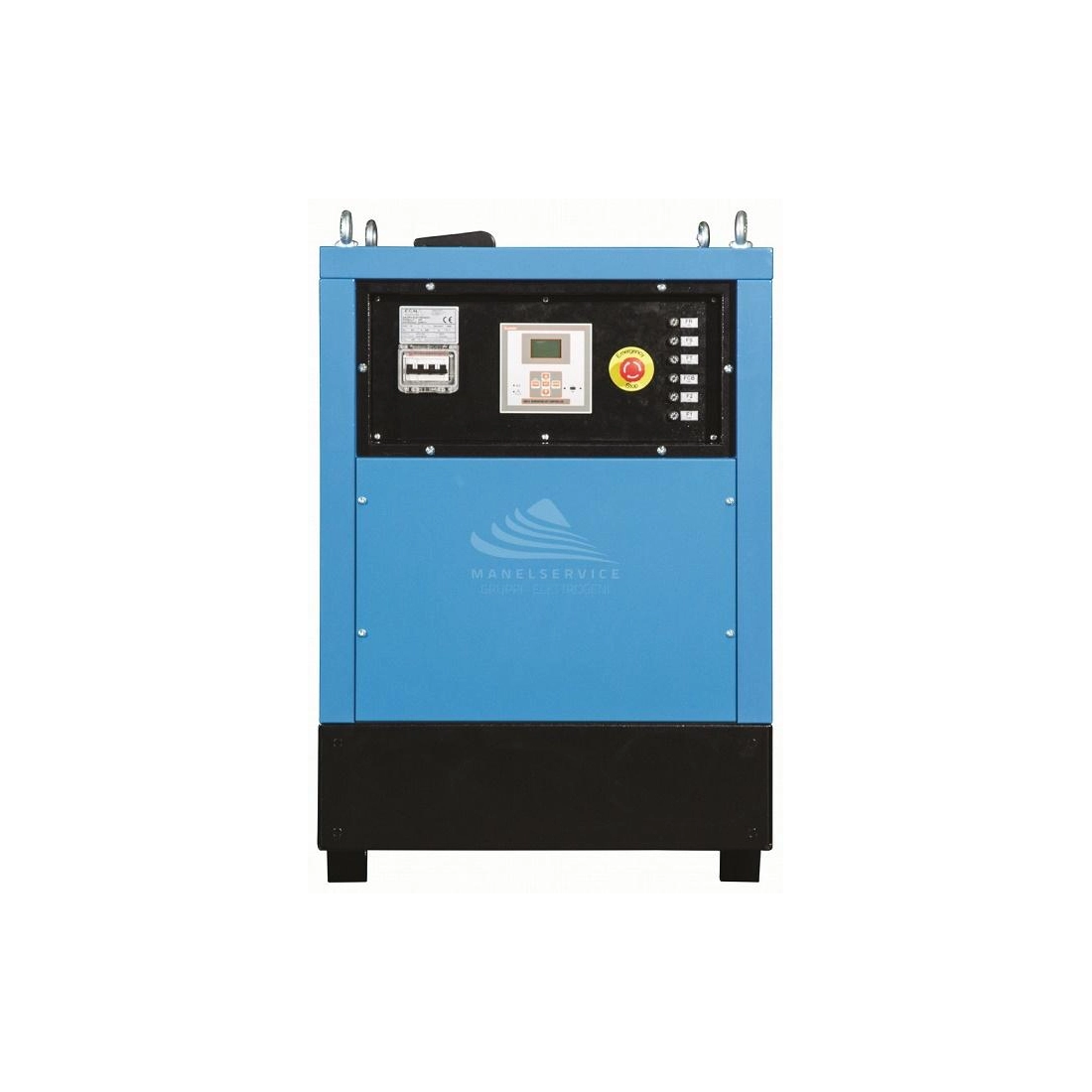

CGM 10DW - BOXED WITH AUTOMATIC CONTROL UNIT

Name: CGM 10DW - BOXED WITH AUTOMATIC CONTROL UNIT
Brand: CGM
SKU: CGM 10DW COFANATO AUTOMATICO /

CGM 25NG GAS METANO - APERTO CON CENTRALINA MANUALE

Reference CGM 10DW COFANATO AUTOMATICO /

PRODUCT DISCONTINUED

Three-phase maximum power: 8.8 KW
Three-phase continuous power: 8 KW
Three-phase maximum power: 11 KVA
Three-phase continuous power: 10 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Electrical protection: IP44
Engine: LOMBARDINI LDW 702
Displacement: 686 cc
Engine speed: 3000 rpm
Bore x stroke: 75 x 77.6 mm
Aspiration: Natural
Speed governor: Mechanical
Number and arrangement of cylinders: 2 in-line
Cooling system: Water
Starting system: Electric
Alternator: Linz, with brushes
Poles: 2
Voltage regulator system: Compound
Fuel consumption: 2.9 L/h at 75% load
Tank capacity: 50 L
Autonomy: 17.2 h at 75% load
Sound pressure level: 70 dB(A) at 7 m
Length: 1600 mm
Width: 700 mm
Height: 1050 mm
Weight: 290 Kg

Download Technical data sheet CGM 10DW

Product Details
Description

Phase: Single phase / Three phase
Maximum power three phase (KW): 8.8
Continuous power three phase (KW): 8
Maximum power three phase (KVA): 11
Continuous power three phase (KVA): 10
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine: Lombardini LDW702
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 686
Number cylinders: 2
Cylinders' position: In line
Cooling: Water
Alternator: With brushes
Poles: 2
Bore x stroke (mm): 75 x 77.6
Fuel tank capacity (L): 50
Consumption (L/h): 2.9 at 75% of the load
Running time (h): 17.2
Length (mm): 1600
Width (mm): 700
Height (mm): 1050
Dry weight (Kg): 290
Silenced: Yes
Super silenced: Yes
ATS Switch device: Optional ATS
Voltage regulator: Compound
Engine manufacturer: Lombardini

Brand

These generator sets are equipped with Lombardini/Kohler diesel engines with electric start (key and battery).

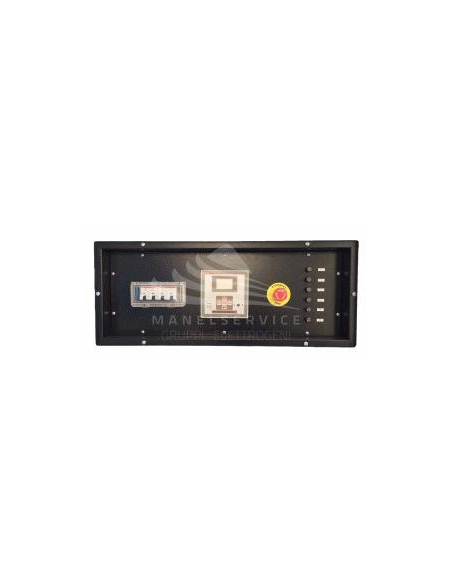

Alternator with 400 Volt three-phase output with accessible neutral or 230 Volt single-phase – 50 Hz, mounted on a base frame. Manual control panel mounted on the unit.

Main applications: isolated houses, campsites, alpine shelters, small construction sites, restaurants, farms, artisan industries, sports centers, service stations, etc.

The 3000 rpm sets are suitable for emergency, non-continuous use; operation for more than 6 consecutive hours and more than 500 hours/year is not recommended.
